XKU304A-TYMMB3 (2006)

Toyota Dyna/Toyoace Hv

Production Oct 2006 - Aug 2009
Engine N04C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0610- )

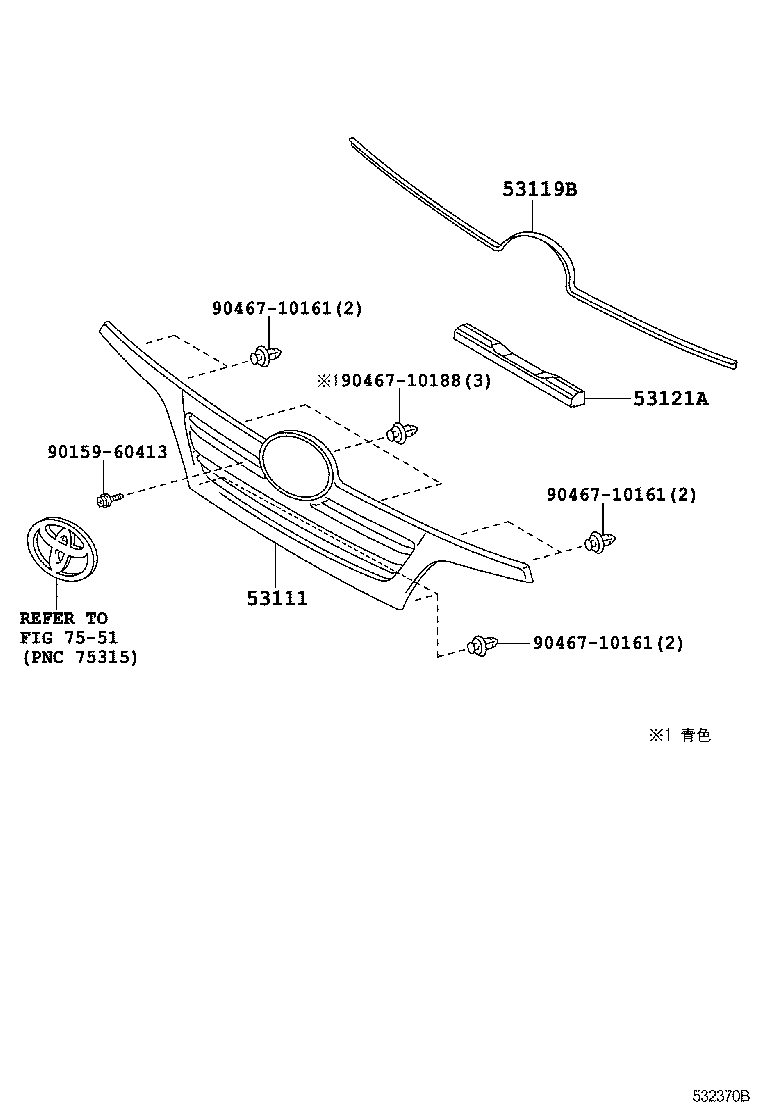

Click highlighted areas on diagram

diagram 53111 53119B 53121A 7551 9015960413 9046710161 9046710161 9046710161 9046710188
Part # Description Qty Price
53111 - GRILLE, RADIATOR
53111-37440

XKU304,344

塗装不要,ｼﾞｭｼ (ﾄｿｳ ﾅｼ)

 1
53111-37450B1

XKU304,344

SILVER ME.,199

 1
53111-37430

XKU304,344

ﾒｯｷ,ﾒｯｷ

 1
53111-37550

XKU304,344

ﾒｯｷ,ﾒﾂｷ(ｺｳｷ ﾀｲﾌﾟ)

 1
53111-37450A0

XKU304,344

WHITE,058

 1
53119B - PROTECTOR, RADIATOR GRILLE
53119-37030

XKU304,344

 1
53119-37060

XKU304,344

ﾒﾂｷ(ｺｳｷ ﾀｲﾌﾟ)

 1
53121A - MOULDING, RADIATOR GRILLE
53121-37020

XKU30#,338,34#,508

 1
Common parts
90159-60413
90467-10161
90467-10188
Linked diagrams
7551
