XKU304A-TYMMB3 (2006)
Toyota Dyna/Toyoace Hv

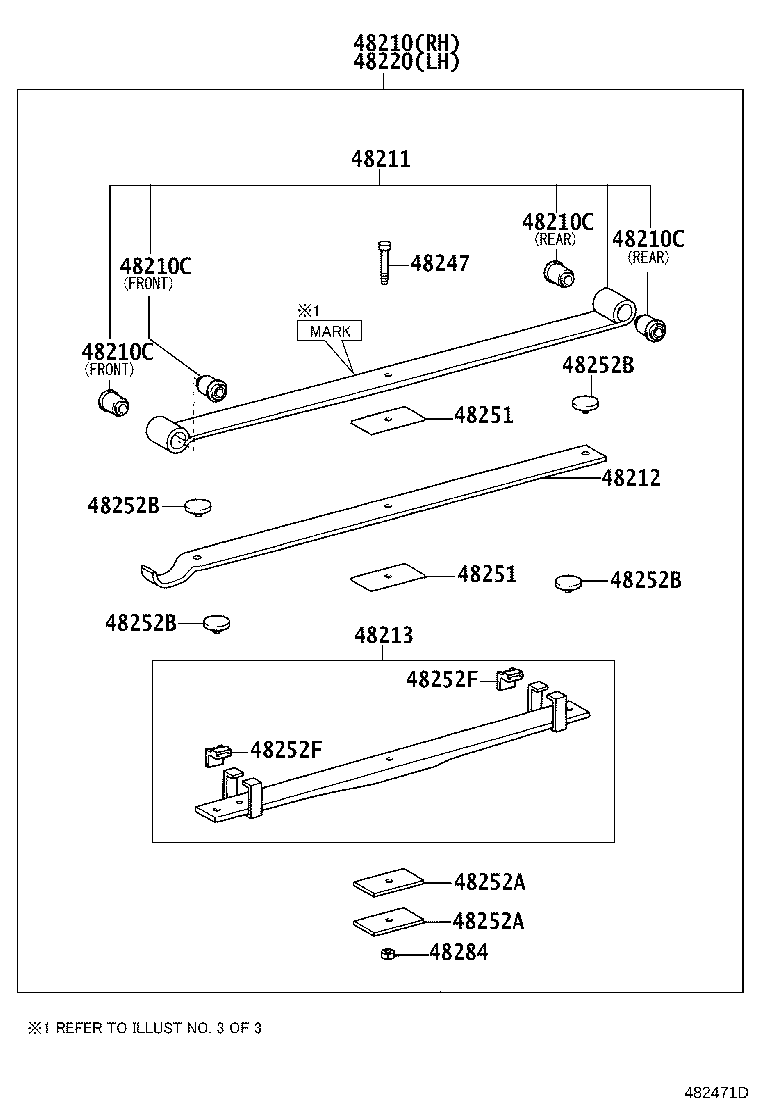

ILLUST NO. 2 OF 3(0610- )XKU304
3-LEAF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-37640 |
XKU304 6枚ﾘｰﾌ,厚さ=88.0 |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16026 |
XKU304 ﾘﾔ |
4 | ||
| 90389-16024 |
XKU30#,338,508 ﾌﾛﾝﾄ |
4 | ||
| 90389-16024 |
XKU304 ﾌﾛﾝﾄ |
4 | ||
| 90389-16026 |
XKU304 ﾘﾔ |
4 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16026 |
XKU304 ﾘﾔ |
4 | ||
| 90389-16024 |
XKU30#,338,508 ﾌﾛﾝﾄ |
4 | ||
| 90389-16024 |
XKU304 ﾌﾛﾝﾄ |
4 | ||
| 90389-16026 |
XKU304 ﾘﾔ |
4 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16026 |
XKU304 ﾘﾔ |
4 | ||
| 90389-16024 |
XKU30#,338,508 ﾌﾛﾝﾄ |
4 | ||
| 90389-16024 |
XKU304 ﾌﾛﾝﾄ |
4 | ||
| 90389-16026 |
XKU304 ﾘﾔ |
4 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16026 |
XKU304 ﾘﾔ |
4 | ||
| 90389-16024 |
XKU30#,338,508 ﾌﾛﾝﾄ |
4 | ||
| 90389-16024 |
XKU304 ﾌﾛﾝﾄ |
4 | ||
| 90389-16026 |
XKU304 ﾘﾔ |
4 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-3V600 |
XKU304 |
2 | ||
| 48201-37640 |
XKU304 |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48212-3V600 |
XKU304 |
2 | ||
| 48212-37640 |
XKU304 |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48213-37640 |
XKU304 |
2 | ||
| 48202-3V600 |
XKU304 |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-37640 |
XKU304 6枚ﾘｰﾌ,厚さ=88.0 |
1 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-37640 |
XKU304 |
2 | ||
| 48247-37640 |
XKU304 |
2 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48251-36530 |
XKU30#,338,348,508 |
4 | ||
| 48251-36530 |
XKU304 |
2 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48251-36530 |
XKU30#,338,348,508 |
4 | ||
| 48251-36530 |
XKU304 |
2 | ||
| 48252A - SPACER, REAR SPRING, NO.2 | ||||
| 48253-36530 |
XKU304 |
4 | ||
| 48252A - SPACER, REAR SPRING, NO.2 | ||||
| 48253-36530 |
XKU304 |
4 | ||
| 48252B - SILENCER, REAR SPRING, NO.1 | ||||
| 48252-37670 |
XKU304 |
8 | ||
| 48252-3B800 |
XKU304,344..20T |
4 | ||
| 48252B - SILENCER, REAR SPRING, NO.1 | ||||
| 48252-37670 |
XKU304 |
8 | ||
| 48252-3B800 |
XKU304,344..20T |
4 | ||
| 48252B - SILENCER, REAR SPRING, NO.1 | ||||
| 48252-37670 |
XKU304 |
8 | ||
| 48252-3B800 |
XKU304,344..20T |
4 | ||
| 48252B - SILENCER, REAR SPRING, NO.1 | ||||
| 48252-37670 |
XKU304 |
8 | ||
| 48252-3B800 |
XKU304,344..20T |
4 | ||
| 48252F - SILENCER, REAR SPRING, NO.3 | ||||
| 48252-37380 |
XKU304 |
8 | ||
| 48252F - SILENCER, REAR SPRING, NO.3 | ||||
| 48252-37380 |
XKU304 |
8 | ||
| 48284 - NUT, REAR SPRING CENTER BOLT | ||||
| 48299-27620 |
XKU304 |
2 | ||
ILLUST NO. 3 OF 3(0610- )
| Part # | Description | Qty | Price |
|---|

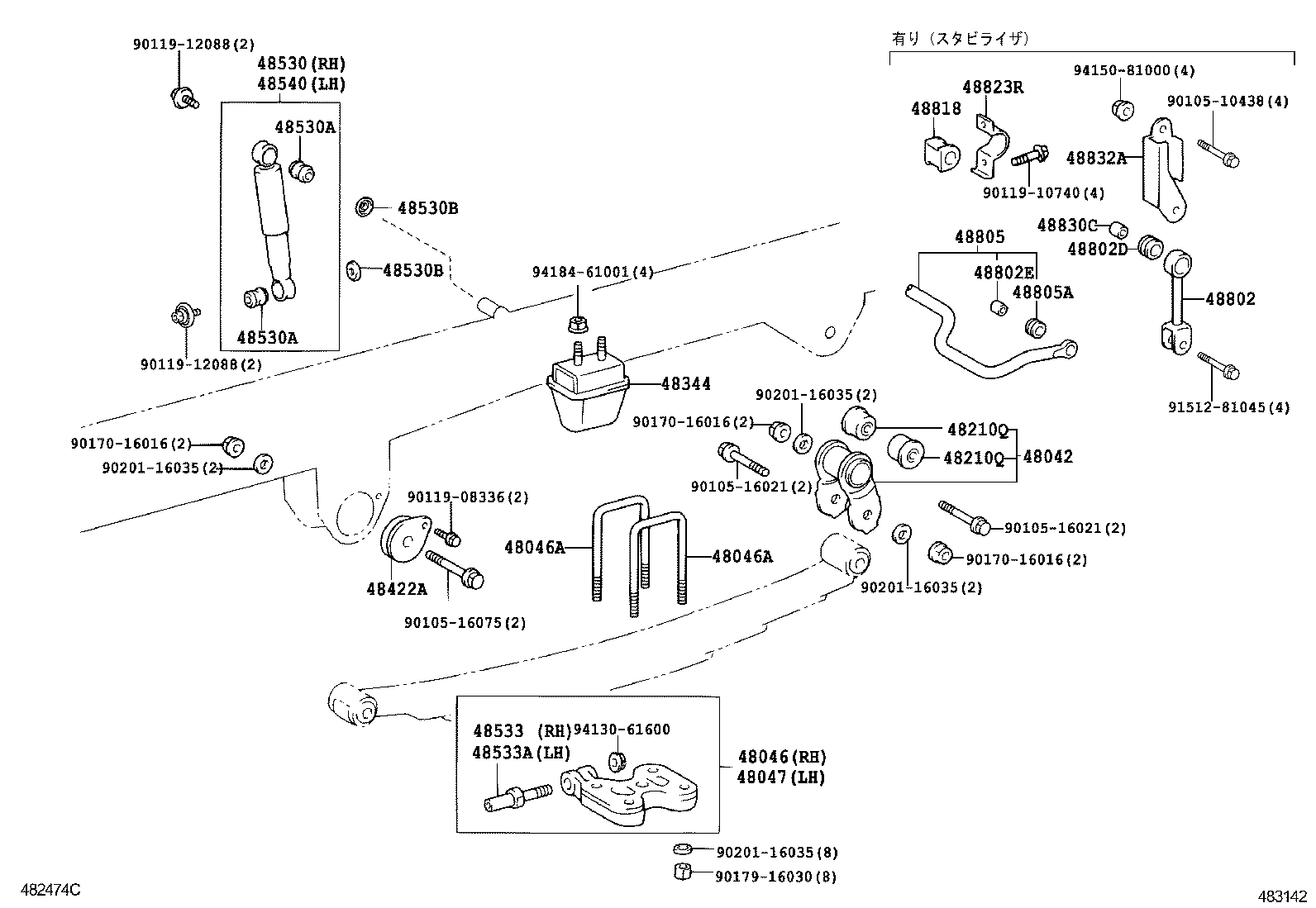

ILLUST NO. 1 OF 2(0610- )XKU30#,338,508
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48042 - SHACKLE SUB-ASSY, REAR SPRING, NO.2 | ||||
| 48042-37020 |
XKU304,344 |
2 | ||
| 48042-37020 |
XKU30#,338,34#,508 |
2 | ||
| 48046 - SEAT SUB-ASSY, SPRING U BOLT, RH | ||||
| 48046-37080 |
XKU304 |
1 | ||
| 48046-37080 |
XKU338;XKU30#..DM6,T5 |
1 | ||
| 48046A - BOLT, U(FOR REAR SPRING) | ||||
| 90117-16068 |
XKU304 長さ=270 |
4 | ||
| 90117-16068 |
XKU304 長さ=270 |
4 | ||
| 90117-16067 |
XKU304 長さ=260 |
4 | ||
| 48046A - BOLT, U(FOR REAR SPRING) | ||||
| 90117-16068 |
XKU304 長さ=270 |
4 | ||
| 90117-16068 |
XKU304 長さ=270 |
4 | ||
| 90117-16067 |
XKU304 長さ=260 |
4 | ||
| 48047 - SEAT SUB-ASSY, SPRING U BOLT, LH | ||||
| 48047-37080 |
XKU338;XKU30#..DM6,T5 |
1 | ||
| 48047-37080 |
XKU304 |
1 | ||
| 48210Q - BUSH(FOR REAR SPRING SHACKLE) | ||||
| 90389-16026 |
XKU30#,338,34#,508 |
4 | ||
| 90389-16026 |
XKU304,344 |
4 | ||
| 48210Q - BUSH(FOR REAR SPRING SHACKLE) | ||||
| 90389-16026 |
XKU30#,338,34#,508 |
4 | ||
| 90389-16026 |
XKU304,344 |
4 | ||
| 48344 - STOPPER, BUMPER, REAR | ||||
| 48344-37100 |
XKU304 |
2 | ||
| 48344-37050 |
XKU508;XKU30#..DM6,T4 |
2 | ||
| 48422A - SUPPORT, REAR SPRING PIN | ||||
| 48422-36090 |
XKU30#,338,508 |
2 | ||
| 48422-36090 |
XKU304 |
2 | ||
| 48530 - ABSORBER ASSY, SHOCK, REAR RH | ||||
| 48531-80672 |
XKU304 ﾏｰｸ 48531−37020 |
1 | ||
| 48531-80672 |
XKU304 ﾏｰｸ 48531−37020 |
1 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90385-19011 |
XKU30#,338,34#,508 |
4 | ||
| 90385-19011 |
XKU304,344 |
4 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90385-19011 |
XKU30#,338,34#,508 |
4 | ||
| 90385-19011 |
XKU304,344 |
4 | ||
| 48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1 | ||||
| 90948-03011 |
XKU304,344 |
4 | ||
| 90948-03011 |
XKU30#,338,34#,508 |
4 | ||
| 48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1 | ||||
| 90948-03011 |
XKU304,344 |
4 | ||
| 90948-03011 |
XKU30#,338,34#,508 |
4 | ||
| 48533 - PIN, REAR SHOCK ABSORBER LOWER PIVOT, RH | ||||
| 48522-37030 |
XKU304 |
1 | ||
| 48522-37030 |
XKU30#,338,508 |
1 | ||
| 48533A - PIN, REAR SHOCK ABSORBER LOWER PIVOT, LH | ||||
| 48522-37030 |
XKU30#,338,508 |
1 | ||
| 48522-37030 |
XKU304 |
1 | ||
| 48540 - ABSORBER ASSY, SHOCK, REAR LH | ||||
| 48531-80672 |
XKU304 ﾏｰｸ 48531−37020 |
1 | ||
| 48531-80672 |
XKU304 ﾏｰｸ 48531−37020 |
1 | ||
| 48802 - LINK SUB-ASSY, STABILIZER | ||||
| 48802-37010 |
XKU304 |
2 | ||
| 48802-37010 |
XKU30#,338,348,508 |
2 | ||
| 48802D - BUSH, STABILIZER LINK | ||||
| 90385-13009 |
XKU30#,338,348,508 |
2 | ||
| 90385-13009 |
XKU304 |
2 | ||
| 48802E - SPACER(FOR REAR STABILIZER BAR) | ||||
| 90560-10044 |
XKU30#,338,348,508 |
2 | ||
| 90560-10044 |
XKU304 |
2 | ||
| 48805 - BAR SUB-ASSY, REAR STABILIZER | ||||
| 48805-37030 |
XKU30#,338,508 |
1 | ||
| 48805-37030 |
XKU304 |
1 | ||
| 48805A - BUSH(FOR REAR STABILIZER BAR) | ||||
| 90385-13009 |
XKU30#,338,348,508 |
2 | ||
| 90385-13009 |
XKU304 |
2 | ||
| 48818 - BUSH, STABILIZER, REAR | ||||
| 48815-37060 |
XKU30#,338,348,508 |
2 | ||
| 48815-37060 |
XKU304 |
2 | ||
| 48823R - COVER, STABILIZER LINK(FOR REAR) | ||||
| 48823-37011 |
XKU30#,338,348,508 |
2 | ||
| 48823-37011 |
XKU304 |
2 | ||
| 48830C - SPACER(FOR REAR STABILIZER LINK) | ||||
| 90560-10044 |
XKU30#,338,348,508 |
2 | ||
| 90560-10044 |
XKU304 |
2 | ||
| 48832A - BRACKET, REAR STABILIZER BAR, NO.1 | ||||
| 48832-37020 |
XKU304 |
2 | ||
| 48832-37020 |
XKU30#,338,508 |
2 | ||
| Common parts | ||||
| 90105-10438 | ||||
| 90105-16021 | ||||
| 90105-16075 | ||||
| 90119-08336 | ||||
| 90119-10740 | ||||
| 90119-12088 | ||||
| 90170-16016 | ||||
| 90179-16030 | ||||
| 90201-16035 | ||||
| 91512-81045 | ||||
| 94130-61600 | ||||
| 94150-81000 | ||||
| 94184-61001 | ||||
