XKU304A-TYMMB3 (2006)
Toyota Dyna/Toyoace Hv

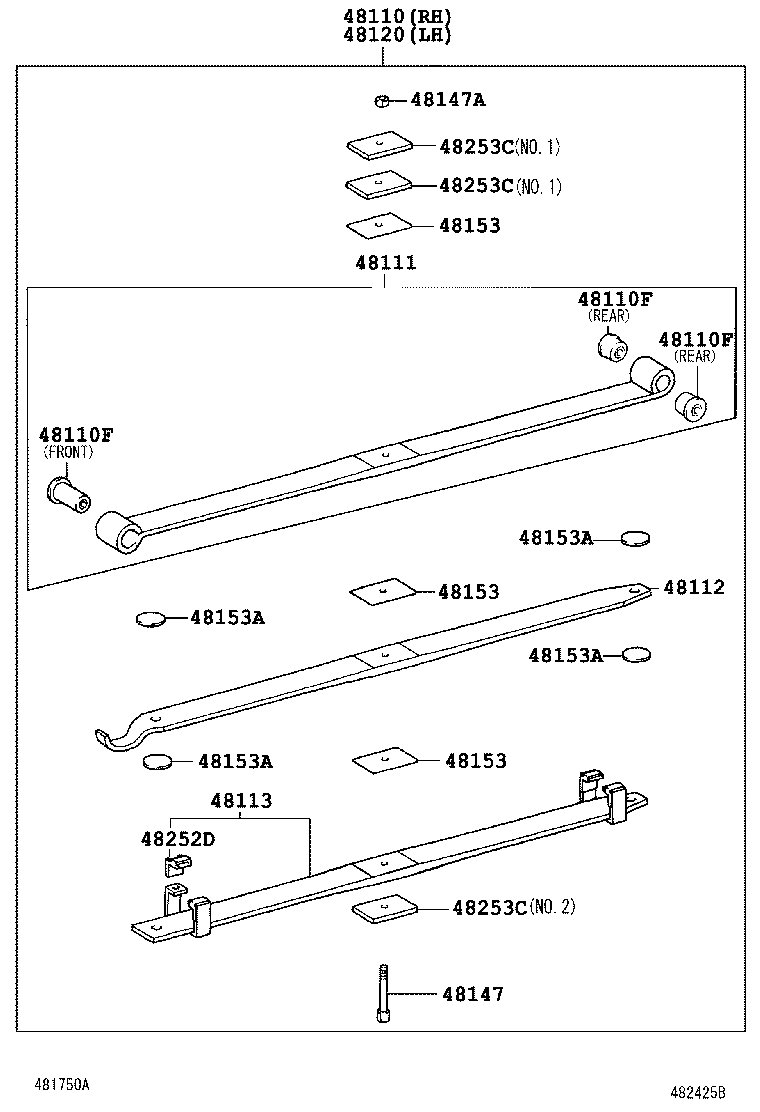

ILLUST NO. 2 OF 2(0610- )XKU304
3-LEAF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48110 - SPRING ASSY, FRONT, RH | ||||
| 48110-37G40 |
XKU304 3枚ﾘｰﾌ |
1 | ||
| 48110-37A20 |
XKU304,344..20T 3枚ﾘｰﾌ |
1 | ||
| 48110F - BIMETAL FORMED BUSH(FOR FRONT SPRING) | ||||
| 90389-16025 |
XKU304,344 ﾌﾛﾝﾄ |
2 | ||
| 90389-16025 |
XKU304,344 ﾌﾛﾝﾄ |
2 | ||
| 90389-16026 |
XKU304,344 ﾘﾔ |
4 | ||
| 90389-16026 |
XKU304,344 ﾘﾔ |
4 | ||
| 48110F - BIMETAL FORMED BUSH(FOR FRONT SPRING) | ||||
| 90389-16025 |
XKU304,344 ﾌﾛﾝﾄ |
2 | ||
| 90389-16025 |
XKU304,344 ﾌﾛﾝﾄ |
2 | ||
| 90389-16026 |
XKU304,344 ﾘﾔ |
4 | ||
| 90389-16026 |
XKU304,344 ﾘﾔ |
4 | ||
| 48110F - BIMETAL FORMED BUSH(FOR FRONT SPRING) | ||||
| 90389-16025 |
XKU304,344 ﾌﾛﾝﾄ |
2 | ||
| 90389-16025 |
XKU304,344 ﾌﾛﾝﾄ |
2 | ||
| 90389-16026 |
XKU304,344 ﾘﾔ |
4 | ||
| 90389-16026 |
XKU304,344 ﾘﾔ |
4 | ||
| 48111 - LEAF, FRONT SPRING, NO.1 | ||||
| 48101-37A30 |
XKU304,344..20T 助手席側 |
1 | ||
| 48101-37A20 |
XKU304,344..20T 運転席側 |
1 | ||
| 48101-37G50 |
XKU304 助手席側 |
1 | ||
| 48101-37G40 |
XKU304 運転席側 |
1 | ||
| 48112 - LEAF, FRONT SPRING, NO.2 | ||||
| 48112-37A20 |
XKU304,344..20T 運転席側 |
1 | ||
| 48112-37G50 |
XKU304 助手席側 |
1 | ||
| 48112-37A30 |
XKU304,344..20T 助手席側 |
1 | ||
| 48112-37G40 |
XKU304 運転席側 |
1 | ||
| 48113 - LEAF, FRONT SPRING, NO.3 | ||||
| 48102-37A20 |
XKU304,344..20T 運転席側 |
1 | ||
| 48102-37A30 |
XKU304,344..20T 助手席側 |
1 | ||
| 48102-37G50 |
XKU304 助手席側 |
1 | ||
| 48102-37G40 |
XKU304 運転席側 |
1 | ||
| 48120 - SPRING ASSY, FRONT, LH | ||||
| 48110-37A30 |
XKU304,344..20T 3枚ﾘｰﾌ |
1 | ||
| 48110-37G50 |
XKU304 3枚ﾘｰﾌ |
1 | ||
| 48147 - BOLT, FRONT SPRING, CENTER | ||||
| 48147-37440 |
XKU304 |
2 | ||
| 48147-37440 |
XKU304,344..20T |
2 | ||
| 48147A - NUT, FRONT SPRING CENTER BOLT | ||||
| 48284-37130 |
XKU304,344 |
2 | ||
| 48284-37130 |
XKU304,344 |
2 | ||
| 48153 - SPACER, FRONT LEAF SPRING, NO.1 | ||||
| 48253-3B440 |
XKU304,344 |
6 | ||
| 48253-3B440 |
XKU304,344 |
6 | ||
| 48153 - SPACER, FRONT LEAF SPRING, NO.1 | ||||
| 48253-3B440 |
XKU304,344 |
6 | ||
| 48253-3B440 |
XKU304,344 |
6 | ||
| 48153 - SPACER, FRONT LEAF SPRING, NO.1 | ||||
| 48253-3B440 |
XKU304,344 |
6 | ||
| 48253-3B440 |
XKU304,344 |
6 | ||
| 48153A - SILENCER, FRONT SPRING, NO.1 | ||||
| 48252-3B800 |
XKU304,344 |
8 | ||
| 48252-37670 |
XKU304 |
8 | ||
| 48153A - SILENCER, FRONT SPRING, NO.1 | ||||
| 48252-3B800 |
XKU304,344 |
8 | ||
| 48252-37670 |
XKU304 |
8 | ||
| 48153A - SILENCER, FRONT SPRING, NO.1 | ||||
| 48252-3B800 |
XKU304,344 |
8 | ||
| 48252-37670 |
XKU304 |
8 | ||
| 48153A - SILENCER, FRONT SPRING, NO.1 | ||||
| 48252-3B800 |
XKU304,344 |
8 | ||
| 48252-37670 |
XKU304 |
8 | ||
| 48252D - SILENCER | ||||
| 48252-37380 |
XKU304,344 |
8 | ||
| 48252-37380 |
XKU304,344 |
8 | ||
| 48253C - SPACER, FRONT LEAF SPRING, NO.2 | ||||
| 48253-3B122 |
XKU304,344..20T NO.1 |
2 | ||
| 48253-3B770 |
XKU304 NO.2 |
2 | ||
| 48253-3B770 |
XKU304,344..20T NO.2 |
4 | ||
| 48253-3B122 |
XKU304 NO.1 |
4 | ||
| 48253C - SPACER, FRONT LEAF SPRING, NO.2 | ||||
| 48253-3B122 |
XKU304,344..20T NO.1 |
2 | ||
| 48253-3B770 |
XKU304 NO.2 |
2 | ||
| 48253-3B770 |
XKU304,344..20T NO.2 |
4 | ||
| 48253-3B122 |
XKU304 NO.1 |
4 | ||
| 48253C - SPACER, FRONT LEAF SPRING, NO.2 | ||||
| 48253-3B122 |
XKU304,344..20T NO.1 |
2 | ||
| 48253-3B770 |
XKU304 NO.2 |
2 | ||
| 48253-3B770 |
XKU304,344..20T NO.2 |
4 | ||
| 48253-3B122 |
XKU304 NO.1 |
4 | ||
