XKU304A-TYMMB3 (2006)

Toyota Dyna/Toyoace Hv

Production Oct 2006 - Aug 2009
Engine N04C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0610- )XKU30#,338,34#

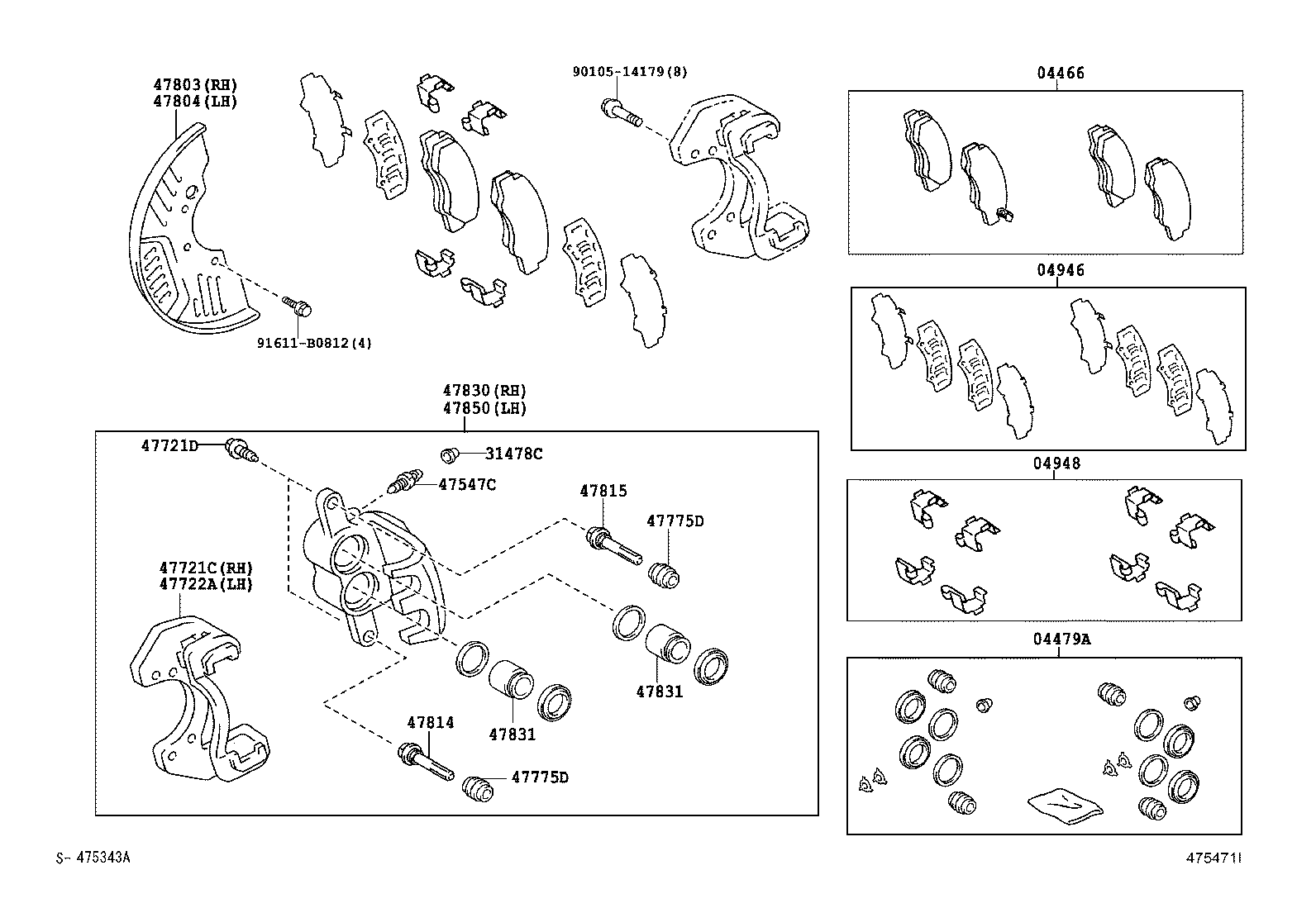

Click highlighted areas on diagram

diagram 04466 04479A 04946 04948 31478C 47547C 47721C 47721D 47722A 47775D 47775D 47803 47804 47814 47815 47830 47831 47831 47850 9010514179 91611B0812
Part # Description Qty Price
04466 - PAD KIT, DISC BRAKE, REAR
04466-37100

XKU30#,338,34#

ﾏｰｸ NS174

 1
04479A - CYLINDER KIT, DISC BRAKE, REAR
04479-37220

XKU30#,338,34#

 1
04479-37290

XKU30#,338,34#

 1
04946 - SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE)
04946-37030

XKU30#,338,34#

 1
04946-37031

XKU30#,338,34#

 1
04948 - FITTING KIT, DISC BRAKE, REAR
04948-37010

XKU30#,338,34#

 1
31478C - CAP, BLEEDER PLUG(FOR REAR DISC BRAKE)
31478-37030

XKU30#,338,34#

 2
47547C - PLUG, BLEEDER(FOR REAR DISC BRAKE)
47847-37030

XKU30#,338,34#

 2
47721C - MOUNTING, REAR DISC BRAKE CYLINDER, RH
47821-37030

XKU30#,338,34#

 1
47722A - MOUNTING, REAR DISC BRAKE CYLINDER, LH
47822-37030

XKU30#,338,34#

 1
47775D - BOOT, BUSH DUST(FOR REAR DISC BRAKE)
47775-37121

XKU30#,338,34#

 4
47775-37120

XKU30#,338,34#

 4
47775D - BOOT, BUSH DUST(FOR REAR DISC BRAKE)
47775-37121

XKU30#,338,34#

 4
47775-37120

XKU30#,338,34#

 4
47814 - PIN, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)
47814-37031

XKU30#,338,34#

 2
47814-37030

XKU30#,338,34#

 2
47815 - PIN, REAR CYLINDER SLIDE, NO.2(FOR REAR DISC BRAKE)
47815-37031

XKU30#,338,34#

 2
47815-37030

XKU30#,338,34#

 2
47830 - CYLINDER ASSY, DISC BRAKE, REAR RH
47830-37031

XKU30#,338,34#

 1
47830-37030

XKU30#,338,34#

 1
47831 - PISTON, REAR DISC BRAKE
47831-37030

XKU30#,338,34#

 4
47831 - PISTON, REAR DISC BRAKE
47831-37030

XKU30#,338,34#

 4
47850 - CYLINDER ASSY, DISC BRAKE, REAR LH
47850-37030

XKU30#,338,34#

 1
47850-37031

XKU30#,338,34#

 1
Common parts
90105-14179
91611-B0812
