XKU304A-TYMMB3 (2006)
Toyota Dyna/Toyoace Hv

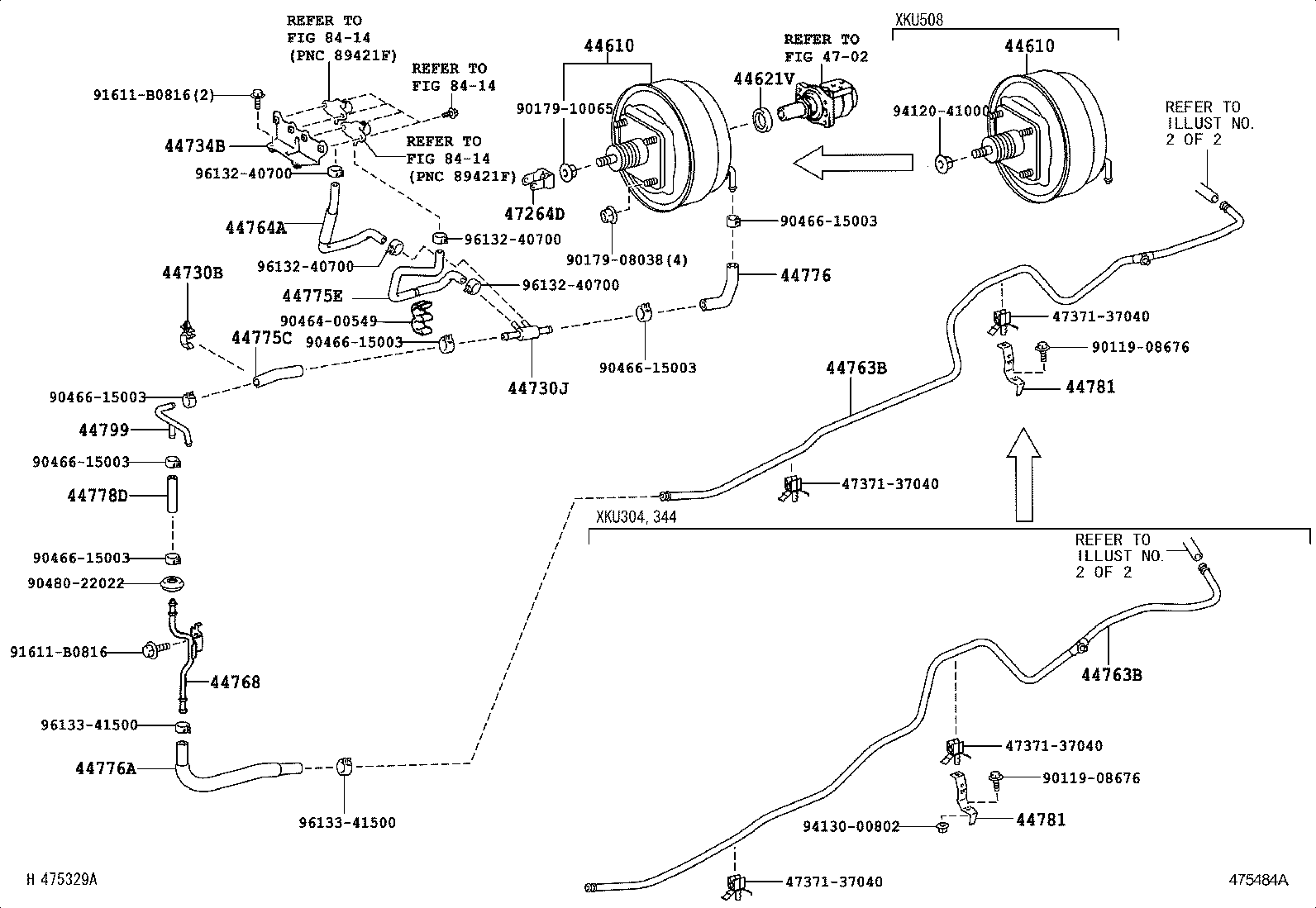

ILLUST NO. 1 OF 2(0610-0612)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44610 - BOOSTER ASSY, BRAKE | ||||
| 44610-37171 |
XKU304,344..20T |
1 | ||
| 44610-37171 |
XKU30#,338,348 |
1 | ||
| 44610 - BOOSTER ASSY, BRAKE | ||||
| 44610-37171 |
XKU304,344..20T |
1 | ||
| 44610-37171 |
XKU30#,338,348 |
1 | ||
| 44621V - SEAL, BOOSTER BODY | ||||
| 44621-36070 |
XKU30#,338,34# |
1 | ||
| 44621-36070 |
XKU304,344 |
1 | ||
| 44730B - CLAMP, VACUUM HOSE | ||||
| 44597-37021 |
XKU30#,338,34#,508 |
1 | ||
| 44597-37020 |
XKU304,344 |
1 | ||
| 44730J - WAY(FOR BOOSTER VACUUM) | ||||
| 90414-10043 |
XKU30#,338,34#,508 |
1 | ||
| 90414-10043 |
XKU304,344 |
1 | ||
| 44734B - BRACKET, BOOSTER SUPPORT | ||||
| 44734-37011 |
XKU304,344 |
1 | ||
| 44763B - TUBE, TUBE CONNECTOR TO TUBE CONNECTOR | ||||
| 44762-37070 |
XKU304,344 |
1 | ||
| 44764-37801 |
XKU304;XKU344..5F |
1 | ||
| 44764-37800 |
XKU304,344 |
1 | ||
| 44763B - TUBE, TUBE CONNECTOR TO TUBE CONNECTOR | ||||
| 44762-37070 |
XKU304,344 |
1 | ||
| 44764-37801 |
XKU304;XKU344..5F |
1 | ||
| 44764-37800 |
XKU304,344 |
1 | ||
| 44764A - HOSE, BOOSTER VACUUM | ||||
| 44776-37090 |
XKU304,344 |
1 | ||
| 44776-37240 |
XKU30#,338,34#,508 |
1 | ||
| 44768 - TUBE, BOOSTER VACUUM | ||||
| 44768-37110 |
XKU30#,338,34#,508 |
1 | ||
| 44768-37110 |
XKU304,344 |
1 | ||
| 44775C - HOSE, CONNECTOR TO WAY | ||||
| 44775-37010 |
XKU304,344 |
1 | ||
| 44775-37020 |
XKU30#,338,34#,508..5F |
1 | ||
| 44775E - HOSE, WAY TO CONNECTOR | ||||
| 44776-37250 |
XKU30#,338,34#,508 |
1 | ||
| 44776-37251 |
XKU30#,338,34#,508 |
1 | ||
| 44776-37100 |
XKU304,344 |
1 | ||
| 44776 - HOSE, BRAKE BOOSTER | ||||
| 44776-37050 |
XKU304,344 |
1 | ||
| 44776-37260 |
XKU30#,338,34# |
1 | ||
| 44776A - HOSE, VACUUM RESERVOIR TO BRAKE BOOSTER | ||||
| 44776-37170 |
XKU304,344 |
1 | ||
| 44776-37170 |
XKU30#,338,34#,508 |
1 | ||
| 44778D - HOSE, VACUUM TUBE TO CONNECTOR TUBE | ||||
| 44778-37170 |
XKU304,344 |
1 | ||
| 44778-37171 |
XKU30#,338,34#,508..5F |
1 | ||
| 44778-37170 |
XKU30#,338,34#,508..5F |
1 | ||
| 44781 - BRACKET, HOSE | ||||
| 44781-37170 |
XKU30#,338,34#,508 |
1 | ||
| 44781-37171 |
XKU30#,338,34#,508 |
1 | ||
| 44781 - BRACKET, HOSE | ||||
| 44781-37170 |
XKU30#,338,34#,508 |
1 | ||
| 44781-37171 |
XKU30#,338,34#,508 |
1 | ||
| 44799 - WAY, BRAKE VACUUM HOSE | ||||
| 44799-37010 |
XKU304,344 |
1 | ||
| 44799-37010 |
XKU30#,338,34#,508..5F |
1 | ||
| 47264D - CLEVIS, BRAKE MASTER CYLINDER PUSH ROD | ||||
| 47264-50010 |
XKU30#,338,34# |
1 | ||
| Common parts | ||||
| 47371-37040 | ||||
| 90119-08676 | ||||
| 90179-08038 | ||||
| 90179-10065 | ||||
| 90464-00549 | ||||
| 90466-15003 | ||||
| 90480-22022 | ||||
| 91611-B0816 | ||||
| 94120-41000 | ||||
| 94130-00802 | ||||
| 96132-40700 | ||||
| 96133-41500 | ||||
| Linked diagrams | ||||
| 4702 | ||||
| 8414 | ||||
ILLUST NO. 2 OF 2(0610- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27679D - BRACKET, EXHAUST BRAKE SOLENOID | ||||
| 27679-78041 |
N04C..XKU304,344 |
1 | ||
| 27679-78041 |
N04C..XKU30#,338,34#,508 |
1 | ||
| 27690K - SOLENOID ASSY, W/BRACKET(FOR EXHAUST BRAKE) | ||||
| 27690-78150 |
N04C..XKU30#,338,34#,508 |
1 | ||
| 27690-78032 |
N04C..XKU304,344 |
1 | ||
| 44704 - RESERVOIR SUB-ASSY, VACUUM | ||||
| 44704-37170 |
XKU304,344 |
1 | ||
| 44704-37250 |
XKU30#,338,34#,508 |
1 | ||
| 44704-37251 |
XKU30#,338,34#,508 |
1 | ||
| 44730P - VALVE ASSY, VACUUM CHECK, NO.1 | ||||
| 44730-60050 |
XKU304,344 |
1 | ||
| 44730-60050 |
XKU30#,338,34#,508 |
1 | ||
| 44762 - TUBE, BOOSTER VACUUM | ||||
| 44702-37080 |
XKU304,344 |
1 | ||
| 44702-37420 |
XKU304,344 |
1 | ||
| 44702-37421 |
XKU304;XKU344..5F |
1 | ||
| 44762 - TUBE, BOOSTER VACUUM | ||||
| 44702-37080 |
XKU304,344 |
1 | ||
| 44702-37420 |
XKU304,344 |
1 | ||
| 44702-37421 |
XKU304;XKU344..5F |
1 | ||
| 44763J - HOSE, SOLENOID TO VACUUM TUBE | ||||
| 44771-37230 |
XKU304,344 |
1 | ||
| 44771-37230 |
XKU30#,338,34#,508 |
1 | ||
| 44771 - HOSE, VACUUM TUBE CONNECTOR | ||||
| 44776-37180 |
XKU304,344 |
1 | ||
| 44776-37270 |
XKU30#,338,34#,508 |
1 | ||
| 44771 - HOSE, VACUUM TUBE CONNECTOR | ||||
| 44776-37180 |
XKU304,344 |
1 | ||
| 44776-37270 |
XKU30#,338,34#,508 |
1 | ||
| 44771K - HOSE, VACUUM TUBE TO VACUUM PUMP | ||||
| 95446-09120 |
XKU304,344 NO.2 |
1 | ||
| 44771-37880 |
XKU30#,338,34#,508 |
1 | ||
| 44771-37A80 |
XKU30#,338,34#,508 |
1 | ||
| 44771-37570 |
XKU304,344 NO.1 |
1 | ||
| 44773L - HOSE, SOLENOID TO EXHAUST RETARDER | ||||
| 44773-37280 |
XKU30#,338,34#,508 |
1 | ||
| 44773-37280 |
XKU304,344 |
1 | ||
| 44774 - HOSE, UNION TO CONNECTOR TUBE | ||||
| 44771-37200 |
XKU304,344 |
1 | ||
| 44778 - HOSE, CONNECTOR TO CHECK VALVE | ||||
| 44778-37060 |
XKU304,344 |
1 | ||
| Common parts | ||||
| 47371-37040 | ||||
| 90119-08676 | ||||
| 91642-K1020 | ||||
| 91645-80825 | ||||
| 94130-00802 | ||||
| 96133-41500 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 1 OF 2(0612- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44610 - BOOSTER ASSY, BRAKE | ||||
| 44610-37171 |
XKU304,344..20T |
1 | ||
| 44610-37171 |
XKU30#,338,348 |
1 | ||
| 44610 - BOOSTER ASSY, BRAKE | ||||
| 44610-37171 |
XKU304,344..20T |
1 | ||
| 44610-37171 |
XKU30#,338,348 |
1 | ||
| 44621V - SEAL, BOOSTER BODY | ||||
| 44621-36070 |
XKU30#,338,34# |
1 | ||
| 44621-36070 |
XKU304,344 |
1 | ||
| 44730B - CLAMP, VACUUM HOSE | ||||
| 44597-37021 |
XKU30#,338,34#,508 |
1 | ||
| 44597-37020 |
XKU304,344 |
1 | ||
| 44730J - WAY(FOR BOOSTER VACUUM) | ||||
| 90414-10043 |
XKU30#,338,34#,508 |
1 | ||
| 90414-10043 |
XKU304,344 |
1 | ||
| 44734B - BRACKET, BOOSTER SUPPORT | ||||
| 44734-37011 |
XKU304,344 |
1 | ||
| 44763B - TUBE, TUBE CONNECTOR TO TUBE CONNECTOR | ||||
| 44762-37070 |
XKU304,344 |
1 | ||
| 44764-37801 |
XKU304;XKU344..5F |
1 | ||
| 44764-37800 |
XKU304,344 |
1 | ||
| 44763B - TUBE, TUBE CONNECTOR TO TUBE CONNECTOR | ||||
| 44762-37070 |
XKU304,344 |
1 | ||
| 44764-37801 |
XKU304;XKU344..5F |
1 | ||
| 44764-37800 |
XKU304,344 |
1 | ||
| 44764A - HOSE, BOOSTER VACUUM | ||||
| 44776-37090 |
XKU304,344 |
1 | ||
| 44776-37240 |
XKU30#,338,34#,508 |
1 | ||
| 44768 - TUBE, BOOSTER VACUUM | ||||
| 44768-37110 |
XKU30#,338,34#,508 |
1 | ||
| 44768-37110 |
XKU304,344 |
1 | ||
| 44775C - HOSE, CONNECTOR TO WAY | ||||
| 44775-37010 |
XKU304,344 |
1 | ||
| 44775-37020 |
XKU30#,338,34#,508..5F |
1 | ||
| 44775E - HOSE, WAY TO CONNECTOR | ||||
| 44776-37250 |
XKU30#,338,34#,508 |
1 | ||
| 44776-37251 |
XKU30#,338,34#,508 |
1 | ||
| 44776-37100 |
XKU304,344 |
1 | ||
| 44776 - HOSE, BRAKE BOOSTER | ||||
| 44776-37050 |
XKU304,344 |
1 | ||
| 44776-37260 |
XKU30#,338,34# |
1 | ||
| 44776A - HOSE, VACUUM RESERVOIR TO BRAKE BOOSTER | ||||
| 44776-37170 |
XKU304,344 |
1 | ||
| 44776-37170 |
XKU30#,338,34#,508 |
1 | ||
| 44778D - HOSE, VACUUM TUBE TO CONNECTOR TUBE | ||||
| 44778-37170 |
XKU304,344 |
1 | ||
| 44778-37171 |
XKU30#,338,34#,508..5F |
1 | ||
| 44778-37170 |
XKU30#,338,34#,508..5F |
1 | ||
| 44778D - HOSE, VACUUM TUBE TO CONNECTOR TUBE | ||||
| 44778-37170 |
XKU304,344 |
1 | ||
| 44778-37171 |
XKU30#,338,34#,508..5F |
1 | ||
| 44778-37170 |
XKU30#,338,34#,508..5F |
1 | ||
| 44781 - BRACKET, HOSE | ||||
| 44781-37170 |
XKU30#,338,34#,508 |
1 | ||
| 44781-37171 |
XKU30#,338,34#,508 |
1 | ||
| 44781 - BRACKET, HOSE | ||||
| 44781-37170 |
XKU30#,338,34#,508 |
1 | ||
| 44781-37171 |
XKU30#,338,34#,508 |
1 | ||
| 44799 - WAY, BRAKE VACUUM HOSE | ||||
| 44799-37010 |
XKU304,344 |
1 | ||
| 44799-37010 |
XKU30#,338,34#,508..5F |
1 | ||
| 47264D - CLEVIS, BRAKE MASTER CYLINDER PUSH ROD | ||||
| 47264-50010 |
XKU30#,338,34# |
1 | ||
| Common parts | ||||
| 47371-37040 | ||||
| 90119-08676 | ||||
| 90179-08038 | ||||
| 90179-10065 | ||||
| 90464-00549 | ||||
| 90466-15003 | ||||
| 90480-22022 | ||||
| 91551-80814 | ||||
| 91611-B0816 | ||||
| 94120-41000 | ||||
| 94130-00802 | ||||
| 96132-40700 | ||||
| 96133-41500 | ||||
| Linked diagrams | ||||
| 4702 | ||||
| 8414 | ||||
