XKU304A-TYMMB3 (2006)
Toyota Dyna/Toyoace Hv

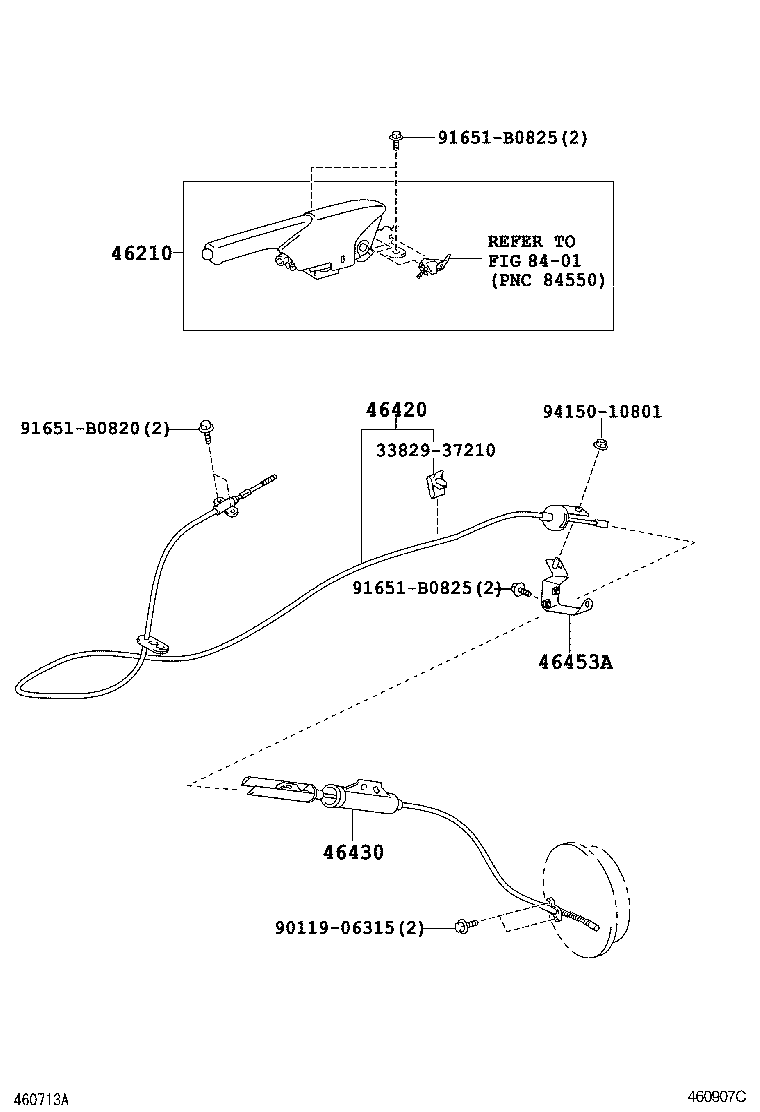

ILLUST NO. 1 OF 2(0610- )XKU304..5F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46210 - LEVER ASSY, PARKING BRAKE | ||||
| 46210-37012B0 |
XKU304,344 ｱﾘ(ｶﾄｳｼｷ ﾊﾟｰｷﾝｸﾞ ﾌﾞﾚ-ｷ ﾚﾊﾞｰ),DK.CHARCOAL,TRIM1# |
1 | ||
| 46210-37091B0 |
XKU304,344 ｱﾘ(ｺﾃｲｼｷ ﾊﾟ-ｷﾝｸﾞ ﾌﾞﾚ-ｷ ﾚﾊﾞｰ),DK.CHARCOAL,TRIM1# |
1 | ||
| 46420 - CABLE ASSY, PARKING BRAKE, NO.2 | ||||
| 46420-37430 |
XKU304,344 |
1 | ||
| 46420-37560 |
XKU304;XKU344..5F |
1 | ||
| 46430 - CABLE ASSY, PARKING BRAKE, NO.3 | ||||
| 46430-37580 |
XKU304,344 |
1 | ||
| 46453A - BRACKET, CABLE SUPPORT, NO.3 | ||||
| 46453-37190 |
XKU304;XKU344..5F |
1 | ||
| 46453-37190 |
XKU304,344 |
1 | ||
| Common parts | ||||
| 33829-37210 | ||||
| 90119-06315 | ||||
| 91651-B0820 | ||||
| 91651-B0825 | ||||
| 94150-10801 | ||||
| Linked diagrams | ||||
| 8401 | ||||

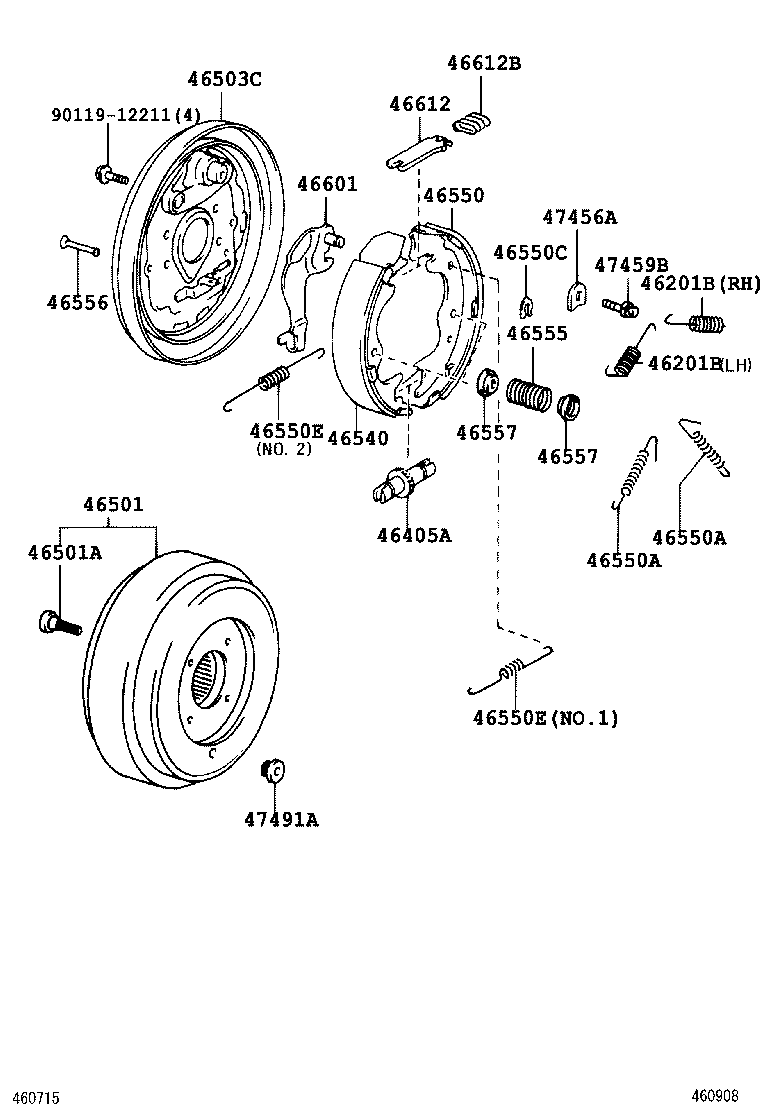

ILLUST NO. 2 OF 2(0610- )XKU304..5F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46201B - SPRING, TENSION | ||||
| 90507-20021 |
XKU304..5F 左側 |
1 | ||
| 90507-20020 |
XKU304..5F 右側 |
1 | ||
| 46201B - SPRING, TENSION | ||||
| 90507-20021 |
XKU304..5F 左側 |
1 | ||
| 90507-20020 |
XKU304..5F 右側 |
1 | ||
| 46405A - SCREW SET, SHOE ADJUSTING, RH | ||||
| 47405-36010 |
XKU304..5F |
1 | ||
| 46501 - DRUM SUB-ASSY, PARKING BRAKE | ||||
| 46501-37060 |
XKU304,344 |
1 | ||
| 46501A - BOLT, SERRATION(FOR PARKING BRAKE DRUM) | ||||
| 90031-01170 |
XKU304,344 |
4 | ||
| 90031-01170 |
XKU30#,338,34#,508 |
4 | ||
| 46503C - PLATE SUB-ASSY, PARKING BRAKE | ||||
| 46503-37061 |
XKU304,344 |
1 | ||
| 46503-37691 |
XKU304..5F |
1 | ||
| 46540 - SHOE ASSY, PARKING BRAKE, RH OR CENTER NO.1 | ||||
| 46530-37030 |
XKU304,344 |
1 | ||
| 46540-37040 |
XKU304..5F |
1 | ||
| 46550 - SHOE ASSY, PARKING BRAKE, RH OR CENTER NO.2 | ||||
| 46530-37030 |
XKU304,344 |
1 | ||
| 46550-37040 |
XKU304..5F |
1 | ||
| 46550A - SPRING, TENSION, NO.1(FOR PARKING BRAKE SHOE RETURN) | ||||
| 90506-18001 |
XKU304,344 |
2 | ||
| 90905-06020 |
XKU304..5F |
2 | ||
| 46550A - SPRING, TENSION, NO.1(FOR PARKING BRAKE SHOE RETURN) | ||||
| 90506-18001 |
XKU304,344 |
2 | ||
| 90905-06020 |
XKU304..5F |
2 | ||
| 46550C - WASHER, TYPE C(FOR PARKING BRAKE SHOE) | ||||
| 90213-06003 |
XKU30#,338,34#,508 |
1 | ||
| 90213-06003 |
XKU304,344 |
1 | ||
| 46550E - SPRING, TENSION, NO.2(FOR PARKING BRAKE SHOE RETURN) | ||||
| 90506-14012 |
XKU304,344 |
1 | ||
| 90506-14054 |
XKU304..5F NO.2 |
1 | ||
| 90506-23049 |
XKU304..5F NO.1 |
1 | ||
| 46550E - SPRING, TENSION, NO.2(FOR PARKING BRAKE SHOE RETURN) | ||||
| 90506-14012 |
XKU304,344 |
1 | ||
| 90506-14054 |
XKU304..5F NO.2 |
1 | ||
| 90506-23049 |
XKU304..5F NO.1 |
1 | ||
| 46555 - SPRING, BRAKE SHOE HOLD DOWN | ||||
| 90501-16025 |
XKU304,344 |
2 | ||
| 46556 - PIN, SHOE HOLD DOWN SPRING | ||||
| 47447-22010 |
XKU304,344 |
2 | ||
| 47447-20030 |
XKU304..5F |
2 | ||
| 46557 - CUP, BRAKE SHOE HOLD DOWN | ||||
| 47449-20011 |
XKU30#,338,34#,508 |
4 | ||
| 47449-20011 |
XKU304,344 |
4 | ||
| 46557 - CUP, BRAKE SHOE HOLD DOWN | ||||
| 47449-20011 |
XKU30#,338,34#,508 |
4 | ||
| 47449-20011 |
XKU304,344 |
4 | ||
| 46601 - LEVER SUB-ASSY, PARKING BRAKE SHOE | ||||
| 46601-37680 |
XKU304,344 |
1 | ||
| 46612 - STRUT, PARKING BRAKE SHOE LEVER | ||||
| 46612-36050 |
XKU304..5F |
1 | ||
| 46612-36010 |
XKU304,344 |
1 | ||
| 46612B - SPRING, COMPRESSION(FOR PARKING BRAKE SHOE STRUT) | ||||
| 90504-10001 |
XKU304,344 |
1 | ||
| 90504-10010 |
XKU304..5F |
1 | ||
| 47456A - PLATE, SHOE GUIDE(FOR PARKING BRAKE) | ||||
| 47456-20030 |
XKU304..5F |
1 | ||
| 47459B - BOLT, SHOE GUIDE PLATE SET(FOR PARKING BRAKE) | ||||
| 47459-30010 |
XKU304..5F |
1 | ||
| Common parts | ||||
| 90119-12211 | ||||
