XKU304A-TYMMB3 (2006)
Toyota Dyna/Toyoace Hv
Production
Oct 2006
-
Aug 2009
Engine
N04C
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)

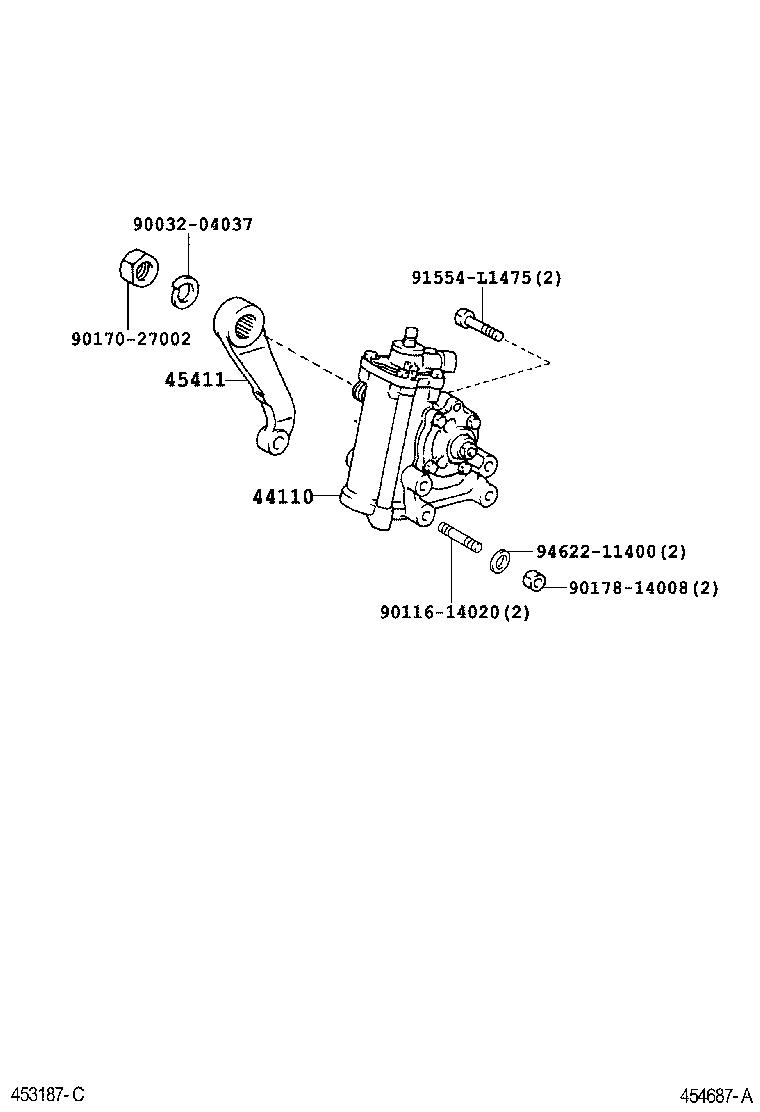

ILLUST NO. 1 OF 2(0610- )XKU304,344
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44110 - GEAR ASSY, POWER STEERING | ||||
| 44110-37110 |
XKU304,344 |
1 | ||
| 45411 - ARM, PITMAN | ||||
| 45411-37261 |
XKU304,344 |
1 | ||
| 45411-37130 |
XKU304,344 |
1 | ||
| Common parts | ||||
| 90032-04037 | ||||
| 90116-14020 | ||||
| 90170-27002 | ||||
| 90178-14008 | ||||
| 91554-L1475 | ||||
| 94622-11400 | ||||

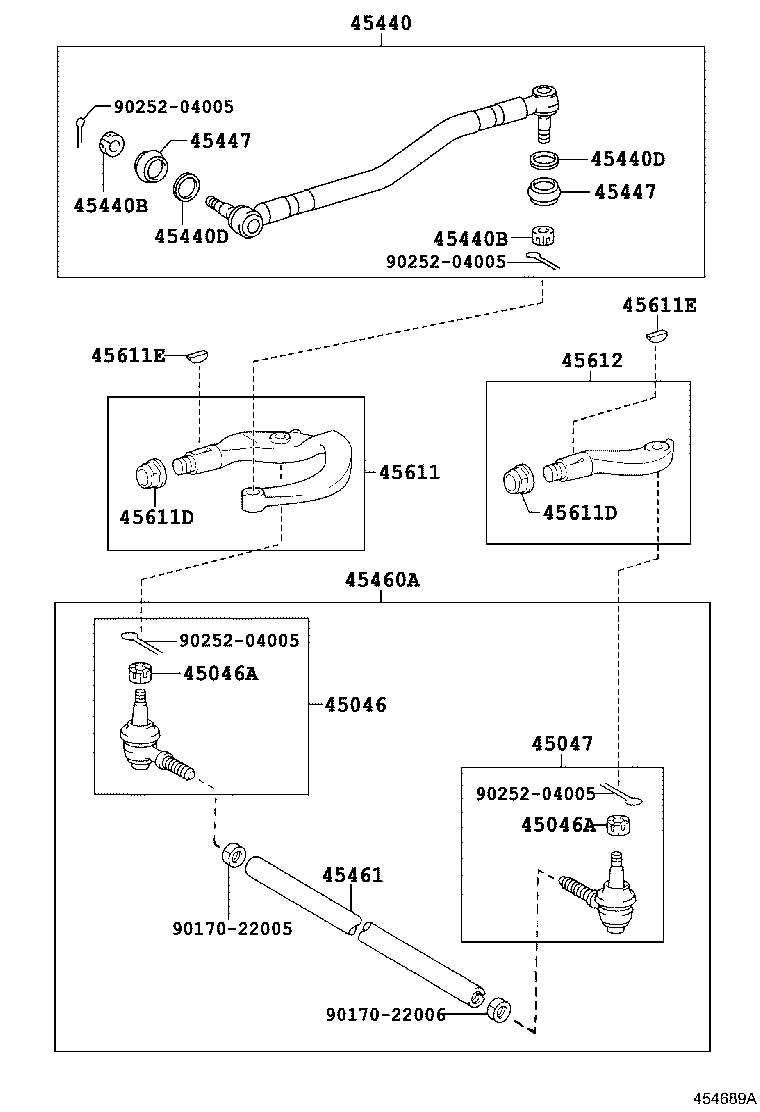

ILLUST NO. 2 OF 2(0610- )XKU304,344
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45046 - END SUB-ASSY, TIE ROD, RH | ||||
| 45046-39416 |
XKU304,344 |
1 | ||
| 45046-39416 |
XKU304,344 |
1 | ||
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 90171-18003 |
XKU304,344 |
2 | ||
| 90171-18003 |
XKU304,344 |
2 | ||
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 90171-18003 |
XKU304,344 |
2 | ||
| 90171-18003 |
XKU304,344 |
2 | ||
| 45047 - END SUB-ASSY, TIE ROD, LH | ||||
| 45047-39256 |
XKU304,344 |
1 | ||
| 45047-39256 |
XKU304,344 |
1 | ||
| 45440 - LINK ASSY, STEERING DRAG | ||||
| 45440-39206 |
XKU304,344 |
1 | ||
| 45440-39206 |
XKU304,344 |
1 | ||
| 45440B - NUT, CASTLE(FOR STEERING DRAG LINK) | ||||
| 90171-18003 |
XKU304,344 |
2 | ||
| 90171-18003 |
XKU304,344 |
2 | ||
| 45440B - NUT, CASTLE(FOR STEERING DRAG LINK) | ||||
| 90171-18003 |
XKU304,344 |
2 | ||
| 90171-18003 |
XKU304,344 |
2 | ||
| 45460A - ROD ASSY, TIE | ||||
| 45460-39516 |
XKU304,344 |
1 | ||
| 45460-39516 |
XKU304,344 |
1 | ||
| 45461 - ROD, STEERING TIE | ||||
| 45461-37050 |
XKU304,344 |
1 | ||
| 45461-37050 |
XKU304,344 |
1 | ||
| 45611 - ARM, STEERING KNUCKLE, RH | ||||
| 45611-39125 |
XKU304,344 |
1 | ||
| 45611-39125 |
XKU304,344 |
1 | ||
| 45611D - NUT(FOR STEERING KNUCKLE ARM) | ||||
| 90178-26002 |
XKU304,344 |
2 | ||
| 90178-26002 |
XKU304,344 |
2 | ||
| 45611D - NUT(FOR STEERING KNUCKLE ARM) | ||||
| 90178-26002 |
XKU304,344 |
2 | ||
| 90178-26002 |
XKU304,344 |
2 | ||
| 45611E - KEY, WOODRUFF(FOR STEERING IDLER ARM) | ||||
| 90280-07004 |
XKU304,344 |
2 | ||
| 90280-07004 |
XKU304,344 |
2 | ||
| 45611E - KEY, WOODRUFF(FOR STEERING IDLER ARM) | ||||
| 90280-07004 |
XKU304,344 |
2 | ||
| 90280-07004 |
XKU304,344 |
2 | ||
| 45612 - ARM, STEERING KNUCKLE, LH | ||||
| 45612-39245 |
XKU304,344 |
1 | ||
| 45612-39245 |
XKU304,344 |
1 | ||
| Common parts | ||||
| 90170-22005 | ||||
| 90170-22006 | ||||
| 90252-04005 | ||||
