XKU304A-TYMMB3 (2006)
Toyota Dyna/Toyoace Hv
(0610- )XKU304 ; (0610- )XKU344..5F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44348D - HOSE, OIL RESERVOIR TO PUMP, NO.2 | ||||
| 44348-37320 |
XKU304,344 |
1 | ||
| 44348-37400 |
XKU30#,338,34#,508 |
1 | ||
| 44411 - HOSE, PRESSURE FEED | ||||
| 44411-37340 |
XKU304;XKU344..5F |
1 | ||
| 44411-37250 |
XKU304,344 |
1 | ||
| 44411C - BOLT, UNION(FOR PRESSURE FEED HOSE) | ||||
| 90401-16027 |
XKU30#,338,34#,508 |
1 | ||
| 90401-16027 |
XKU304,344 |
1 | ||
| 44411D - GASKET(FOR PRESSURE FEED HOSE) | ||||
| 44327-30030 |
XKU304,344 |
1 | ||
| 44327-30030 |
XKU30#,338,34#,508 |
1 | ||
| 44412 - HOSE, RETURN | ||||
| 44412-37150 |
XKU304,344 |
1 | ||
| 44412-37220 |
XKU304;XKU344..5F |
1 | ||
| 44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET) | ||||
| 44416-37450 |
XKU304,344 |
1 | ||
| 44416-37540 |
XKU304;XKU344..5F |
1 | ||
| 44423 - TUBE, OIL PUMP TO GEAR BOX | ||||
| 44423-37081 |
XKU304,344 |
1 | ||
| 44447A - BRACKET, HOSE SUPPORT, NO.1 | ||||
| 44447-37220 |
XKU304,344 |
1 | ||
| 44447-37220 |
XKU30#,338,34#,508 |
1 | ||
| 44448C - CLAMP, PRESSURE FEED, NO.2 | ||||
| 44448-37040 |
XKU304,344 NO.2 |
1 | ||
| 44448-37060 |
XKU304,344 NO.2 |
1 | ||
| 44448-37060 |
XKU304,344 NO.3 |
1 | ||
| 44448-37030 |
XKU304,344 NO.1 |
1 | ||
| 44448-37080 |
XKU304,344 NO.3 |
2 | ||
| 44448-37030 |
XKU304,344 NO.1 |
1 | ||
| 44448C - CLAMP, PRESSURE FEED, NO.2 | ||||
| 44448-37040 |
XKU304,344 NO.2 |
1 | ||
| 44448-37060 |
XKU304,344 NO.2 |
1 | ||
| 44448-37060 |
XKU304,344 NO.3 |
1 | ||
| 44448-37030 |
XKU304,344 NO.1 |
1 | ||
| 44448-37080 |
XKU304,344 NO.3 |
2 | ||
| 44448-37030 |
XKU304,344 NO.1 |
1 | ||
| 44448C - CLAMP, PRESSURE FEED, NO.2 | ||||
| 44448-37040 |
XKU304,344 NO.2 |
1 | ||
| 44448-37060 |
XKU304,344 NO.2 |
1 | ||
| 44448-37060 |
XKU304,344 NO.3 |
1 | ||
| 44448-37030 |
XKU304,344 NO.1 |
1 | ||
| 44448-37080 |
XKU304,344 NO.3 |
2 | ||
| 44448-37030 |
XKU304,344 NO.1 |
1 | ||
| 44448C - CLAMP, PRESSURE FEED, NO.2 | ||||
| 44448-37040 |
XKU304,344 NO.2 |
1 | ||
| 44448-37060 |
XKU304,344 NO.2 |
1 | ||
| 44448-37060 |
XKU304,344 NO.3 |
1 | ||
| 44448-37030 |
XKU304,344 NO.1 |
1 | ||
| 44448-37080 |
XKU304,344 NO.3 |
2 | ||
| 44448-37030 |
XKU304,344 NO.1 |
1 | ||
| Common parts | ||||
| 47371-37040 | ||||
| 90119-08873 | ||||
| 90467-16019 | ||||
| 90467-21010 | ||||
| 91651-B0820 | ||||
| 94125-41600 | ||||

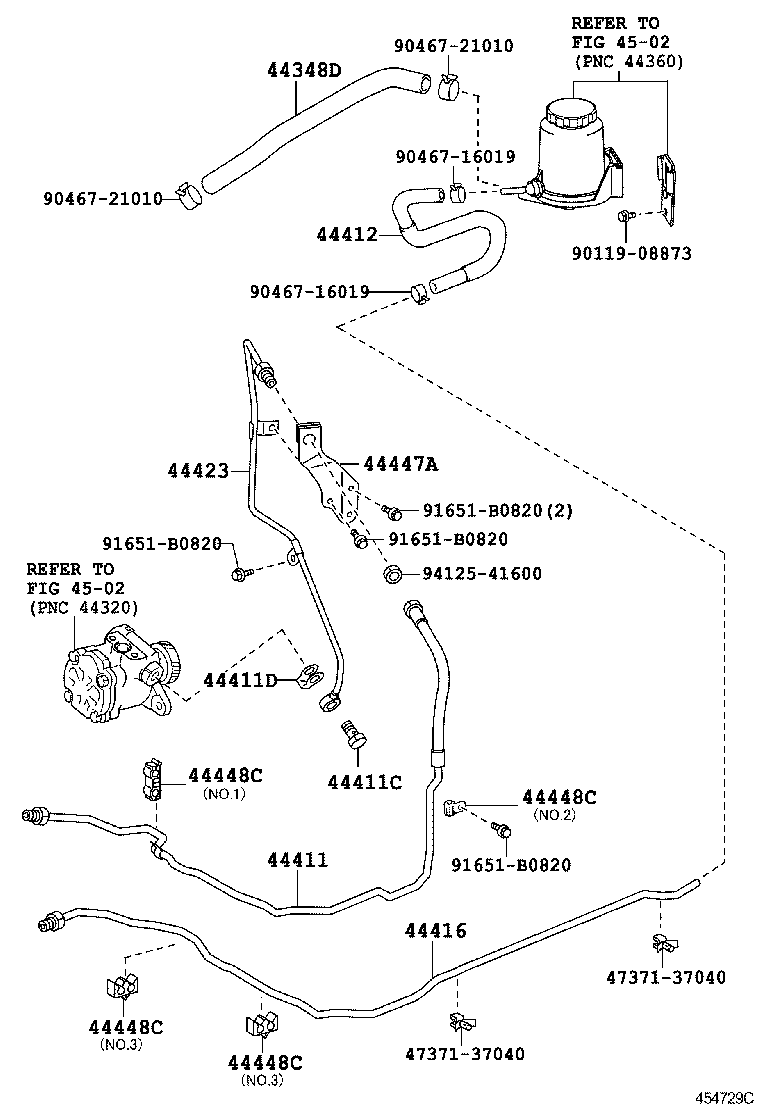

| Linked diagrams | ||||
| 4502 | ||||
