XKU304A-TYMMB3 (2006)
Toyota Dyna/Toyoace Hv
Production
Oct 2006
-
Aug 2009
Engine
N04C
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(0610- )

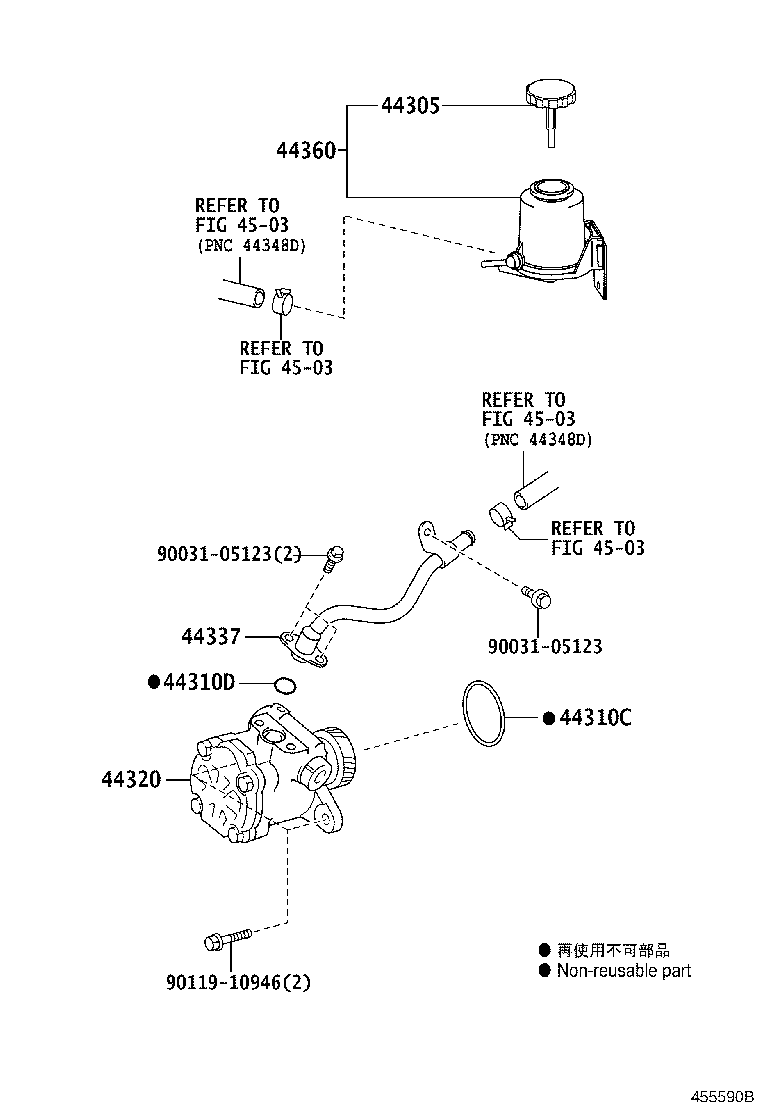

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44305 - CAP SUB-ASSY, VANE PUMP OIL RESERVOIR | ||||
| 44305-12030 |
XKU304,344 |
1 | ||
| 44305-37030 |
XKU30#,338,34#,508 |
1 | ||
| 44305-37020 |
XKU30#,338,34#,508 |
1 | ||
| 44310C - RING, O(FOR VANE PUMP) | ||||
| 90301-60002 |
XKU30#,338,34#,508 |
1 | ||
| 90301-60002 |
XKU304,344 |
1 | ||
| 44310D - RING, O(FOR VANE PUMP UNION) | ||||
| 90301-15019 |
XKU30#,338,34#,508 |
1 | ||
| 90301-15019 |
XKU304,344 |
1 | ||
| 44320 - PUMP ASSY, VANE | ||||
| 44310-37170 |
XKU304,344 |
1 | ||
| 44310-37180 |
XKU304,344 |
1 | ||
| 44337 - UNION, POWER STEERING SUCTION PORT | ||||
| 44337-37370 |
XKU30#,338,34#,508 |
1 | ||
| 44337-37260 |
XKU304,344 |
1 | ||
| 44360 - RESERVOIR ASSY, VANE PUMP OIL | ||||
| 44360-37130 |
XKU304,344 |
1 | ||
| 44360-37170 |
XKU30#,338,34#,508 |
1 | ||
| Common parts | ||||
| 90031-05123 | ||||
| 90119-10946 | ||||
| Linked diagrams | ||||
| 4503 | ||||
