XKU304A-TYMMB3 (2006)

Toyota Dyna/Toyoace Hv

Production Oct 2006 - Aug 2009
Engine N04C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0610- )XKU304,344

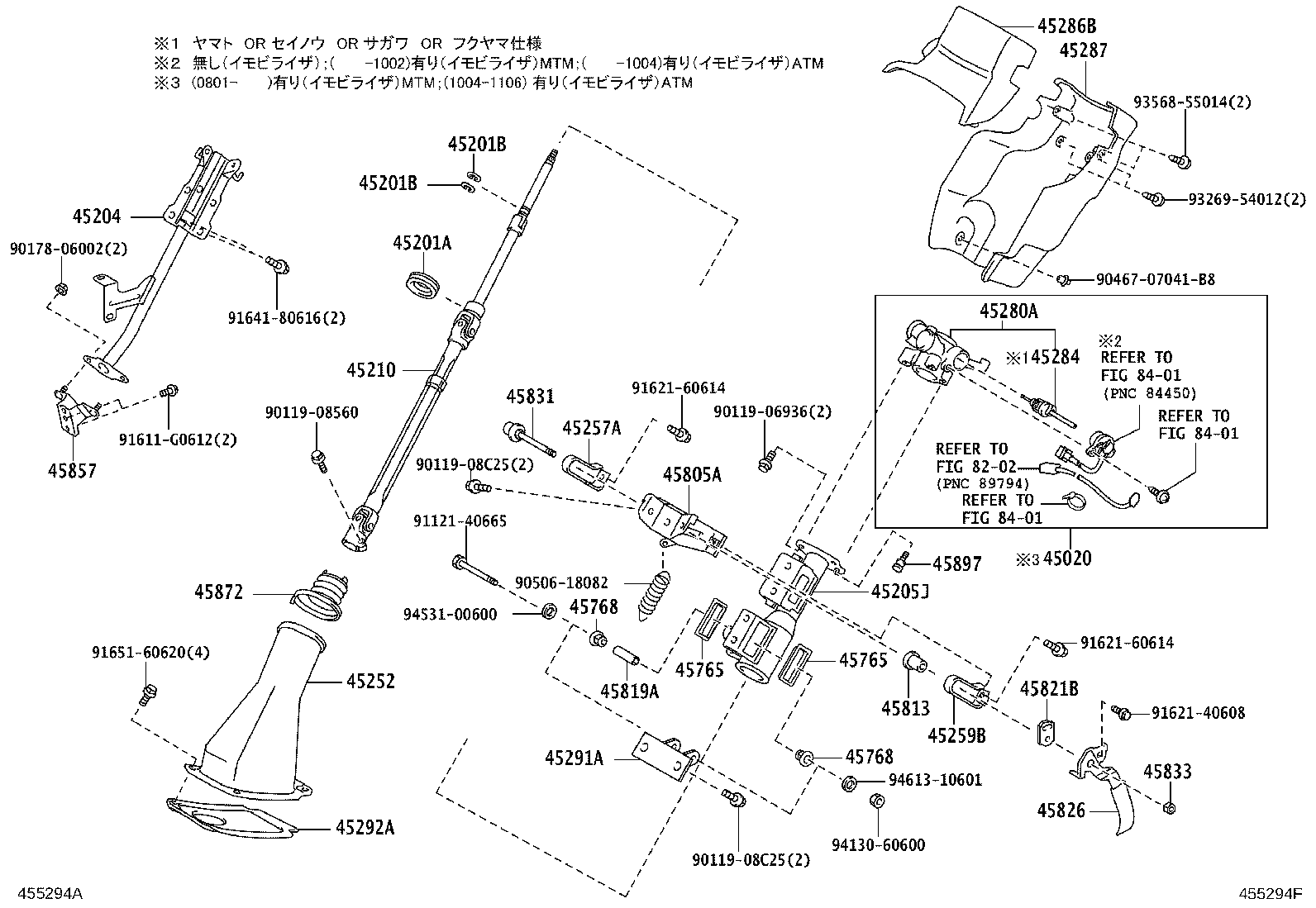

Click highlighted areas on diagram

diagram 45020 45201A 45201B 45201B 45204 45205J 45210 45252 45257A 45259B 45280A 45284 45286B 45287 45291A 45292A 45765 45765 45768 45768 45805A 45813 45819A 45821B 45826 45831 45833 45857 45872 45897 8202 8401 8401 8401 9011906936 9011908560 9011908C25 9011908C25 9017806002 9046707041B8 9050618082 9112140665 91611G0612 9162140608 9162160614 9162160614 9164180616 9165160620 9326954012 9356855014 9413060600 9453100600 9461310601
Part # Description Qty Price
45201A - BEARING(FOR STEERING MAIN SHAFT)
45274-37020

XKU30#,338,34#,508

 1
45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT)
90520-17269

XKU30#,338,34#,508

厚さ=1.20

 2
90520-17269

XKU304;XKU344..30T

厚さ=1.20

 2
45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT)
90520-17269

XKU30#,338,34#,508

厚さ=1.20

 2
90520-17269

XKU304;XKU344..30T

厚さ=1.20

 2
45204 - TUBE ASSY, STEERING COLUMN, LOWER
45204-37130

XKU30#,338,34#,508

 1
45204-37130

XKU304,344

 1
45205J - TUBE SUB-ASSY, STEERING COLUMN, UPPER
45205-37050

XKU304,344

 1
45205-37090

XKU30#,338,34#,508

 1
45210 - SHAFT ASSY, STEERING MAIN
45210-37260

XKU304,344

 1
45210-37080

XKU304,344

 1
45252 - TUBE, STEERING COLUMN, LOWER
45252-37030B0

XKU304;XKU344..30T

MD.CHARCOAL,TRIM1#

 1
45257A - PLATE, STEERING COLUMN ENERGY ABSORBING
45257-37010

XKU304;XKU344..30T

 1
45257-37010

XKU30#,338,34#,508

 1
45259B - PLATE, STEERING COLUMN ENERGY ABSORBING, NO.2
45259-37010

XKU30#,338,34#,508

 1
45280A - BRACKET ASSY, STEERING COLUMN, UPPER
45280-37100

XKU304,344

 1
45280-37100

XKU30#,338,34#,508

 1
45286B - COVER, STEERING COLUMN, UPR
45286-37080B0

XKU304,344

MD.CHARCOAL,TRIM1#

 1
45286-37080B0

XKU30#,338,34#,508

MD.CHARCOAL,TRIM1#

 1
45287 - COVER, STEERING COLUMN, LWR
45287-37080B0

XKU30#,338,34#,508

MD.CHARCOAL,TRIM1#

 1
45287-37080B0

XKU304,344

MD.CHARCOAL,TRIM1#

 1
45291A - SUPPORT, STEERING COLUMN TUBE
45803-37010

XKU304;XKU344..30T

 1
45803-37010

XKU30#,338,34#,508

 1
45292A - COVER, MAIN SHAFT LOWER DUST
45292-37030

XKU30#,338,34#,508

 1
45292-37030

XKU304,344

 1
45765 - GUIDE, TELESCOPIC STEERING
45765-37010

XKU30#,338,34#,508

 2
45765-37010

XKU304;XKU344..30T

 2
45765 - GUIDE, TELESCOPIC STEERING
45765-37010

XKU30#,338,34#,508

 2
45765-37010

XKU304;XKU344..30T

 2
45768 - BUSH, TELESCOPIC STEERING
45768-37010

XKU304;XKU344..30T

 2
45768-37010

XKU30#,338,34#,508

 2
45768 - BUSH, TELESCOPIC STEERING
45768-37010

XKU304;XKU344..30T

 2
45768-37010

XKU30#,338,34#,508

 2
45805A - SUPPORT SUB-ASSY, TILT STEERING
45805-37010

XKU30#,338,34#,508

 1
45805-37010

XKU304;XKU344..30T

 1
45813 - COLLAR, TILT STEERING SUPPORT, NO.1
45813-37010

XKU304;XKU344..30T

外径=30

 1
45813-37010

XKU30#,338,34#,508

外径=30

 1
45819A - COLLAR(FOR TILT LEVER RETAINER)
90387-06037

XKU30#,338,34#,508

 1
90387-06037

XKU304;XKU344..30T

 1
45821B - REINFORCE, TILT STEERING SUPPORT, NO.1
45821-12010

XKU304;XKU344..30T

 1
45821-12010

XKU30#,338,34#,508

 1
45826 - LEVER, STEERING TILT
45826-37010

XKU30#,338,34#,508

 1
45826-37010

XKU304,344

 1
45831 - BOLT, TILT LEVER LOCK, NO.1
45831-37010

XKU304;XKU344..30T

 1
45831-37010

XKU30#,338,34#,508

 1
45833 - NUT, TILT STEERING ADJUSTING, NO.1
45833-37010

XKU30#,338,34#,508

 1
45833-37010

XKU304;XKU344..30T

 1
45857 - BRACKET, TILT STEERING COLUMN TUBE, NO.1
45857-37020

XKU30#,338,34#,508

 1
45857-37020

XKU304,344

 1
45872 - COVER, STEERING COLUMN TUBE
45872-37010

XKU304;XKU344..30T

 1
45897 - BOLT, STEERING LOCK SET
45897-25010

XKU304,344

 1
45897-25010

XKU30#,338,34#,508

 1
Common parts
90119-06936
90119-08560
90119-08C25
90178-06002
90467-07041B8
90506-18082
91121-40665
91611-G0612
91621-40608
91621-60614
91641-80616
91651-60620
93269-54012
93568-55014
94130-60600
94531-00600
94613-10601
