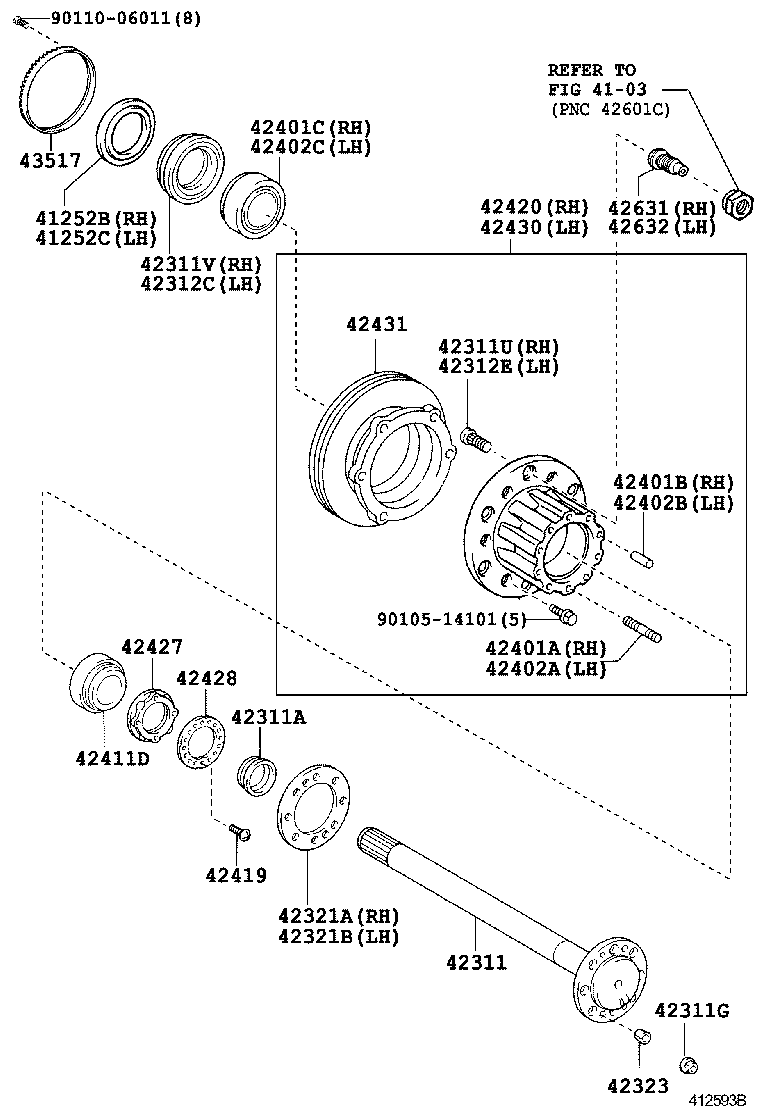

Toyota Dyna/toyoace hv XKU304 REAR AXLE SHAFT & HUB

Part #	Description	Period	Qty
41252B - DEFLECTOR, DUST, RH
41252-37050	XKU30#,338,34#,508	10/2006 - 12/2999	1
41252C - DEFLECTOR, DUST, LH
41252-37050	XKU30#,338,34#,508	10/2006 - 12/2999	1
42311 - SHAFT, REAR AXLE
42311-37100	XKU304	10/2003 - 10/2006	2
42311A - SEAL, OIL (FOR REAR AXLE SHAFT)
90310-40001	XKU304,344	10/2003 - 10/2006	2
90310-40001	XKU338,348;XKU30#,344..DM6,T3,T5	10/2006 - 12/2999	2
42311G - NUT (FOR REAR AXLE SHAFT)
90179-10067	XKU304,344	10/2003 - 10/2006	16
42311U - BOLT, HUB (FOR REAR AXLE RH)
90942-02071	XKU30#,338,34#,508	10/2006 - 12/2999	5
90942-02071	XKU304,344	10/2003 - 10/2006	5
42311V - SEAL, OIL (FOR REAR AXLE SHAFT RH)
90311-78001	XKU30#,338,34#,508	10/2006 - 12/2999	1
90311-78001	XKU304,344	10/2003 - 10/2006	1
42312C - SEAL, OIL (FOR REAR AXLE SHAFT LH)
90311-78001	XKU30#,338,34#,508	10/2006 - 12/2999	1
90311-78001	XKU304,344	10/2003 - 10/2006	1
42312E - BOLT, HUB (FOR REAR AXLE LH)
90942-02072	XKU30#,338,34#,508	10/2006 - 12/2999	5
90942-02072	XKU304,344	10/2003 - 10/2006	5
42321A - GASKET, REAR AXLE SHAFT, RH
42321-37020	XKU304,344	10/2003 - 10/2006	1
42321B - GASKET, REAR AXLE SHAFT, LH
42321-37020	XKU304,344	10/2003 - 10/2006	1
42323 - WASHER, CONE (FOR REAR AXLE SHAFT)
42323-36010	XKU304,344	10/2003 - 10/2006	16
42401A - BOLT, STUD (FOR REAR AXLE HUB RH)
90116-10191	XKU304,344	10/2003 - 10/2006	8
42401B - PIN, STRAIGHT (FOR REAR AXLE HUB RH)
90250-10055	XKU304,344	10/2003 - 10/2006	2
42401C - BEARING (FOR REAR AXLE HUB INNER RH)
90366-60012	XKU30#,338,34#,508	10/2006 - 12/2999	1
90366-60012	XKU304,344	10/2003 - 10/2006	1
42402A - BOLT, STUD (FOR REAR AXLE HUB LH)
90116-10191	XKU304,344	10/2003 - 10/2006	8
42402B - PIN, STRAIGHT (FOR REAR AXLE HUB LH)
90250-10055	XKU304,344	10/2003 - 10/2006	2
42402C - BEARING (FOR REAR AXLE HUB INNER LH)
90366-60012	XKU304,344	10/2003 - 10/2006	1
90366-60012	XKU30#,338,34#,508	10/2006 - 12/2999	1
42411D - BEARING, TAPERED ROLLER (FOR REAR AXLE OUTER BEARING)
90366-55054	XKU30#,338,34#,508	10/2006 - 12/2999	2
90366-55054	XKU304,344	10/2003 - 10/2006	2
42419 - SCREW, REAR AXLE BEARING LOCK NUT
93311-16012	XKU304,344	10/2003 - 10/2006	4
93311-16012	XKU30#,338,34#,508	10/2006 - 12/2999	4
42420 - HUB (OR SHAFT) & BRAKE DRUM REAR AXLE, RH
42420-39175	XKU304,344	10/2003 - 10/2006	1
42430-39355	XKU338,348;XKU30#,344..DM6,T3,T5	10/2006 - 12/2999	1
42427 - NUT, REAR AXLE BEARING LOCK
42427-37020	XKU30#,338,34#,508	10/2006 - 12/2999	2
42427-37020	XKU304,344	10/2003 - 10/2006	2
42428 - PLATE, REAR AXLE LOCK NUT
42428-36020	XKU304,344	10/2003 - 10/2006	2
42428-36020	XKU30#,338,34#,508	10/2006 - 12/2999	2
42430 - HUB (OR SHAFT) & BRAKE DRUM REAR AXLE, LH
42430-39215	XKU304,344	10/2003 - 10/2006	1
42430-39365	XKU338,348;XKU30#,344..DM6,T3,T5	10/2006 - 12/2999	1
42431 - DISC, REAR
42431-37050	XKU30#,338,34#,508	10/2006 - 12/2999	2
42631 - BOLT, DOUBLE WHEEL STOP, RH
42631-55031	XKU304,344	10/2003 - 10/2006	5
42632 - BOLT, DOUBLE WHEEL STOP, LH
42632-55031	XKU304,344	10/2003 - 10/2006	5
43517 - ROTOR, SKID CONTROL, REAR
43517-37010	XKU304,344	10/2003 - 10/2006	2
Common parts
90105-14101
90110-06011
Linked diagrams
4103

XKU304A-TYMMB3 (2006)

(0610- )
