XKU304A-TYMMB3 (2006)
Toyota Dyna/Toyoace Hv

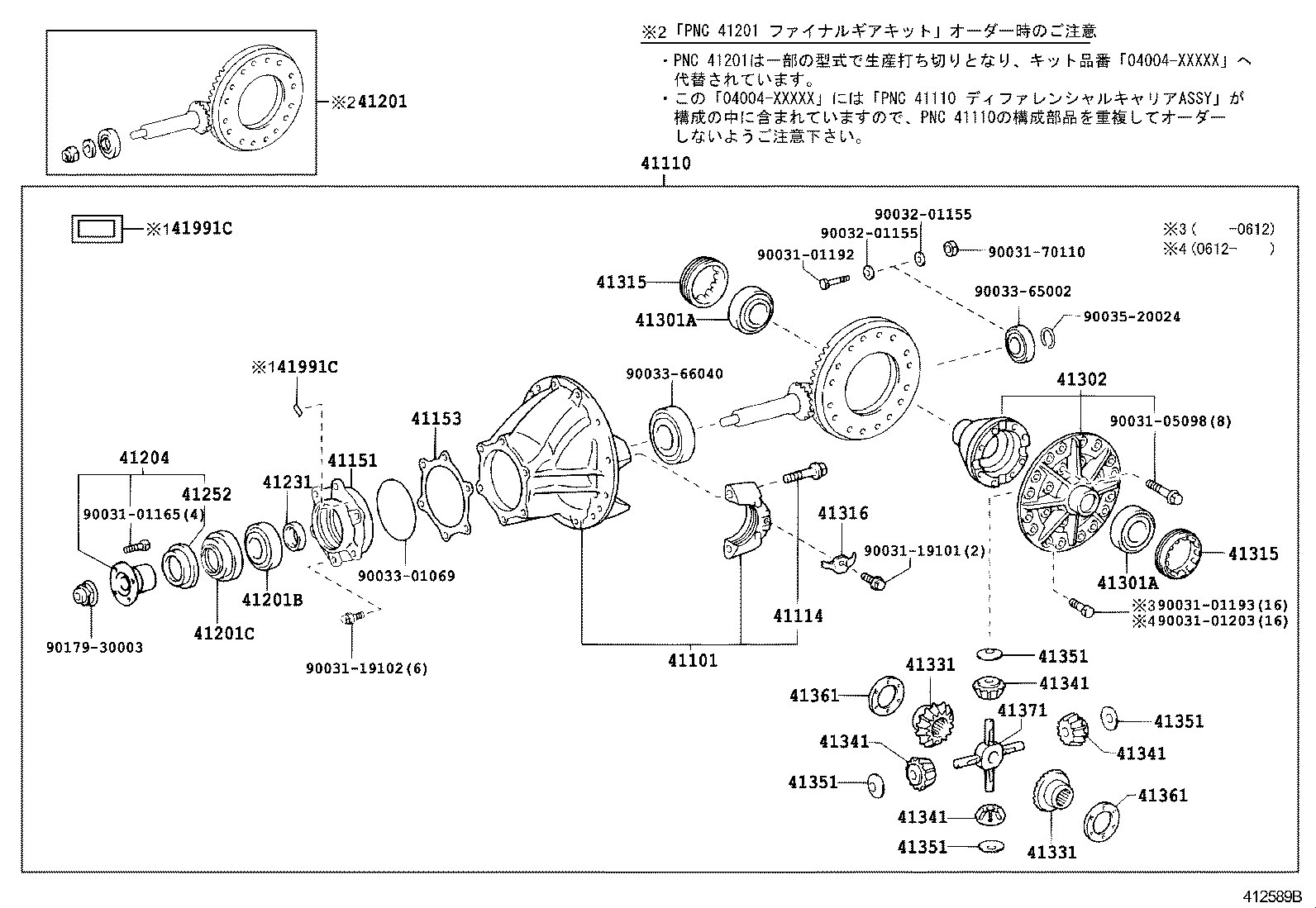

ILLUST NO. 1 OF 2(0610- )XKU338,348 ; (0610- )XKU30#,344..DM6,T3,T5
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 41101 - CARRIER SUB-ASSY, DIFFERENTIAL, REAR | ||||
| 41101-37060 |
XKU304,344 |
1 | ||
| 41101-37060 |
XKU338,348;XKU30#,344..DM6,T3,T5 |
1 | ||
| 41110 - CARRIER ASSY, DIFFERENTIAL, REAR | ||||
| 41110-37340 |
XKU304,344 *FGR=37:8=4.625 |
1 | ||
| 41110-37360 |
XKU304,344..5F *FGR=41:8=5.125 |
1 | ||
| 41110-37350 |
XKU304,344 *FGR=39:8=4.875 |
1 | ||
| 41110-37330 |
XKU304,344 *FGR=39:9=4.333 |
1 | ||
| 41114 - BOLT, REAR DIFFERENTIAL BEARING CAP | ||||
| 90031-05043 |
XKU304,344 |
4 | ||
| 41151 - CAGE, DIFFERENTIAL DRIVE PINION BEARING | ||||
| 41151-37030 |
XKU304,344 |
1 | ||
| 41153 - SHIM, DIFFERENTIAL DRIVE PINION CAGE | ||||
| 41153-37100 |
XKU304,344 厚さ=0.40 |
1 | ||
| 41153-37120 |
XKU304,344 厚さ=0.50 |
1 | ||
| 41153-37090 |
XKU304,344 厚さ=0.30 |
1 | ||
| 41153-37100 |
XKU338,348;XKU30#,344..DM6,T3,T5 厚さ=0.40 |
1 | ||
| 41153-37110 |
XKU304,344 厚さ=0.45 |
1 | ||
| 41153-37090 |
XKU338,348;XKU30#,344..DM6,T3,T5 厚さ=0.30 |
1 | ||
| 41153-37110 |
XKU338,348;XKU30#,344..DM6,T3,T5 厚さ=0.45 |
1 | ||
| 41153-37120 |
XKU338,348;XKU30#,344..DM6,T3,T5 厚さ=0.50 |
1 | ||
| 41201 - FINAL GEAR KIT, DIFFERENTIAL, REAR | ||||
| 41201-80213 |
XKU304,344 *FGR=39:9=4.333 |
1 | ||
| 41201-80214 |
XKU304,344 *FGR=37:8=4.625 |
1 | ||
| 41201-80215 |
XKU304,344 *FGR=39:8=4.875 |
1 | ||
| 41201-80216 |
XKU304,344 *FGR=41:8=5.125 |
1 | ||
| 41201-80550 |
XKU304,344..5F *FGR=41:8=5.125 |
1 | ||
| 41201-80215 |
XKU304,348 *FGR=39:8=4.875 |
1 | ||
| 41201B - BEARING (FOR REAR DRIVE PINION FRONT) | ||||
| 90033-66040 |
XKU304,344 NO.2 |
1 | ||
| 90033-66038 |
XKU304,344 NO.1 |
1 | ||
| 41201C - SEAL, OIL (FOR REAR DIFFERENTIAL CARRIER) | ||||
| 90033-11039 |
XKU304,344 |
1 | ||
| 41204 - FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR | ||||
| 41204-37080 |
XKU304,344 |
1 | ||
| 41231 - SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING | ||||
| 41231-37430 |
XKU304,344 厚さ=14.425 |
1 | ||
| 41231-37420 |
XKU304,344 厚さ=14.400 |
1 | ||
| 41231-37460 |
XKU304,344 厚さ=14.500 |
1 | ||
| 41231-37470 |
XKU304,344 厚さ=14.525 |
1 | ||
| 41231-37500 |
XKU304,344 厚さ=14.600 |
1 | ||
| 41231-37490 |
XKU304,344 厚さ=14.575 |
1 | ||
| 41231-37450 |
XKU304,344 厚さ=14.475 |
1 | ||
| 41231-37510 |
XKU304,344 厚さ=14.625 |
1 | ||
| 41231-37480 |
XKU304,344 厚さ=14.550 |
1 | ||
| 41231-37440 |
XKU304,344 厚さ=14.450 |
1 | ||
| 41231-37530 |
XKU304,344 厚さ=14.675 |
1 | ||
| 41231-37610 |
XKU304,344 厚さ=14.875 |
1 | ||
| 41231-37580 |
XKU304,344 厚さ=14.800 |
1 | ||
| 41231-37520 |
XKU304,344 厚さ=14.650 |
1 | ||
| 41231-37560 |
XKU304,344 厚さ=14.750 |
1 | ||
| 41231-37600 |
XKU304,344 厚さ=14.850 |
1 | ||
| 41231-37540 |
XKU304,344 厚さ=14.700 |
1 | ||
| 41231-37590 |
XKU304,344 厚さ=14.825 |
1 | ||
| 41231-37550 |
XKU304,344 厚さ=14.725 |
1 | ||
| 41231-37570 |
XKU304,344 厚さ=14.775 |
1 | ||
| 41252 - DEFLECTOR, DUST (FOR REAR DIFFERENTIAL) | ||||
| 37341-89203 |
XKU304,344 |
1 | ||
| 41301A - BEARING(FOR REAR DIFFERENTIAL CASE) | ||||
| 90366-55054 |
XKU304,344 |
2 | ||
| 41301A - BEARING(FOR REAR DIFFERENTIAL CASE) | ||||
| 90366-55054 |
XKU304,344 |
2 | ||
| 41302 - CASE SUB-ASSY, REAR DIFFERENTIAL | ||||
| 41301-37030 |
XKU304,344 *FGR=39:9=4.333 |
1 | ||
| 41301-37040 |
XKU304,344 *FGR=39:8=4.875 |
1 | ||
| 41315 - NUT, REAR DIFFERENTIAL BEARING ADJUSTING | ||||
| 41315-37020 |
XKU304,344 |
2 | ||
| 41315 - NUT, REAR DIFFERENTIAL BEARING ADJUSTING | ||||
| 41315-37020 |
XKU304,344 |
2 | ||
| 41316 - LOCK, REAR DIFFERENTIAL BEARING ADJUSTING NUT | ||||
| 41316-37010 |
XKU304,344 |
2 | ||
| 41331 - GEAR, REAR DIFFERENTIAL SIDE | ||||
| 41331-37040 |
XKU304,344 |
2 | ||
| 41331 - GEAR, REAR DIFFERENTIAL SIDE | ||||
| 41331-37040 |
XKU304,344 |
2 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-37030 |
XKU304,344 |
4 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-37030 |
XKU304,344 |
4 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-37030 |
XKU304,344 |
4 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-37030 |
XKU304,344 |
4 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-37020 |
XKU304,344 |
4 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-37020 |
XKU304,344 |
4 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-37020 |
XKU304,344 |
4 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-37020 |
XKU304,344 |
4 | ||
| 41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-37030 |
XKU304,344 厚さ=2.0 |
2 | ||
| 41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-37030 |
XKU304,344 厚さ=2.0 |
2 | ||
| 41371 - SPIDER, REAR DIFFERENTIAL | ||||
| 41371-37020 |
XKU304,344 |
1 | ||
| 41991C - CAUTION PLATE, REAR DIFFERENTIAL | ||||
| 41991-37080 |
XKU304,344..5F ﾏｰｸ 5.13 |
1 | ||
| 41991-37060 |
XKU304,344 ﾏｰｸ 4.63 |
1 | ||
| 41991-37050 |
XKU304,344 ﾏｰｸ 4.33 |
1 | ||
| 41991-37070 |
XKU304,344 ﾏｰｸ 4.88 |
1 | ||
| 41991-37070 |
XKU304..5F;XKU348..DCRTJ ﾏｰｸ 4.88 |
1 | ||
| 41991C - CAUTION PLATE, REAR DIFFERENTIAL | ||||
| 41991-37080 |
XKU304,344..5F ﾏｰｸ 5.13 |
1 | ||
| 41991-37060 |
XKU304,344 ﾏｰｸ 4.63 |
1 | ||
| 41991-37050 |
XKU304,344 ﾏｰｸ 4.33 |
1 | ||
| 41991-37070 |
XKU304,344 ﾏｰｸ 4.88 |
1 | ||
| 41991-37070 |
XKU304..5F;XKU348..DCRTJ ﾏｰｸ 4.88 |
1 | ||
| Common parts | ||||
| 90031-01165 | ||||
| 90031-01192 | ||||
| 90031-01193 | ||||
| 90031-01203 | ||||
| 90031-05098 | ||||
| 90031-19101 | ||||
| 90031-19102 | ||||
| 90031-70110 | ||||
| 90032-01155 | ||||
| 90033-01069 | ||||
| 90033-65002 | ||||
| 90033-66040 | ||||
| 90035-20024 | ||||
| 90179-30003 | ||||
