XKU304A-TYMMB3 (2006)

Toyota Dyna/Toyoace Hv

Production Oct 2006 - Aug 2009
Engine N04C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0610- )XKU338 ; (0610- )XKU30#..DM6,T5..5F

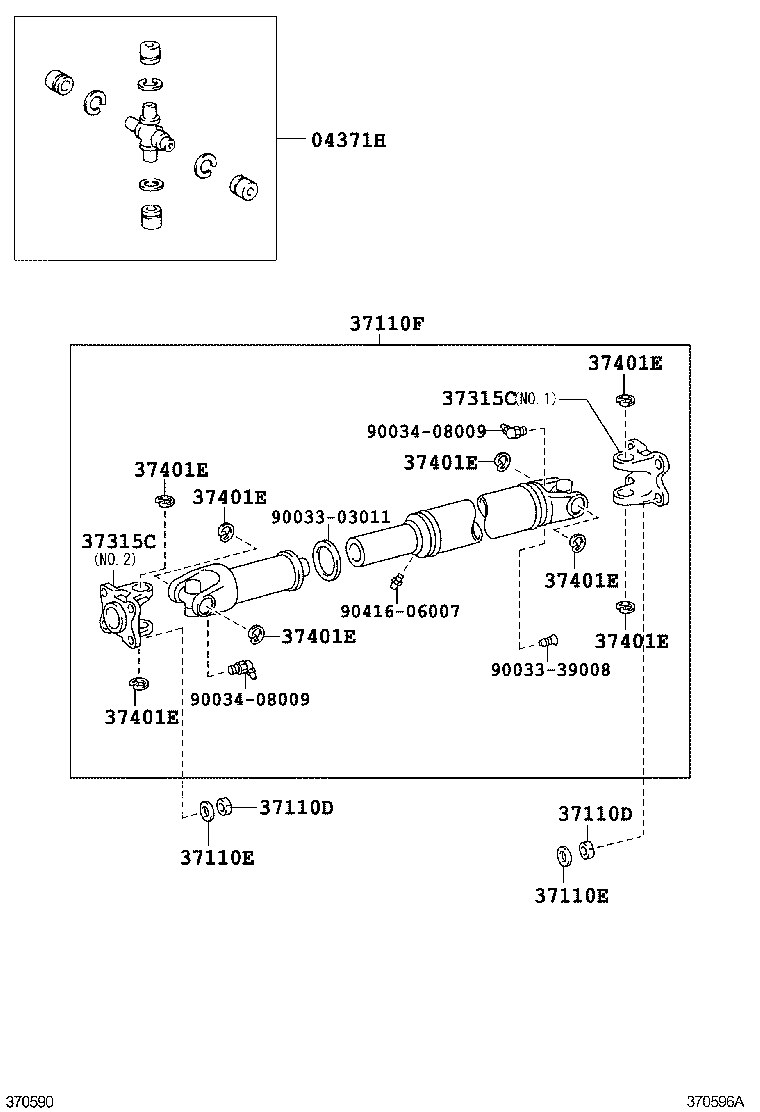

Click highlighted areas on diagram

diagram 04371H 37110D 37110D 37110E 37110E 37110F 37315C 37315C 37401E 37401E 37401E 37401E 37401E 37401E 37401E 37401E 9003303011 9003339008 9003408009 9003408009 9041606007
Part # Description Qty Price
04371H - SPIDER KIT, REAR PROPELLER SHAFT UNIVERSAL JOINT
04371-37080

XKU30#,338,508

 3
04371-37080

XKU30#,338,508

 2
37110D - NUT (FOR PROPELLER SHAFT)
90170-12005

XKU30#,338,34#,508

 8
90170-12005

XKU304,344

 8
37110D - NUT (FOR PROPELLER SHAFT)
90170-12005

XKU30#,338,34#,508

 8
90170-12005

XKU304,344

 8
37110E - WASHER (FOR PROPELLER SHAFT)
94512-01200

XKU30#,338,34#,508

 8
94512-01200

XKU304,344

 8
37110E - WASHER (FOR PROPELLER SHAFT)
94512-01200

XKU30#,338,34#,508

 8
94512-01200

XKU304,344

 8
37315C - YOKE, NO.1, REAR PROPELLER SHAFT UNIVERSAL JOINT FLANGE
37315-37070

XKU30#,338,34#,508

NO.1 & NO.2

 2
37315C - YOKE, NO.1, REAR PROPELLER SHAFT UNIVERSAL JOINT FLANGE
37315-37070

XKU30#,338,34#,508

NO.1 & NO.2

 2
37401E - RING, SNAP (FOR REAR PROPELLER SHAFT JOINT SPIDER BEARI
90035-21026

XKU304

厚さ=1.70

 8
90035-21022

XKU304

厚さ=1.50

 8
90035-21038

XKU30#,338,34#,508

厚さ=1.68

 8
90035-21023

XKU304

厚さ=1.55

 8
90035-21024

XKU304

厚さ=1.60

 8
90035-21041

XKU30#,338,34#,508

厚さ=1.59

 8
90035-21025

XKU304

厚さ=1.65

 8
90035-21040

XKU30#,338,34#,508

厚さ=1.62

 8
90035-21042

XKU30#,338,34#,508

厚さ=1.56

 8
90035-21039

XKU30#,338,34#,508

厚さ=1.65

 8
90035-21043

XKU30#,338,34#,508

厚さ=1.53

 8
90035-21044

XKU30#,338,34#,508

厚さ=1.50

 8
37401E - RING, SNAP (FOR REAR PROPELLER SHAFT JOINT SPIDER BEARI
90035-21022

XKU304

厚さ=1.50

 8
90035-21026

XKU304

厚さ=1.70

 8
90035-21038

XKU30#,338,34#,508

厚さ=1.68

 8
90035-21023

XKU304

厚さ=1.55

 8
90035-21024

XKU304

厚さ=1.60

 8
90035-21041

XKU30#,338,34#,508

厚さ=1.59

 8
90035-21025

XKU304

厚さ=1.65

 8
90035-21040

XKU30#,338,34#,508

厚さ=1.62

 8
90035-21042

XKU30#,338,34#,508

厚さ=1.56

 8
90035-21039

XKU30#,338,34#,508

厚さ=1.65

 8
90035-21043

XKU30#,338,34#,508

厚さ=1.53

 8
90035-21044

XKU30#,338,34#,508

厚さ=1.50

 8
37401E - RING, SNAP (FOR REAR PROPELLER SHAFT JOINT SPIDER BEARI
90035-21022

XKU304

厚さ=1.50

 8
90035-21026

XKU304

厚さ=1.70

 8
90035-21038

XKU30#,338,34#,508

厚さ=1.68

 8
90035-21023

XKU304

厚さ=1.55

 8
90035-21024

XKU304

厚さ=1.60

 8
90035-21041

XKU30#,338,34#,508

厚さ=1.59

 8
90035-21025

XKU304

厚さ=1.65

 8
90035-21040

XKU30#,338,34#,508

厚さ=1.62

 8
90035-21042

XKU30#,338,34#,508

厚さ=1.56

 8
90035-21039

XKU30#,338,34#,508

厚さ=1.65

 8
90035-21043

XKU30#,338,34#,508

厚さ=1.53

 8
90035-21044

XKU30#,338,34#,508

厚さ=1.50

 8
37401E - RING, SNAP (FOR REAR PROPELLER SHAFT JOINT SPIDER BEARI
90035-21022

XKU304

厚さ=1.50

 8
90035-21026

XKU304

厚さ=1.70

 8
90035-21038

XKU30#,338,34#,508

厚さ=1.68

 8
90035-21023

XKU304

厚さ=1.55

 8
90035-21024

XKU304

厚さ=1.60

 8
90035-21041

XKU30#,338,34#,508

厚さ=1.59

 8
90035-21025

XKU304

厚さ=1.65

 8
90035-21040

XKU30#,338,34#,508

厚さ=1.62

 8
90035-21042

XKU30#,338,34#,508

厚さ=1.56

 8
90035-21039

XKU30#,338,34#,508

厚さ=1.65

 8
90035-21043

XKU30#,338,34#,508

厚さ=1.53

 8
90035-21044

XKU30#,338,34#,508

厚さ=1.50

 8
37401E - RING, SNAP (FOR REAR PROPELLER SHAFT JOINT SPIDER BEARI
90035-21022

XKU304

厚さ=1.50

 8
90035-21026

XKU304

厚さ=1.70

 8
90035-21038

XKU30#,338,34#,508

厚さ=1.68

 8
90035-21023

XKU304

厚さ=1.55

 8
90035-21024

XKU304

厚さ=1.60

 8
90035-21041

XKU30#,338,34#,508

厚さ=1.59

 8
90035-21025

XKU304

厚さ=1.65

 8
90035-21040

XKU30#,338,34#,508

厚さ=1.62

 8
90035-21042

XKU30#,338,34#,508

厚さ=1.56

 8
90035-21039

XKU30#,338,34#,508

厚さ=1.65

 8
90035-21043

XKU30#,338,34#,508

厚さ=1.53

 8
90035-21044

XKU30#,338,34#,508

厚さ=1.50

 8
37401E - RING, SNAP (FOR REAR PROPELLER SHAFT JOINT SPIDER BEARI
90035-21022

XKU304

厚さ=1.50

 8
90035-21026

XKU304

厚さ=1.70

 8
90035-21038

XKU30#,338,34#,508

厚さ=1.68

 8
90035-21023

XKU304

厚さ=1.55

 8
90035-21024

XKU304

厚さ=1.60

 8
90035-21041

XKU30#,338,34#,508

厚さ=1.59

 8
90035-21025

XKU304

厚さ=1.65

 8
90035-21040

XKU30#,338,34#,508

厚さ=1.62

 8
90035-21042

XKU30#,338,34#,508

厚さ=1.56

 8
90035-21039

XKU30#,338,34#,508

厚さ=1.65

 8
90035-21043

XKU30#,338,34#,508

厚さ=1.53

 8
90035-21044

XKU30#,338,34#,508

厚さ=1.50

 8
37401E - RING, SNAP (FOR REAR PROPELLER SHAFT JOINT SPIDER BEARI
90035-21022

XKU304

厚さ=1.50

 8
90035-21026

XKU304

厚さ=1.70

 8
90035-21038

XKU30#,338,34#,508

厚さ=1.68

 8
90035-21023

XKU304

厚さ=1.55

 8
90035-21024

XKU304

厚さ=1.60

 8
90035-21041

XKU30#,338,34#,508

厚さ=1.59

 8
90035-21025

XKU304

厚さ=1.65

 8
90035-21040

XKU30#,338,34#,508

厚さ=1.62

 8
90035-21042

XKU30#,338,34#,508

厚さ=1.56

 8
90035-21039

XKU30#,338,34#,508

厚さ=1.65

 8
90035-21043

XKU30#,338,34#,508

厚さ=1.53

 8
90035-21044

XKU30#,338,34#,508

厚さ=1.50

 8
37401E - RING, SNAP (FOR REAR PROPELLER SHAFT JOINT SPIDER BEARI
90035-21026

XKU304

厚さ=1.70

 8
90035-21022

XKU304

厚さ=1.50

 8
90035-21038

XKU30#,338,34#,508

厚さ=1.68

 8
90035-21023

XKU304

厚さ=1.55

 8
90035-21024

XKU304

厚さ=1.60

 8
90035-21041

XKU30#,338,34#,508

厚さ=1.59

 8
90035-21025

XKU304

厚さ=1.65

 8
90035-21040

XKU30#,338,34#,508

厚さ=1.62

 8
90035-21042

XKU30#,338,34#,508

厚さ=1.56

 8
90035-21039

XKU30#,338,34#,508

厚さ=1.65

 8
90035-21043

XKU30#,338,34#,508

厚さ=1.53

 8
90035-21044

XKU30#,338,34#,508

厚さ=1.50

 8
Common parts
90033-03011
90033-39008
90034-08009
90416-06007
