XKU304A-TYMMB3 (2006)
Toyota Dyna/Toyoace Hv

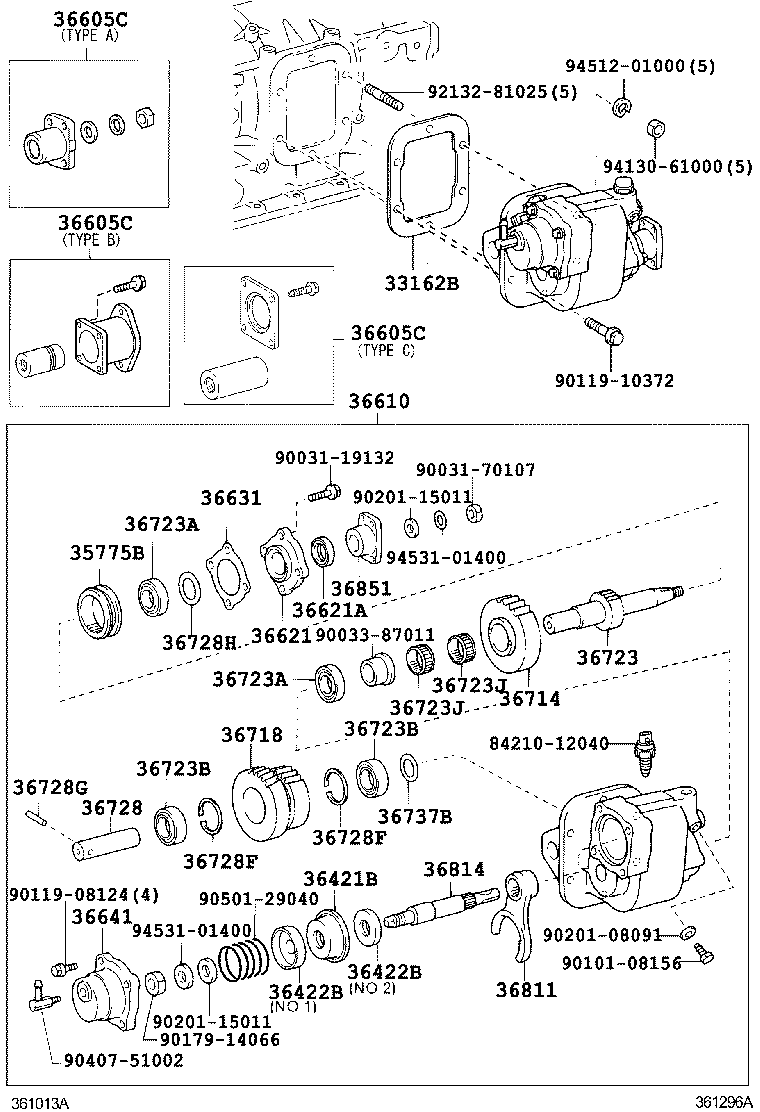

ILLUST NO. 1 OF 2(0610- )XKU304..5F
ﾊﾞｷｭｰﾑｼｷ 25KG
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33162B - GASKET, POWER TAKE-OFF COVER | ||||
| 33162-37030 |
XKU304..5F |
1 | ||
| 35775B - SLEEVE, OUTPUT SHAFT | ||||
| 35775-37030 |
XKU304..5F |
1 | ||
| 36421B - DIAPHRAGM (FOR POWER TAKE-OFF) | ||||
| 36421-37010 |
XKU304..5F |
1 | ||
| 36421-93100 |
XKU304 |
1 | ||
| 36422B - PLATE, DIAPHRAGM (FOR POWER TAKE-OFF) | ||||
| 36422-93101 |
XKU304..5F NO.2 |
1 | ||
| 36422-93100 |
XKU304..5F NO.1 |
1 | ||
| 36422B - PLATE, DIAPHRAGM (FOR POWER TAKE-OFF) | ||||
| 36422-93101 |
XKU304..5F NO.2 |
1 | ||
| 36422-93100 |
XKU304..5F NO.1 |
1 | ||
| 36605C - POWER TAKE-OFF SET | ||||
| 36605-37040 |
XKU304..5F TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 36605-37030 |
XKU304..5F TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 36605-37050 |
XKU304..5F TYPE C:ｲﾗｽﾄ参照 |
1 | ||
| 36605C - POWER TAKE-OFF SET | ||||
| 36605-37040 |
XKU304..5F TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 36605-37030 |
XKU304..5F TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 36605-37050 |
XKU304..5F TYPE C:ｲﾗｽﾄ参照 |
1 | ||
| 36605C - POWER TAKE-OFF SET | ||||
| 36605-37040 |
XKU304..5F TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 36605-37030 |
XKU304..5F TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 36605-37050 |
XKU304..5F TYPE C:ｲﾗｽﾄ参照 |
1 | ||
| 36621 - RETAINER, POWER TAKE-OFF BEARING | ||||
| 36621-37071 |
XKU304..5F |
1 | ||
| 36621A - SEAL, OIL (FOR POWER TAKE-OFF BEARING RETAINER) | ||||
| 90311-25110 |
XKU304..5F |
1 | ||
| 36631 - GASKET, POWER TAKE-OFF BEARING RETAINER | ||||
| 36632-37030 |
XKU304..5F |
1 | ||
| 36641 - CAP, POWER TAKE-OFF SHIFT SHAFT | ||||
| 36641-93100 |
XKU304..5F |
1 | ||
| 36714 - GEAR, POWER TAKE-OFF OUTPUT | ||||
| 36714-37171 |
XKU304..5F |
1 | ||
| 36723A - BEARING (FOR OUTPUT SHAFT FRONT) | ||||
| 90366-22001 |
XKU304..5F |
2 | ||
| 36723A - BEARING (FOR OUTPUT SHAFT FRONT) | ||||
| 90366-22001 |
XKU304..5F |
2 | ||
| 36723B - BEARING (FOR OUTPUT SHAFT REAR) | ||||
| 90366-25011 |
XKU304..5F 厚さ=14 |
2 | ||
| 36723B - BEARING (FOR OUTPUT SHAFT REAR) | ||||
| 90366-25011 |
XKU304..5F 厚さ=14 |
2 | ||
| 36723J - BEARING (FOR POWER TAKE-OFF OUTPUT SHAFT) | ||||
| 90364-28020 |
XKU304..5F |
2 | ||
| 36723J - BEARING (FOR POWER TAKE-OFF OUTPUT SHAFT) | ||||
| 90364-28020 |
XKU304..5F |
2 | ||
| 36728 - SHAFT, POWER TAKE-OFF IDLER | ||||
| 36728-37020 |
XKU304..5F |
1 | ||
| 36728F - RING, SHAFT SNAP (FOR POWER TAKE-OFF IDLER SHAFT) | ||||
| 90521-56108 |
XKU304..5F |
2 | ||
| 36728F - RING, SHAFT SNAP (FOR POWER TAKE-OFF IDLER SHAFT) | ||||
| 90521-56108 |
XKU304..5F |
2 | ||
| 36728G - PIN (FOR POWER TAKE-OFF IDLER SHAFT) | ||||
| 90254-04002 |
XKU304..5F |
1 | ||
| 36728H - SHIM (FOR POWER TAKE-OFF IDLER SHAFT) | ||||
| 90564-25001 |
XKU304..5F 厚さ=0.05 |
1 | ||
| 90564-25004 |
XKU304..5F 厚さ=0.5 |
1 | ||
| 90564-25002 |
XKU304..5F 厚さ=0.1 |
1 | ||
| 90564-25003 |
XKU304..5F 厚さ=0.2 |
1 | ||
| 36737B - SHIM (FOR POWER TAKE-OFF CLUTCH OUTPUT SHAFT) | ||||
| 90564-42002 |
XKU304..5F 厚さ=0.07−0.13 |
1 | ||
| 90564-42004 |
XKU304..5F 厚さ=0.47−0.53 |
1 | ||
| 90564-42003 |
XKU304..5F 厚さ=0.17−0.23 |
1 | ||
| 90564-42001 |
XKU304..5F 厚さ=0.02−0.08 |
1 | ||
| 36811 - FORK, POWR TAKE-OFF SHIFT, NO.1 | ||||
| 36811-93104 |
XKU304..5F |
1 | ||
| 36814 - SHAFT, POWR TAKE-OFF FORK, NO.1 | ||||
| 36814-37030 |
XKU304..5F |
1 | ||
| 36851 - RETAINER, POWER TAKE-OFF JOINT | ||||
| 36851-37030 |
XKU304..5F |
1 | ||
| Common parts | ||||
| 84210-12040 | ||||
| 90031-19132 | ||||
| 90031-70107 | ||||
| 90033-87011 | ||||
| 90101-08156 | ||||
| 90119-08124 | ||||
| 90119-10372 | ||||
| 90179-14066 | ||||
| 90201-08091 | ||||
| 90201-15011 | ||||
| 90407-51002 | ||||
| 90501-29040 | ||||
| 92132-81025 | ||||
| 94130-61000 | ||||
| 94512-01000 | ||||
| 94531-01400 | ||||
ILLUST NO. 2 OF 2(0610- )XKU304..5F
ﾊﾞｷｭｰﾑｼｷ (ｼﾞﾝｶｲｶﾞﾀ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27679C - BRACKET, POWER TAKE-OFF SOLENOID | ||||
| 27679-78280 |
N04C..XKU304..5F |
1 | ||
| 27690J - SOLENOID ASSY, POWER TAKE-OFF | ||||
| 27690-78080 |
N04C..XKU304..5F |
1 | ||
| 44702E - TUBE SUB-ASSY, VACUUM PUMP TO BRAKE BOOT | ||||
| 44702-37290 |
XKU304..5F |
1 | ||
| 44754H - BRACKET, VACUUM TUBE | ||||
| 44754-37110 |
XKU304..5F |
1 | ||
| 44763E - TUBE, HOSE TO HOSE, NO.1 | ||||
| 44763-37810 |
XKU304..5F NO.1 |
1 | ||
| 44763-37800 |
XKU304..5F NO.2 |
1 | ||
| 44763E - TUBE, HOSE TO HOSE, NO.1 | ||||
| 44763-37810 |
XKU304..5F NO.1 |
1 | ||
| 44763-37800 |
XKU304..5F NO.2 |
1 | ||
| 44763H - HOSE, VACUUM BRAKE | ||||
| 90445-17044 |
XKU304..5F |
1 | ||
| 44771G - HOSE, VACUUM TUBE CONNECTOR, NO.1 | ||||
| 44771-37850 |
XKU304..5F NO.1 |
1 | ||
| 44771-37740 |
XKU304..5F NO.2 |
1 | ||
| 44771G - HOSE, VACUUM TUBE CONNECTOR, NO.1 | ||||
| 44771-37850 |
XKU304..5F NO.1 |
1 | ||
| 44771-37740 |
XKU304..5F NO.2 |
1 | ||
| 44771H - HOSE, VACUUM TUBE CONNECTOR, NO.2 | ||||
| 44778-37060 |
XKU304..5F |
1 | ||
| 44778G - HOSE, CONNECTOR TO CHECK VALVE | ||||
| 44778-37060 |
XKU304..5F |
2 | ||
| 44778G - HOSE, CONNECTOR TO CHECK VALVE | ||||
| 44778-37060 |
XKU304..5F |
2 | ||
| Common parts | ||||
| 47371-37040 | ||||
| 90119-08676 | ||||
| 94130-00802 | ||||
| 96133-41500 | ||||
