XKU304A-TYMMB3 (2006)

Toyota Dyna/Toyoace Hv

Production Oct 2006 - Aug 2009
Engine N04C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

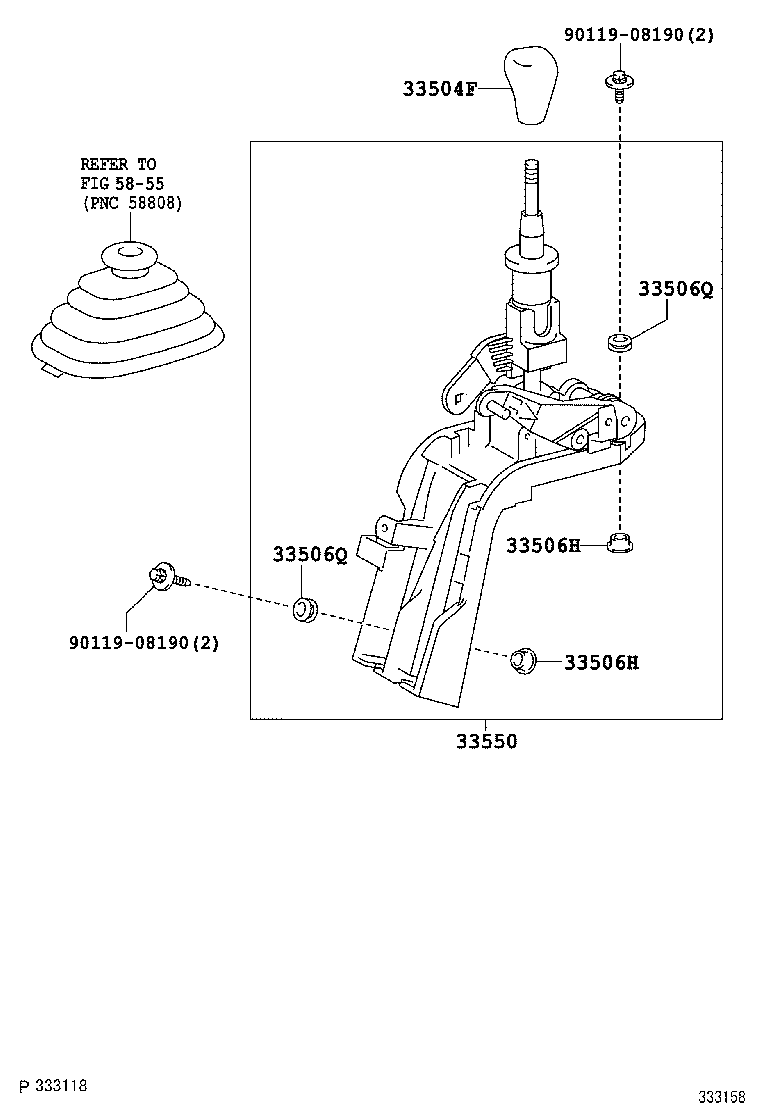

ILLUST NO. 1 OF 2(0610- )5F

Click highlighted areas on diagram

diagram 33504F 33506H 33506H 33506Q 33506Q 33550 5855 9011908190 9011908190
Part # Description Qty Price
33504F - KNOB SUB-ASSY, SHIFT LEVER
33504-36051B1

XKU304,344

DK.CHARCOAL,TRIM1#

 1
33506H - BUSH (FOR SHIFT LEVER RETAINER)
90386-12056

XKU304,344

 4
33506H - BUSH (FOR SHIFT LEVER RETAINER)
90386-12056

XKU304,344

 4
33506Q - GROMMET, NO.1(FOR CONTROL SHIFT LEVER RETAINER)
33577-37060

XKU304,344

 4
33506Q - GROMMET, NO.1(FOR CONTROL SHIFT LEVER RETAINER)
33577-37060

XKU304,344

 4
33550 - FLOOR SHIFT ASSY, TRANSMISSION
33550-37150

XKU304,344

 1
Common parts
90119-08190
Linked diagrams
5855

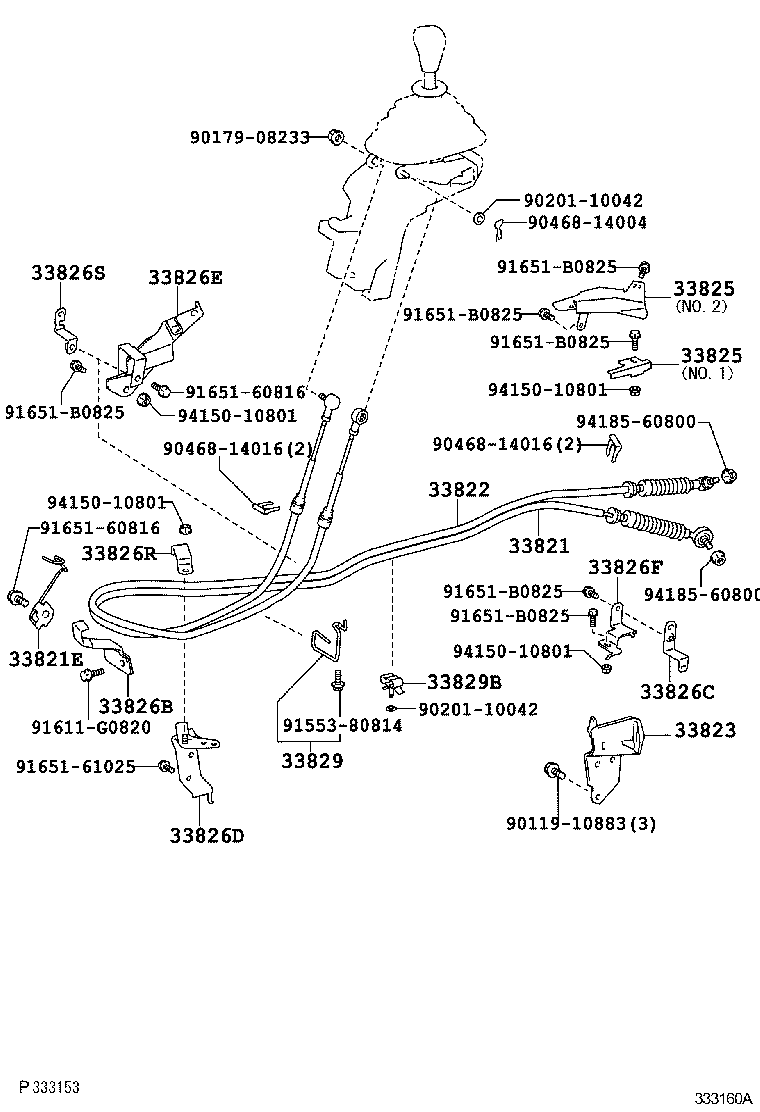

ILLUST NO. 2 OF 2(0610- )XKU304,344..5F

Click highlighted areas on diagram

diagram 33821 33821E 33822 33823 33825 33825 33826B 33826C 33826D 33826E 33826F 33826R 33826S 33829 33829B 9011910883 9017908233 9020110042 9020110042 9046814004 9046814016 9046814016 9155380814 91611G0820 9165160816 9165160816 9165161025 91651B0825 91651B0825 91651B0825 91651B0825 91651B0825 91651B0825 9415010801 9415010801 9415010801 9415010801 9418560800 9418560800
Part # Description Qty Price
33821 - CABLE TRANSMISSION CONTROL SHIFT (FOR FLOOR SHIFT)
33820-3V350

XKU304,344

 1
33822 - CABLE TRANSMISSION CONTROL SELECT (FOR FLOOR SHIFT)
33830-37050

XKU304,344

 1
33823 - BRACKET, TRANSMISSION CONTROL CABLE, NO.1
33823-37640

XKU304,344

 1
33825 - INSULATOR, TRANSMISSION CONTROL CABLE
33825-37030

XKU304,344

NO.1

 1
33825-37040

XKU304,344

NO.2

 1
33825 - INSULATOR, TRANSMISSION CONTROL CABLE
33825-37030

XKU304,344

NO.1

 1
33825-37040

XKU304,344

NO.2

 1
33826B - BRACKET, TRANSMISSION CONTROL CABLE, NO.3
33826-37210

XKU304,344

 1
33826C - BRACKET, TRANSMISSION CONTROL CABLE, NO.4
33826-37610

XKU304,344

 1
33826D - BRACKET, TRANSMISSION CONTROL CABLE, NO.5
33827-37110

XKU304,344

 1
33826E - BRACKET, TRANSMISSION CONTROL CABLE, NO.6
33827-37140

XKU304,344

 1
33826F - BRACKET, TRANSMISSION CONTROL CABLE, NO.7
33827-37150

XKU304,344

 1
33826R - BRACKET, TRANSMISSION CONTROL CABLE, NO.8
33828-37020

XKU304,344

NO.2

 1
33826-37580

XKU304,344

NO.1

 1
33826S - BRACKET, TRANSMISSION CONTROL CABLE, NO.9
33828-37030

XKU304,344

 1
33829B - CLAMP, TRANSMISSION CONTROL CABLE
33829-37210

XKU304,344

 1
Common parts
90119-10883
90179-08233
90201-10042
90468-14004
90468-14016
91553-80814
91611-G0820
91651-60816
91651-61025
91651-B0825
94150-10801
94185-60800
