XKU304A-TYMMB3 (2006)
Toyota Dyna/Toyoace Hv
Production
Oct 2006
-
Aug 2009
Engine
N04C
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(0610- )5F

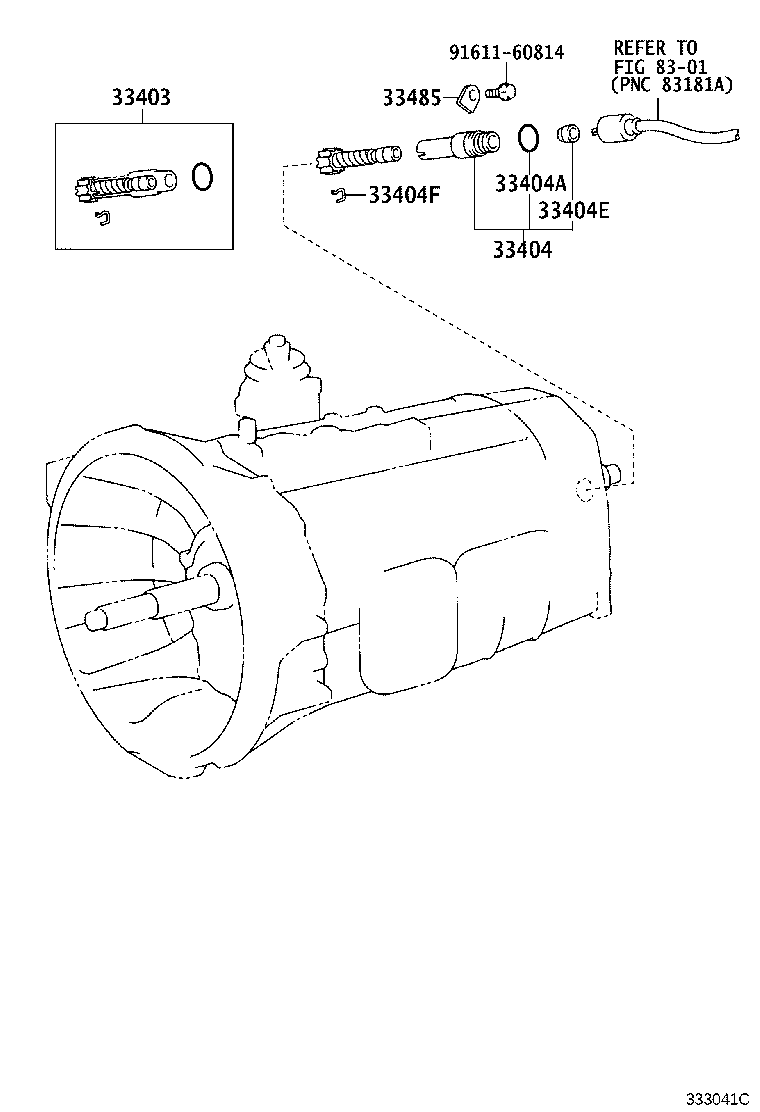

Click highlighted areas on diagram
M550
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33403 - GEAR SUB-ASSY, SPEEDOMETER DRIVEN (MTM) | ||||
| 33482-39685 |
XKU304 歯数=20,ﾏｰｸ 20:6 |
1 | ||
| 33482-39675 |
XKU304,344 歯数=20,ﾏｰｸ 20:7 |
1 | ||
| 33482-39525 |
XKU304,344 歯数=22,ﾏｰｸ 22:7 |
1 | ||
| 33404 - SLEEVE SUB-ASSY, SPEEDOMETER SHAFT (MTM) | ||||
| 33404-36020 |
XKU304,344 |
1 | ||
| 33404A - RING, O (FOR MTM SPEEDOMETER SHAFT SLEEVE) | ||||
| 90301-18018 |
XKU304,344 |
1 | ||
| 33404E - SEAL, OIL (FOR MTM SPEEDOMETER SHAFT SLEEVE) | ||||
| 90310-09001 |
XKU304,344 |
1 | ||
| 90310-09001 |
XKU30#,338,34#,508..5F |
1 | ||
| 33404F - CLIP (FOR MTM SPEEDOMETER SHAFT SLEEVE) | ||||
| 90468-12005 |
XKU304,344 |
1 | ||
| 90468-12005 |
XKU30#,338,34#,508..5F |
1 | ||
| 33485 - PLATE, SPEEDOMETER SLEEVE LOCK (MTM) | ||||
| 33485-30020 |
XKU304,344 |
1 | ||
| 33485-30020 |
XKU30#,338,34#,508..5F |
1 | ||
| Common parts | ||||
| 91611-60814 | ||||
| Linked diagrams | ||||
| 8301 | ||||
