XKU304A-TYMMB3 (2006)
Toyota Dyna/Toyoace Hv

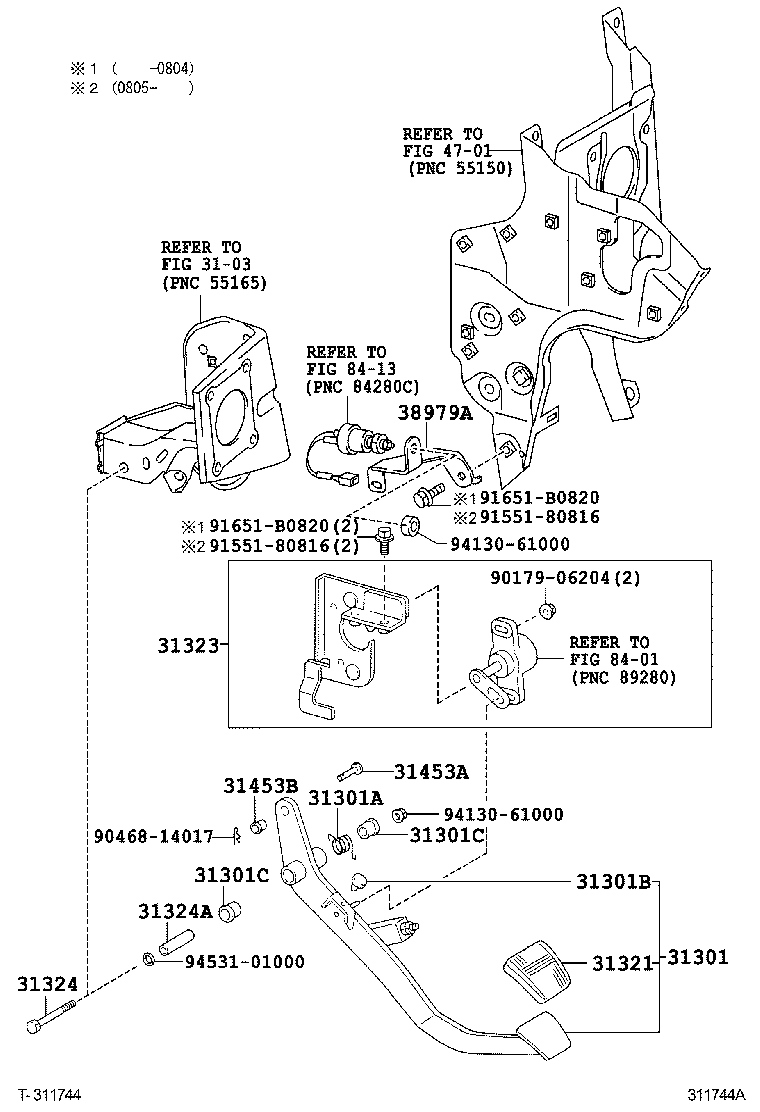

ILLUST NO. 1 OF 2(0610- )5F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31301 - PEDAL SUB-ASSY, CLUTCH | ||||
| 31301-37170 |
XKU304,344 |
1 | ||
| 31301-37161 |
XKU30#,338,34#,508..5F |
1 | ||
| 31301A - SPRING(FOR CLUTCH PEDAL) | ||||
| 90959-03394 |
XKU30#,338,34#,508..5F |
1 | ||
| 90959-03344 |
XKU304,344 |
1 | ||
| 31301B - CUSHION, NO.1(FOR CLUTCH PEDAL) | ||||
| 90541-06036 |
XKU30#,338,34#,508..5F |
1 | ||
| 90541-06036 |
XKU304,344 |
1 | ||
| 31301C - BUSH(FOR CLUTCH PEDAL) | ||||
| 90386-13007 |
XKU304,344 |
2 | ||
| 90386-13007 |
XKU30#,338,34#,508..5F |
2 | ||
| 31301C - BUSH(FOR CLUTCH PEDAL) | ||||
| 90386-13007 |
XKU304,344 |
2 | ||
| 90386-13007 |
XKU30#,338,34#,508..5F |
2 | ||
| 31321 - PAD, CLUTCH PEDAL | ||||
| 31321-14020 |
XKU304,344 |
1 | ||
| 31321-14020 |
XKU30#,338,34#,508..5F |
1 | ||
| 31323 - BRACKET, CLUTCH PEDAL | ||||
| 31302-37011 |
XKU304,344 |
1 | ||
| 31302-37011 |
XKU30#,338,34#,508..5F |
1 | ||
| 31324 - SHAFT, CLUTCH PEDAL | ||||
| 91112-61070 |
XKU304,344 |
1 | ||
| 91112-61070 |
XKU30#,338,34#,508..5F |
1 | ||
| 31324A - COLLAR, CLUTCH PEDAL SHAFT | ||||
| 90387-10004 |
XKU304,344 |
1 | ||
| 90387-10004 |
XKU30#,338,34#,508..5F |
1 | ||
| 31453A - PIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS) | ||||
| 90240-08006 |
XKU304,344 長さ=23.5 |
1 | ||
| 90240-08006 |
XKU30#,338,34#,508..5F 長さ=23.5 |
1 | ||
| 31453B - BUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS) | ||||
| 90386-08002 |
XKU30#,338,34#,508..5F |
1 | ||
| 90386-08002 |
XKU304,344 |
1 | ||
| 38979A - BRACKET, POWER TAKE-OFF CLUTCH SWITCH | ||||
| 38979-37011 |
XKU30#,338,34#,508..5F |
1 | ||
| Common parts | ||||
| 90179-06204 | ||||
| 90468-14017 | ||||
| 91551-80816 | ||||
| 91651-B0820 | ||||
| 94130-61000 | ||||
| 94531-01000 | ||||
| Linked diagrams | ||||
| 3103 | ||||
| 4701 | ||||
| 8401 | ||||
| 8413 | ||||

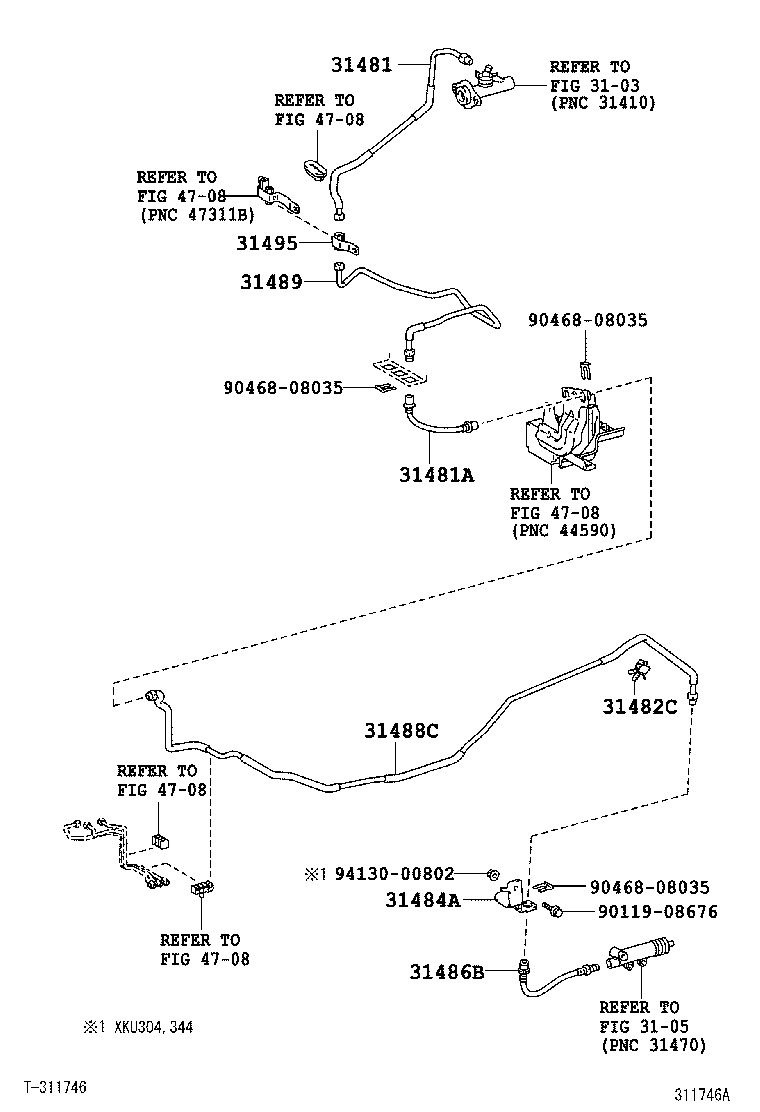

ILLUST NO. 2 OF 2(0610- )5F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE | ||||
| 31481-37120 |
XKU304,344 |
1 | ||
| 31481-37121 |
XKU30#,338,34#,508..5F |
1 | ||
| 31481A - HOSE, CLUTCH, NO.1 | ||||
| 90931-01148 |
XKU304,344 |
1 | ||
| 90931-01148 |
XKU30#,338,34#,508..5F |
1 | ||
| 31482C - CLAMP(FOR CLUTCH TUBE) | ||||
| 47371-37040 |
XKU30#,338,34#,508..5F |
1 | ||
| 31484A - BRACKET, FLEXIBLE HOSE, NO.1(FOR CLUTCH) | ||||
| 31484-37280 |
XKU30#,338,34#,508..5F |
1 | ||
| 31484-37260 |
XKU304,344 |
1 | ||
| 31486B - HOSE, MASTER CYLINDER TO RELEASE CYLINDER | ||||
| 31486-37090 |
XKU30#,338,34#,508..5F |
1 | ||
| 31488C - TUBE, FLEXIBLE HOSE TO FLEXIBLE HOSE | ||||
| 31482-37240 |
XKU304,344..5F |
1 | ||
| 31489 - TUBE, TUBE CONNECTOR TO FLEXIBLE HOSE | ||||
| 31481-37130 |
XKU30#,338,34#,508..5F |
1 | ||
| 31481-37130 |
XKU304,344 |
1 | ||
| 31495 - WAY, CLUTCH TUBE | ||||
| 31495-37010 |
XKU30#,338,34#,508..5F |
1 | ||
| 31495-37010 |
XKU304,344 |
1 | ||
| Common parts | ||||
| 90119-08676 | ||||
| 90468-08035 | ||||
| 94130-00802 | ||||
| Linked diagrams | ||||
| 3103 | ||||
| 3105 | ||||
| 4708 | ||||
