XKU304A-TYMMB3 (2006)

Toyota Dyna/Toyoace Hv

Production Oct 2006 - Aug 2009
Engine N04C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0610- )5F

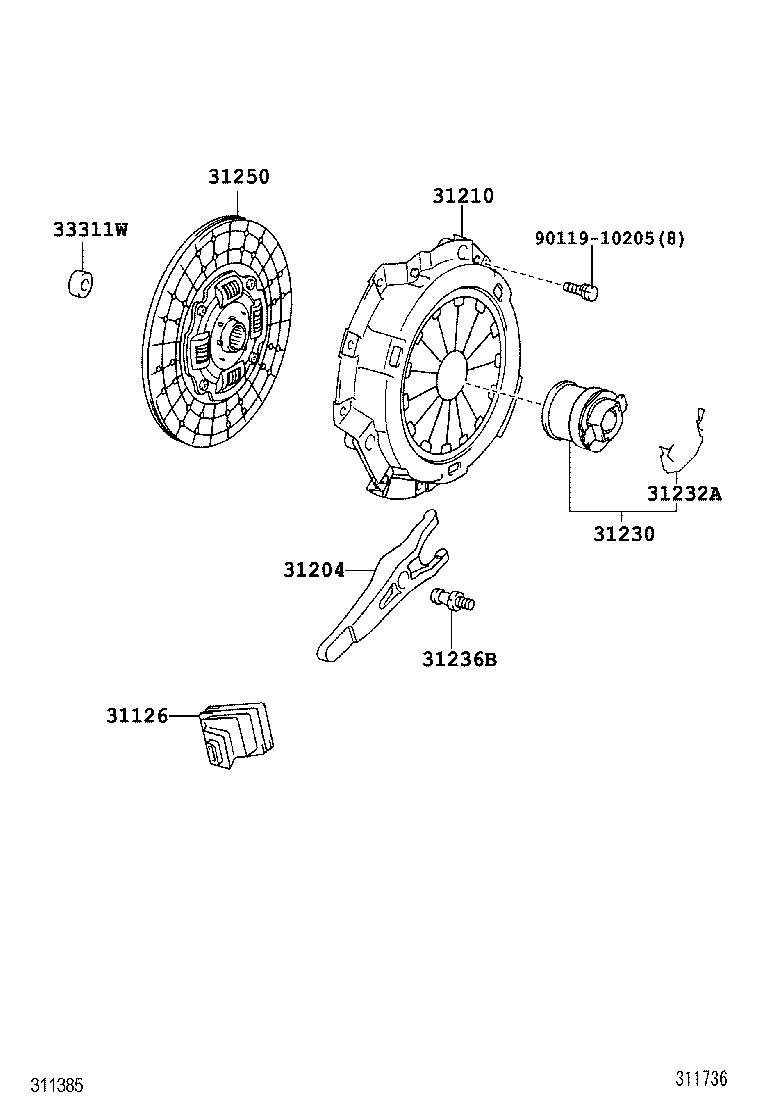

Click highlighted areas on diagram

diagram 31126 31204 31210 31230 31232A 31236B 31250 33311W 9011910205
Part # Description Qty Price
31210 - COVER ASSY, CLUTCH
31210-37090

XKU304,344

 1
31230 - BEARING ASSY, CLUTCH RELEASE
31230-36210

XKU304,344

 1
31232A - CLIP, RELEASE BEARING HUB
31232-36030

XKU304,344

 1
31250 - DISC ASSY, CLUTCH
31250-37120

XKU304,344

 1
33311W - BEARING (FOR INPUT SHAFT)
90363-17037

XKU304,344

 1
90363-17037

XKU30#,338,34#,508..5F

 1
Common parts
90119-10205
