XKU304A-TYMMB3 (2006)

Toyota Dyna/Toyoace Hv

Production Oct 2006 - Aug 2009
Engine N04C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0610- )

Click highlighted areas on diagram

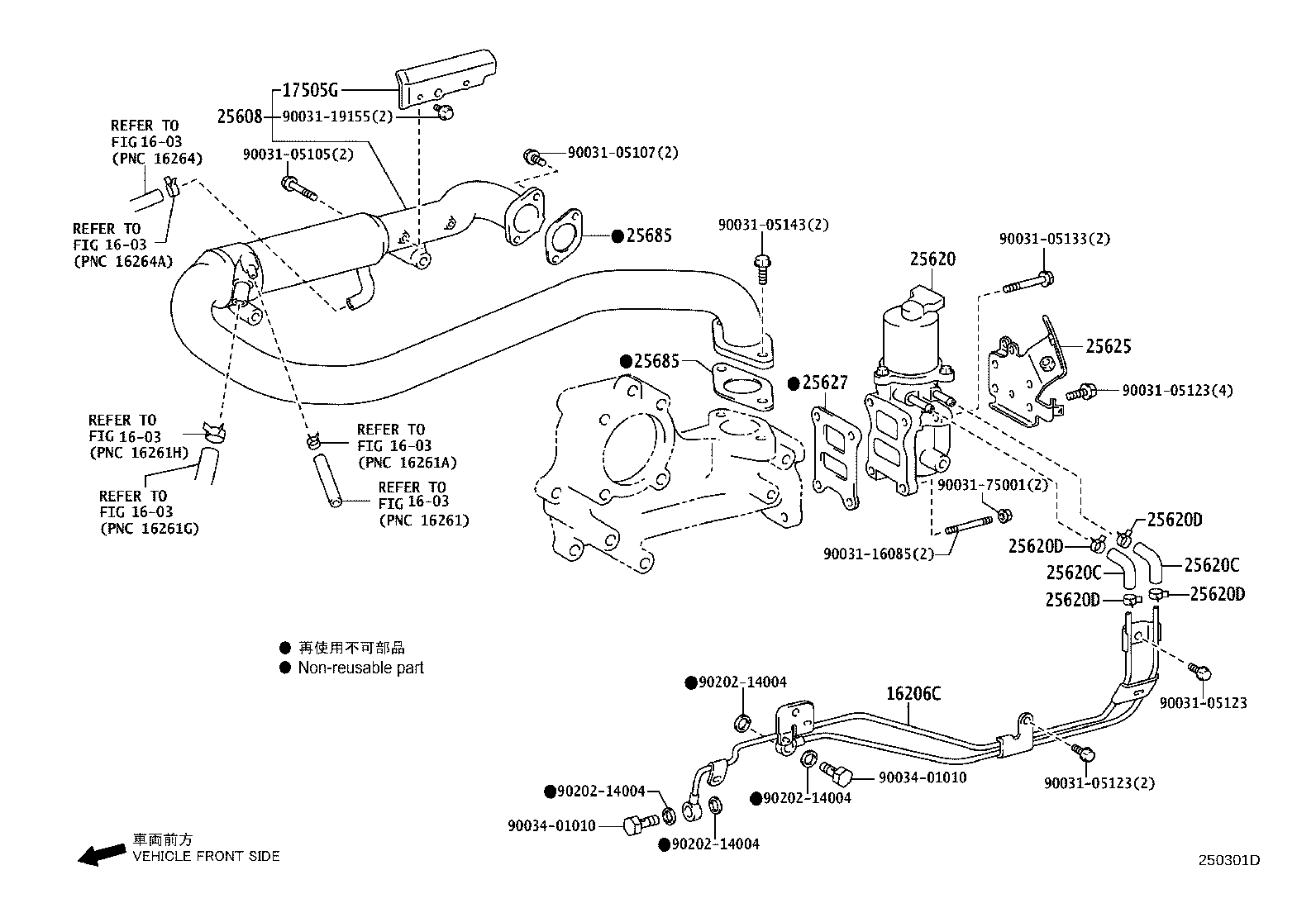

diagram 1603 1603 1603 1603 1603 1603 16206C 17505G 25608 25620 25620C 25620C 25620D 25620D 25620D 25620D 25625 25627 25685 25685 9003105105 9003105107 9003105123 9003105123 9003105123 9003105133 9003105143 9003116085 9003119155 9003175001 9003401010 9003401010 9020214004 9020214004 9020214004 9020214004
Part # Description Qty Price
16206C - PIPE SUB-ASSY, WATER BY-PASS
16206-78011

N04C..XKU304,344

 1
16206-78210

N04C..XKU30#,338,34#,508

 1
17505G - INSULATOR SUB-ASSY, EXHAUST PIPE HEAT NO.1
17505-78162

N04C..XKU30#,338,34#,508

 1
17505-78161

N04C..XKU30#,338,34#,508

 1
25608 - COOLER SUB-ASSY, EGR
25608-78074

N04C..XKU30#,338,34#,508

 1
25608-78010

N04C..XKU304,344

 1
25620 - VALVE ASSY, EGR
25620-78020

N04C..XKU304,344

 1
25620C - HOSE, WATER BY-PASS, NO.1
90034-45094

N04C..XKU304,344

 2
16261-78110

N04C..XKU30#,338,34#,508

 2
25620C - HOSE, WATER BY-PASS, NO.1
90034-45094

N04C..XKU304,344

 2
16261-78110

N04C..XKU30#,338,34#,508

 2
25620D - CLIP(FOR WATER BY-PASS HOSE, NO.1)
90034-67027

N04C..XKU30#,338,34#,508

 4
90034-67027

N04C..XKU304,344

 4
25620D - CLIP(FOR WATER BY-PASS HOSE, NO.1)
90034-67027

N04C..XKU30#,338,34#,508

 4
90034-67027

N04C..XKU304,344

 4
25620D - CLIP(FOR WATER BY-PASS HOSE, NO.1)
90034-67027

N04C..XKU30#,338,34#,508

 4
90034-67027

N04C..XKU304,344

 4
25620D - CLIP(FOR WATER BY-PASS HOSE, NO.1)
90034-67027

N04C..XKU30#,338,34#,508

 4
90034-67027

N04C..XKU304,344

 4
25625 - BRACKET, EGR VALVE
17455-78130

N04C..XKU304,344

 1
25625-78012

N04C..XKU30#,338,34#,508

 1
25627 - GASKET, EGR VALVE
17173-78060

N04C..XKU304,344

 1
17173-78060

N04C..XKU30#,338,34#,508

 1
25685 - GASKET, EGR COOLER, NO.1
25685-78020

N04C..XKU304,344

 2
25685 - GASKET, EGR COOLER, NO.1
25685-78020

N04C..XKU304,344

 2
Common parts
90031-05105
90031-05107
90031-05123
90031-05133
90031-05143
90031-16085
90031-19155
90031-75001
90034-01010
90202-14004
Linked diagrams
1603
