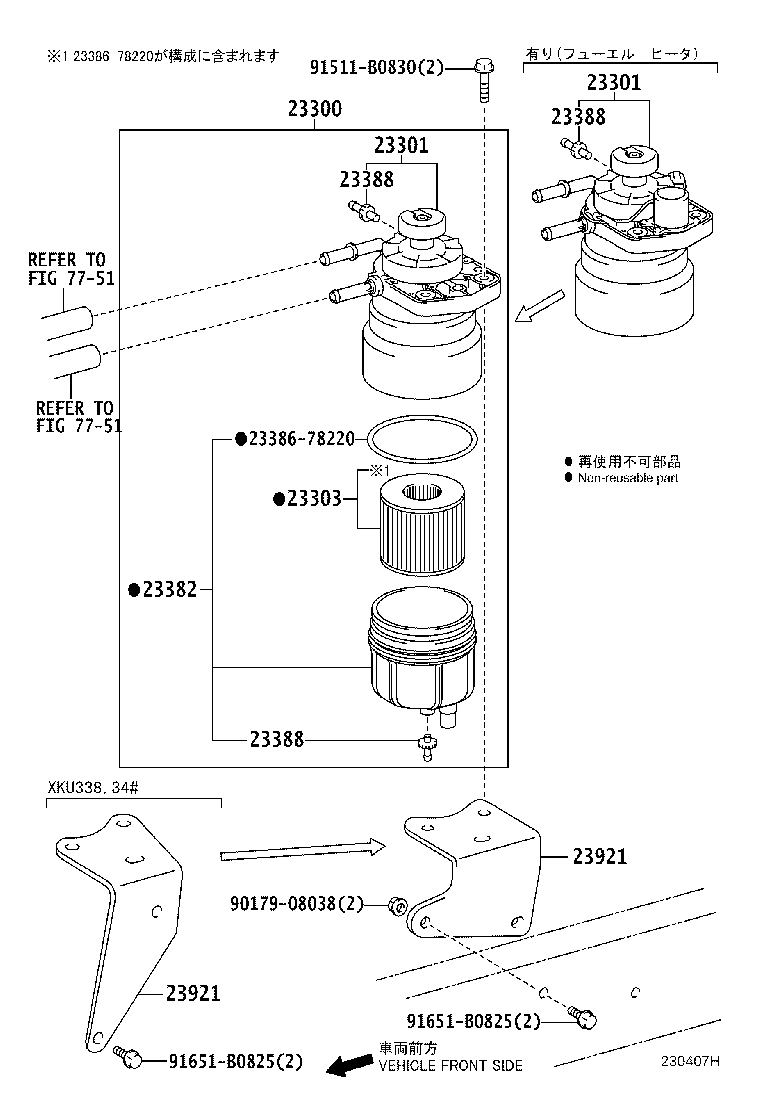

Toyota Dyna/toyoace hv XKU304 FUEL FILTER

Part #	Description	Period	Qty
23300 - FILTER ASSY, FUEL
23300-78231	N04C..XKU30#,338,34#,508 ｱﾘ(ﾌﾕ-ｴﾙﾋ-ﾀ)	10/2006 - 06/2009	1
23300-78230	N04C..XKU304,344 ｱﾘ(ﾌﾕ-ｴﾙﾋ-ﾀ)	10/2003 - 04/2005	1
23300-78232	N04C..XKU30#,338,34#,508 ｱﾘ(ﾌﾕ-ｴﾙﾋ-ﾀ)	07/2009 - 12/2999	1
23300-78221	N04C..XKU30#,338,34#,508	10/2006 - 06/2009	1
23300-78222	N04C..XKU30#,338,34#,508	07/2009 - 12/2999	1
23300-78220	N04C..XKU304,344	10/2003 - 04/2005	1
23301 - BODY SUB-ASSY, FUEL FILTER
23301-78221	N04C..XKU30#,338,34#,508	10/2006 - 07/2009	1
23301-78230	N04C..XKU304,344 ｱﾘ(ﾌﾕ-ｴﾙﾋ-ﾀ)	10/2003 - 12/2005	1
23301-78222	N04C..XKU30#,338,34#,508	07/2009 - 12/2999	1
23301-78232	N04C..XKU30#,338,34#,508 ｱﾘ(ﾌﾕ-ｴﾙﾋ-ﾀ)	07/2009 - 12/2999	1
23301-78220	N04C..XKU304,344	10/2003 - 12/2005	1
23301-78231	N04C..XKU30#,338,34#,508 ｱﾘ(ﾌﾕ-ｴﾙﾋ-ﾀ)	10/2006 - 07/2009	1
23301 - BODY SUB-ASSY, FUEL FILTER
23301-78221	N04C..XKU30#,338,34#,508	10/2006 - 07/2009	1
23301-78230	N04C..XKU304,344 ｱﾘ(ﾌﾕ-ｴﾙﾋ-ﾀ)	10/2003 - 12/2005	1
23301-78222	N04C..XKU30#,338,34#,508	07/2009 - 12/2999	1
23301-78232	N04C..XKU30#,338,34#,508 ｱﾘ(ﾌﾕ-ｴﾙﾋ-ﾀ)	07/2009 - 12/2999	1
23301-78220	N04C..XKU304,344	10/2003 - 12/2005	1
23301-78231	N04C..XKU30#,338,34#,508 ｱﾘ(ﾌﾕ-ｴﾙﾋ-ﾀ)	10/2006 - 07/2009	1
23303 - ELEMENT SUB-ASSY, FUEL FILTER
23390-78220	N04C..XKU304,344	10/2003 - 05/2005	1
23390-78221	N04C..XKU30#,338,34#,508	10/2006 - 12/2999	1
23382 - CASE, FUEL FILTER
23382-78222	N04C..XKU30#,338,34#,508	07/2009 - 12/2999	1
23382-78220	N04C..XKU304,344	10/2003 - 10/2006	1
23382-78221	N04C..XKU30#,338,34#,508	10/2006 - 07/2009	1
23388 - PLUG, FUEL FILTER DRAIN
23388-78222	N04C..XKU30#,338,34#,508	07/2009 - 12/2999	2
23388-78220	N04C..XKU30#,338,34#,508	10/2006 - 07/2009	2
23388-78220	N04C..XKU304,344	10/2003 - 10/2006	2
23388 - PLUG, FUEL FILTER DRAIN
23388-78222	N04C..XKU30#,338,34#,508	07/2009 - 12/2999	2
23388-78220	N04C..XKU30#,338,34#,508	10/2006 - 07/2009	2
23388-78220	N04C..XKU304,344	10/2003 - 10/2006	2
23388 - PLUG, FUEL FILTER DRAIN
23388-78222	N04C..XKU30#,338,34#,508	07/2009 - 12/2999	2
23388-78220	N04C..XKU30#,338,34#,508	10/2006 - 07/2009	2
23388-78220	N04C..XKU304,344	10/2003 - 10/2006	2
23921 - SUPPORT, FUEL FILTER
23921-78051	N04C..XKU304,344	10/2003 - 10/2006	1
23921-78051	N04C..XKU30#,508	10/2006 - 12/2999	1
23921 - SUPPORT, FUEL FILTER
23921-78051	N04C..XKU304,344	10/2003 - 10/2006	1
23921-78051	N04C..XKU30#,508	10/2006 - 12/2999	1
Common parts
23386-78220
90179-08038
91511-B0830
91651-B0825
Linked diagrams
7751

XKU304A-TYMMB3 (2006)

(0610- )
