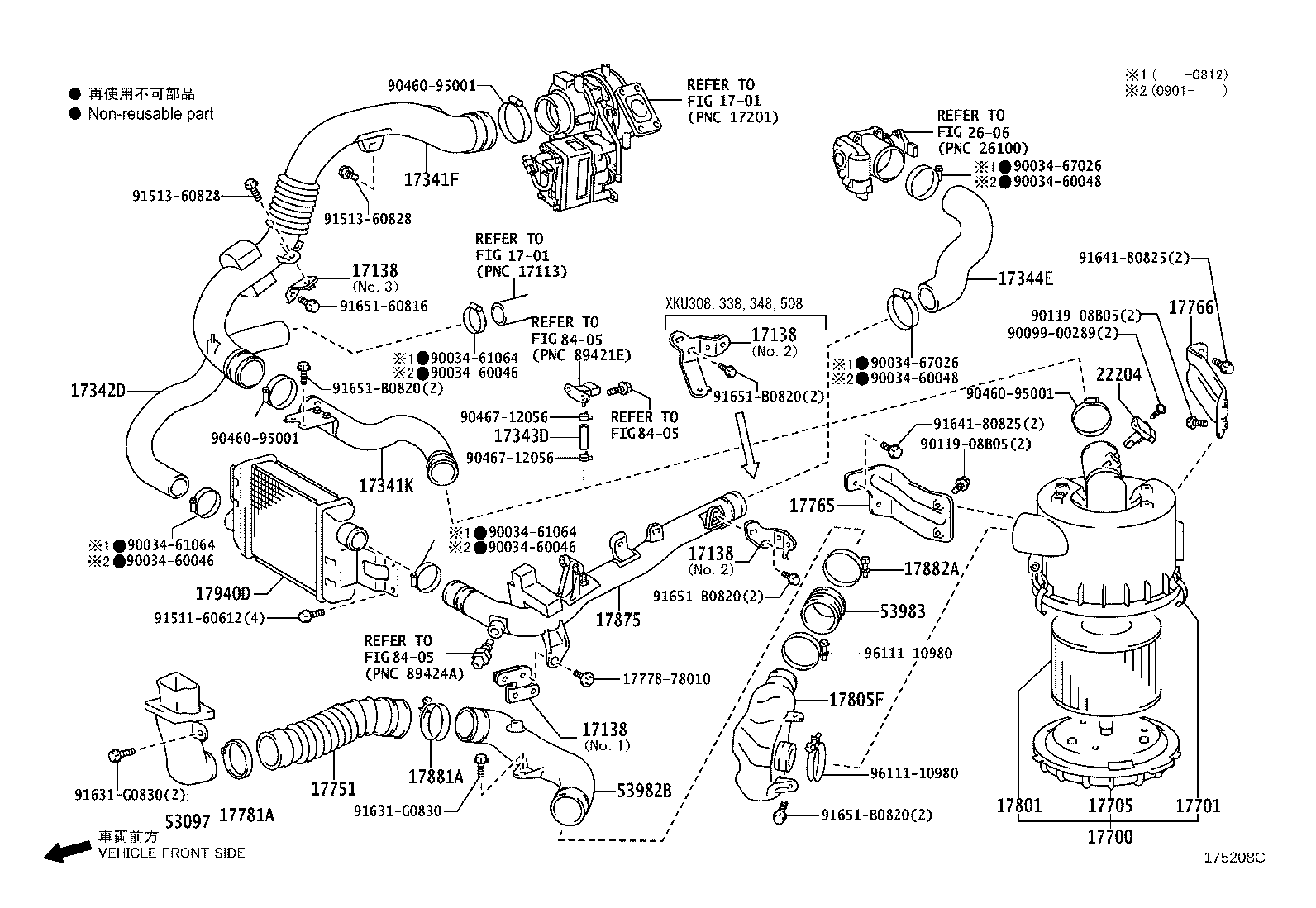

XKU304A-TYMMB3 (2006)
Toyota Dyna/Toyoace Hv
(0610- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17138 - STAY, INTAKE PIPE OR HOSE | ||||
| 17138-78020 |
N04C..XKU304,344 NO.2 |
1 | ||
| 17138-78020 |
N04C..XKU304,344 NO.2 |
1 | ||
| 17138-78010 |
N04C..XKU304,344 NO.1 |
1 | ||
| 17138-78170 |
N04C..XKU30#,338,34#,508 NO.3 |
1 | ||
| 17138-78010 |
N04C..XKU30#,338,34#,508 NO.1 |
1 | ||
| 17138 - STAY, INTAKE PIPE OR HOSE | ||||
| 17138-78020 |
N04C..XKU304,344 NO.2 |
1 | ||
| 17138-78020 |
N04C..XKU304,344 NO.2 |
1 | ||
| 17138-78010 |
N04C..XKU304,344 NO.1 |
1 | ||
| 17138-78170 |
N04C..XKU30#,338,34#,508 NO.3 |
1 | ||
| 17138-78010 |
N04C..XKU30#,338,34#,508 NO.1 |
1 | ||
| 17138 - STAY, INTAKE PIPE OR HOSE | ||||
| 17138-78020 |
N04C..XKU304,344 NO.2 |
1 | ||
| 17138-78020 |
N04C..XKU304,344 NO.2 |
1 | ||
| 17138-78010 |
N04C..XKU304,344 NO.1 |
1 | ||
| 17138-78170 |
N04C..XKU30#,338,34#,508 NO.3 |
1 | ||
| 17138-78010 |
N04C..XKU30#,338,34#,508 NO.1 |
1 | ||
| 17138 - STAY, INTAKE PIPE OR HOSE | ||||
| 17138-78020 |
N04C..XKU304,344 NO.2 |
1 | ||
| 17138-78020 |
N04C..XKU304,344 NO.2 |
1 | ||
| 17138-78010 |
N04C..XKU304,344 NO.1 |
1 | ||
| 17138-78170 |
N04C..XKU30#,338,34#,508 NO.3 |
1 | ||
| 17138-78010 |
N04C..XKU30#,338,34#,508 NO.1 |
1 | ||
| 17341F - HOSE, AIR, NO.1 | ||||
| 17030-78251 |
N04C..XKU304,344 |
1 | ||
| 17030-78390 |
N04C..XKU30#,338,34#,508 |
1 | ||
| 17341K - HOSE, AIR, NO.1(FOR INTERCOOLER) | ||||
| 17341-78012 |
N04C..XKU30#,338,34#,508 |
1 | ||
| 17341-78011 |
N04C..XKU304,344 |
1 | ||
| 17342D - HOSE, AIR, NO.2 | ||||
| 17342-78021 |
N04C..XKU30#,338,34#,508 |
1 | ||
| 17343D - HOSE, AIR, NO.3 | ||||
| 17343-78020 |
N04C..XKU304,344 |
1 | ||
| 17344E - HOSE, AIR, NO.4 | ||||
| 17344-78010 |
N04C..XKU304,344 |
1 | ||
| 17344-78090 |
N04C..XKU30#,338,34#,508 |
1 | ||
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-78190 |
N04C..XKU304,344 |
1 | ||
| 17700-78190 |
N04C..XKU30#,338,34#,508 |
1 | ||
| 17701 - CASE SUB-ASSY, AIR CLEANER | ||||
| 17701-78150 |
N04C..XKU304,344 |
1 | ||
| 17701-78150 |
N04C..XKU30#,338,34#,508 |
1 | ||
| 17705 - CAP SUB-ASSY, AIR CLEANER | ||||
| 17705-78040 |
N04C..XKU304,344 |
1 | ||
| 17705-78040 |
N04C..XKU30#,338,34#,508 |
1 | ||
| 17751 - INLET, AIR CLEANER, NO.1 | ||||
| 53981-37080 |
N04C..XKU30#,338,34#,508 |
1 | ||
| 53981-37080 |
N04C..XKU304,344 |
1 | ||
| 17765 - STAY, AIR CLEANER, NO.1 | ||||
| 17765-78050 |
N04C..XKU304,344 |
1 | ||
| 17765-78050 |
N04C..XKU30#,338,34#,508 |
1 | ||
| 17766 - STAY, AIR CLEANER, NO.2 | ||||
| 17766-78050 |
N04C..XKU304,344 |
1 | ||
| 17766-78050 |
N04C..XKU30#,338,34#,508 |
1 | ||
| 17781A - CLAMP, HOSE | ||||
| 17781-78050 |
N04C..XKU30#,338,34#,508 |
1 | ||
| 17781-78050 |
N04C..XKU304,344 |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-78040 |
N04C..XKU30#,338,34#,508 |
1 | ||
| 17801-78040 |
N04C..XKU304,344 |
1 | ||
| 17805F - RESONATOR SUB-ASSY, INTAKE AIR | ||||
| 17805-78021 |
N04C..XKU304,344 |
1 | ||
| 17805-78021 |
N04C..XKU30#,338,34#,508 |
1 | ||
| 17875 - PIPE, INTAKE AIR CONNECTOR | ||||
| 17015-78010 |
N04C..XKU304,344 NO.2 |
1 | ||
| 17103-78030 |
N04C..XKU304,344 NO.1 |
1 | ||
| 17103-78032 |
N04C..XKU30#,338,34#,508 |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10880 |
N04C..XKU30#,338,34#,508 |
1 | ||
| 96111-10880 |
N04C..XKU304,344 |
1 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 96111-10980 |
N04C..XKU30#,338,34#,508 |
1 | ||
| 96111-10980 |
N04C..XKU304,344 |
1 | ||
| 17940D - INTERCOOLER ASSY | ||||
| 17940-78130 |
N04C..XKU30#,338,34#,508 |
1 | ||
| 17940-78040 |
N04C..XKU304,344 |
1 | ||
| 22204 - METER SUB-ASSY, INTAKE AIR FLOW | ||||
| 22204-21010 |
N04C..XKU30#,338,34#,508 |
1 | ||
| 22204-21010 |
N04C..XKU304,344 |
1 | ||
| 53097 - INLET SUB-ASSY | ||||
| 53097-37300 |
XKU304,344 |
1 | ||
| 53097-37300 |
XKU30#,338,34#,508 |
1 | ||
| 53982B - INLET, AIR CLEANER PIPE, NO.2 | ||||
| 53982-37070 |
XKU304,344 |
1 | ||
| 53982-37070 |
XKU30#,338,34#,508 |
1 | ||
| 53983 - INLET, AIR CLEANER PIPE, NO.3 | ||||
| 53983-37020 |
XKU30#,338,34#,508 |
1 | ||
| 53983-37020 |
XKU304,344 |
1 | ||
| Common parts | ||||
| 17778-78010 | ||||
| 90034-60046 | ||||
| 90034-60048 | ||||
| 90034-61064 | ||||
| 90034-67026 | ||||
| 90099-00289 | ||||
| 90119-08B05 | ||||
| 90460-95001 | ||||
| 90467-12056 | ||||
| 91511-60612 | ||||
| 91513-60828 | ||||
| 91631-G0830 | ||||
| 91641-80825 | ||||
| 91651-60816 | ||||
| 91651-B0820 | ||||
| 96111-10980 | ||||
| Linked diagrams | ||||
| 1701 | ||||
| 2606 | ||||
