XKU304A-TYMMB3 (2006)

Toyota Dyna/Toyoace Hv

Production Oct 2006 - Aug 2009
Engine N04C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0610- )N04C..XKU30#,508

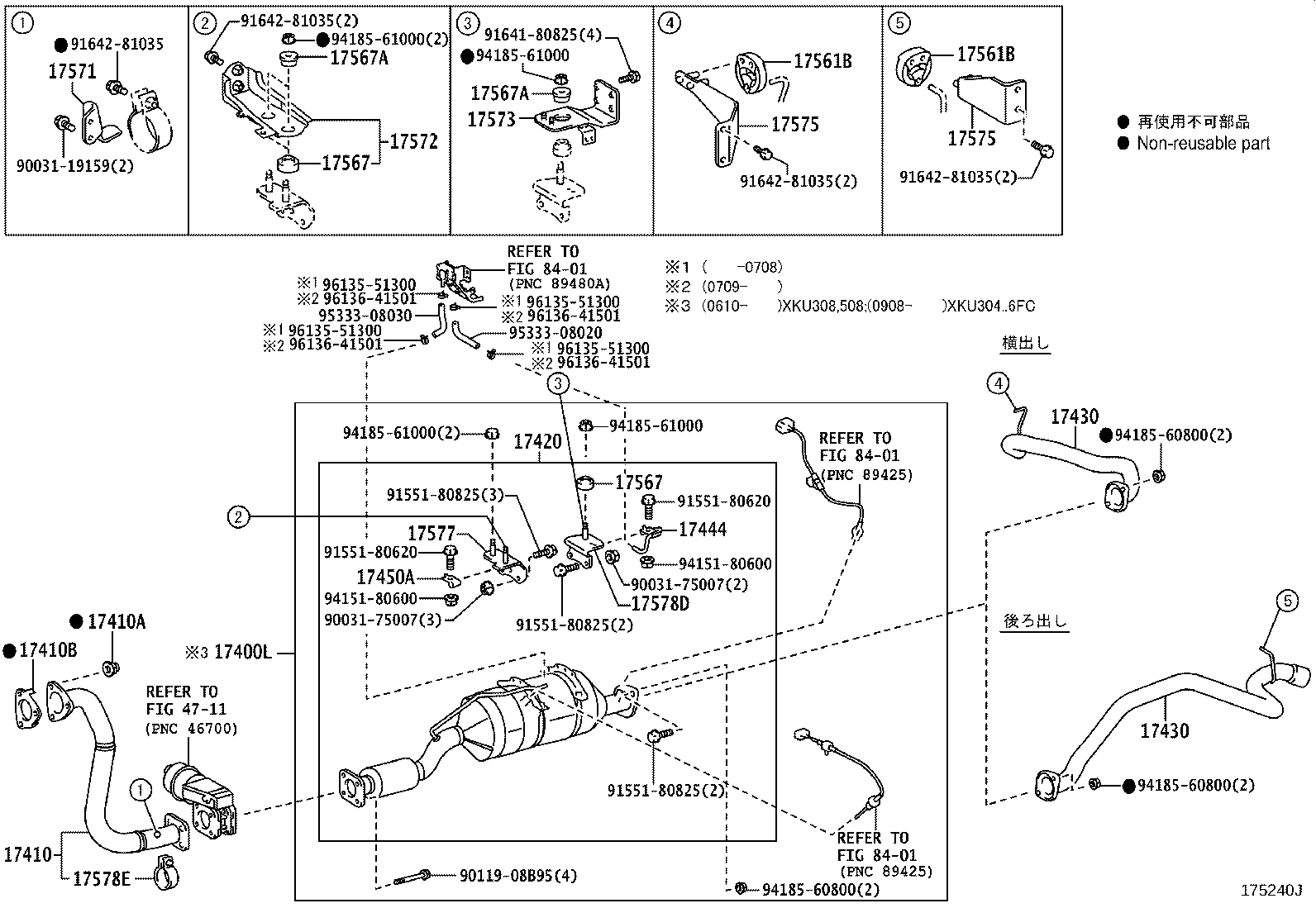

Click highlighted areas on diagram

ﾃｰﾙﾊﾟｲﾌﾟ = ﾖｺﾀﾞｼ OR ｳｼﾛﾀﾞｼ

diagram 17400L 17410 17410A 17410B 17420 17430 17430 17444 17450A 17561B 17561B 17567 17567 17567A 17567A 17571 17572 17573 17575 17575 17577 17578D 17578E 4711 8401 8401 8401 9003119159 9003175007 9003175007 9011908B95 9155180620 9155180620 9155180825 9155180825 9155180825 9164180825 9164281035 9164281035 9164281035 9164281035 9415180600 9415180600 9418560800 9418560800 9418560800 9418561000 9418561000 9418561000 9418561000 9533308020 9533308030 9613551300 9613551300 9613551300 9613551300 9613641501 9613641501 9613641501 9613641501
Part # Description Qty Price
17410 - PIPE ASSY, EXHAUST, FRONT
17401-78210

N04C..XKU304,344

 1
17410-78060

N04C..XKU30#,338,34#,508

 1
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90179-10070

N04C..XKU30#,338,34#,508

 3
17410B - GASKET, EXHAUST PIPE
90917-06087

N04C..XKU30#,338,34#,508

 1
90917-06087

N04C..XKU304,344

 1
17420 - PIPE ASSY, EXHAUST, CENTER
17420-78430

N04C..XKU304..5F

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17405-78D60

N04C..XKU304

 1
17405-78830

N04C..XKU304

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17405-78D60

N04C..XKU304

 1
17405-78830

N04C..XKU304

 1
17444 - PIPE, EXHAUST, NO.4
17444-78030

N04C..XKU30#,338,34#,508..5F

 1
17450A - CLAMP, EXHAUST PIPE, NO.5
17589-78021

N04C..XKU30#,338,34#,508

 1
17589-78020

N04C..XKU304,344

 2
17561B - SUPPORT, EXHAUST PIPE, NO.1
17561-73020

N04C..XKU304,344

 1
17561-73020

N04C..XKU304..5F..DCRTJ;N04C..XKU308,338,508..DCRTJ

 1
17561B - SUPPORT, EXHAUST PIPE, NO.1
17561-73020

N04C..XKU304,344

 1
17561-73020

N04C..XKU304..5F..DCRTJ;N04C..XKU308,338,508..DCRTJ

 1
17567 - CUSHION, EXHAUST PIPE SUPPORT
17567-78040

N04C..XKU304,344

NO.2

 1
17567-78040

N04C..XKU304..5F..DCRTJ;N04C..XKU308,338,34#,508..DCRTJ

 3
17567-78030

N04C..XKU304,344

NO.1

 2
17567 - CUSHION, EXHAUST PIPE SUPPORT
17567-78040

N04C..XKU304,344

NO.2

 1
17567-78040

N04C..XKU304..5F..DCRTJ;N04C..XKU308,338,34#,508..DCRTJ

 3
17567-78030

N04C..XKU304,344

NO.1

 2
17567A - CUSHION, EXHAUST PIPE SUPPORT, NO.2
17567-78030

N04C..XKU304,344

 1
17567-78030

N04C..XKU30#,338,34#,508

 3
17567A - CUSHION, EXHAUST PIPE SUPPORT, NO.2
17567-78030

N04C..XKU304,344

 1
17567-78030

N04C..XKU30#,338,34#,508

 3
17571 - BRACKET, EXHAUST PIPE SUPPORT, NO.1
17571-78130

N04C..XKU30#,338,34#,508

 1
17571-78060

N04C..XKU304,344

NO.1

 1
17571-78070

N04C..XKU304,344

NO.2

 1
17572 - BRACKET, EXHAUST PIPE NO.1 SUPPORT
17572-78210

N04C..XKU30#,338,34#,508

 1
17572-78210

N04C..XKU304,344

 1
17573 - BRACKET, EXHAUST PIPE NO.1 SUPPORT, LOWER
17573-78200

N04C..XKU304

 1
17573-78200

N04C..XKU30#,508

 1
17575 - BRACKET, EXHAUST PIPE SUPPORT, NO.5
17575-78200

N04C..XKU338..DCRTJ;N04C..XKU30#,508..DM6,T4;N04C..XKU308,508..T5..DCRTJ

 1
17575-78200

N04C..XKU304

 1
17575 - BRACKET, EXHAUST PIPE SUPPORT, NO.5
17575-78200

N04C..XKU338..DCRTJ;N04C..XKU30#,508..DM6,T4;N04C..XKU308,508..T5..DCRTJ

 1
17575-78200

N04C..XKU304

 1
17577 - BRACKET, EXHAUST PIPE SUPPORT, NO.7
17577-78050

N04C..XKU304,344

 1
17577-78150

N04C..XKU304..5F

 1
17578D - BRACKET, EXHAUST PIPE SUPPORT, NO.8
17578-78220

N04C..XKU304..5F

 1
17578-78100

N04C..XKU304,344

 1
17578E - CLAMP, PIPE(FOR FRONT EXHAUST PIPE)
17578-78010

N04C..XKU30#,338,34#,508

 1
Common parts
90031-19159
90031-75007
90119-08B95
91551-80620
91551-80825
91641-80825
91642-81035
94151-80600
94185-60800
94185-61000
95333-08020
95333-08030
96135-51300
96136-41501
Linked diagrams
4711
8401
