XKU304A-TYMMB3 (2006)
Toyota Dyna/Toyoace Hv

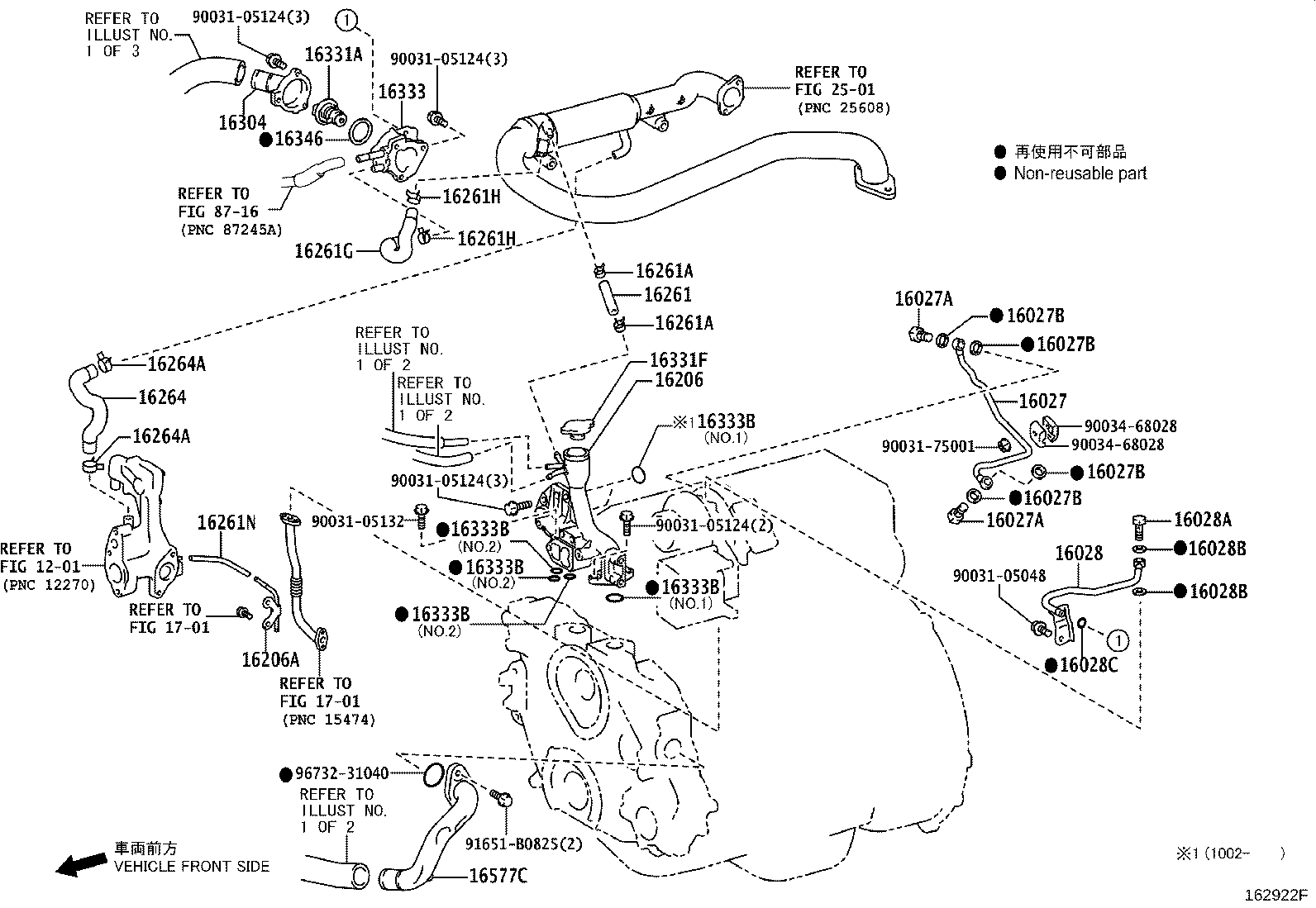

ILLUST NO. 2 OF 3(0610- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16027 - PIPE SUB-ASSY, TURBO WATER, NO.1 | ||||
| 16268-78010 |
N04C..XKU304,344 |
1 | ||
| 16895-78040 |
N04C..XKU30#,338,34#,508 |
1 | ||
| 16027A - BOLT, UNION(FOR TURBO WATER PIPE) | ||||
| 90034-01010 |
N04C..XKU304,344 |
2 | ||
| 90034-01010 |
N04C..XKU30#,338,34#,508 |
2 | ||
| 16027A - BOLT, UNION(FOR TURBO WATER PIPE) | ||||
| 90034-01010 |
N04C..XKU304,344 |
2 | ||
| 90034-01010 |
N04C..XKU30#,338,34#,508 |
2 | ||
| 16027B - GASKET(FOR TURBO WATER PIPE) | ||||
| 90202-14004 |
N04C..XKU30#,338,34#,508 |
4 | ||
| 90202-14004 |
N04C..XKU304,344 |
4 | ||
| 16027B - GASKET(FOR TURBO WATER PIPE) | ||||
| 90202-14004 |
N04C..XKU30#,338,34#,508 |
4 | ||
| 90202-14004 |
N04C..XKU304,344 |
4 | ||
| 16027B - GASKET(FOR TURBO WATER PIPE) | ||||
| 90202-14004 |
N04C..XKU30#,338,34#,508 |
4 | ||
| 90202-14004 |
N04C..XKU304,344 |
4 | ||
| 16027B - GASKET(FOR TURBO WATER PIPE) | ||||
| 90202-14004 |
N04C..XKU30#,338,34#,508 |
4 | ||
| 90202-14004 |
N04C..XKU304,344 |
4 | ||
| 16028 - PIPE SUB-ASSY, TURBO WATER, NO.2 | ||||
| 16206-78040 |
N04C..XKU304,344 |
1 | ||
| 16895-78050 |
N04C..XKU30#,338,34#,508 |
1 | ||
| 16895-78130 |
N04C..XKU30#,338,34#,508 |
1 | ||
| 16028A - BOLT, UNION(FOR TURBO WATER PIPE NO.2) | ||||
| 90034-01010 |
N04C..XKU304,344 |
1 | ||
| 90034-01010 |
N04C..XKU30#,338,34#,508 |
1 | ||
| 16028B - GASKET(FOR TURBO WATER PIPE NO.2) | ||||
| 90202-14004 |
N04C..XKU304,344 |
2 | ||
| 90202-14004 |
N04C..XKU30#,338,34#,508 |
2 | ||
| 16028B - GASKET(FOR TURBO WATER PIPE NO.2) | ||||
| 90202-14004 |
N04C..XKU304,344 |
2 | ||
| 90202-14004 |
N04C..XKU30#,338,34#,508 |
2 | ||
| 16028C - RING, O(FOR TURBO WATER PIPE) | ||||
| 90301-09006 |
N04C..XKU30#,338,34#,508 |
1 | ||
| 90301-09006 |
N04C..XKU304,344 |
1 | ||
| 16206 - PIPE SUB-ASSY, WATER BY-PASS | ||||
| 16206-78020 |
N04C..XKU304,344 |
1 | ||
| 16206A - PIPE SUB-ASSY, WATER BY-PASS, NO.2 | ||||
| 16206-78030 |
N04C..XKU304,344 |
1 | ||
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-78170 |
N04C..XKU30#,338,34#,508 長さ=59 |
1 | ||
| 90034-45092 |
N04C..XKU304,344 長さ=61 |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90034-67027 |
N04C..XKU30#,338,34#,508 |
2 | ||
| 90034-67027 |
N04C..XKU304,344 |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90034-67027 |
N04C..XKU30#,338,34#,508 |
2 | ||
| 90034-67027 |
N04C..XKU304,344 |
2 | ||
| 16261G - HOSE, WATER BY-PASS, NO.1 | ||||
| 90034-45091 |
N04C..XKU304,344 |
1 | ||
| 16261-78150 |
N04C..XKU30#,338,34#,508 |
1 | ||
| 16261H - CLIP(FOR WATER BY-PASS HOSE NO.1) | ||||
| 90034-67032 |
N04C..XKU304,344 |
2 | ||
| 90034-67033 |
N04C..XKU30#,338,34#,508 |
2 | ||
| 16261H - CLIP(FOR WATER BY-PASS HOSE NO.1) | ||||
| 90034-67032 |
N04C..XKU304,344 |
2 | ||
| 90034-67033 |
N04C..XKU30#,338,34#,508 |
2 | ||
| 16261N - HOSE, WATER BY-PASS, NO.2 | ||||
| 90034-45083 |
N04C..XKU304,344 |
1 | ||
| 90034-45083 |
N04C..XKU30#,338,34#,508 |
1 | ||
| 16264 - HOSE, WATER BY-PASS, NO.2 | ||||
| 16261-78160 |
N04C..XKU30#,338,34#,508 |
1 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90034-67033 |
N04C..XKU30#,338,34#,508 |
2 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90034-67033 |
N04C..XKU30#,338,34#,508 |
2 | ||
| 16304 - OUTLET SUB-ASSY, WATER | ||||
| 16304-78070 |
N04C..XKU30#,338,34#,508 |
1 | ||
| 16304-78070 |
N04C..XKU304,344 |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90038-33013 |
N04C..XKU304,344 *WAX 82−95 |
1 | ||
| 90038-33015 |
N04C..XKU30#,338,34#,508 *WAX 82−95 |
1 | ||
| 16331F - CAP SUB-ASSY(FOR WATER OUTLET) | ||||
| 16545-78010 |
N04C..XKU30#,338,34#,508 |
1 | ||
| 16545-78010 |
N04C..XKU304,344 |
1 | ||
| 16333 - HOUSING, WATER OUTLET | ||||
| 16303-78131 |
N04C..XKU30#,338,34#,508 |
1 | ||
| 16303-78020 |
N04C..XKU304,344 |
1 | ||
| 16333B - RING, O(FOR WATER OUTLET HOUSING) | ||||
| 90033-01068 |
N04C..XKU304,344 |
2 | ||
| 90301-19005 |
N04C..XKU30#,338,34#,508 NO.2 |
3 | ||
| 90033-01101 |
N04C..XKU30#,338,34#,508 NO.2 |
3 | ||
| 16333B - RING, O(FOR WATER OUTLET HOUSING) | ||||
| 90033-01068 |
N04C..XKU304,344 |
2 | ||
| 90301-19005 |
N04C..XKU30#,338,34#,508 NO.2 |
3 | ||
| 90033-01101 |
N04C..XKU30#,338,34#,508 NO.2 |
3 | ||
| 16333B - RING, O(FOR WATER OUTLET HOUSING) | ||||
| 90033-01068 |
N04C..XKU304,344 |
2 | ||
| 90301-19005 |
N04C..XKU30#,338,34#,508 NO.2 |
3 | ||
| 90033-01101 |
N04C..XKU30#,338,34#,508 NO.2 |
3 | ||
| 16333B - RING, O(FOR WATER OUTLET HOUSING) | ||||
| 90033-01068 |
N04C..XKU304,344 |
2 | ||
| 90301-19005 |
N04C..XKU30#,338,34#,508 NO.2 |
3 | ||
| 90033-01101 |
N04C..XKU30#,338,34#,508 NO.2 |
3 | ||
| 16333B - RING, O(FOR WATER OUTLET HOUSING) | ||||
| 90033-01068 |
N04C..XKU304,344 |
2 | ||
| 90301-19005 |
N04C..XKU30#,338,34#,508 NO.2 |
3 | ||
| 90033-01101 |
N04C..XKU30#,338,34#,508 NO.2 |
3 | ||
| 16346 - GASKET, THERMOSTAT | ||||
| 16346-78030 |
N04C..XKU304,344 |
1 | ||
| 16577C - PIPE, RADIATOR | ||||
| 16577-78060 |
N04C..XKU304,344 |
1 | ||
| 16577-78060 |
N04C..XKU30#,338,34#,508 |
1 | ||
| Common parts | ||||
| 90031-05048 | ||||
| 90031-05124 | ||||
| 90031-05132 | ||||
| 90031-75001 | ||||
| 90034-68028 | ||||
| 91651-B0825 | ||||
| 96732-31040 | ||||
| Linked diagrams | ||||
| 1201 | ||||
| 1701 | ||||
| 2501 | ||||
| 8716 | ||||
