XKU304A-TYMMB3 (2006)
Toyota Dyna/Toyoace Hv
Production
Oct 2006
-
Aug 2009
Engine
N04C
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(0610- )

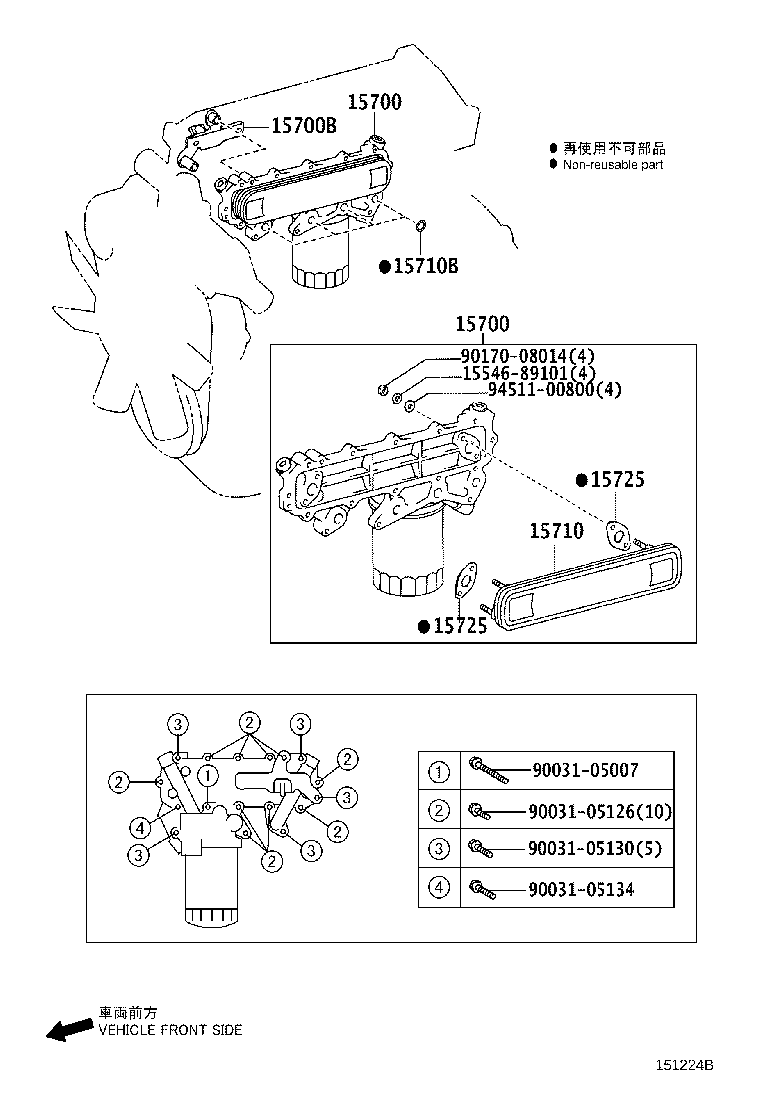

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 15700 - COOLER ASSY, OIL W/BRACKET | ||||
| 15700-78160 |
N04C..XKU30#,338,34#,508 |
1 | ||
| 15700-78161 |
N04C..XKU30#,338,34#,508 |
1 | ||
| 15700-78130 |
N04C..XKU304,344 |
1 | ||
| 15700-78162 |
N04C..XKU30#,338,34#,508 |
1 | ||
| 15700 - COOLER ASSY, OIL W/BRACKET | ||||
| 15700-78160 |
N04C..XKU30#,338,34#,508 |
1 | ||
| 15700-78161 |
N04C..XKU30#,338,34#,508 |
1 | ||
| 15700-78130 |
N04C..XKU304,344 |
1 | ||
| 15700-78162 |
N04C..XKU30#,338,34#,508 |
1 | ||
| 15700B - BRACKET(FOR OIL COOLER) | ||||
| 23211-78401 |
N04C..XKU30#,338,34#,508 |
1 | ||
| 82702-37420 |
N04C..XKU304,344 |
1 | ||
| 15710 - COOLER ASSY, OIL | ||||
| 15710-78050 |
N04C..XKU30#,338,34#,508 |
1 | ||
| 15710-89104 |
N04C..XKU304,344 |
1 | ||
| 15710B - RING, O(FOR OIL COOLER) | ||||
| 90301-19005 |
N04C..XKU304,344 |
4 | ||
| 90033-01101 |
N04C..XKU30#,338,34#,508 |
4 | ||
| 90301-19005 |
N04C..XKU30#,338,34#,508 |
4 | ||
| 15725 - GASKET, OIL COOLER COVER | ||||
| 15725-78020 |
N04C..XKU304,344 |
2 | ||
| 15725-78020 |
N04C..XKU30#,338,34#,508 |
2 | ||
| 15725 - GASKET, OIL COOLER COVER | ||||
| 15725-78020 |
N04C..XKU304,344 |
2 | ||
| 15725-78020 |
N04C..XKU30#,338,34#,508 |
2 | ||
| Common parts | ||||
| 15546-89101 | ||||
| 90031-05007 | ||||
| 90031-05126 | ||||
| 90031-05130 | ||||
| 90031-05134 | ||||
| 90170-08014 | ||||
| 94511-00800 | ||||
