XKU304A-TYMMB3 (2006)

Toyota Dyna/Toyoace Hv

Production Oct 2006 - Aug 2009
Engine N04C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0610- )

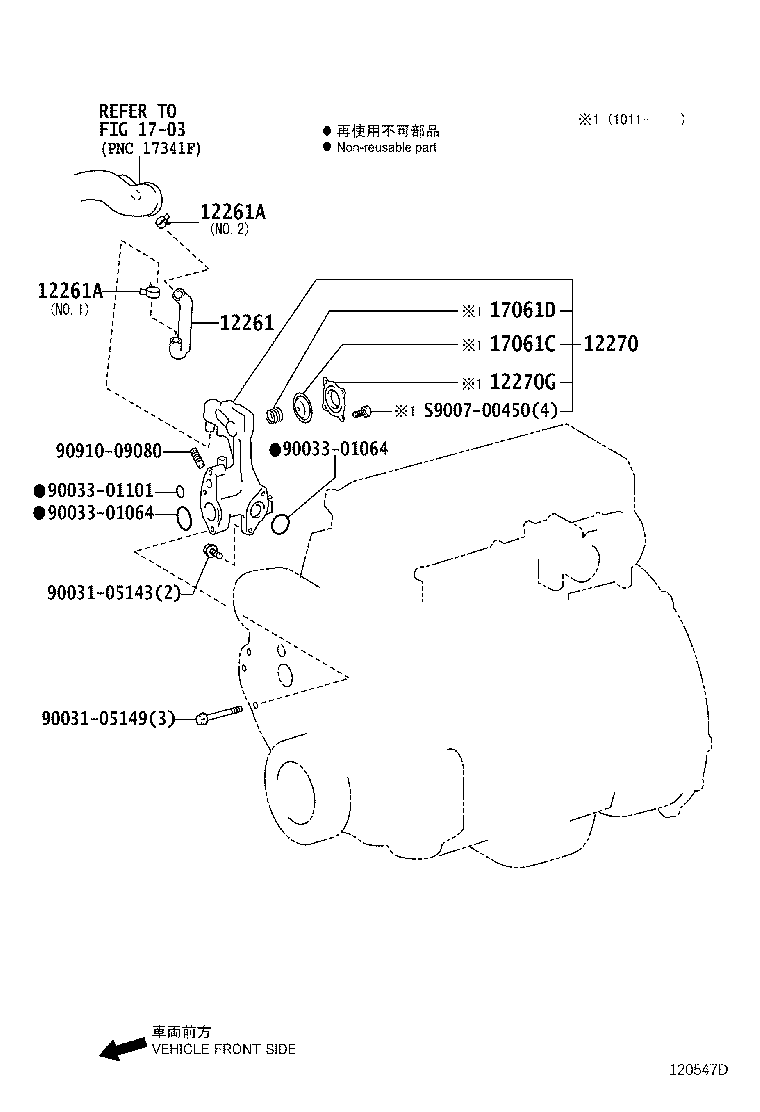

Click highlighted areas on diagram

diagram 12261 12261A 12261A 12270 12270G 1703 17061C 17061D 9003105143 9003105149 9003301064 9003301064 9003301101 9091009080 S900700450
Part # Description Qty Price
12261 - HOSE, VENTILATION
12261-78010

N04C..XKU304,344

NO.2

 1
12261-78020

N04C..XKU304,344

NO.1

 1
12261-78270

N04C..XKU30#,338,34#,508

 1
12261A - CLIP OR CLAMP(FOR VENTILATION HOSE)
90467-28007

N04C..XKU30#,338,34#,508

NO.2

 1
90034-67018

N04C..XKU30#,338,34#,508

NO.1

 1
90034-67018

N04C..XKU304,344

NO.1

 1
90034-67029

N04C..XKU304,344

NO.2

 1
12261A - CLIP OR CLAMP(FOR VENTILATION HOSE)
90467-28007

N04C..XKU30#,338,34#,508

NO.2

 1
90034-67018

N04C..XKU30#,338,34#,508

NO.1

 1
90034-67018

N04C..XKU304,344

NO.1

 1
90034-67029

N04C..XKU304,344

NO.2

 1
12270 - SEPARATOR ASSY, OIL
12270-78011

N04C..XKU304,344

 1
Common parts
90031-05143
90031-05149
90033-01064
90033-01101
90910-09080
S9007-00450
Linked diagrams
1703
