XKU304A-TYMMB3 (2006)

Toyota Dyna/Toyoace Hv

Production Oct 2006 - Aug 2009
Engine N04C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0610- )

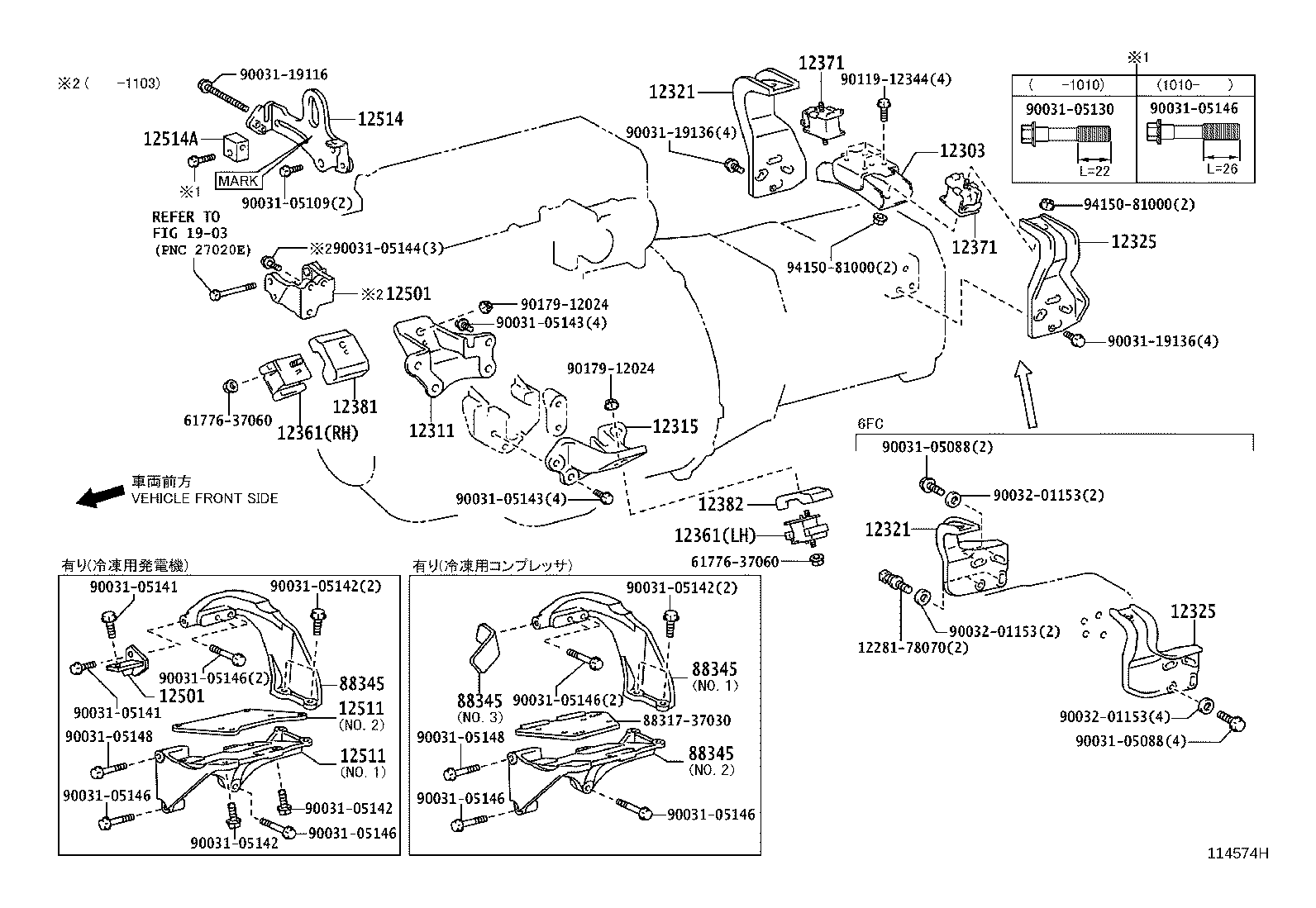

Click highlighted areas on diagram

diagram 1228178070 12303 12311 12315 12321 12321 12325 12325 12361 12361 12371 12371 12381 12382 12501 12501 12511 12511 12514 12514A 1903 6177637060 6177637060 8831737030 88345 88345 88345 88345 9003105088 9003105088 9003105109 9003105130 9003105141 9003105141 9003105142 9003105142 9003105142 9003105142 9003105143 9003105143 9003105144 9003105146 9003105146 9003105146 9003105146 9003105146 9003105146 9003105146 9003105148 9003105148 9003119116 9003119136 9003119136 9003201153 9003201153 9003201153 9011912344 9017912024 9017912024 9415081000 9415081000
Part # Description Qty Price
12303 - BRACKET SUB-ASSY, ENGINE MOUNTING, REAR
12303-78030

N04C..XKU304,344

 1
12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH
12311-78050

N04C..XKU30#,338,34#,508

 1
12311-78060

N04C..XKU304,344

 1
12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH
12315-78040

N04C..XKU304,344

 1
12315-78050

N04C..XKU30#,338,34#,508

 1
12321 - BRACKET, ENGINE MOUNTING, REAR, NO.1
12321-78090

N04C..XKU304,344

 1
12321 - BRACKET, ENGINE MOUNTING, REAR, NO.1
12321-78090

N04C..XKU304,344

 1
12325 - BRACKET, ENGINE MOUNTING, NO.3
12325-78070

N04C..XKU304,344

 1
12325 - BRACKET, ENGINE MOUNTING, NO.3
12325-78070

N04C..XKU304,344

 1
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-58130

N04C..XKU304,344

 2
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-58130

N04C..XKU304,344

 2
12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1
12371-78010

N04C..XKU304,344

 2
12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1
12371-78010

N04C..XKU304,344

 2
12381 - STABILIZER, ENGINE MOUNTING
12381-78040

N04C..XKU304,344

 1
12381-78030

N04C..XKU304,344

 1
12382 - STABILIZER, ENGINE MOUNTING, LH
12381-78030

N04C..XKU304,344

 1
12381-78040

N04C..XKU304,344

 1
12501 - BRACKET SUB-ASSY, ALTERNATOR
12501-78071

N04C..XKU304,344

 1
12501 - BRACKET SUB-ASSY, ALTERNATOR
12501-78071

N04C..XKU304,344

 1
12514 - BAR, ALTERNATOR BELT ADJUSTING
12514-78082

N04C..XKU304,344

 1
12514A - SLIDER, FAN BELT ADJUSTING
12519-78020

N04C..XKU304,344

 1
Common parts
12281-78070
61776-37060
88317-37030
90031-05088
90031-05109
90031-05130
90031-05141
90031-05142
90031-05143
90031-05144
90031-05146
90031-05148
90031-19116
90031-19136
90032-01153
90119-12344
90179-12024
94150-81000
Linked diagrams
1903
