Toyota Dyna/toyoace hv XKU304 TIMING GEAR COVER & REAR END PLATE

XKU304A-TYMMB3 (2006)

Toyota Dyna/Toyoace Hv

Production Oct 2006 - Aug 2009

Engine N04C

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

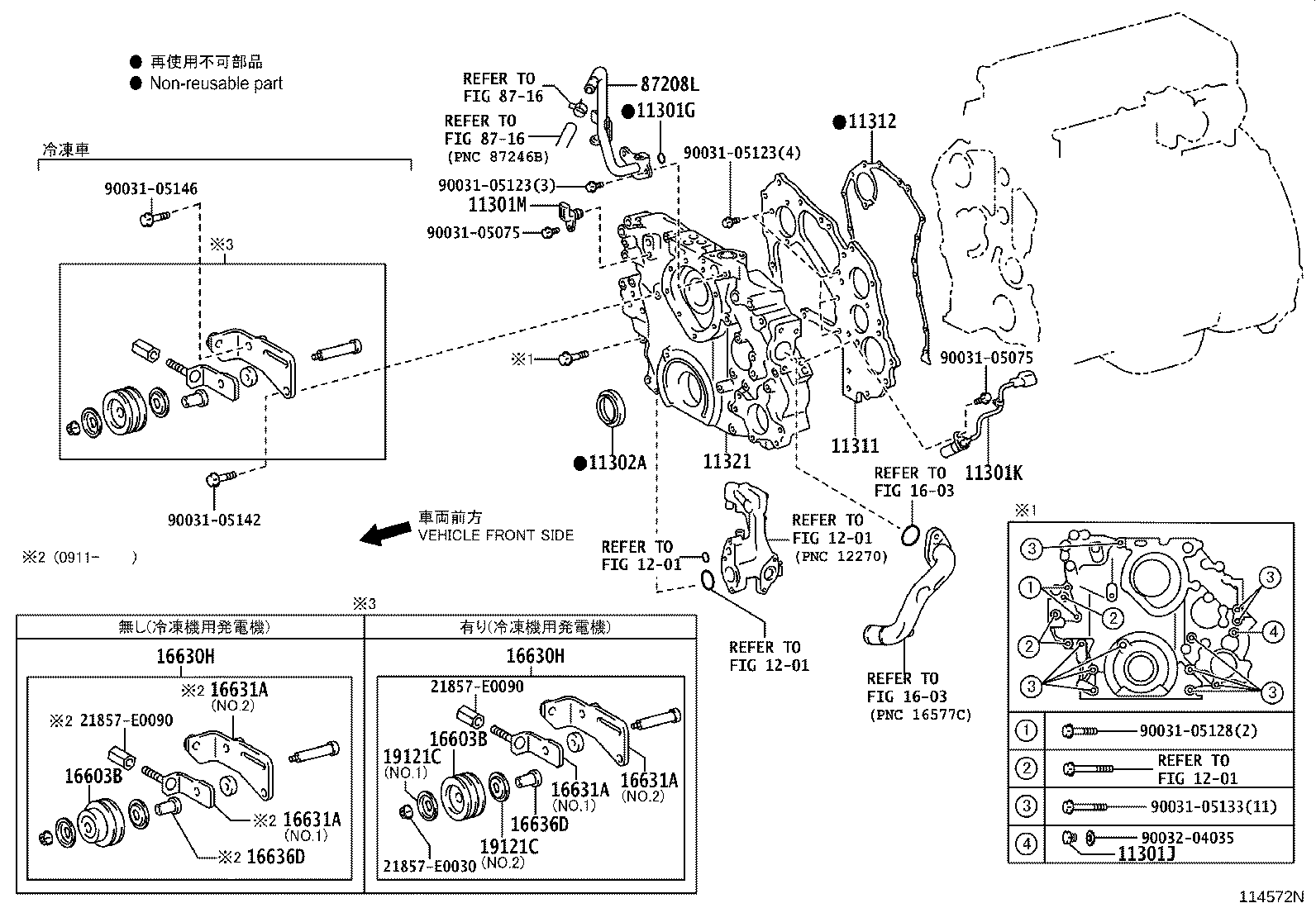

Click highlighted areas on diagram

ﾀｲﾐﾝｸﾞｷﾞﾔｹｰｽｻｲﾄﾞ

Part #	Description	Period	Qty
11301G - RING, O(FOR TIMING GEAR CASE, UPPER)
90033-01086	N04C..XKU30#,338,34#,508	10/2006 - 04/2009	1
90033-01105	N04C..XKU30#,338,34#,508	04/2009 - 12/2999	1
11301J - PLUG, W/HEAD STRAIGHT SCREW(FOR TIMING GEAR CASE)
90033-41004	N04C..XKU304,344	10/2003 - 10/2006	1
90033-41004	N04C..XKU30#,338,34#,508	10/2006 - 12/2999	1
11301K - SENSOR, CRANK POSITION
19311-78060	N04C..XKU304,344	10/2003 - 10/2006	1
11301M - SENSOR, CAM POSITION
19311-78030	N04C..XKU304,344	10/2003 - 10/2006	1
11302A - SEAL, OIL(FOR TIMING CHAIN OR BELT COVER)
90033-11040	N04C..XKU304,344	10/2003 - 10/2006	1
90033-11040	N04C..XKU30#,338,34#,508	10/2006 - 12/2999	1
11311 - PLATE, FRONT END
11429-78020	N04C..XKU30#,338,34#,508	10/2006 - 12/2999	1
13596-78010	N04C..XKU304,344	10/2003 - 06/2004	1
11312 - GASKET, FRONT END PLATE
11312-78011	N04C..XKU304,344	10/2003 - 10/2006	1
11312-78011	N04C..XKU30#,338,34#,508	10/2006 - 12/2999	1
11321 - CASE, TIMING GEAR
11321-78081	N04C..XKU304,344	10/2003 - 06/2004	1
16630H - PULLEY ASSY, IDLER
16630-78071	N04C..XKU304,344	10/2003 - 10/2006	1
16630H - PULLEY ASSY, IDLER
16630-78071	N04C..XKU304,344	10/2003 - 10/2006	1
87208L - PIPE SUB-ASSY, WATER
87208-37420	XKU304,344	10/2003 - 10/2006	1
16302-78100	XKU30#,338,34#,508	01/2009 - 12/2999	1
16302-78070	XKU30#,338,34#,508	10/2006 - 01/2009	1
Common parts
21857-E0030
21857-E0090
90031-05075
90031-05123
90031-05128
90031-05133
90031-05142
90031-05146
90032-04035
Linked diagrams
1201
1603
8716

Click highlighted areas on diagram

ﾌﾗｲﾎｲｰﾙﾊｳｼﾞﾝｸﾞｻｲﾄﾞ

Part #	Description	Period	Qty
11351 - HOUSING, FLYWHEEL
11351-78093	N04C..XKU304,344	10/2003 - 10/2006	1
11351F - PLATE, STIFFENER, LH(FOR FLYWHEEL HOUSING)
33119-37070	N04C..XKU304,344	10/2006 - 12/2999	1
11351G - STAY, LH(FOR FLYWHEEL HOUSING)
11353-78040	N04C..XKU304,344	10/2003 - 10/2006	1
11351H - STAY, RH(FOR FLYWHEEL HOUSING)
11353-78030	N04C..XKU304,344	10/2003 - 10/2006	1
11354 - SEAL, FLYWHEEL HOUSING DUST
11354-78081	N04C..XKU304,344	10/2003 - 10/2006	1
11381A - SEAL, ENGINE REAR OIL
90311-99002	N04C..XKU30#,338,34#,508	10/2006 - 12/2999	1
90311-99002	N04C..XKU304,344	10/2003 - 10/2006	1
G1010 - WIRE ASSY, MOTOR STATOR
G1010-37011	XKU30#,338,34#,508..5F	10/2006 - 12/2999	1
G1100D - MOTOR ASSY, HYBRID VEHICLE
G1100-37013	XKU30#,338,34#,508	10/2006 - 10/2007	1
G1100-37020	XKU30#,338,34#,508	10/2007 - 02/2008	1
G1100-37022	XKU30#,338,34#,508	02/2008 - 05/2009	1
Common parts
21814-E0120
82702-89201
82702-89206
82702-89210
90031-05075
90031-05118
90031-05126
90031-05147
90031-05152
90031-05153
90031-19141
90119-08386
91611-B0816
91651-60816
