XKU304A-TYMMB3 (2006)
Toyota Dyna/Toyoace Hv
(0610- )

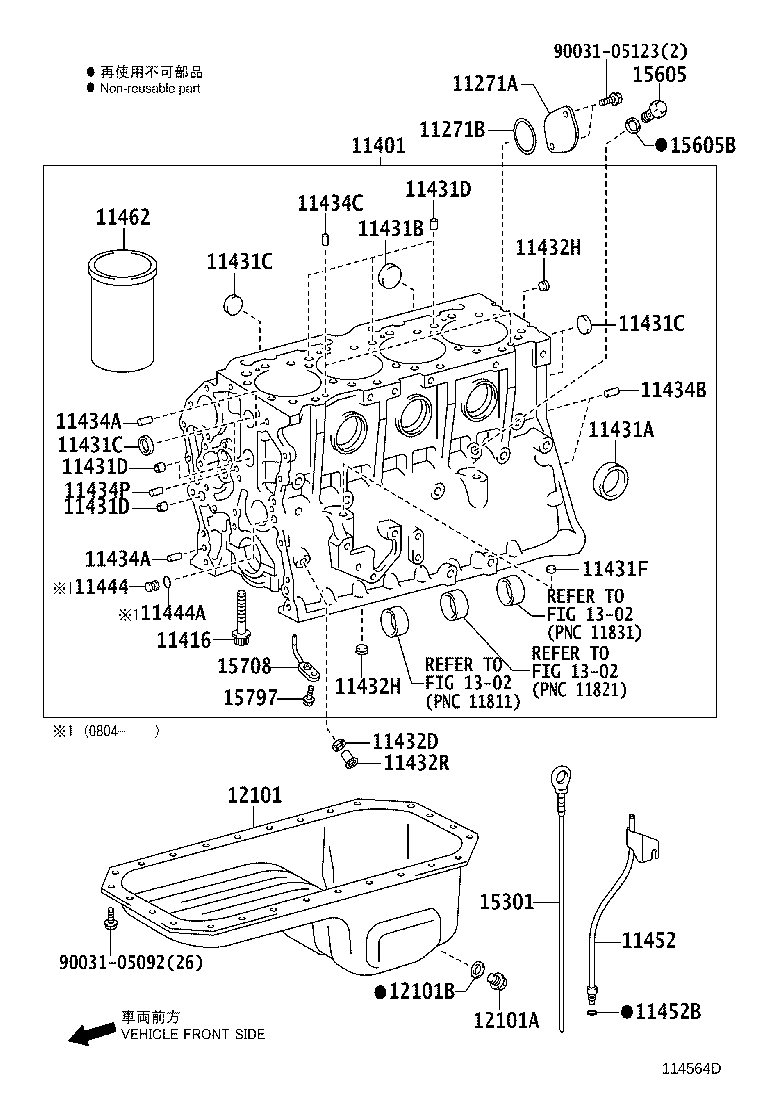

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11271A - COVER, CYLINDER BLOCK, REAR | ||||
| 11271-78010 |
N04C..XKU30#,338,34#,508 |
1 | ||
| 11271B - RING, O(FOR CYLINDER BLOCK REAR PLATE) | ||||
| 90301-69001 |
N04C..XKU30#,338,34#,508 |
1 | ||
| 90301-69001 |
N04C..XKU304,344 |
1 | ||
| 11401 - BLOCK SUB-ASSY, CYLINDER | ||||
| 11401-78171 |
N04C..XKU304,344 |
1 | ||
| 11401-78272 |
N04C..XKU30#,338,34#,508 |
1 | ||
| 11410-78340 |
N04C..XKU30#,338,34#,508 |
1 | ||
| 11416 - BOLT(FOR CRANKSHAFT BEARING CAP SET) | ||||
| 90910-02156 |
N04C..XKU304,344 |
10 | ||
| 11431A - PLUG, TIGHT, NO.1(FOR CYLINDER BLOCK) | ||||
| 90033-31026 |
N04C..XKU304,344 |
3 | ||
| 11431B - PLUG, TIGHT, NO.2(FOR CYLINDER BLOCK) | ||||
| 90033-31035 |
N04C..XKU304,344 |
3 | ||
| 11431C - PLUG, TIGHT, NO.3(FOR CYLINDER BLOCK) | ||||
| 90033-31034 |
N04C..XKU304,344 |
5 | ||
| 11431C - PLUG, TIGHT, NO.3(FOR CYLINDER BLOCK) | ||||
| 90033-31034 |
N04C..XKU304,344 |
5 | ||
| 11431C - PLUG, TIGHT, NO.3(FOR CYLINDER BLOCK) | ||||
| 90033-31034 |
N04C..XKU304,344 |
5 | ||
| 11431D - PLUG, TIGHT, NO.4(FOR CYLINDER BLOCK) | ||||
| 90033-31020 |
N04C..XKU304,344 |
5 | ||
| 11431D - PLUG, TIGHT, NO.4(FOR CYLINDER BLOCK) | ||||
| 90033-31020 |
N04C..XKU304,344 |
5 | ||
| 11431D - PLUG, TIGHT, NO.4(FOR CYLINDER BLOCK) | ||||
| 90033-31020 |
N04C..XKU304,344 |
5 | ||
| 11431F - PLUG, TIGHT, NO.6(FOR CYLINDER BLOCK) | ||||
| 90331-14005 |
N04C..XKU304,344 |
1 | ||
| 11432D - GASKET, W/HEAD TAPER SCREW PLUG | ||||
| 90202-10011 |
N04C..XKU30#,338,34#,508 |
1 | ||
| 90202-10011 |
N04C..XKU304,344 |
1 | ||
| 11432H - PLUG, W/HEAD TAPER SCREW, NO.5 | ||||
| 90344-21001 |
N04C..XKU304,344 |
2 | ||
| 11432H - PLUG, W/HEAD TAPER SCREW, NO.5 | ||||
| 90344-21001 |
N04C..XKU304,344 |
2 | ||
| 11432R - PLUG, W/HEAD STRAIGHT SCREW, NO.1(FOR CYLINDER BLOCK) | ||||
| 90033-41017 |
N04C..XKU304,344 |
1 | ||
| 90033-41017 |
N04C..XKU30#,338,34#,508 |
1 | ||
| 11434A - PIN, STRAIGHT(FOR TIMING GEAR COVER SET) | ||||
| 90250-08015 |
N04C..XKU304,344 長さ=24,外径=8 |
2 | ||
| 90250-08015 |
N04C..XKU30#,338,34#,508 長さ=24,外径=8 |
2 | ||
| 11434A - PIN, STRAIGHT(FOR TIMING GEAR COVER SET) | ||||
| 90250-08015 |
N04C..XKU304,344 長さ=24,外径=8 |
2 | ||
| 90250-08015 |
N04C..XKU30#,338,34#,508 長さ=24,外径=8 |
2 | ||
| 11434B - PIN, STRAIGHT(FOR CLUTCH HOUSING SET) | ||||
| 90032-50060 |
N04C..XKU304,344 長さ=24,外径=12 |
2 | ||
| 11434C - PIN, STRAIGHT (FOR CYLINDER HEAD SET) | ||||
| 90250-08016 |
N04C..XKU304,344 長さ=16,外径=8 |
2 | ||
| 90250-08016 |
N04C..XKU30#,338,34#,508 長さ=16,外径=8 |
2 | ||
| 11434P - PIN, STRAIGHT(FOR OIL PUMP SET) | ||||
| 90250-05022 |
N04C..XKU304,344 長さ=10,外径=5 |
1 | ||
| 11444 - PLUG, HOLE | ||||
| 11444-78020 |
N04C..XKU304;N04C..XKU344..30T |
1 | ||
| 11444A - RING, O | ||||
| 90033-01070 |
N04C..XKU304;N04C..XKU344..30T |
1 | ||
| 11452 - GUIDE, OIL LEVEL GAGE | ||||
| 11409-78110 |
N04C..XKU30#,338,34#,508 |
1 | ||
| 11409-78030 |
N04C..XKU304,344 |
1 | ||
| 11409-78111 |
N04C..XKU30#,338,34#,508 |
1 | ||
| 11452B - RING, O(FOR OIL LEVEL GAGE GUIDE) | ||||
| 90033-01058 |
N04C..XKU30#,338,34#,508 |
1 | ||
| 90033-01058 |
N04C..XKU304,344 |
1 | ||
| 11462 - LINER, CYLINDER | ||||
| 11461-78021 |
N04C..XKU304,344 ﾏｰｸ A |
4 | ||
| 11461-78051 |
N04C..XKU304,344 ﾏｰｸ C |
4 | ||
| 11461-78031 |
N04C..XKU304,344 ﾏｰｸ B |
4 | ||
| 12101 - PAN SUB-ASSY, OIL | ||||
| 12101-78090 |
N04C..XKU30#,338,34#,508 |
1 | ||
| 12111-78010 |
N04C..XKU304,344 |
1 | ||
| 12101A - PLUG(FOR OIL PAN DRAIN) | ||||
| 90033-41020 |
N04C..XKU30#,338,34#,508 |
1 | ||
| 90033-41020 |
N04C..XKU304,344 |
1 | ||
| 12101B - GASKET(FOR OIL PAN DRAIN PLUG) | ||||
| 90034-30047 |
N04C..XKU30#,338,34#,508 |
1 | ||
| 90202-18002 |
N04C..XKU304,344 |
1 | ||
| 90034-30046 |
N04C..XKU30#,338,34#,508 |
1 | ||
| 15301 - GAGE SUB-ASSY, OIL LEVEL | ||||
| 15301-78061 |
N04C..XKU304,344 |
1 | ||
| 15301-78140 |
N04C..XKU30#,338,34#,508 |
1 | ||
| 15605 - VALVE SUB-ASSY, OIL CHECK | ||||
| 15703-78030 |
N04C..XKU30#,338,34#,508 |
1 | ||
| 15703-78030 |
N04C..XKU304,344 |
1 | ||
| 15605B - GASKET(FOR OIL CHECK VALVE) | ||||
| 90034-30043 |
N04C..XKU30#,338,34#,508 |
1 | ||
| 90034-30043 |
N04C..XKU304,344 |
1 | ||
| 15708 - NOZZLE SUB-ASSY, OIL, NO.1 | ||||
| 11418-78010 |
N04C..XKU304,344 |
4 | ||
| 15797 - BOLT, OIL NOZZLE UNION | ||||
| 90031-05123 |
N04C..XKU304,344 |
4 | ||
| Common parts | ||||
| 90031-05092 | ||||
| 90031-05123 | ||||
| Linked diagrams | ||||
| 1302 | ||||
