XKU304A-TYMMB3 (2006)

Toyota Dyna/Toyoace Hv

Production Oct 2006 - Aug 2009
Engine N04C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

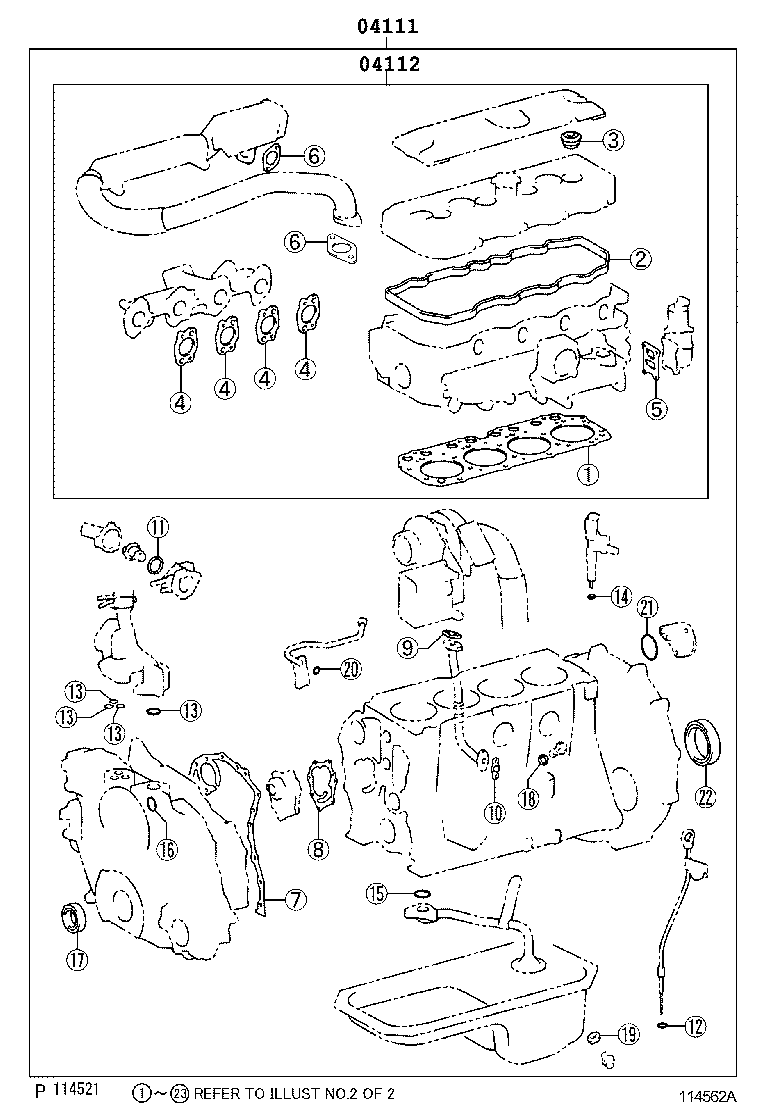

ILLUST NO. 1 OF 2(0610- )

Click highlighted areas on diagram

diagram 04111 04112
Part # Description Qty Price
04111 - GASKET KIT, ENGINE OVERHAUL
04111-78650

N04C..XKU304,344

 1
04111-80931

N04C..XKU30#,338,34#,508..5F

 1
04111-80930

N04C..XKU30#,338,34#,508

 1
04112 - GASKET KIT, ENGINE VALVE GRIND
04112-78080

N04C..XKU304,344

 1

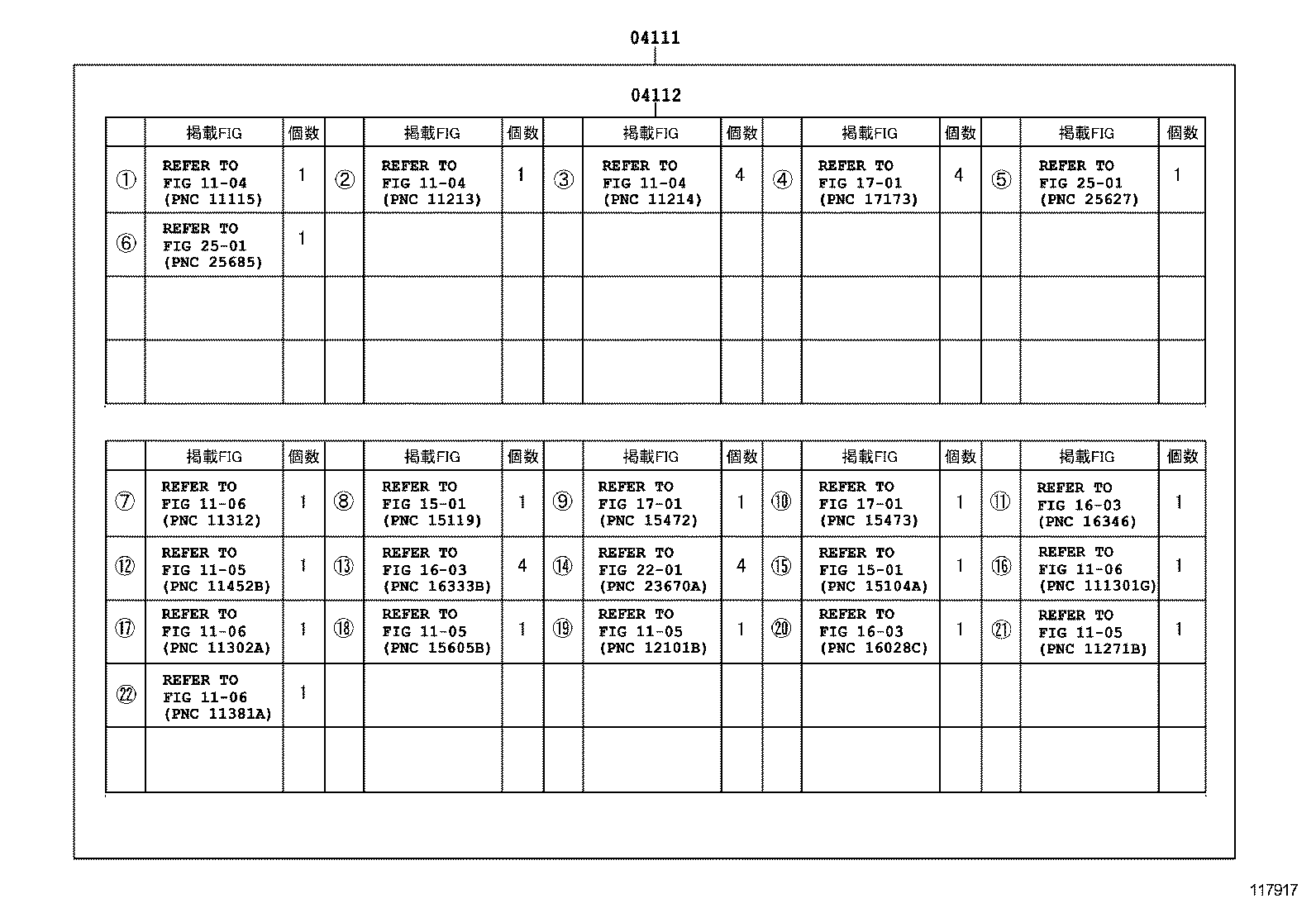

ILLUST NO. 2 OF 2(0610- )

Click highlighted areas on diagram

diagram 04111 04112 1104 1104 1104 1105 1105 1105 1105 1106 1106 1106 1106 1501 1501 1603 1603 1603 1701 1701 1701 2201 2501 2501
Part # Description Qty Price
04111 - GASKET KIT, ENGINE OVERHAUL
04111-78650

N04C..XKU304,344

 1
04111-80931

N04C..XKU30#,338,34#,508..5F

 1
04111-80930

N04C..XKU30#,338,34#,508

 1
04112 - GASKET KIT, ENGINE VALVE GRIND
04112-78080

N04C..XKU304,344

 1
Linked diagrams
1104
1105
1106
1501
1603
1701
2201
2501
