XKC655-TKUMC (2011)
Toyota Dyna/Toyoace Hv
ILLUST NO. 4 OF 4(1107- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44510 - ACTUATOR ASSY, BRAKE | ||||
| 44050-37150 |
XKU650..30T;XKU600..T5..30T;XKU650..T3..20T;XKU600,640,655..DM6,T3 |
1 | ||
| 44050-37070 |
XKC605,645,655,XKU60#,64#,65# ﾃﾞｭﾄﾛ専用 |
1 | ||
| 44050-37071 |
XKC605,645,655,XKU60#,64#,65# ﾃﾞｭﾄﾛ専用 |
1 | ||
| 44050-37190 |
XKC655..T3 |
1 | ||
| 44050-37151 |
XKU650..30T;XKU600..T5..30T;XKU650..T3..20T;XKU600,640,655..DM6,T3 |
1 | ||
| 44050-37191 |
XKC655..T3 |
1 | ||
| 44050-37122 |
XKC605,645,655,XKU60#,64#,65# ﾃﾞｭﾄﾛ専用&VSC−有り |
1 | ||
| 44050-37871 |
XKC655..T3 VSC−有り |
1 | ||
| 44521A - COLLAR, BRAKE ACTUATOR CASE, NO.1 | ||||
| 44521-12050 |
XKC655..T3;XKU650..T3..CBU;XKU60#..T5..20T..CBU |
3 | ||
| 44521-12050 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
3 | ||
| 44521A - COLLAR, BRAKE ACTUATOR CASE, NO.1 | ||||
| 44521-12050 |
XKC655..T3;XKU650..T3..CBU;XKU60#..T5..20T..CBU |
3 | ||
| 44521-12050 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
3 | ||
| 44547B - CUSHION, BRAKE ACTUATOR BRACKET | ||||
| 44547-60100 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
3 | ||
| 44547-60100 |
XKC655..T3;XKU650..T3..CBU;XKU60#..T5..20T..CBU |
3 | ||
| 44547B - CUSHION, BRAKE ACTUATOR BRACKET | ||||
| 44547-60100 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
3 | ||
| 44547-60100 |
XKC655..T3;XKU650..T3..CBU;XKU60#..T5..20T..CBU |
3 | ||
| 44590 - BRACKET ASSY, BRAKE ACTUATOR | ||||
| 44590-37050 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
1 | ||
| 44590-37050 |
XKC655..T3;XKU650..T3..CBU;XKU60#..T5..20T..CBU |
1 | ||
| Common parts | ||||
| 90119-06844 | ||||
| 91551-80820 | ||||

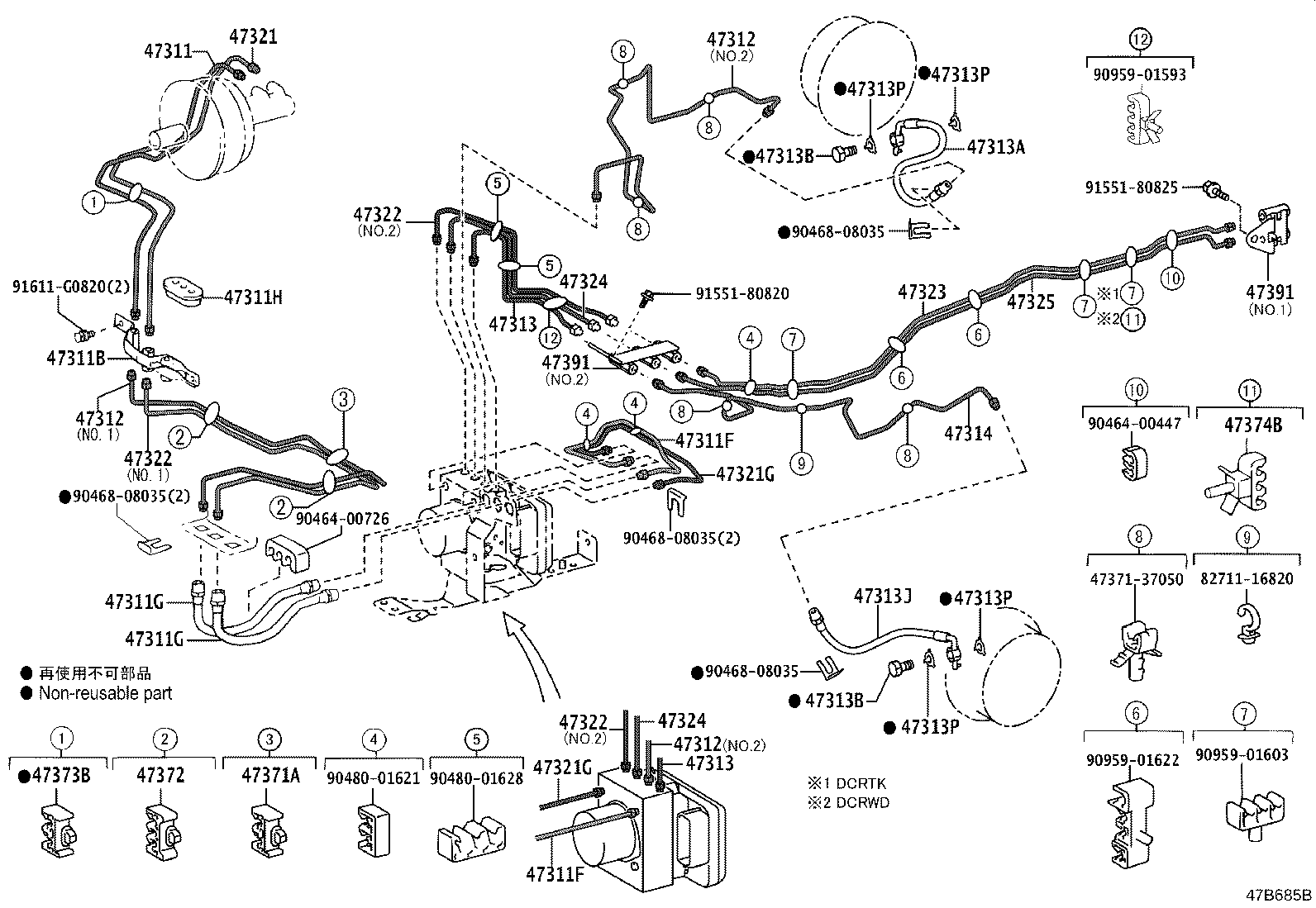

ILLUST NO. 1 OF 4(1107- )XKC605,645,655,XKU605,645,655..DCRTK; (1905- )DCRWD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-37591 |
XKU60#,64#,65# |
1 | ||
| 47311-37601 |
XKC605,645,655 |
1 | ||
| 47311-37600 |
XKC605,645,655 |
1 | ||
| 47311-37590 |
XKU60#,64#,65# |
1 | ||
| 47311-37602 |
XKC655..T3 |
1 | ||
| 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 47391-37460 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
1 | ||
| 47391-37460 |
XKC655..T3;XKU650..T3..CBU;XKU60#..T5..20T..CBU |
1 | ||
| 47311F - TUBE, FRONT BRAKE, FRAME NO.1 | ||||
| 47311-37611 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
1 | ||
| 47311-37611 |
XKC655..T3;XKU650..T3..CBU;XKU60#..T5..20T..CBU |
1 | ||
| 47311F - TUBE, FRONT BRAKE, FRAME NO.1 | ||||
| 47311-37611 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
1 | ||
| 47311-37611 |
XKC655..T3;XKU650..T3..CBU;XKU60#..T5..20T..CBU |
1 | ||
| 47311G - HOSE, FLEXIBLE(FOR BRAKE TUBE) | ||||
| 90947-02F90 |
XKC605,645,655,XKU60#,64#,65# |
2 | ||
| 47311G - HOSE, FLEXIBLE(FOR BRAKE TUBE) | ||||
| 90947-02F90 |
XKC605,645,655,XKU60#,64#,65# |
2 | ||
| 47311H - GROMMET(FOR BRAKE TUBE) | ||||
| 90480-01311 |
XKC605,645,655,XKU60#,64#,65# |
1 | ||
| 47256-37030 |
XKC655..T3;XKU650..T3..CBU;XKU60#..T5..20T..CBU |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-37A80 |
XKC655..T3;XKU650..T3..CBU;XKU60#..T5..20T..CBU NO.1 |
1 | ||
| 47312-37A80 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 NO.1 |
1 | ||
| 47312-37B10 |
XKC655..T3;XKU605..T5..CBU NO.2 |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-37A80 |
XKC655..T3;XKU650..T3..CBU;XKU60#..T5..20T..CBU NO.1 |
1 | ||
| 47312-37A80 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 NO.1 |
1 | ||
| 47312-37B10 |
XKC655..T3;XKU605..T5..CBU NO.2 |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-37A80 |
XKC655..T3;XKU650..T3..CBU;XKU60#..T5..20T..CBU NO.1 |
1 | ||
| 47312-37A80 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 NO.1 |
1 | ||
| 47312-37B10 |
XKC655..T3;XKU605..T5..CBU NO.2 |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-37560 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
1 | ||
| 47313-37560 |
XKC655..T3;XKU650..T3..CBU;XKU60#..T5..20T..CBU |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-37560 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
1 | ||
| 47313-37560 |
XKC655..T3;XKU650..T3..CBU;XKU60#..T5..20T..CBU |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02E92 |
XKC655..T3;XKU605..T5..CBU |
1 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10015 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
2 | ||
| 90401-10015 |
XKC655..T3;XKU650..T3..CBU;XKU60#..T5..20T..CBU |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10015 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
2 | ||
| 90401-10015 |
XKC655..T3;XKU650..T3..CBU;XKU60#..T5..20T..CBU |
2 | ||
| 47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT) | ||||
| 90947-02E93 |
XKC655..T3;XKU605..T5..CBU |
1 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-30010 |
XKC655..T3;XKU650..T3..CBU;XKU60#..T5..20T..CBU |
4 | ||
| 47389-30010 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-30010 |
XKC655..T3;XKU650..T3..CBU;XKU60#..T5..20T..CBU |
4 | ||
| 47389-30010 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-30010 |
XKC655..T3;XKU650..T3..CBU;XKU60#..T5..20T..CBU |
4 | ||
| 47389-30010 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-30010 |
XKC655..T3;XKU650..T3..CBU;XKU60#..T5..20T..CBU |
4 | ||
| 47389-30010 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
4 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-37780 |
XKC655..T3;XKU605..T5..CBU |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-37570 |
XKC605,645,655 |
1 | ||
| 47321-37571 |
XKC605,645,655 |
1 | ||
| 47321-37572 |
XKC655..T3 |
1 | ||
| 47321-37561 |
XKU60#,64#,65# |
1 | ||
| 47321-37560 |
XKU60#,64#,65# |
1 | ||
| 47321G - TUBE, REAR BRAKE, FRAME NO.1 | ||||
| 47321-37580 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
1 | ||
| 47321-37580 |
XKC655..T3;XKU650..T3..CBU;XKU60#..T5..20T..CBU |
1 | ||
| 47321G - TUBE, REAR BRAKE, FRAME NO.1 | ||||
| 47321-37580 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
1 | ||
| 47321-37580 |
XKC655..T3;XKU650..T3..CBU;XKU60#..T5..20T..CBU |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-37B00 |
XKC655..T3;XKU650..T3..CBU;XKU60#..T5..20T..CBU NO.2 |
1 | ||
| 47322-37A90 |
XKC655..T3;XKU650..T3..CBU;XKU60#..T5..20T..CBU NO.1 |
1 | ||
| 47322-37A90 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 NO.1 |
1 | ||
| 47322-37B00 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 NO.2 |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-37B00 |
XKC655..T3;XKU650..T3..CBU;XKU60#..T5..20T..CBU NO.2 |
1 | ||
| 47322-37A90 |
XKC655..T3;XKU650..T3..CBU;XKU60#..T5..20T..CBU NO.1 |
1 | ||
| 47322-37A90 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 NO.1 |
1 | ||
| 47322-37B00 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 NO.2 |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-37B00 |
XKC655..T3;XKU650..T3..CBU;XKU60#..T5..20T..CBU NO.2 |
1 | ||
| 47322-37A90 |
XKC655..T3;XKU650..T3..CBU;XKU60#..T5..20T..CBU NO.1 |
1 | ||
| 47322-37A90 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 NO.1 |
1 | ||
| 47322-37B00 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 NO.2 |
1 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47323-37680 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..T4 |
1 | ||
| 47323-37680 |
XKC655..T3;XKU650..T3..CBU;XKU60#..T5..20T..CBU |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-37380 |
XKC655..T3;XKU650..T3..CBU;XKU60#..T5..20T..CBU |
1 | ||
| 47324-37380 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-37380 |
XKC655..T3;XKU650..T3..CBU;XKU60#..T5..20T..CBU |
1 | ||
| 47324-37380 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
1 | ||
| 47325 - TUBE, REAR BRAKE, NO.5 | ||||
| 47325-37410 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..T4 |
1 | ||
| 47325-37410 |
XKC655..T3;XKU650..T3..CBU;XKU60#..T5..20T..CBU |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 47371-37150 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
1 | ||
| 47371-37150 |
XKC655..T3;XKU650..T3..CBU;XKU60#..T5..20T..CBU |
1 | ||
| 47372 - CLAMP, BRAKE TUBE, NO.2 | ||||
| 47371-37160 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
2 | ||
| 47371-37160 |
XKC655..T3;XKU650..T3..CBU;XKU60#..T5..20T..CBU |
2 | ||
| 47373B - CLAMP, BRAKE TUBE, NO.3 | ||||
| 47371-37110 |
XKC655..T3;XKU650..T3..CBU;XKU60#..T5..20T..CBU |
1 | ||
| 47371-37360 |
XKC605,645,655,XKU60#,64#,65# |
1 | ||
| 47391 - WAY, BRAKE TUBE | ||||
| 47391-37280 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..T4 NO.1 |
1 | ||
| 47391-37300 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..T4 NO.2 |
1 | ||
| 47391-37300 |
XKC655..T3;XKU650..T3..CBU;XKU60#..T5..20T..CBU NO.2 |
1 | ||
| 47391-37280 |
XKC655..T3;XKU650..T3..CBU;XKU60#..T5..20T..CBU NO.1 |
1 | ||
| 47391 - WAY, BRAKE TUBE | ||||
| 47391-37280 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..T4 NO.1 |
1 | ||
| 47391-37300 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..T4 NO.2 |
1 | ||
| 47391-37300 |
XKC655..T3;XKU650..T3..CBU;XKU60#..T5..20T..CBU NO.2 |
1 | ||
| 47391-37280 |
XKC655..T3;XKU650..T3..CBU;XKU60#..T5..20T..CBU NO.1 |
1 | ||
| Common parts | ||||
| 47371-37050 | ||||
| 82711-16820 | ||||
| 90464-00447 | ||||
| 90464-00726 | ||||
| 90468-08035 | ||||
| 90480-01621 | ||||
| 90480-01628 | ||||
| 90959-01593 | ||||
| 90959-01603 | ||||
| 90959-01622 | ||||
| 91551-80820 | ||||
| 91551-80825 | ||||
| 91611-G0820 | ||||
ILLUST NO. 2 OF 4(1107- )XKU640..T4 ; (1107- )XKC655,XKU65#..DCRTK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47312F - TUBE, FRONT BRAKE, FRAME, NO.2 | ||||
| 47312-37E90 |
XKC655..T3;XKU650..T3..CBU |
1 | ||
| 47321D - WAY, NO.1(FOR REAR BRAKE TUBE) | ||||
| 90412-10229 |
XKC655..T3;XKU650..T3..CBU |
1 | ||
| 47322A - TUBE, REAR BRAKE, FRAME NO.2 | ||||
| 47322-37F20 |
XKC655..T3;XKU650..T3..CBU |
1 | ||
| 47326 - TUBE, REAR BRAKE, NO.6 | ||||
| 47326-37660 |
XKC655..T3;XKU650..T3..CBU |
1 | ||
| 47328 - TUBE, REAR BRAKE, NO.8 | ||||
| 47328-37520 |
XKC655..T3;XKU650..T3..CBU |
1 | ||
| 47371C - CLAMP, BRAKE TUBE, NO.7 | ||||
| 47371-37100 |
XKC655..T3;XKU650..T3..CBU |
1 | ||
| Common parts | ||||
| 90480-01620 | ||||
| 90480-01621 | ||||
| 90949-01972 | ||||
| 90959-01593 | ||||
| 90959-01594 | ||||
| 91551-80825 | ||||
ILLUST NO. 3 OF 4(1107-1805)IV5 ; (1107- )XKC605,645,XKU60#,645..DCRTK..CBU,IV3 ; (1905- )XKC6
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 90947-02B29 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
2 | ||
| 90947-02B29 |
XKC655..T3;XKU650..T3..CBU;XKU60#..T5..20T..CBU |
2 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 90947-02B29 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
2 | ||
| 90947-02B29 |
XKC655..T3;XKU650..T3..CBU;XKU60#..T5..20T..CBU |
2 | ||
| 47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE) | ||||
| 90401-10015 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
2 | ||
| 90401-10015 |
XKC655..T3;XKU650..T3..CBU;XKU60#..T5..20T..CBU |
2 | ||
| 47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE) | ||||
| 90401-10015 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
2 | ||
| 90401-10015 |
XKC655..T3;XKU650..T3..CBU;XKU60#..T5..20T..CBU |
2 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 47389-30010 |
XKC655..T3;XKU650..T3..CBU;XKU60#..T5..20T..CBU |
4 | ||
| 47389-30010 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
4 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 47389-30010 |
XKC655..T3;XKU650..T3..CBU;XKU60#..T5..20T..CBU |
4 | ||
| 47389-30010 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
4 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 47389-30010 |
XKC655..T3;XKU650..T3..CBU;XKU60#..T5..20T..CBU |
4 | ||
| 47389-30010 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
4 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 47389-30010 |
XKC655..T3;XKU650..T3..CBU;XKU60#..T5..20T..CBU |
4 | ||
| 47389-30010 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
4 | ||
| 47318F - HOSE, FLEXIBLE(FOR REAR RH) | ||||
| 90947-02F02 |
XKC655..T3;XKU650..T3..CBU |
1 | ||
| 90947-02F02 |
XKU640,655;XKU650..T3..IV3;XKC655,XKU650..T4 |
1 | ||
| 47319F - HOSE, FLEXIBLE(FOR REAR LH) | ||||
| 90947-02F03 |
XKC655..T3;XKU650..T3..CBU |
1 | ||
| 90947-02F03 |
XKU640,655;XKU650..T3..IV3;XKC655,XKU650..T4 |
1 | ||
| 47323A - WAY, NO.3(FOR REAR BRAKE TUBE) | ||||
| 90412-12051 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
1 | ||
| 90412-12051 |
XKC655..T3;XKU650..T3..CBU;XKU60#..T5..20T..CBU |
1 | ||
| 47327 - TUBE, REAR BRAKE, NO.7 | ||||
| 47327-37730 |
XKC655,XKU640,65# |
1 | ||
| 47329 - TUBE, REAR BRAKE, NO.9 | ||||
| 47329-37560 |
XKC655,XKU640,65# |
1 | ||
| 47353 - BRACKET, FLEXIBLE HOSE(FOR REAR) | ||||
| 47353-37110 |
XKC655..T3;XKU650..T3..CBU;XKU60#..T5..20T..CBU |
1 | ||
| 47353-37110 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
1 | ||
| 47355A - BRACKET, FLEXIBLE HOSE, NO.5 | ||||
| 47353-37240 |
XKC655..T3;XKU650..T3..CBU;XKU60#..T5..20T..CBU |
1 | ||
| 47353-37240 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
1 | ||
| Common parts | ||||
| 90034-61046 | ||||
| 90129-08007 | ||||
| 90468-08035 | ||||
| 91551-80825 | ||||
| 91552-81018 | ||||
| 91552-81020 | ||||
ILLUST NO. 3 OF 4(1107- )XKC655,XKU640,65#..DCRTK ; (1905-)XKU645,655..DCRWD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 90947-02B29 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
2 | ||
| 90947-02B29 |
XKC655..T3;XKU650..T3..CBU;XKU60#..T5..20T..CBU |
2 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 90947-02B29 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
2 | ||
| 90947-02B29 |
XKC655..T3;XKU650..T3..CBU;XKU60#..T5..20T..CBU |
2 | ||
| 47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE) | ||||
| 90401-10015 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
2 | ||
| 90401-10015 |
XKC655..T3;XKU650..T3..CBU;XKU60#..T5..20T..CBU |
2 | ||
| 47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE) | ||||
| 90401-10015 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
2 | ||
| 90401-10015 |
XKC655..T3;XKU650..T3..CBU;XKU60#..T5..20T..CBU |
2 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 47389-30010 |
XKC655..T3;XKU650..T3..CBU;XKU60#..T5..20T..CBU |
4 | ||
| 47389-30010 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
4 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 47389-30010 |
XKC655..T3;XKU650..T3..CBU;XKU60#..T5..20T..CBU |
4 | ||
| 47389-30010 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
4 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 47389-30010 |
XKC655..T3;XKU650..T3..CBU;XKU60#..T5..20T..CBU |
4 | ||
| 47389-30010 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
4 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 47389-30010 |
XKC655..T3;XKU650..T3..CBU;XKU60#..T5..20T..CBU |
4 | ||
| 47389-30010 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
4 | ||
| 47318F - HOSE, FLEXIBLE(FOR REAR RH) | ||||
| 90947-02F02 |
XKC655..T3;XKU650..T3..CBU |
1 | ||
| 90947-02F02 |
XKU640,655;XKU650..T3..IV3;XKC655,XKU650..T4 |
1 | ||
| 47319F - HOSE, FLEXIBLE(FOR REAR LH) | ||||
| 90947-02F03 |
XKC655..T3;XKU650..T3..CBU |
1 | ||
| 90947-02F03 |
XKU640,655;XKU650..T3..IV3;XKC655,XKU650..T4 |
1 | ||
| 47323A - WAY, NO.3(FOR REAR BRAKE TUBE) | ||||
| 90412-12051 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
1 | ||
| 90412-12051 |
XKC655..T3;XKU650..T3..CBU;XKU60#..T5..20T..CBU |
1 | ||
| 47327 - TUBE, REAR BRAKE, NO.7 | ||||
| 47327-37730 |
XKC655,XKU640,65# |
1 | ||
| 47329 - TUBE, REAR BRAKE, NO.9 | ||||
| 47329-37560 |
XKC655,XKU640,65# |
1 | ||
| 47353 - BRACKET, FLEXIBLE HOSE(FOR REAR) | ||||
| 47353-37110 |
XKC655..T3;XKU650..T3..CBU;XKU60#..T5..20T..CBU |
1 | ||
| 47353-37110 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
1 | ||
| 47355A - BRACKET, FLEXIBLE HOSE, NO.5 | ||||
| 47353-37240 |
XKC655..T3;XKU650..T3..CBU;XKU60#..T5..20T..CBU |
1 | ||
| 47353-37240 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
1 | ||
| Common parts | ||||
| 90034-61046 | ||||
| 90129-08007 | ||||
| 90468-08035 | ||||
| 91551-80825 | ||||
| 91552-81018 | ||||
| 91552-81020 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
