XKC655-TKUMC (2011)
Toyota Dyna/Toyoace Hv
(1107- )XKC605,645,655,XKU605,645,655..DCRTK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44327A - GASKET, PRESSURE PORT, NO.1 | ||||
| 44327-30030 |
XKC655..T3;XKU605..T5..CBU |
1 | ||
| 44348D - HOSE, OIL RESERVOIR TO PUMP, NO.2 | ||||
| 44348-37490 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
1 | ||
| 44348-37490 |
XKC655..T3;XKU650..T3..CBU;XKU60#..T5..20T..CBU |
1 | ||
| 44410 - TUBE ASSY, PRESSURE FEED | ||||
| 44410-37190 |
XKC655..T3;XKU605..T5..CBU |
1 | ||
| 44411C - BOLT, UNION(FOR PRESSURE FEED HOSE) | ||||
| 90401-16027 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
1 | ||
| 90401-16027 |
XKC655..T3;XKU650..T3..CBU;XKU60#..T5..20T..CBU |
1 | ||
| 44411D - GASKET(FOR PRESSURE FEED HOSE) | ||||
| 44327-30030 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
1 | ||
| 44327-30030 |
XKC655..T3;XKU650..T3..CBU;XKU60#..T5..20T..CBU |
1 | ||
| 44412 - HOSE, RETURN | ||||
| 44412-37320 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..T4 |
1 | ||
| 44412-37320 |
XKC655..T3;XKU650..T3..CBU;XKU60#..T5..20T..CBU |
1 | ||
| 44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET) | ||||
| 44416-20220 |
XKC655..T3;XKU605..T5..CBU |
1 | ||
| 44423 - TUBE, OIL PUMP TO GEAR BOX | ||||
| 44423-37141 |
XKC655..T3;XKU650..T3..CBU;XKU60#..T5..20T..CBU |
1 | ||
| 44423-37141 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
1 | ||
| 44423F - BOLT, UNION | ||||
| 96341-41603 |
XKC655..T3;XKU605..T5..CBU |
1 | ||
| 44447A - BRACKET, HOSE SUPPORT, NO.1 | ||||
| 44447-37310 |
XKC655..T3;XKU650..T3..CBU;XKU60#..T5..20T..CBU |
1 | ||
| 44447-37310 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
1 | ||
| 44448C - CLAMP, PRESSURE FEED, NO.2 | ||||
| 44448-37060 |
XKC655..T3;XKU650..T3..CBU;XKU60#..T5..20T..CBU NO.2 |
1 | ||
| 44448-37060 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 NO.2 |
1 | ||
| 44448-37080 |
XKC655..T3;XKU605..T5..CBU NO.1 |
2 | ||
| 44448C - CLAMP, PRESSURE FEED, NO.2 | ||||
| 44448-37060 |
XKC655..T3;XKU650..T3..CBU;XKU60#..T5..20T..CBU NO.2 |
1 | ||
| 44448-37060 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 NO.2 |
1 | ||
| 44448-37080 |
XKC655..T3;XKU605..T5..CBU NO.1 |
2 | ||
| 44448C - CLAMP, PRESSURE FEED, NO.2 | ||||
| 44448-37060 |
XKC655..T3;XKU650..T3..CBU;XKU60#..T5..20T..CBU NO.2 |
1 | ||
| 44448-37060 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 NO.2 |
1 | ||
| 44448-37080 |
XKC655..T3;XKU605..T5..CBU NO.1 |
2 | ||
| Common parts | ||||
| 90467-16019 | ||||
| 90467-16031 | ||||
| 90467-21010 | ||||
| 91551-80816 | ||||
| 91551-80820 | ||||
| 94125-41600 | ||||

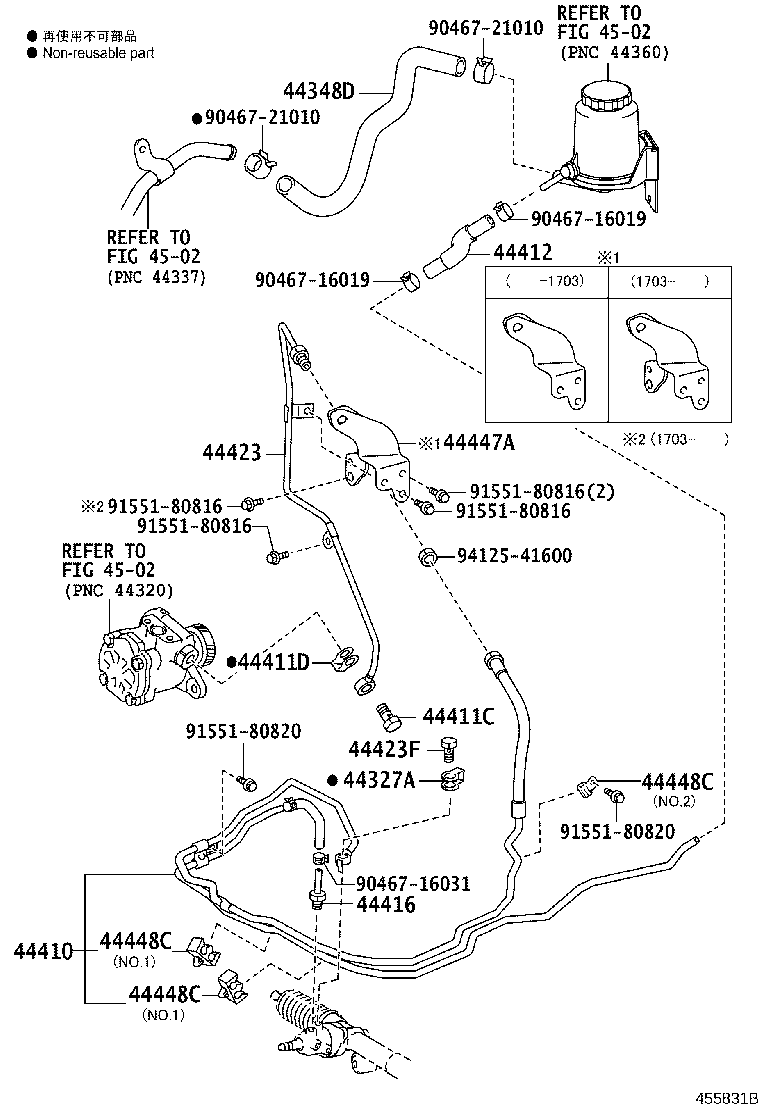

| Linked diagrams | ||||
| 4502 | ||||
