XKC645-TQUMC3 (2011)
Toyota Dyna/Toyoace Hv

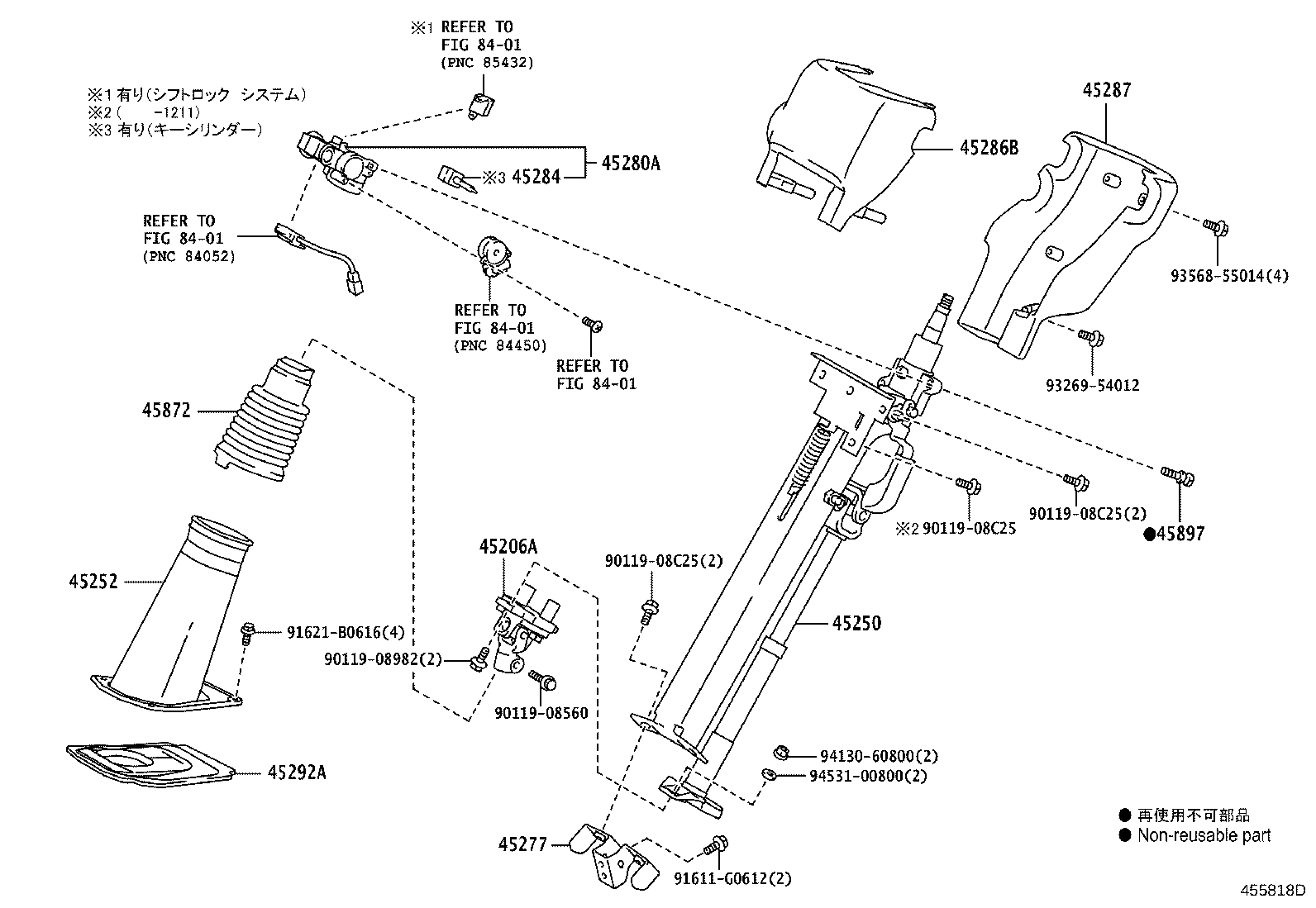

ILLUST NO. 1 OF 2(1107- )XKC605,645,655,XKU605,645,655
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45206A - YOKE SUB-ASSY, STEERING SLIDING W/COUPLING | ||||
| 45206-37050 |
XKU655;XKU605..IV3;XKU605..T4..CBU;XKC605,645,655,XKU645..T4 |
1 | ||
| 45250 - COLUMN ASSY, STEERING | ||||
| 45250-37E30C0 |
XKC605,645,655,XKU605,645,655 BLACK,TRIM1# |
1 | ||
| 45250-37E32C0 |
XKU655;XKU605..IV3;XKU605..T4..CBU;XKC605,645,655,XKU645..T4 BLACK,TRIM1# |
1 | ||
| 45250-37E31C0 |
XKC605,645,655,XKU605,645,655 BLACK,TRIM1# |
1 | ||
| 45252 - TUBE, STEERING COLUMN, LOWER | ||||
| 45252-37050C0 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 BLACK,TRIM1# |
1 | ||
| 45277 - PLATE, STEERING COLUMN UPPER ATTACHMENT | ||||
| 45277-37020 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
1 | ||
| 45280A - BRACKET ASSY, STEERING COLUMN, UPPER | ||||
| 45280-37150 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..T4 ｼﾌﾄﾛｯｸ ｼｽﾃﾑ−有り(EPBﾎﾟｼﾞｼｮﾝ) |
1 | ||
| 45280-37150 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..T4 ｼﾌﾄﾛｯｸ ｼｽﾃﾑ−有り |
1 | ||
| 45280-37170 |
XKC605,645,655,XKU60#,64#,65#..CBU,IV3 ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ) |
1 | ||
| 45280-37160 |
XKC605,645,655,XKU60#,64#,65#..CBU,IV3 ｼﾌﾄﾛｯｸ ｼｽﾃﾑ−有り&ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ) |
1 | ||
| 45280-37160 |
XKC605,645,655,XKU60#,64#,65#..CBU,IV3 ｼﾌﾄﾛｯｸ ｼｽﾃﾑ−有り(EPBﾎﾟｼﾞｼｮﾝ)&ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ) |
1 | ||
| 45280-37140 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..T4 |
1 | ||
| 45284 - SHAFT, STEERING LOCK CAM | ||||
| 45284-37020 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
1 | ||
| 45286B - COVER, STEERING COLUMN, UPR | ||||
| 45286-37130C0 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 BLACK,TRIM1# |
1 | ||
| 45287 - COVER, STEERING COLUMN, LWR | ||||
| 45287-37120C0 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 BLACK,TRIM1# |
1 | ||
| 45292A - COVER, MAIN SHAFT LOWER DUST | ||||
| 45292-37030 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
1 | ||
| 45872 - COVER, STEERING COLUMN TUBE | ||||
| 45872-37020 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
1 | ||
| 45897 - BOLT, STEERING LOCK SET | ||||
| 45897-E0020 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
2 | ||
| Common parts | ||||
| 90119-08560 | ||||
| 90119-08982 | ||||
| 90119-08C25 | ||||
| 91611-G0612 | ||||
| 91621-B0616 | ||||
| 93269-54012 | ||||
| 93568-55014 | ||||
| 94130-60800 | ||||
| 94531-00800 | ||||
| Linked diagrams | ||||
| 8401 | ||||

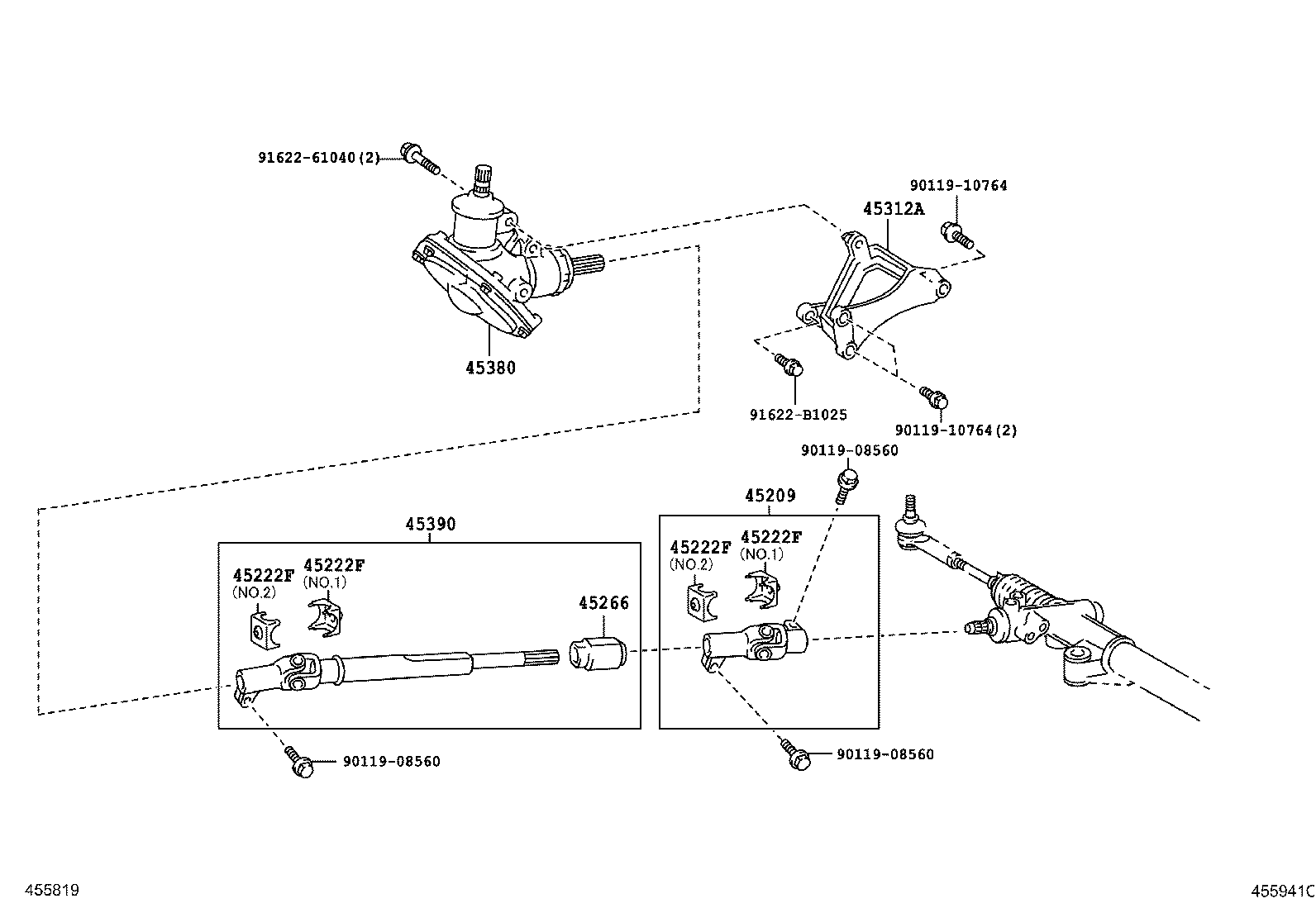

ILLUST NO. 2 OF 2(1107- )XKC605,645,655,XKU605,645,655
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45209 - YOKE SUB-ASSY, STEERING SLIDING | ||||
| 45209-37120 |
XKC605,645,655,XKU605,645,655 |
1 | ||
| 45209-25030 |
XKC605,645,655,XKU605,645,655 |
1 | ||
| 45222F - COVER, DUST | ||||
| 45222-37060 |
XKC605,645,655,XKU605,645,655 NO.1:ｲﾗｽﾄ参照 |
2 | ||
| 45222-37070 |
XKC605,645,655,XKU605,645,655 NO.2:ｲﾗｽﾄ参照 |
2 | ||
| 45222F - COVER, DUST | ||||
| 45222-37060 |
XKC605,645,655,XKU605,645,655 NO.1:ｲﾗｽﾄ参照 |
2 | ||
| 45222-37070 |
XKC605,645,655,XKU605,645,655 NO.2:ｲﾗｽﾄ参照 |
2 | ||
| 45222F - COVER, DUST | ||||
| 45222-37060 |
XKC605,645,655,XKU605,645,655 NO.1:ｲﾗｽﾄ参照 |
2 | ||
| 45222-37070 |
XKC605,645,655,XKU605,645,655 NO.2:ｲﾗｽﾄ参照 |
2 | ||
| 45222F - COVER, DUST | ||||
| 45222-37060 |
XKC605,645,655,XKU605,645,655 NO.1:ｲﾗｽﾄ参照 |
2 | ||
| 45222-37070 |
XKC605,645,655,XKU605,645,655 NO.2:ｲﾗｽﾄ参照 |
2 | ||
| 45266 - COVER, STEERING INTERMEDIATE SHAFT DUST | ||||
| 45266-12020 |
XKU655;XKU605..IV3;XKU605..T4..CBU;XKC605,645,655,XKU645..T4 |
1 | ||
| 45312A - BRACKET, STEERING BEVEL GEAR HOUSING | ||||
| 45312-37160 |
XKU655;XKU605..IV3;XKU605..T4..CBU;XKC605,645,655,XKU645..T4 |
1 | ||
| 45380 - GEAR ASSY, STEERING BEVEL | ||||
| 45380-25010 |
XKU655;XKU605..IV3;XKU605..T4..CBU;XKC605,645,655,XKU645..T4 |
1 | ||
| 45390 - SHAFT ASSY, STEERING TORQUE | ||||
| 45390-37061 |
XKC605,645,655,XKU605,645,655 |
1 | ||
| 45390-37140 |
XKC605,645,655,XKU605,645,655 |
1 | ||
| Common parts | ||||
| 90119-08560 | ||||
| 90119-10764 | ||||
| 91622-61040 | ||||
| 91622-B1025 | ||||
