XKC605-TQVMX3 (2019)
Toyota Dyna/Toyoace Hv
Production
May 2019
-
Sep 9999
Engine
N04C
Transmission
6F AMT
Displacement
2500cc
Power
168 HP (125 kW)
(1905- )DCRWD

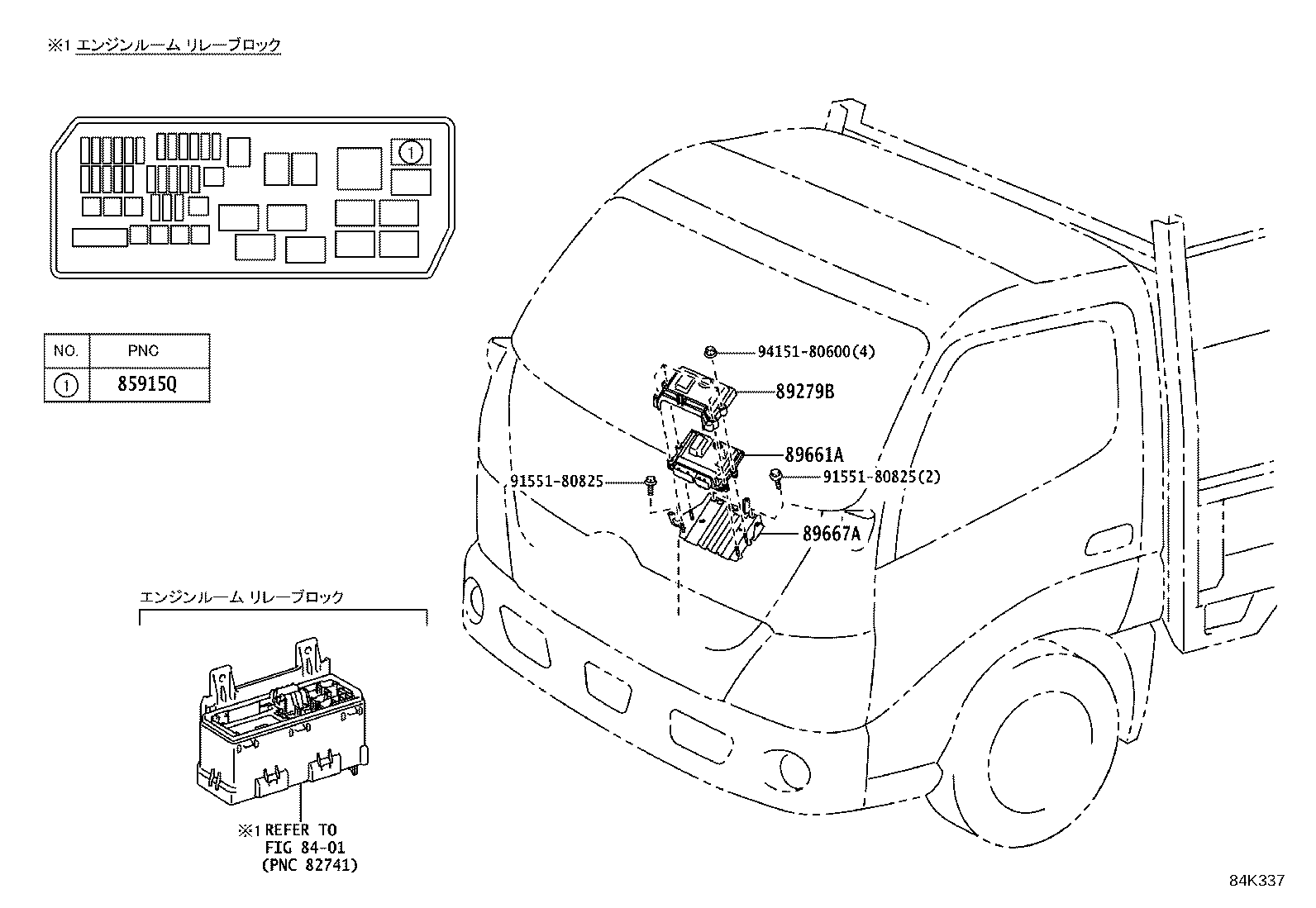

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85915Q - RELAY, COMPUTER (FOR DIESEL) | ||||
| 85900-37150 |
XKC605,XKU605,645,655..DCRWD |
1 | ||
| 89279B - COVER, DIESEL ENGINE CONTROL COMPUTOR | ||||
| F1712-37060 |
XKC605,XKU605,645,655..DCRWD |
1 | ||
| 89661A - COMPUTER, ENGINE CONTROL | ||||
| 89661-37T80 |
XKC605,XKU605,645,655..DCRWD DENSO,ﾃﾞｭﾄﾛ専用 |
1 | ||
| 89661-37U21 |
XKC605,XKU605,645,655..DCRWD DENSO |
1 | ||
| 89661-37U20 |
XKC605,XKU605,645,655..DCRWD DENSO |
1 | ||
| 89661-37U23 |
XKC605,XKU605,645,655..DCRWD DENSO |
1 | ||
| 89661-37U22 |
XKC605,XKU605,645,655..DCRWD DENSO |
1 | ||
| 89667A - BRACKET, ENGINE CONTROL COMPUTER, NO.1 | ||||
| 89667-37200 |
XKC605,XKU605,645,655..DCRWD |
1 | ||
| Common parts | ||||
| 91551-80825 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 8401 | ||||
