XKC605-TQVMX3 (2019)
Toyota Dyna/Toyoace Hv

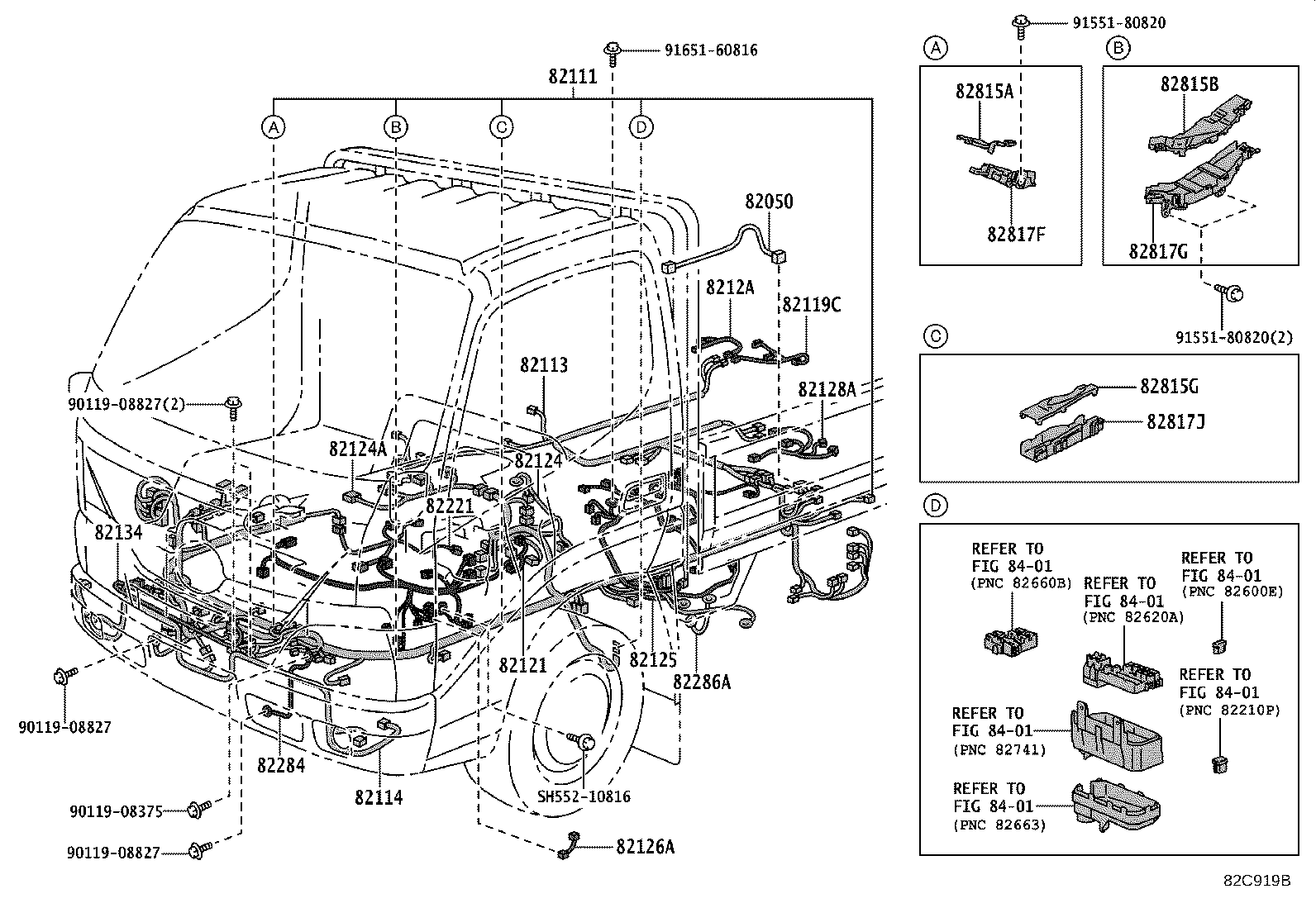

ILLUST NO. 1 OF 9(1905- )DCRWD
ｴﾝｼﾞﾝﾙｰﾑ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82050 - WIRE ASSY, ENGINE | ||||
| 82050-37010 |
XKC605,XKU605,645,655..DCRWD..(CBU,IV3) ﾏﾆｭｱﾙｱｲﾄﾞﾙｱｯﾌﾟ−有り(電動,ｺﾝﾄﾛｰﾙﾚﾊﾞｰ付き) |
1 | ||
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82116-37L71 |
XKC605,XKU605,645,655..DCRWD |
1 | ||
| 82116-37L70 |
XKC605,XKU605,645,655..DCRWD |
1 | ||
| 82113 - WIRE, ENGINE ROOM, NO.3 | ||||
| 82113-37P20 |
XKC605,XKU605..DCRWD |
1 | ||
| 82114 - WIRE, ENGINE ROOM, NO.4 | ||||
| 82114-37290 |
XKC605,XKU605,645,655..DCRWD |
1 | ||
| 82114-37270 |
XKC605,XKU605,645,655..DCRWD ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(LED) |
1 | ||
| 82119C - WIRE, ENGINE ROOM, NO.5 | ||||
| 82119-37050 |
XKC605,XKU605,645,655..DCRWD |
1 | ||
| 82121 - WIRE, ENGINE | ||||
| 82121-37K20 |
XKC605,XKU605,645,655..DCRWD |
1 | ||
| 82124 - WIRE, ENGINE, NO.4 | ||||
| 82121-37K70 |
XKC605,XKU605,645,655..DCRWD 寒冷地仕様 |
1 | ||
| 82121-37K60 |
XKC605,XKU605,645,655..DCRWD |
1 | ||
| 82124A - WIRE, ENGINE, NO.5 | ||||
| 82121-37L50 |
XKC605,XKU605,645,655..DCRWD |
1 | ||
| 82125 - WIRE, TRANSMISSION | ||||
| 82125-37650 |
XKC605,XKU605,645,655..DCRWD |
1 | ||
| 82126A - WIRE, ENGINE, NO.6 | ||||
| 82121-37M00 |
XKC605,XKU605,645,655..DCRWD |
1 | ||
| 82128A - WIRE, ENGINE, NO.8 | ||||
| 82128-37010 |
XKC605,XKU605,645,655..DCRWD |
1 | ||
| 8212A - WIRE, ENGINE, NO.9 | ||||
| 8212A-37010 |
XKC605,XKU605,645,655..DCRWD |
1 | ||
| 82134 - WIRE, COWL, NO.4 | ||||
| 82134-37010 |
XKC605,XKU605,645,655..DCRWD |
1 | ||
| 82221 - WIRE, OIL PRESSURE SWITCH | ||||
| 82221-37211 |
XKC605,XKU605,645,655..DCRWD |
1 | ||
| 82284 - WIRE, EARTH | ||||
| 82284-37230 |
XKC605,XKU605,645,655..DCRWD |
1 | ||
| 82815A - COVER, WIRING HARNESS PROTECTOR | ||||
| 82815-37130 |
XKC605,XKU605,645,655..DCRWD |
1 | ||
| 82815B - COVER, WIRING HARNESS PROTECTOR | ||||
| 82815-37150 |
XKC605,XKU605,645,655..DCRWD |
1 | ||
| 82815G - COVER, WIRING HARNESS PROTECTOR NO.5 | ||||
| 82815-37170 |
XKC605,XKU605,645,655..DCRWD |
1 | ||
| 82817F - PROTECTOR, WIRING HARNESS, NO.7 | ||||
| 82817-37500 |
XKC605,XKU605,645,655..DCRWD |
1 | ||
| 82817G - PROTECTOR, WIRING HARNESS, NO.8 | ||||
| 82817-37510 |
XKC605,XKU605,645,655..DCRWD |
1 | ||
| 82817J - PROTECTOR, WIRING HARNESS, NO.9 | ||||
| 82817-37520 |
XKC605,XKU605,645,655..DCRWD |
1 | ||
| Common parts | ||||
| 90119-08375 | ||||
| 90119-08827 | ||||
| 91551-80820 | ||||
| 91651-60816 | ||||
| SH552-10816 | ||||
| Linked diagrams | ||||
| 8401 | ||||

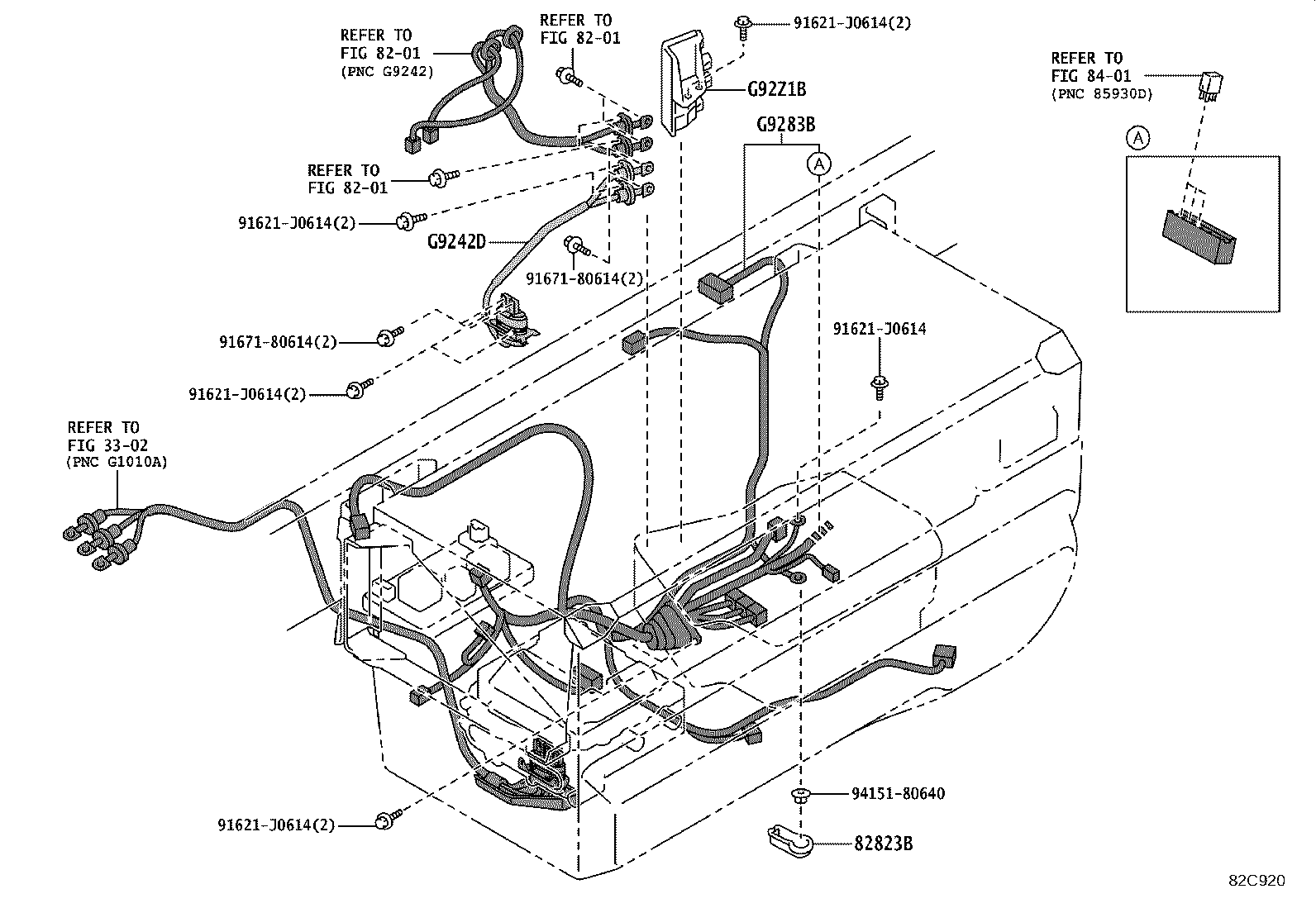

ILLUST NO. 2 OF 9(1905- )DCRWD
ﾊｲﾌﾞﾘｯﾄﾞ ﾊﾞｯﾃﾘ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82823B - CAP, TERMINAL, NO.3 | ||||
| 82823-22050 |
XKC605,XKU605,645,655..DCRWD |
1 | ||
| G9242D - CABLE, MAIN BATTERY, NO.1 | ||||
| G9242-37040 |
XKC605,XKU605,645,655..DCRWD |
1 | ||
| G9283B - WIRE, HYBRID BATTERY | ||||
| G9283-37060 |
XKC605,XKU605,645,655..DCRWD |
1 | ||
| G92Z1B - BLOCK, HV BATTERY JUNCTION | ||||
| G92Z1-37020 |
XKC605,XKU605,645,655..DCRWD |
1 | ||
| Common parts | ||||
| 91621-J0614 | ||||
| 91671-80614 | ||||
| 94151-80640 | ||||
| Linked diagrams | ||||
| 3302 | ||||
| 8201 | ||||
| 8401 | ||||

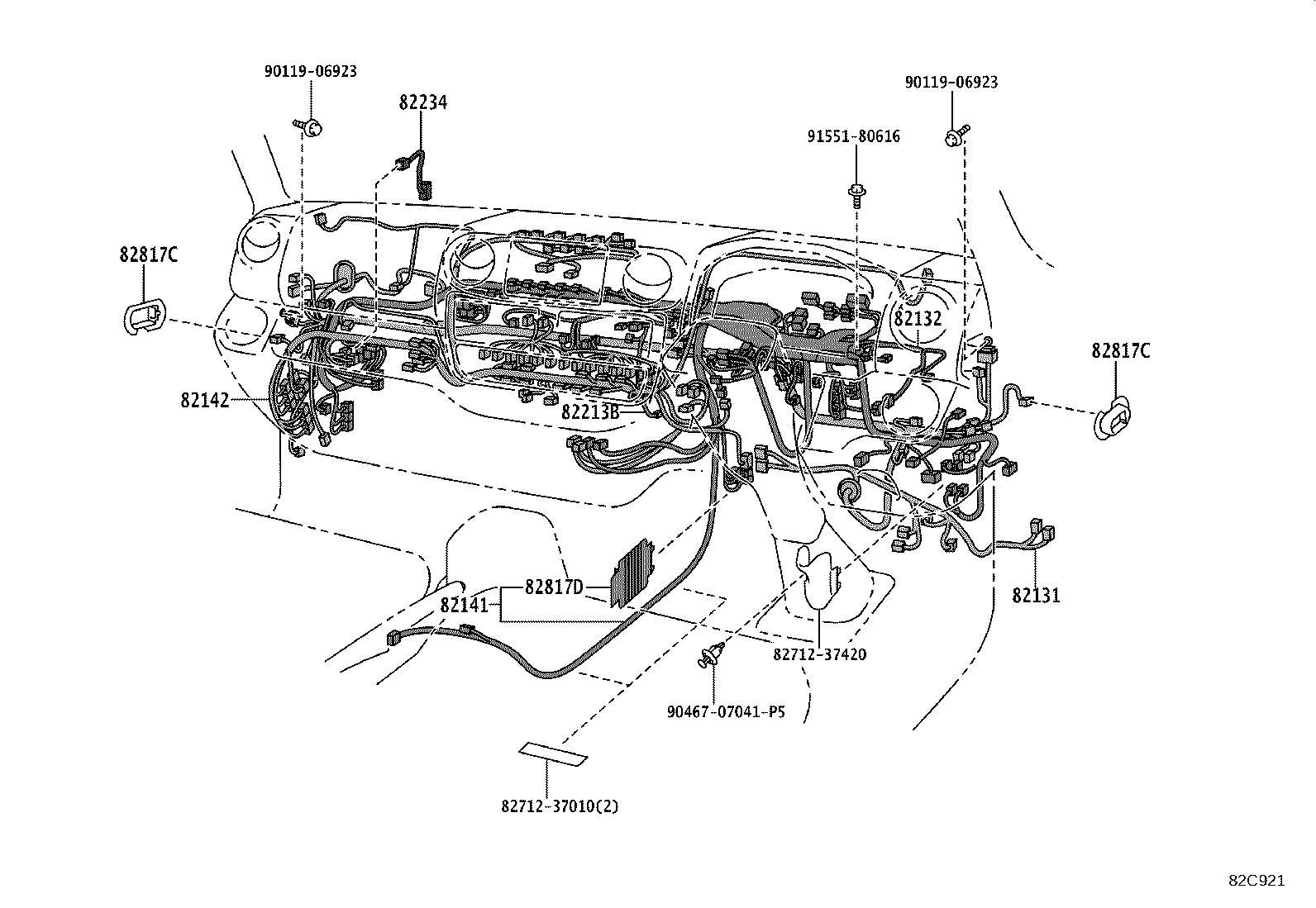

ILLUST NO. 3 OF 9(1905- )DCRWD
ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ & ｶｳﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82131 - WIRE, COWL | ||||
| 82148-37B30 |
XKC605,XKU605,645,655..DCRWD ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ) |
1 | ||
| 82148-37B60 |
XKC605,XKU605..DCRWD ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(*57 & *SHS & *WVM) |
1 | ||
| 82148-37B60 |
XKC605,XKU605..DCRWD ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(*57 & *SHS &*TM),*CR(DOP) |
1 | ||
| 82148-37B60 |
XKU645,655..DCRWD;XKC605,XKU605..DCRWD..(IV3,IV5) ｱｳﾀﾐﾗｰ−*DRS(*TM,*PAS(*57 & *LOS & *TM)､*CR(DOP) |
1 | ||
| 82148-37B60 |
XKU645,655..DCRWD;XKC605,XKU605..DCRWD..(IV3,IV5) ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(*57 & *LOS & *TM) |
1 | ||
| 82148-37B70 |
XKC605,XKU605..DCRWD ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)&ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(*57 & *SHS & *WVM) |
1 | ||
| 82148-37B60 |
XKU645,655..DCRWD;XKC605,XKU605..DCRWD..(IV3,IV5) ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*57 & *LOS & *TM(*WVM)) |
1 | ||
| 82148-37B60 |
XKC605,XKU605..DCRWD ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*57 & *SHS & *TM(*WVM)) |
1 | ||
| 82148-37B70 |
XKU645,655..DCRWD;XKC605,XKU605..DCRWD..(IV3,IV5) ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)&ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(*57 & *LOS & *TM) |
1 | ||
| 82148-37B70 |
XKU645,655..DCRWD;XKC605,XKU605..DCRWD..(IV3,IV5) ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)&ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*57 & *LOS & *TM(*WVM)) |
1 | ||
| 82148-37B70 |
XKC605,XKU605..DCRWD ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)&ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(*57 & *SHS & *TM) |
1 | ||
| 82148-37B70 |
XKC605,XKU605..DCRWD ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)&ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*57 & *SHS & *TM(*WVM)) |
1 | ||
| 82148-37B70 |
XKU645,655..DCRWD;XKC605,XKU605..DCRWD..(IV3,IV5) ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)&ｱｳﾀﾐﾗｰ−*DRS(*TM,*PAS(*57 & *LOS & *TM)､*CR(DOP) |
1 | ||
| 82148-37B20 |
XKC605,XKU605,645,655..DCRWD |
1 | ||
| 82148-37B60 |
XKU645,655..DCRWD;XKC605,XKU605..DCRWD..(IV3,IV5) ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(*57 & *LOS & *TM(*WVM)) |
1 | ||
| 82148-37B60 |
XKC605,XKU605..DCRWD ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(*57 & *SHS & *TM) |
1 | ||
| 82148-37B70 |
XKC605,XKU605..DCRWD ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)&ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(*57 & *SHS &*TM),*CR(DOP) |
1 | ||
| 82148-37B70 |
XKU645,655..DCRWD;XKC605,XKU605..DCRWD..(IV3,IV5) ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)&ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(*57 & *LOS & *TM(*WVM)) |
1 | ||
| 82148-37C00 |
XKU645,655..DCRWD;XKC605,XKU605..DCRWD..(IV3,IV5) ｱｳﾀﾐﾗｰ−*DRP(*273 & *LOS & *WIH) |
1 | ||
| 82148-37C00 |
XKC605,XKU605..DCRWD ｱｳﾀﾐﾗｰ−*DRP(*273 & *SHS & *WIH) |
1 | ||
| 82148-37C00 |
XKC605,XKU605..DCRWD ｱｳﾀﾐﾗｰ−*DRP(*273 & *SHS & *WIH & *CR(DOP)) |
1 | ||
| 82148-37C10 |
XKC605,XKU605..DCRWD ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)&ｱｳﾀﾐﾗｰ−*DRP(*273 &*SHS & *WIH) |
1 | ||
| 82148-37C10 |
XKU645,655..DCRWD;XKC605,XKU605..DCRWD..(IV3,IV5) ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)&ｱｳﾀﾐﾗｰ−*DRP(*273 &*LOS & *WIH & *CR(DOP)) |
1 | ||
| 82148-37C10 |
XKC605,XKU605..DCRWD ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)&ｱｳﾀﾐﾗｰ−*DRP(*273 &*SHS & *WIH & *CR(DOP)) |
1 | ||
| 82148-37C00 |
XKU645,655..DCRWD;XKC605,XKU605..DCRWD..(IV3,IV5) ｱｳﾀﾐﾗｰ−*DRP(*273 & *LOS & *WIH & *CR(DOP)) |
1 | ||
| 82148-37C10 |
XKU645,655..DCRWD;XKC605,XKU605..DCRWD..(IV3,IV5) ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)&ｱｳﾀﾐﾗｰ−*DRP(*273 &*LOS & *WIH) |
1 | ||
| 82132 - WIRE, COWL, NO.2 | ||||
| 82132-37320 |
XKC605..DCRWD |
1 | ||
| 82141 - WIRE, INSTRUMENT PANEL | ||||
| 82141-3VC30 |
XKC605,XKU605,645,655..DCRWD ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ) |
1 | ||
| 82141-3VC20 |
XKC605,XKU605,645,655..DCRWD |
1 | ||
| 82142 - WIRE, INSTRUMENT PANEL, NO.2 | ||||
| 82142-3V520 |
XKC605,XKU605,645,655..DCRWD |
1 | ||
| 82142-3V500 |
XKC605,XKU605,645,655..DCRWD..(CBU,IV3) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径200ﾐﾘ) |
1 | ||
| 82142-3V521 |
XKC605,XKU605,645,655..DCRWD |
1 | ||
| 82142-3V501 |
XKC605,XKU605,645,655..DCRWD..(CBU,IV3) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径200ﾐﾘ) |
1 | ||
| 82142-3V530 |
XKC605,XKU605,645,655..DCRWD ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ) |
1 | ||
| 82142-3V510 |
XKC605,XKU605,645,655..DCRWD..(CBU,IV3) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径200ﾐﾘ)&ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ) |
1 | ||
| 82213B - WIRE, HEATER | ||||
| 82213-37280 |
XKC605,XKU605,645,655..DCRWD |
1 | ||
| 82213-37330 |
XKC605,XKU605,645,655..DCRWD ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ) |
1 | ||
| 82234 - WIRE, COMPUTER, NO.2 | ||||
| 82234-37010 |
XKC605,XKU605,645,655..DCRWD |
1 | ||
| 82817C - PROTECTOR, WIRING HARNESS, NO.4 | ||||
| 82817-37330 |
XKC605,XKU605,645,655..DCRWD |
2 | ||
| 82817C - PROTECTOR, WIRING HARNESS, NO.4 | ||||
| 82817-37330 |
XKC605,XKU605,645,655..DCRWD |
2 | ||
| 82817D - PROTECTOR, WIRING HARNESS, NO.5 | ||||
| 82817-37440 |
XKC605,XKU605,645,655..DCRWD |
1 | ||
| Common parts | ||||
| 82712-37010 | ||||
| 82712-37420 | ||||
| 90119-06923 | ||||
| 90467-07041P5 | ||||
| 91551-80616 | ||||
ILLUST NO. 4 OF 9(1905- )DCRWD
ﾎﾞﾃﾞｰ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

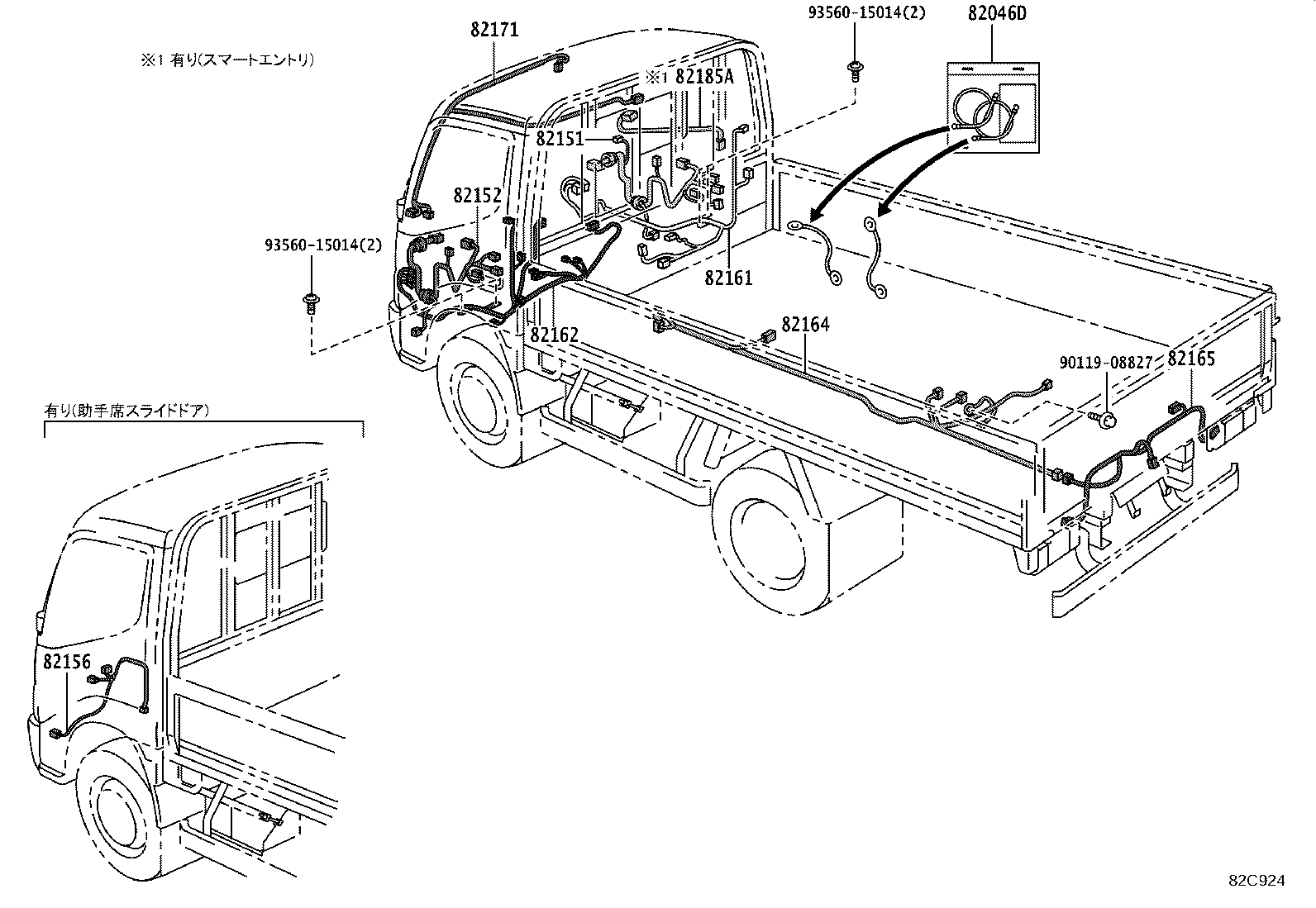

| 82046D - WIRE, BODY GROUND | ||||
| 82046-37192 |
XKC605,XKU605,645,655..DCRWD |
1 | ||
| 82151 - WIRE, FRONT DOOR, RH | ||||
| 82151-37B11 |
XKC605,XKU605,645,655..DCRWD |
1 | ||
| 82151-37K20 |
XKC605,XKU605..DCRWD..IV3 ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ = 宅配仕様)&ｱｳﾀﾐﾗｰ−*DRP(*273 & *SHS & *WIH & *CR(DOP)) |
1 | ||
| 82151-37J90 |
XKC605,XKU605,645,655..DCRWD..IV3 ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ = 宅配仕様) |
1 | ||
| 82151-37B31 |
XKU645,655..DCRWD;XKC605,XKU605..DCRWD..(IV3,IV5) ｱｳﾀﾐﾗｰ−*DRP(*273 & *LOS & *WIH & *CR(DOP)) |
1 | ||
| 82151-37K20 |
XKC605,XKU605..DCRWD ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)&ｱｳﾀﾐﾗｰ−*DRP(*273 &*SHS & *WIH) |
1 | ||
| 82151-37K20 |
XKC605,XKU605..DCRWD ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)&ｱｳﾀﾐﾗｰ−*DRP(*273 &*SHS & *WIH & *CR(DOP)) |
1 | ||
| 82151-37B31 |
XKC605,XKU605..DCRWD ｱｳﾀﾐﾗｰ−*DRP(*273 & *SHS & *WIH) |
1 | ||
| 82151-37K20 |
XKC605,XKU605..DCRWD..IV3 ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ = 宅配仕様)&ｱｳﾀﾐﾗｰ−*DRP(*273 & *SHS & *WIH) |
1 | ||
| 82151-37J90 |
XKC605,XKU605,645,655..DCRWD ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ) |
1 | ||
| 82151-37K20 |
XKC605,XKU605,645,655..DCRWD..IV3 ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ = 宅配仕様)&ｱｳﾀﾐﾗｰ−*DRP(*273 & *LOS & *WIH) |
1 | ||
| 82151-37K20 |
XKU645,655..DCRWD;XKC605,XKU605..DCRWD..(IV3,IV5) ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)&ｱｳﾀﾐﾗｰ−*DRP(*273 &*LOS & *WIH) |
1 | ||
| 82151-37K20 |
XKU645,655..DCRWD;XKC605,XKU605..DCRWD..(IV3,IV5) ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)&ｱｳﾀﾐﾗｰ−*DRP(*273 &*LOS & *WIH & *CR(DOP)) |
1 | ||
| 82151-37B31 |
XKC605,XKU605..DCRWD ｱｳﾀﾐﾗｰ−*DRP(*273 & *SHS & *WIH & *CR(DOP)) |
1 | ||
| 82151-37B31 |
XKU645,655..DCRWD;XKC605,XKU605..DCRWD..(IV3,IV5) ｱｳﾀﾐﾗｰ−*DRP(*273 & *LOS & *WIH) |
1 | ||
| 82151-37K20 |
XKC605,XKU605,645,655..DCRWD..IV3 ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ = 宅配仕様)&ｱｳﾀﾐﾗｰ−*DRP(*273 & *LOS & *WIH & *CR(DOP)) |
1 | ||
| 82152 - WIRE, FRONT DOOR, LH | ||||
| 82152-37E30 |
XKC605,XKU605,645,655..DCRWD..IV3 ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ = 宅配仕様) |
1 | ||
| 82152-37A10 |
XKC605,XKU605,645,655..DCRWD |
1 | ||
| 82161 - WIRE, FLOOR | ||||
| 82161-37B60 |
XKC605,XKU605,645,655..DCRWD..(CBU,IV3) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径200ﾐﾘ) |
1 | ||
| 82161-37M10 |
XKC605,XKU605,645,655..DCRWD ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ) |
1 | ||
| 82161-37M00 |
XKC605,XKU605,645,655..DCRWD |
1 | ||
| 82161-37G00 |
XKC605,XKU605,645,655..DCRWD..(CBU,IV3) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径200ﾐﾘ)&ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ) |
1 | ||
| 82162 - WIRE, FLOOR, NO.2 | ||||
| 82162-37F50 |
XKC605,XKU605,645,655..DCRWD..(CBU,IV3) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径200ﾐﾘ) |
1 | ||
| 82162-37F60 |
XKC605,XKU605,645,655..DCRWD |
1 | ||
| 82164 - WIRE, FRAME | ||||
| 82164-3VM70 |
XKC605,XKU605..DCRWD..(IV3,IV5) |
1 | ||
| 82165 - WIRE, FRAME, NO.2 | ||||
| 82165-37A30 |
XKC605,XKU605,645,655..DCRWD..(IV3,IV5) |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-37E90 |
XKC605,XKU605,645,655..DCRWD |
1 | ||
| 82171-37J50 |
XKC605,XKU605,645,655..DCRWD ﾙｰﾑﾗﾝﾌﾟ−ﾏｯﾌﾟﾗﾝﾌﾟ & ﾙｰﾑﾗﾝﾌﾟ(LED) |
1 | ||
| 82185A - WIRE, SMART DOOR, FRONT RH | ||||
| 82185-37070 |
XKC605,XKU605,645,655..DCRWD ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ) |
1 | ||
| Common parts | ||||
| 90119-08827 | ||||
| 93560-15014 | ||||
