XKC605-TQVMX3 (2019)

Toyota Dyna/Toyoace Hv

Production May 2019 - Sep 9999
Engine N04C
Transmission 6F AMT
Displacement 2500cc
Power 168 HP (125 kW)

(1905- )DCRWD

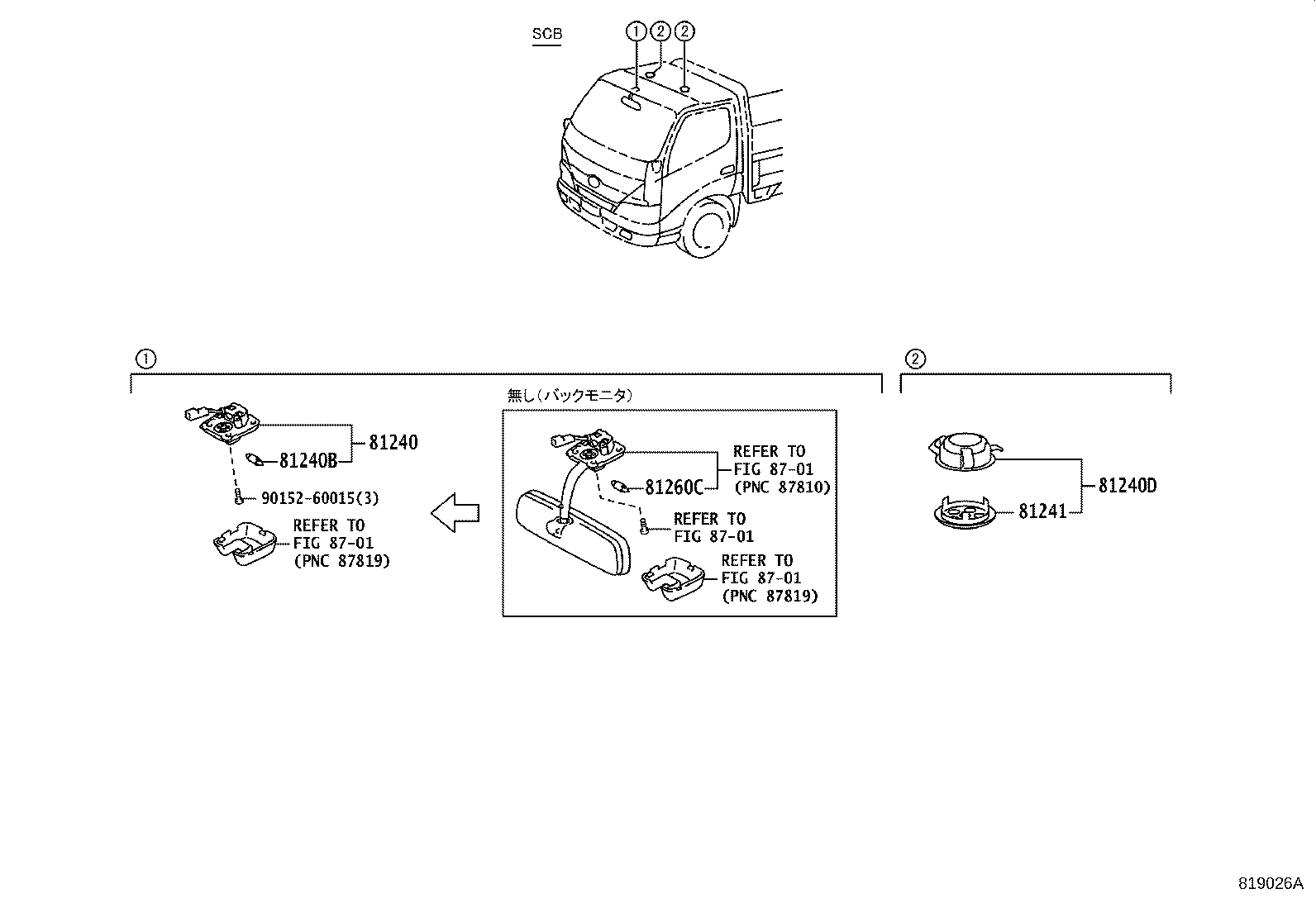

Click highlighted areas on diagram

diagram 81240 81240B 81240D 81241 81260C 8701 8701 8701 8701 9015260015
Part # Description Qty Price
81240D - LAMP ASSY, ROOM, NO.2
81240-E0021

XKC605,XKU605,645,655..DCRWD

ﾙｰﾑﾗﾝﾌﾟ−ﾏｯﾌﾟﾗﾝﾌﾟ & ﾙｰﾑﾗﾝﾌﾟ(LED)

 2
81241 - LENS, ROOM LAMP, NO.1
81241-E0040

XKC605,XKU605,645,655..DCRWD

ﾙｰﾑﾗﾝﾌﾟ−ﾏｯﾌﾟﾗﾝﾌﾟ & ﾙｰﾑﾗﾝﾌﾟ(LED)

 2
81260C - BULB(FOR MAP LAMP)
90981-16019

XKC605,XKU605,645,655..DCRWD..(IV3,IV5)

24V 10W

 1
Common parts
90152-60015
Linked diagrams
8701
