XKC605-TQVMX3 (2019)

Toyota Dyna/Toyoace Hv

Production May 2019 - Sep 9999
Engine N04C
Transmission 6F AMT
Displacement 2500cc
Power 168 HP (125 kW)

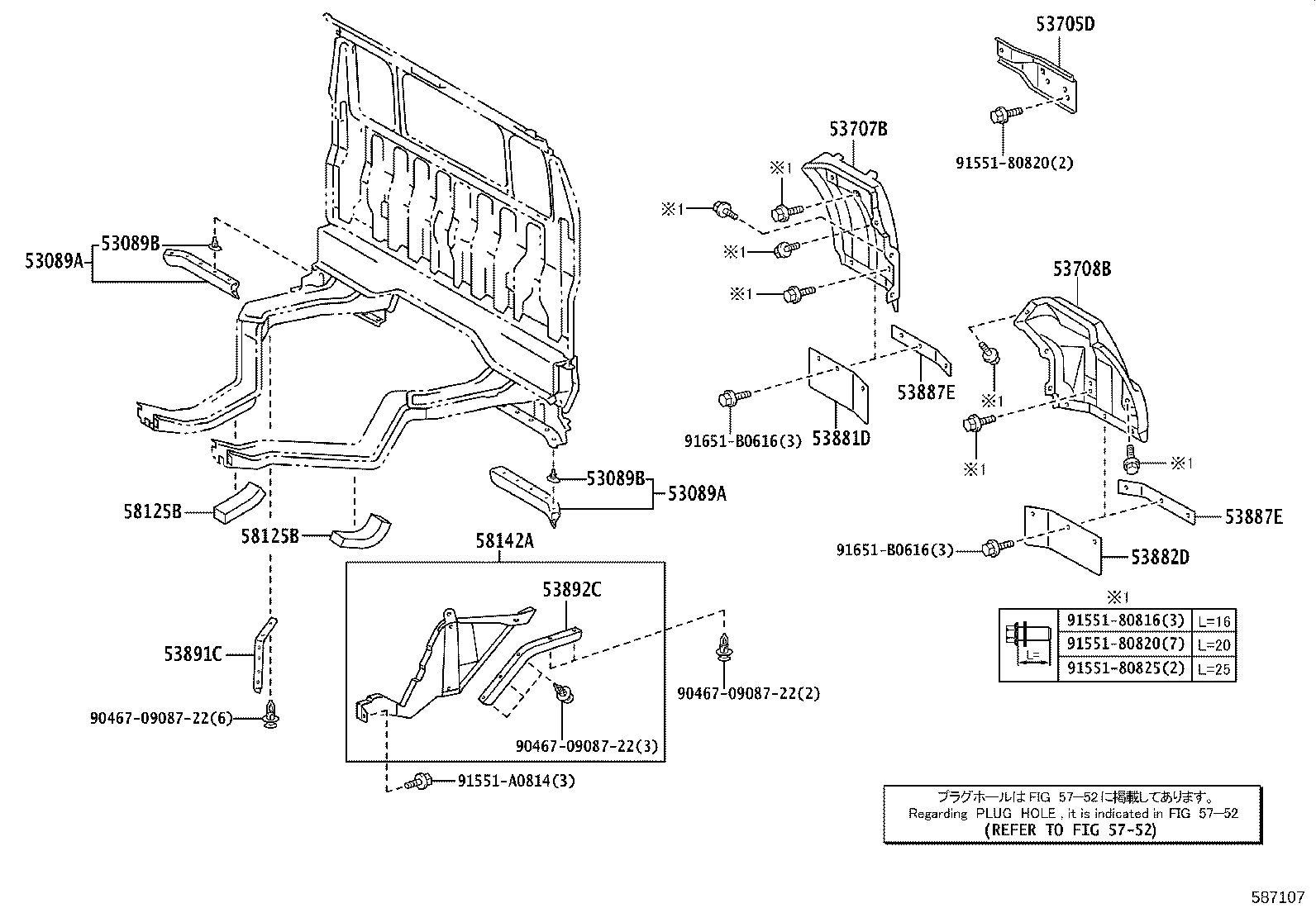

ILLUST NO. 2 OF 2(1905- )DCRWD

Click highlighted areas on diagram

ﾏｯﾄﾞｶﾞｰﾄﾞ & ﾌｪﾝﾀﾞｴﾌﾟﾛﾝ

diagram 53089A 53089A 53089B 53089B 53705D 53707B 53708B 53881D 53882D 53887E 53887E 53891C 53892C 5752 58125B 58125B 58142A 904670908722 904670908722 904670908722 9155180816 9155180820 9155180820 9155180825 91551A0814 91651B0616 91651B0616
Part # Description Qty Price
53089A - MUDGUARD SUB-ASSY, FRONT
53089-37031

XKC605,XKU605,645,655..DCRWD

 2
53089-25010

XKC605,XKU605,645,655..DCRWD

 2
53089A - MUDGUARD SUB-ASSY, FRONT
53089-37031

XKC605,XKU605,645,655..DCRWD

 2
53089-25010

XKC605,XKU605,645,655..DCRWD

 2
53089B - CLIP, FRONT MUDGUARD
67868-95401

XKC605,XKU605,645,655..DCRWD

 10
67867-12150

XKC605,XKU605,645,655..DCRWD

 10
67867-12150

XKC605,XKU605,645,655..DCRWD

 6
53089B - CLIP, FRONT MUDGUARD
67868-95401

XKC605,XKU605,645,655..DCRWD

 10
67867-12150

XKC605,XKU605,645,655..DCRWD

 10
67867-12150

XKC605,XKU605,645,655..DCRWD

 6
53705D - BRACE SUB-ASSY, FENDER APRON, RH
53705-37030

XKC605,XKU605,645,655..DCRWD

 1
53707B - APRON SUB-ASSY, FENDER SIDE, RH
53715-37310

XKC605,XKU605,645,655..DCRWD

 1
53708B - APRON SUB-ASSY, FENDER SIDE, LH
53716-37320

XKC605,XKU605,645,655..DCRWD

 1
53881D - MUDGUARD, FRONT RH
53881-37150

XKC605,XKU605,645,655..DCRWD

 1
53882D - MUDGUARD, FRONT LH
53881-37150

XKC605,XKU605,645,655..DCRWD

 1
53887E - PLATE, FRONT MUDGUARD
53887-37030

XKC605,XKU605,645,655..DCRWD

 2
53887E - PLATE, FRONT MUDGUARD
53887-37030

XKC605,XKU605,645,655..DCRWD

 2
53891C - SEAL, FRONT FENDER SPLASH SHEILD, FRONT
53891-37032

XKC605,XKU605,645,655..DCRWD

 1
53892C - SEAL, FRONT FENDER SPLASH SHIELD, FRONT LH
53892-37031

XKC605,XKU605,645,655..DCRWD

 1
58125B - SEAL, FRONT FLOOR TO FRAME
58125-37021

XKC605,XKU605,645,655..DCRWD

 2
58125B - SEAL, FRONT FLOOR TO FRAME
58125-37021

XKC605,XKU605,645,655..DCRWD

 2
58142A - APRON, FRONT FLOOR SIDE, NO.1 LH
53708-37180

XKC605,XKU605,645,655..DCRWD

 1
Common parts
90467-0908722
91551-80816
91551-80820
91551-80825
91551-A0814
91651-B0616
Linked diagrams
5752
