XKC605-TQVMX3 (2019)
Toyota Dyna/Toyoace Hv

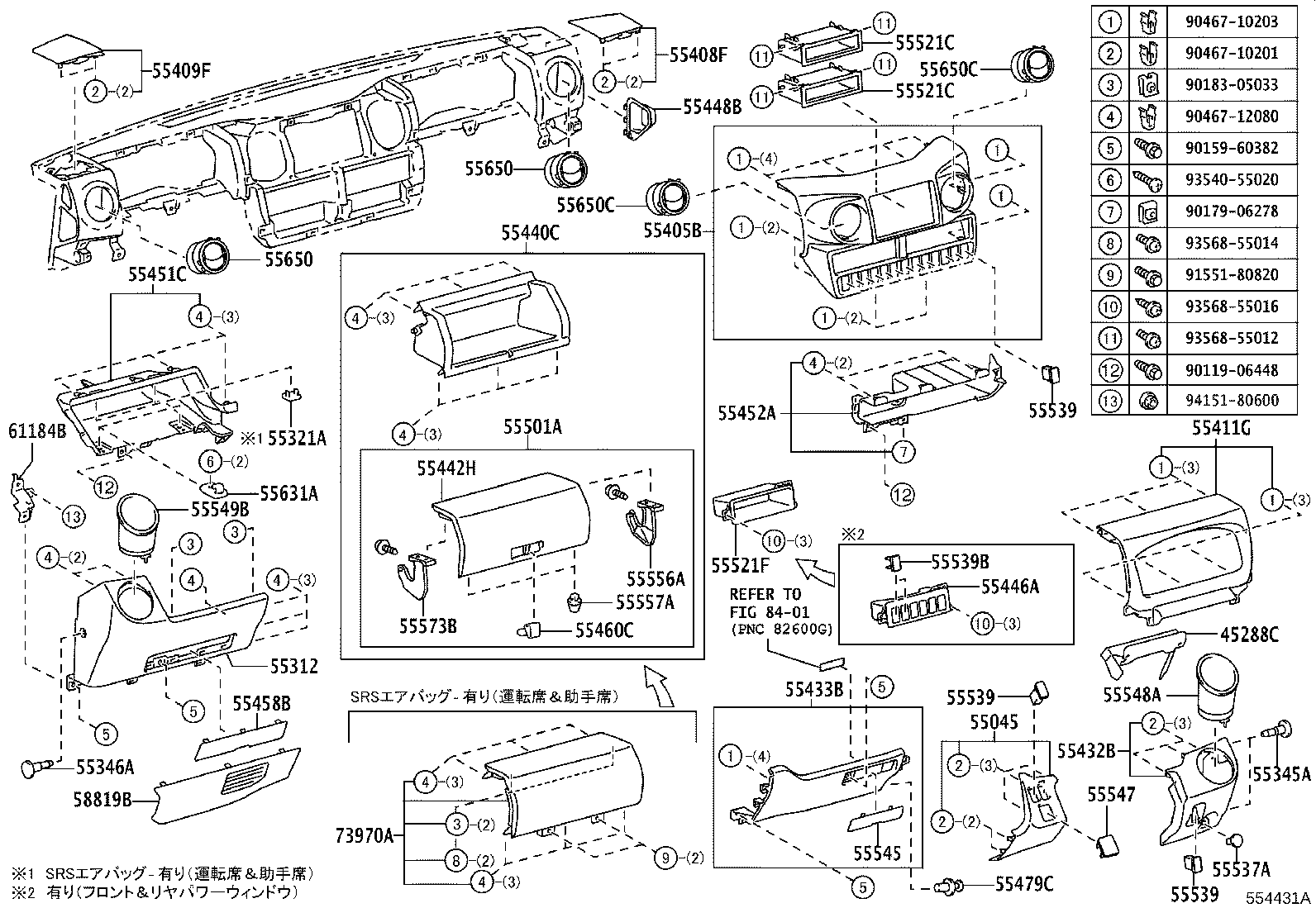

ILLUST NO. 2 OF 2(1905- )DCRWD
ﾅｼ(ｽﾏｰﾄｴﾝﾄﾘ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45288C - PLATE, STEERING COLUMN COVER | ||||
| 45288-37022 |
XKC605,XKU605,645,655..DCRWD |
1 | ||
| 55045 - PANEL SUB-ASSY, INSTRUMENT PANEL FINISH, LOWER | ||||
| 55045-37010B0 |
XKC605,XKU605,645,655..DCRWD GRAY,TRIM1# |
1 | ||
| 55312 - PANEL, INSTRUMENT, LOWER | ||||
| 55312-37011B0 |
XKC605,XKU605,645,655..DCRWD GRAY,TRIM1# |
1 | ||
| 55321A - COVER,INSTRUMENT PANEL HOLE | ||||
| 58839-37030B0 |
XKC605,XKU605,645,655..DCRWD GRAY,TRIM1# |
2 | ||
| 55345A - CLIP, INSTRUMENT PANEL, NO.1 | ||||
| 90467-07041P5 |
XKC605,XKU605,645,655..DCRWD GRAY,TRIM1# |
2 | ||
| 55346A - CLIP, INSTRUMENT PANEL, NO.2 | ||||
| 90467-07041P5 |
XKC605,XKU605,645,655..DCRWD GRAY,TRIM1# |
1 | ||
| 55405B - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55405-37210C0 |
XKC605,XKU605,645,655..DCRWD..(CBU,IV3) ｼｰﾄ表皮−ﾌﾟﾘﾝﾄﾄﾘｺｯﾄ,BLACK,TRIM1# |
1 | ||
| 55405-37200C0 |
XKC605,XKU605,645,655..DCRWD BLACK,TRIM1# |
1 | ||
| 55408F - PANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.1 | ||||
| 55472-37010C0 |
XKC605,XKU605,645,655..DCRWD BLACK,TRIM1# |
1 | ||
| 55409F - PANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.2 | ||||
| 55473-37010C0 |
XKC605,XKU605,645,655..DCRWD BLACK,TRIM1# |
1 | ||
| 55411G - PANEL, INSTRUMENT CLUSTER FINISH, NO.1 | ||||
| 55411-37070C0 |
XKC605,XKU605,645,655..DCRWD BLACK,TRIM1# |
1 | ||
| 55432B - PANEL, INSTRUMENT PANEL FINISH, LOWER | ||||
| 55046-37020B0 |
XKC605,XKU605,645,655..DCRWD GRAY,TRIM1# |
1 | ||
| 55433B - PANEL, INSTRUMENT PANEL FINISH, LOWER NO.2 | ||||
| 55320-37060B0 |
XKC605,XKU605,645,655..DCRWD GRAY,TRIM1# |
1 | ||
| 55440C - BOX ASSY, INSTRUMENT PANEL | ||||
| 55440-37020C0 |
XKC605,XKU605,645,655..DCRWD SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席),BLACK,TRIM1# |
1 | ||
| 55440-37020C0 |
XKC605,XKU605,645,655..DCRWD BLACK,TRIM1# |
1 | ||
| 55442H - DOOR, INSTRUMENT PANEL | ||||
| 55442-37020C0 |
XKC605,XKU605,645,655..DCRWD BLACK,TRIM1# |
1 | ||
| 55442-37020C0 |
XKC605,XKU605,645,655..DCRWD SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席),BLACK,TRIM1# |
1 | ||
| 55446A - BASE, SWITCH HOLE, NO.1 | ||||
| 55446-37010 |
XKC605,XKU605,645,655..DCRWD |
1 | ||
| 55448B - COVER, OIL RESERVOIR TANK, RH | ||||
| 55448-37040C0 |
XKC605,XKU605,645,655..DCRWD BLACK,TRIM1# |
1 | ||
| 55451C - BOX, INSTRUMENT PANEL, NO.1 | ||||
| 55451-37011B0 |
XKC605,XKU605,645,655..DCRWD GRAY,TRIM1# |
1 | ||
| 55452A - BOX, INSTRUMENT PANEL, NO.2 | ||||
| 55452-37050B0 |
XKC605,XKU605,645,655..DCRWD GRAY,TRIM1# |
1 | ||
| 55458B - COVER, INSTRUMENT, LWR | ||||
| 55458-37030B0 |
XKC605,XKU605,645,655..DCRWD GRAY,TRIM1# |
1 | ||
| 55460C - LOCK ASSY, INSTRUMENT PANEL BOX | ||||
| 55460-37020 |
XKC605,XKU605,645,655..DCRWD SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席) |
1 | ||
| 55460-37020 |
XKC605,XKU605,645,655..DCRWD |
1 | ||
| 55479C - CLIP(FOR INSTRUMENT LOWER COVER) | ||||
| 90467-07191C1 |
XKC605,XKU605,645,655..DCRWD BLACK,TRIM1# |
1 | ||
| 55501A - DOOR SUB-ASSY, GLOVE COMPARTMENT | ||||
| 55501-37030C0 |
XKC605,XKU605,645,655..DCRWD BLACK,TRIM1# |
1 | ||
| 55501-37030C0 |
XKC605,XKU605,645,655..DCRWD SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席),BLACK,TRIM1# |
1 | ||
| 55521C - COVER, STEREO OPENING | ||||
| 55521-37030 |
XKC605,XKU605,645,655..DCRWD ｵｰﾃﾞｨｵ−ｱﾝﾃﾅ & 2ｽﾋﾟｰｶ |
2 | ||
| 55521-37030 |
XKC605,XKU605,645,655..DCRWD |
1 | ||
| 55521C - COVER, STEREO OPENING | ||||
| 55521-37030 |
XKC605,XKU605,645,655..DCRWD ｵｰﾃﾞｨｵ−ｱﾝﾃﾅ & 2ｽﾋﾟｰｶ |
2 | ||
| 55521-37030 |
XKC605,XKU605,645,655..DCRWD |
1 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-48030C0 |
XKC605,XKU605,645,655..DCRWD BLACK |
1 | ||
| 55539-48030C0 |
XKC605,XKU605,645,655..DCRWD ﾙｰﾑﾗﾝﾌﾟ−ﾏｯﾌﾟﾗﾝﾌﾟ & ﾙｰﾑﾗﾝﾌﾟ(LED),BLACK |
1 | ||
| 55539-48030C0 |
XKC605,XKU605,645,655..DCRWD..IV3 ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ = 宅配仕様),BLACK |
1 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-48030C0 |
XKC605,XKU605,645,655..DCRWD BLACK |
1 | ||
| 55539-48030C0 |
XKC605,XKU605,645,655..DCRWD ﾙｰﾑﾗﾝﾌﾟ−ﾏｯﾌﾟﾗﾝﾌﾟ & ﾙｰﾑﾗﾝﾌﾟ(LED),BLACK |
1 | ||
| 55539-48030C0 |
XKC605,XKU605,645,655..DCRWD..IV3 ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ = 宅配仕様),BLACK |
1 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-48030C0 |
XKC605,XKU605,645,655..DCRWD BLACK |
1 | ||
| 55539-48030C0 |
XKC605,XKU605,645,655..DCRWD ﾙｰﾑﾗﾝﾌﾟ−ﾏｯﾌﾟﾗﾝﾌﾟ & ﾙｰﾑﾗﾝﾌﾟ(LED),BLACK |
1 | ||
| 55539-48030C0 |
XKC605,XKU605,645,655..DCRWD..IV3 ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ = 宅配仕様),BLACK |
1 | ||
| 55539B - COVER, SPARE SWITCH HOLE, NO.2 | ||||
| 55539-32010C0 |
XKC605,XKU605,645,655..DCRWD BLACK |
2 | ||
| 55545 - COVER, FUSE BOX OPENING | ||||
| 55545-37070B0 |
XKC605,XKU605,645,655..DCRWD GRAY,TRIM1# |
1 | ||
| 55547 - COVER, REMOTE CONTROL MIRROR HOLE | ||||
| 55547-20020B2 |
XKC605,XKU605,645,655..DCRWD GRAY,TRIM1# |
1 | ||
| 55548A - COVER, INSTRUMENT PANEL HOLE | ||||
| 55548-37020B0 |
XKC605,XKU605,645,655..DCRWD GRAY,TRIM1# |
1 | ||
| 55549B - COVER, INSTRUMENT PANEL HOLE, NO.2 | ||||
| 55549-37010B0 |
XKC605,XKU605,645,655..DCRWD GRAY,TRIM1# |
1 | ||
| 55556A - ARM, GLOVE COMPARTMENT DOOR CHECK, RH | ||||
| 55556-37010 |
XKC605,XKU605,645,655..DCRWD |
1 | ||
| 55556-37010 |
XKC605,XKU605,645,655..DCRWD SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席) |
1 | ||
| 55557A - CUSHION, GLOVE COMPARTMENT DOOR CHECK | ||||
| 55557-53030 |
XKC605,XKU605,645,655..DCRWD SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席) |
2 | ||
| 55557-53030 |
XKC605,XKU605,645,655..DCRWD |
2 | ||
| 55573B - ARM, GLOVE COMPARTMENT DOOR CHECK, LH | ||||
| 55573-37020 |
XKC605,XKU605,645,655..DCRWD SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席) |
1 | ||
| 55573-37020 |
XKC605,XKU605,645,655..DCRWD |
1 | ||
| 55631A - STOPPER, INSTRUMENT PANEL UNDER TRAY, NO.1 | ||||
| 74348-37010B0 |
XKC605,XKU605,645,655..DCRWD GRAY,TRIM1# |
2 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-37060B0 |
XKC605,XKU605,645,655..DCRWD DK.GRAY,TRIM1# |
2 | ||
| 55650-37070B0 |
XKC605,XKU605,645,655..DCRWD..(CBU,IV3) ｼｰﾄ表皮−ﾌﾟﾘﾝﾄﾄﾘｺｯﾄ,DK.GRAY,TRIM1# |
2 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-37060B0 |
XKC605,XKU605,645,655..DCRWD DK.GRAY,TRIM1# |
2 | ||
| 55650-37070B0 |
XKC605,XKU605,645,655..DCRWD..(CBU,IV3) ｼｰﾄ表皮−ﾌﾟﾘﾝﾄﾄﾘｺｯﾄ,DK.GRAY,TRIM1# |
2 | ||
| 55650C - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-37060B0 |
XKC605,XKU605,645,655..DCRWD DK.GRAY,TRIM1# |
2 | ||
| 55650-37070B0 |
XKC605,XKU605,645,655..DCRWD..(CBU,IV3) ｼｰﾄ表皮−ﾌﾟﾘﾝﾄﾄﾘｺｯﾄ,DK.GRAY,TRIM1# |
2 | ||
| 55650C - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-37060B0 |
XKC605,XKU605,645,655..DCRWD DK.GRAY,TRIM1# |
2 | ||
| 55650-37070B0 |
XKC605,XKU605,645,655..DCRWD..(CBU,IV3) ｼｰﾄ表皮−ﾌﾟﾘﾝﾄﾄﾘｺｯﾄ,DK.GRAY,TRIM1# |
2 | ||
| 58819B - COVER, FRONT HEATER | ||||
| 87114-37010 |
XKC605,XKU605,645,655..DCRWD |
1 | ||
| 61184B - BRACKET, INSTRUMENT PANEL SIDE, NO.2 LH | ||||
| 61184-37070 |
XKC605,XKU605,645,655..DCRWD |
1 | ||
| 73970A - AIR BAG ASSY, INSTRUMENT PANEL PASSENGER | ||||
| 73970-37040C0 |
XKC605,XKU605,645,655..DCRWD SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席),BLACK,TRIM1# |
1 | ||
| Common parts | ||||
| 90119-06448 | ||||
| 90159-60382 | ||||
| 90179-06278 | ||||
| 90183-05033 | ||||
| 90467-10201 | ||||
| 90467-10203 | ||||
| 90467-12080 | ||||
| 91551-80820 | ||||
| 93540-55020 | ||||
| 93568-55012 | ||||
| 93568-55014 | ||||
| 93568-55016 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 8401 | ||||

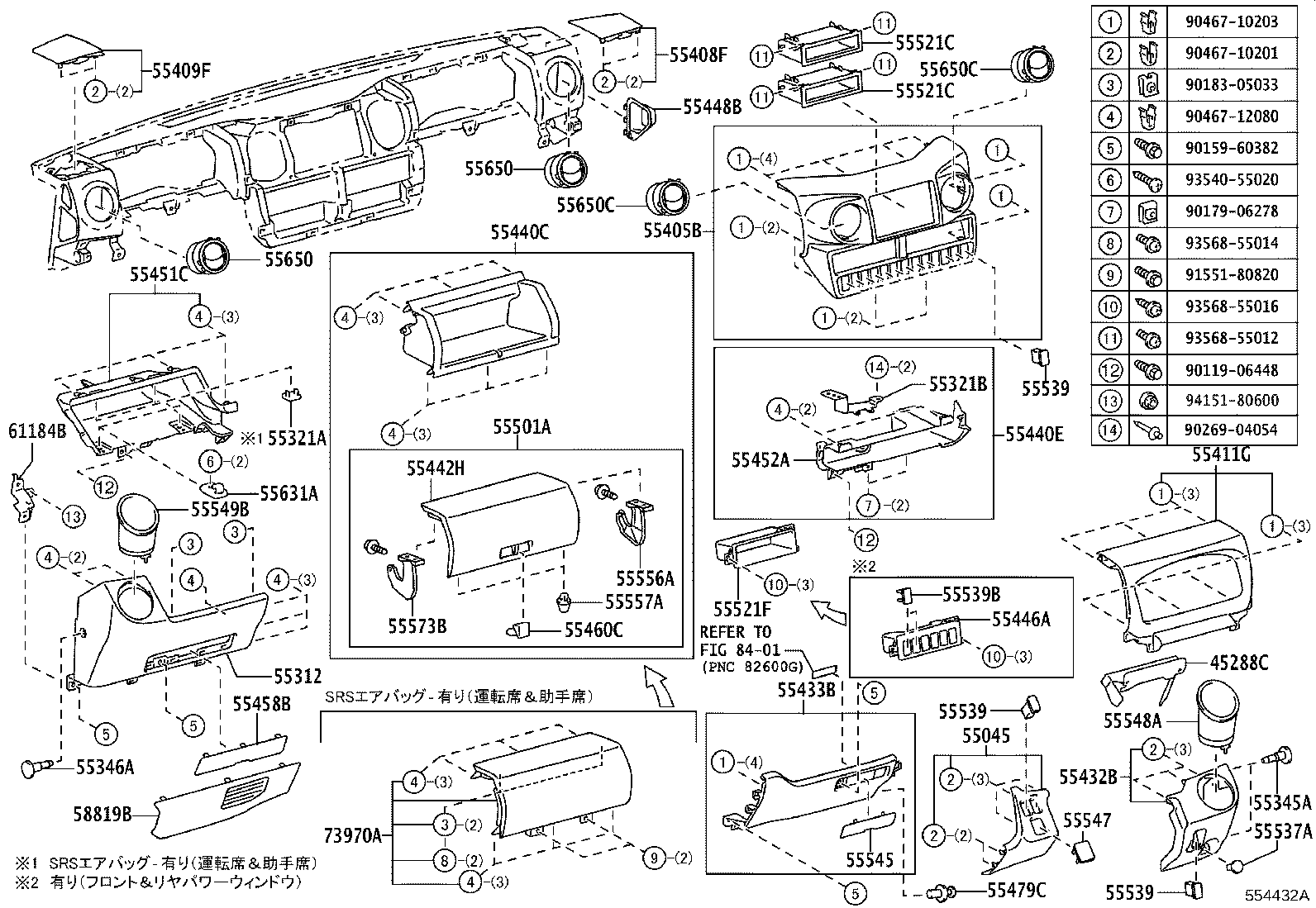

ILLUST NO. 2 OF 2(1905- )DCRWD
ｱﾘ(ｽﾏｰﾄｴﾝﾄﾘ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45288C - PLATE, STEERING COLUMN COVER | ||||
| 45288-37022 |
XKC605,XKU605,645,655..DCRWD |
1 | ||
| 55045 - PANEL SUB-ASSY, INSTRUMENT PANEL FINISH, LOWER | ||||
| 55045-37010B0 |
XKC605,XKU605,645,655..DCRWD GRAY,TRIM1# |
1 | ||
| 55312 - PANEL, INSTRUMENT, LOWER | ||||
| 55312-37011B0 |
XKC605,XKU605,645,655..DCRWD GRAY,TRIM1# |
1 | ||
| 55321A - COVER,INSTRUMENT PANEL HOLE | ||||
| 58839-37030B0 |
XKC605,XKU605,645,655..DCRWD GRAY,TRIM1# |
2 | ||
| 55321B - BRACKET, INSTRUMENT PANEL, NO.1 | ||||
| 55321-37080 |
XKC605,XKU605,645,655..DCRWD |
1 | ||
| 55345A - CLIP, INSTRUMENT PANEL, NO.1 | ||||
| 90467-07041P5 |
XKC605,XKU605,645,655..DCRWD GRAY,TRIM1# |
2 | ||
| 55346A - CLIP, INSTRUMENT PANEL, NO.2 | ||||
| 90467-07041P5 |
XKC605,XKU605,645,655..DCRWD GRAY,TRIM1# |
1 | ||
| 55405B - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55405-37210C0 |
XKC605,XKU605,645,655..DCRWD..(CBU,IV3) ｼｰﾄ表皮−ﾌﾟﾘﾝﾄﾄﾘｺｯﾄ,BLACK,TRIM1# |
1 | ||
| 55405-37200C0 |
XKC605,XKU605,645,655..DCRWD BLACK,TRIM1# |
1 | ||
| 55408F - PANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.1 | ||||
| 55472-37010C0 |
XKC605,XKU605,645,655..DCRWD BLACK,TRIM1# |
1 | ||
| 55409F - PANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.2 | ||||
| 55473-37010C0 |
XKC605,XKU605,645,655..DCRWD BLACK,TRIM1# |
1 | ||
| 55411G - PANEL, INSTRUMENT CLUSTER FINISH, NO.1 | ||||
| 55411-37070C0 |
XKC605,XKU605,645,655..DCRWD BLACK,TRIM1# |
1 | ||
| 55432B - PANEL, INSTRUMENT PANEL FINISH, LOWER | ||||
| 55046-37020B0 |
XKC605,XKU605,645,655..DCRWD GRAY,TRIM1# |
1 | ||
| 55433B - PANEL, INSTRUMENT PANEL FINISH, LOWER NO.2 | ||||
| 55320-37060B0 |
XKC605,XKU605,645,655..DCRWD GRAY,TRIM1# |
1 | ||
| 55440C - BOX ASSY, INSTRUMENT PANEL | ||||
| 55440-37020C0 |
XKC605,XKU605,645,655..DCRWD SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席),BLACK,TRIM1# |
1 | ||
| 55440-37020C0 |
XKC605,XKU605,645,655..DCRWD BLACK,TRIM1# |
1 | ||
| 55440E - BOX ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55440-37050B0 |
XKC605,XKU605,645,655..DCRWD GRAY,TRIM1# |
1 | ||
| 55442H - DOOR, INSTRUMENT PANEL | ||||
| 55442-37020C0 |
XKC605,XKU605,645,655..DCRWD BLACK,TRIM1# |
1 | ||
| 55442-37020C0 |
XKC605,XKU605,645,655..DCRWD SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席),BLACK,TRIM1# |
1 | ||
| 55446A - BASE, SWITCH HOLE, NO.1 | ||||
| 55446-37010 |
XKC605,XKU605,645,655..DCRWD |
1 | ||
| 55448B - COVER, OIL RESERVOIR TANK, RH | ||||
| 55448-37040C0 |
XKC605,XKU605,645,655..DCRWD BLACK,TRIM1# |
1 | ||
| 55451C - BOX, INSTRUMENT PANEL, NO.1 | ||||
| 55451-37011B0 |
XKC605,XKU605,645,655..DCRWD GRAY,TRIM1# |
1 | ||
| 55452A - BOX, INSTRUMENT PANEL, NO.2 | ||||
| 55452-37050B0 |
XKC605,XKU605,645,655..DCRWD GRAY,TRIM1# |
1 | ||
| 55458B - COVER, INSTRUMENT, LWR | ||||
| 55458-37030B0 |
XKC605,XKU605,645,655..DCRWD GRAY,TRIM1# |
1 | ||
| 55460C - LOCK ASSY, INSTRUMENT PANEL BOX | ||||
| 55460-37020 |
XKC605,XKU605,645,655..DCRWD SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席) |
1 | ||
| 55460-37020 |
XKC605,XKU605,645,655..DCRWD |
1 | ||
| 55479C - CLIP(FOR INSTRUMENT LOWER COVER) | ||||
| 90467-07191C1 |
XKC605,XKU605,645,655..DCRWD BLACK,TRIM1# |
1 | ||
| 55501A - DOOR SUB-ASSY, GLOVE COMPARTMENT | ||||
| 55501-37030C0 |
XKC605,XKU605,645,655..DCRWD BLACK,TRIM1# |
1 | ||
| 55501-37030C0 |
XKC605,XKU605,645,655..DCRWD SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席),BLACK,TRIM1# |
1 | ||
| 55521C - COVER, STEREO OPENING | ||||
| 55521-37030 |
XKC605,XKU605,645,655..DCRWD ｵｰﾃﾞｨｵ−ｱﾝﾃﾅ & 2ｽﾋﾟｰｶ |
2 | ||
| 55521-37030 |
XKC605,XKU605,645,655..DCRWD |
1 | ||
| 55521C - COVER, STEREO OPENING | ||||
| 55521-37030 |
XKC605,XKU605,645,655..DCRWD ｵｰﾃﾞｨｵ−ｱﾝﾃﾅ & 2ｽﾋﾟｰｶ |
2 | ||
| 55521-37030 |
XKC605,XKU605,645,655..DCRWD |
1 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-48030C0 |
XKC605,XKU605,645,655..DCRWD BLACK |
1 | ||
| 55539-48030C0 |
XKC605,XKU605,645,655..DCRWD ﾙｰﾑﾗﾝﾌﾟ−ﾏｯﾌﾟﾗﾝﾌﾟ & ﾙｰﾑﾗﾝﾌﾟ(LED),BLACK |
1 | ||
| 55539-48030C0 |
XKC605,XKU605,645,655..DCRWD..IV3 ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ = 宅配仕様),BLACK |
1 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-48030C0 |
XKC605,XKU605,645,655..DCRWD BLACK |
1 | ||
| 55539-48030C0 |
XKC605,XKU605,645,655..DCRWD ﾙｰﾑﾗﾝﾌﾟ−ﾏｯﾌﾟﾗﾝﾌﾟ & ﾙｰﾑﾗﾝﾌﾟ(LED),BLACK |
1 | ||
| 55539-48030C0 |
XKC605,XKU605,645,655..DCRWD..IV3 ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ = 宅配仕様),BLACK |
1 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-48030C0 |
XKC605,XKU605,645,655..DCRWD BLACK |
1 | ||
| 55539-48030C0 |
XKC605,XKU605,645,655..DCRWD ﾙｰﾑﾗﾝﾌﾟ−ﾏｯﾌﾟﾗﾝﾌﾟ & ﾙｰﾑﾗﾝﾌﾟ(LED),BLACK |
1 | ||
| 55539-48030C0 |
XKC605,XKU605,645,655..DCRWD..IV3 ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ = 宅配仕様),BLACK |
1 | ||
| 55539B - COVER, SPARE SWITCH HOLE, NO.2 | ||||
| 55539-32010C0 |
XKC605,XKU605,645,655..DCRWD BLACK |
2 | ||
| 55545 - COVER, FUSE BOX OPENING | ||||
| 55545-37070B0 |
XKC605,XKU605,645,655..DCRWD GRAY,TRIM1# |
1 | ||
| 55547 - COVER, REMOTE CONTROL MIRROR HOLE | ||||
| 55547-20020B2 |
XKC605,XKU605,645,655..DCRWD GRAY,TRIM1# |
1 | ||
| 55548A - COVER, INSTRUMENT PANEL HOLE | ||||
| 55548-37020B0 |
XKC605,XKU605,645,655..DCRWD GRAY,TRIM1# |
1 | ||
| 55549B - COVER, INSTRUMENT PANEL HOLE, NO.2 | ||||
| 55549-37010B0 |
XKC605,XKU605,645,655..DCRWD GRAY,TRIM1# |
1 | ||
| 55556A - ARM, GLOVE COMPARTMENT DOOR CHECK, RH | ||||
| 55556-37010 |
XKC605,XKU605,645,655..DCRWD |
1 | ||
| 55556-37010 |
XKC605,XKU605,645,655..DCRWD SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席) |
1 | ||
| 55557A - CUSHION, GLOVE COMPARTMENT DOOR CHECK | ||||
| 55557-53030 |
XKC605,XKU605,645,655..DCRWD SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席) |
2 | ||
| 55557-53030 |
XKC605,XKU605,645,655..DCRWD |
2 | ||
| 55573B - ARM, GLOVE COMPARTMENT DOOR CHECK, LH | ||||
| 55573-37020 |
XKC605,XKU605,645,655..DCRWD SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席) |
1 | ||
| 55573-37020 |
XKC605,XKU605,645,655..DCRWD |
1 | ||
| 55631A - STOPPER, INSTRUMENT PANEL UNDER TRAY, NO.1 | ||||
| 74348-37010B0 |
XKC605,XKU605,645,655..DCRWD GRAY,TRIM1# |
2 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-37060B0 |
XKC605,XKU605,645,655..DCRWD DK.GRAY,TRIM1# |
2 | ||
| 55650-37070B0 |
XKC605,XKU605,645,655..DCRWD..(CBU,IV3) ｼｰﾄ表皮−ﾌﾟﾘﾝﾄﾄﾘｺｯﾄ,DK.GRAY,TRIM1# |
2 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-37060B0 |
XKC605,XKU605,645,655..DCRWD DK.GRAY,TRIM1# |
2 | ||
| 55650-37070B0 |
XKC605,XKU605,645,655..DCRWD..(CBU,IV3) ｼｰﾄ表皮−ﾌﾟﾘﾝﾄﾄﾘｺｯﾄ,DK.GRAY,TRIM1# |
2 | ||
| 55650C - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-37060B0 |
XKC605,XKU605,645,655..DCRWD DK.GRAY,TRIM1# |
2 | ||
| 55650-37070B0 |
XKC605,XKU605,645,655..DCRWD..(CBU,IV3) ｼｰﾄ表皮−ﾌﾟﾘﾝﾄﾄﾘｺｯﾄ,DK.GRAY,TRIM1# |
2 | ||
| 55650C - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-37060B0 |
XKC605,XKU605,645,655..DCRWD DK.GRAY,TRIM1# |
2 | ||
| 55650-37070B0 |
XKC605,XKU605,645,655..DCRWD..(CBU,IV3) ｼｰﾄ表皮−ﾌﾟﾘﾝﾄﾄﾘｺｯﾄ,DK.GRAY,TRIM1# |
2 | ||
| 58819B - COVER, FRONT HEATER | ||||
| 87114-37010 |
XKC605,XKU605,645,655..DCRWD |
1 | ||
| 61184B - BRACKET, INSTRUMENT PANEL SIDE, NO.2 LH | ||||
| 61184-37070 |
XKC605,XKU605,645,655..DCRWD |
1 | ||
| 73970A - AIR BAG ASSY, INSTRUMENT PANEL PASSENGER | ||||
| 73970-37040C0 |
XKC605,XKU605,645,655..DCRWD SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席),BLACK,TRIM1# |
1 | ||
| Common parts | ||||
| 90119-06448 | ||||
| 90159-60382 | ||||
| 90179-06278 | ||||
| 90183-05033 | ||||
| 90269-04054 | ||||
| 90467-10201 | ||||
| 90467-10203 | ||||
| 90467-12080 | ||||
| 91551-80820 | ||||
| 93540-55020 | ||||
| 93568-55012 | ||||
| 93568-55014 | ||||
| 93568-55016 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 8401 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
