XKC605-TQVMX3 (2019)
Toyota Dyna/Toyoace Hv
(1905- )DCRWD

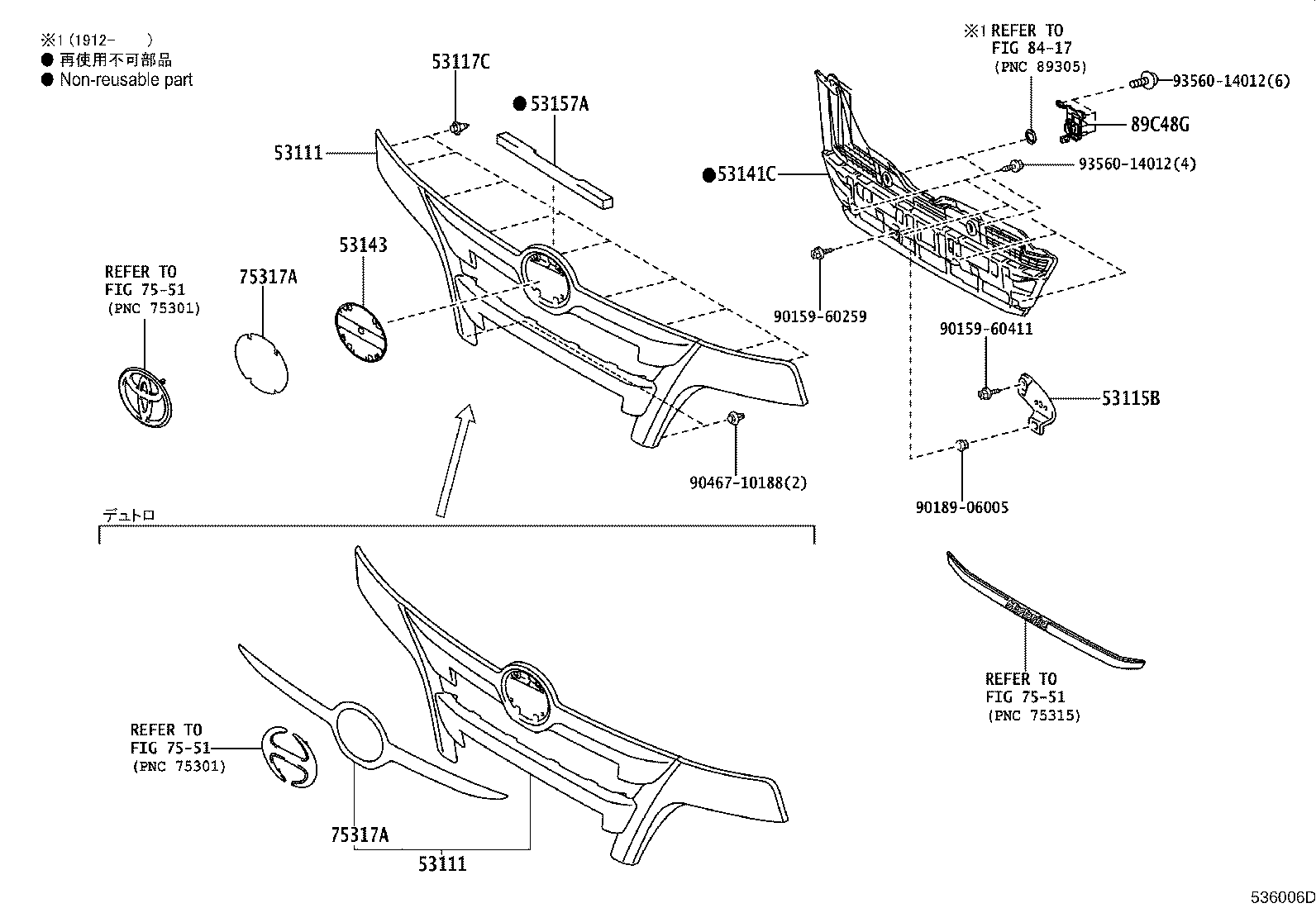

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53111 - GRILLE, RADIATOR | ||||
| 53111-37A70J1 |
XKC605,XKU605,645,655..DCRWD BLUE,8P0 |
1 | ||
| 53111-37A90A0 |
XKC605,XKU605,645,655..DCRWD ﾃﾞｭﾄﾛ専用,WHITE,058 |
1 | ||
| 53111-37A70B1 |
XKC605,XKU605,645,655..DCRWD..(CBU,IV3) SILVER ME.,199 |
1 | ||
| 53111-37A70A0 |
XKC605,XKU605,645,655..DCRWD WHITE,058 |
1 | ||
| 53111-37A90H0 |
XKC605,XKU605,645,655..DCRWD ﾃﾞｭﾄﾛ専用,TURQUOISE,766 |
1 | ||
| 53111-37A70H0 |
XKC605,XKU605,645,655..DCRWD TURQUOISE,766 |
1 | ||
| 53111-37A80 |
XKC605,XKU605,645,655..DCRWD ﾒｯｷ,ﾃﾞｭﾄﾛ専用&ﾗｼﾞｴｰﾀｸﾞﾘﾙ−ﾒｯｷ |
1 | ||
| 53111-37A80 |
XKC605,XKU605,645,655..DCRWD ﾒｯｷ,ﾗｼﾞｴｰﾀｸﾞﾘﾙ−ﾒｯｷ |
1 | ||
| 53111-37A90J1 |
XKC605,XKU605,645,655..DCRWD ﾃﾞｭﾄﾛ専用,BLUE,8P0 |
1 | ||
| 53111-37A90B0 |
XKC605,XKU605,645,655..DCRWD..(CBU,IV3) ﾃﾞｭﾄﾛ専用,SILVER ME.,199 |
1 | ||
| 53111 - GRILLE, RADIATOR | ||||
| 53111-37A70J1 |
XKC605,XKU605,645,655..DCRWD BLUE,8P0 |
1 | ||
| 53111-37A90A0 |
XKC605,XKU605,645,655..DCRWD ﾃﾞｭﾄﾛ専用,WHITE,058 |
1 | ||
| 53111-37A70B1 |
XKC605,XKU605,645,655..DCRWD..(CBU,IV3) SILVER ME.,199 |
1 | ||
| 53111-37A70A0 |
XKC605,XKU605,645,655..DCRWD WHITE,058 |
1 | ||
| 53111-37A90H0 |
XKC605,XKU605,645,655..DCRWD ﾃﾞｭﾄﾛ専用,TURQUOISE,766 |
1 | ||
| 53111-37A70H0 |
XKC605,XKU605,645,655..DCRWD TURQUOISE,766 |
1 | ||
| 53111-37A80 |
XKC605,XKU605,645,655..DCRWD ﾒｯｷ,ﾃﾞｭﾄﾛ専用&ﾗｼﾞｴｰﾀｸﾞﾘﾙ−ﾒｯｷ |
1 | ||
| 53111-37A80 |
XKC605,XKU605,645,655..DCRWD ﾒｯｷ,ﾗｼﾞｴｰﾀｸﾞﾘﾙ−ﾒｯｷ |
1 | ||
| 53111-37A90J1 |
XKC605,XKU605,645,655..DCRWD ﾃﾞｭﾄﾛ専用,BLUE,8P0 |
1 | ||
| 53111-37A90B0 |
XKC605,XKU605,645,655..DCRWD..(CBU,IV3) ﾃﾞｭﾄﾛ専用,SILVER ME.,199 |
1 | ||
| 53115B - BRACKET, RADIATOR GRILLE | ||||
| 53115-37100 |
XKC605,XKU605,645,655..DCRWD |
1 | ||
| 53117C - RETAINER, RADIATOR GRILLE, NO.1 | ||||
| 67771-37040 |
XKC605,XKU605,645,655..DCRWD |
9 | ||
| 53141C - GARNISH, RADIATOR GRILLE | ||||
| 53142-37010 |
XKC605,XKU605,645,655..DCRWD |
1 | ||
| 53143 - GARNISH, RADIATOR GRILLE, NO.3 | ||||
| 53143-37010 |
XKC605,XKU605,645,655..DCRWD |
1 | ||
| 53157A - SEAL, RADIATOR GRILLE, NO.3 | ||||
| 53157-37020 |
XKC605,XKU605,645,655..DCRWD |
1 | ||
| 75317A - PLATE, RADIATOR GRILLE ORNAMENT | ||||
| 75317-37050 |
XKC605,XKU605,645,655..DCRWD ﾃﾞｭﾄﾛ専用 |
1 | ||
| 75317-37020 |
XKC605,XKU605,645,655..DCRWD |
1 | ||
| 75317-37050 |
XKC605,XKU605,645,655..DCRWD ﾃﾞｭﾄﾛ専用&ﾗｼﾞｴｰﾀｸﾞﾘﾙ−ﾒｯｷ |
1 | ||
| 75317A - PLATE, RADIATOR GRILLE ORNAMENT | ||||
| 75317-37050 |
XKC605,XKU605,645,655..DCRWD ﾃﾞｭﾄﾛ専用 |
1 | ||
| 75317-37020 |
XKC605,XKU605,645,655..DCRWD |
1 | ||
| 75317-37050 |
XKC605,XKU605,645,655..DCRWD ﾃﾞｭﾄﾛ専用&ﾗｼﾞｴｰﾀｸﾞﾘﾙ−ﾒｯｷ |
1 | ||
| 89C48G - RETAINER, ULTRASONIC SENSOR, FRONT CENTER | ||||
| 89348-37030 |
XKC605,XKU605,645,655..DCRWD 左側 |
1 | ||
| 89348-37031 |
XKC605,XKU605,645,655..DCRWD 左側 |
1 | ||
| 89348-37040 |
XKC605,XKU605,645,655..DCRWD 右側 |
1 | ||
| 89348-37041 |
XKC605,XKU605,645,655..DCRWD 右側 |
1 | ||
| Common parts | ||||
| 90159-60259 | ||||
| 90159-60411 | ||||
| 90189-06005 | ||||
| 90467-10188 | ||||
| 93560-14012 | ||||
| Linked diagrams | ||||
| 7551 | ||||
| 8417 | ||||
