XKC605-TQVMX3 (2019)

Toyota Dyna/Toyoace Hv

Production May 2019 - Sep 9999
Engine N04C
Transmission 6F AMT
Displacement 2500cc
Power 168 HP (125 kW)

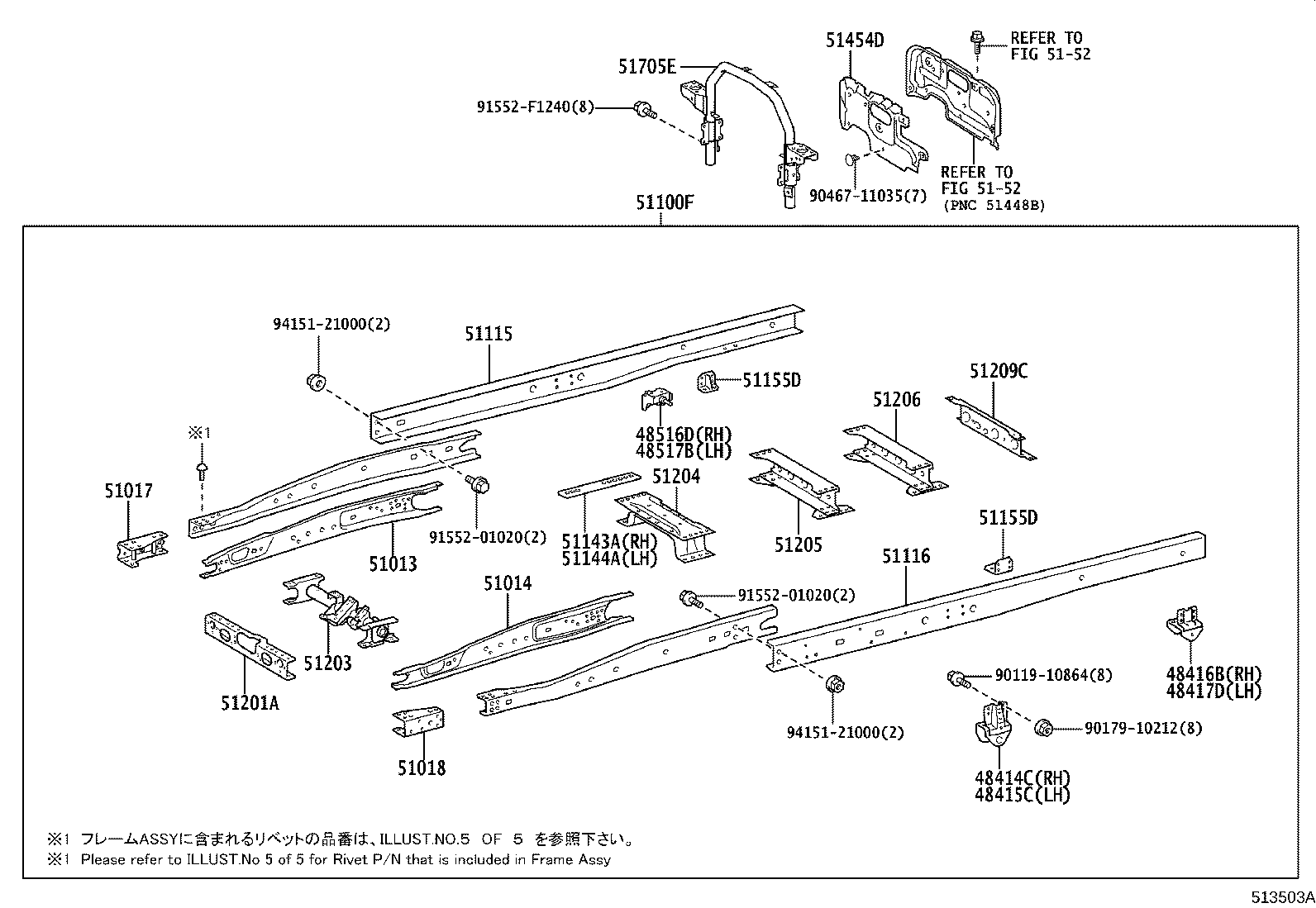

ILLUST NO. 2 OF 5(1905- )XKC605,XKU605..DCRWD

Click highlighted areas on diagram

diagram 48414C 48415C 48416B 48417D 48516D 48517B 51013 51014 51017 51018 51100F 51115 51116 51143A 51144A 51155D 51155D 51201A 51203 51204 51205 51206 51209C 51454D 5152 5152 51705E 9011910864 9017910212 9046711035 9155201020 9155201020 91552F1240 9415121000 9415121000
Part # Description Qty Price
48414C - BRACKET, SPRING, NO.3 RH
48414-37240

XKC605,XKU605..DCRWD

 1
48415C - BRACKET, SPRING, NO.3 LH
48414-37240

XKC605,XKU605..DCRWD

 1
48416B - BRACKET, SPRING, NO.4 RH
48416-37200

XKC605,XKU605..DCRWD

 1
48417D - BRACKET, SPRING, NO.4 LH
48416-37200

XKC605,XKU605..DCRWD

 1
48516D - BRACKET SUB-ASSY, REAR SHOCK ABSORBER, UPPER RH
48505-37130

XKC605,XKU605,645,655..DCRWD

 1
48517B - BRACKET SUB-ASSY, REAR SHOCK ABSORBER, UPR LH
48505-37130

XKC605,XKU605,645,655..DCRWD

 1
51013 - CHANNEL SUB-ASSY, SIDE RAIL, INNER FRONT RH
51013-37560

XKC605,XKU605,645,655..DCRWD

 1
51014 - CHANNEL SUB-ASSY, SIDE RAIL, INNER FRONT LH
51014-37530

XKC605,XKU605,645,655..DCRWD

 1
51017 - REINFORCEMENT SUB-ASSY, SIDE RAIL, NO.1 RH
51017-37170

XKC605,XKU605,645,655..DCRWD

 1
51018 - REINFORCEMENT SUB-ASSY, SIDE RAIL, NO.1 LH
51018-37230

XKC605,XKU605,645,655..DCRWD

 1
51100F - FRAME SUB-ASSY
51002-3VE60

XKC605,XKU605..T4..DCRWD

 1
51115 - RAIL, FRAME SIDE, REAR RH
51115-37570

XKC605,XKU605..T4..DCRWD

 1
51116 - RAIL, FRAME SIDE, REAR LH
51108-37480

XKC605,XKU605..T4..DCRWD

 1
51143A - REINFORCEMENT, SIDE RAIL, FRONT RH
51141-37350

XKC605,XKU605,645,655..DCRWD

 2
51144A - REINFORCEMENT, SIDE RAIL, FRONT LH
51141-37350

XKC605,XKU605,645,655..DCRWD

 2
51155D - STIFFENER, FRAME SIDE RAIL, REAR NO.1
51155-37060

XKC605,XKU605,645,655..DCRWD

 2
51155D - STIFFENER, FRAME SIDE RAIL, REAR NO.1
51155-37060

XKC605,XKU605,645,655..DCRWD

 2
51201A - CROSSMEMBER SUB-ASSY, FRAME, FRONT
51211-37280

XKC605,XKU605,645,655..DCRWD

 1
51203 - CROSSMEMBER SUB-ASSY, FRAME, NO.2
51202-37280

XKC605,XKU605,645,655..DCRWD

 1
51204 - CROSSMEMBER SUB-ASSY, FRAME, NO.3
51203-37390

XKC605,XKU605,645,655..DCRWD

 1
51205 - CROSSMEMBER SUB-ASSY, FRAME, NO.4
51205-37200

XKC605,XKU605..DCRWD

 1
51206 - CROSSMEMBER SUB-ASSY, FRAME, NO.5
51206-37090

XKC605,XKU605..DCRWD

 1
51209C - CROSSMEMBER SUB-ASSY, FRAME, REAR
51291-37140

XKC605,XKU605..T4..DCRWD

 1
51705E - BRACKET SUB-ASSY, CAB REAR MOUNTING
51705-37B40

XKC605,XKU605,645,655..DCRWD

 1
Common parts
90119-10864
90179-10212
90467-11035
91552-01020
91552-F1240
94151-21000
Linked diagrams
5152

ILLUST NO. 4 OF 5(1905- )DCRWD

Click highlighted areas on diagram

ﾌﾟﾛﾍﾟﾗｼｬﾌﾄｶﾞｰﾄﾞ & ﾌﾞﾗｹｯﾄ

diagram 51569 51569C 9155180825 9155180825
Part # Description Qty Price
51569 - GUARD, PROPELLER SHAFT
51569-37430

XKC605,XKU605,645..DCRWD

 1
Common parts
91551-80825
