XKC605-TQVMX3 (2019)
Toyota Dyna/Toyoace Hv

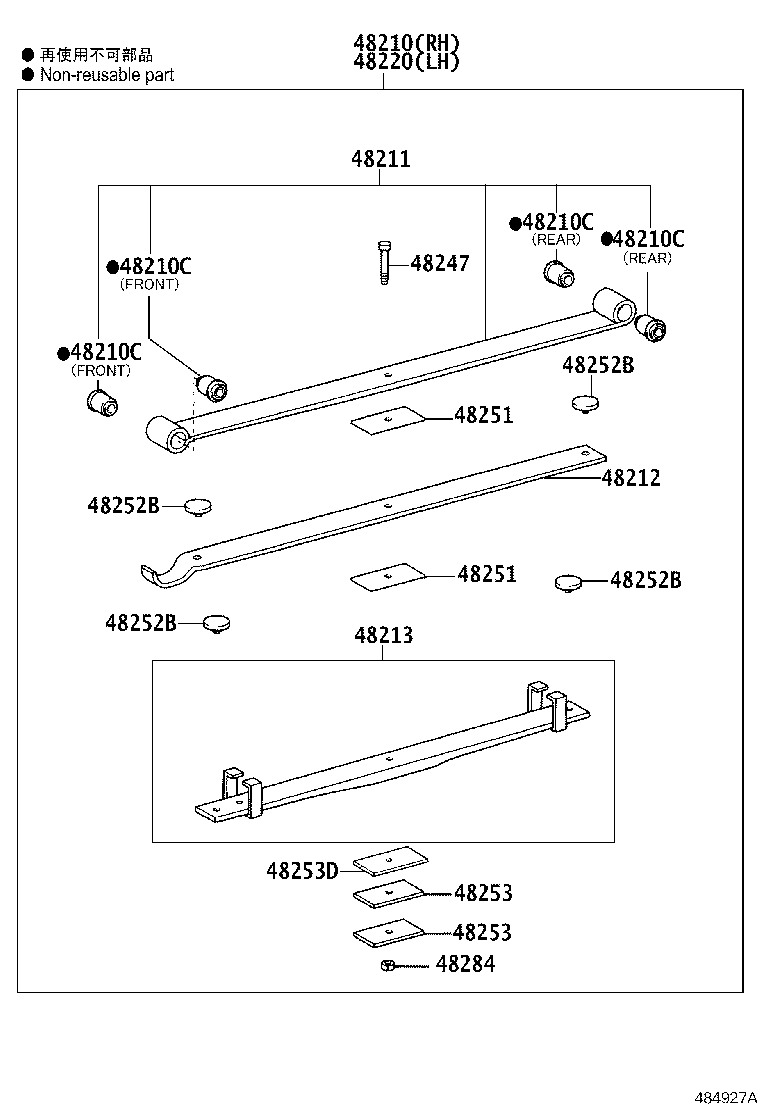

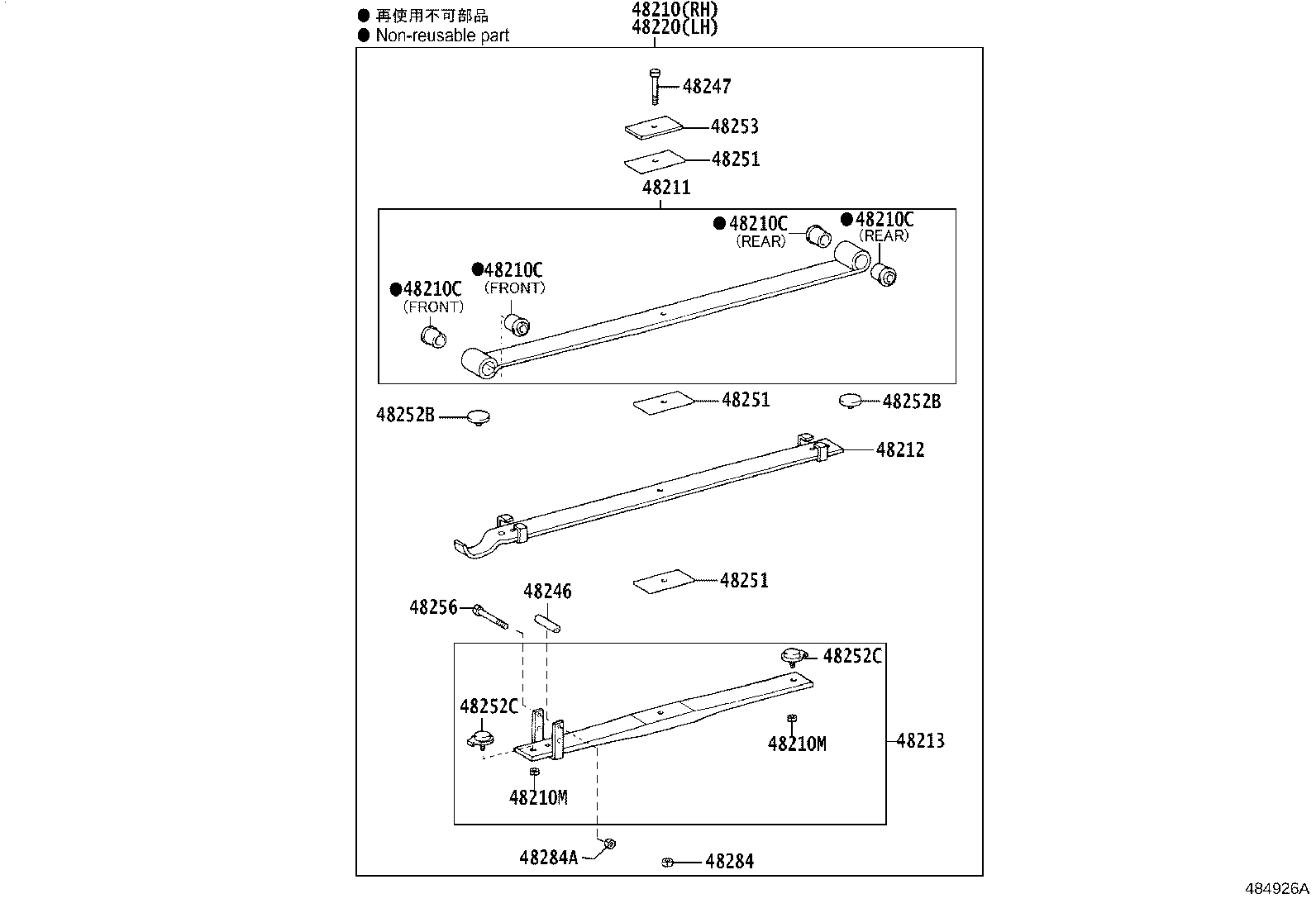

ILLUST NO. 2 OF 2(1905- )DCRWD
MAIN 2+HELPER 1-LEAF,TYPE E
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48191A - WEDGE, CASTER(FOR REAR LEAF SPRING) | ||||
| 48192-37040 |
XKC605,XKU605..T4..DCRWD TYPE E:ｲﾗｽﾄ参照 |
4 | ||
| 48191A - WEDGE, CASTER(FOR REAR LEAF SPRING) | ||||
| 48192-37040 |
XKC605,XKU605..T4..DCRWD TYPE E:ｲﾗｽﾄ参照 |
4 | ||
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-37S70 |
XKC605,XKU605..T4..20T..DCRWD ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ1枚ﾘｰﾌ,TYPE E:ｲﾗｽﾄ参照 |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16026 |
XKC605,XKU605..20T..DCRWD..IV3 ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ,右側車高ｱｯﾌﾟ,ｺﾝﾌﾟﾚｯｼｮﾝ,左側 ﾘﾔ,TYoE E |
2 | ||
| 90389-16024 |
XKC605,XKU605..T4..DCRWD ﾌﾛﾝﾄ,TYPE E:ｲﾗｽﾄ参照 |
4 | ||
| 90389-16027 |
XKC605,XKU605..20T..DCRWD..IV3 ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ,右側車高ｱｯﾌﾟ,ｺﾝﾌﾟﾚｯｼｮﾝ,右側 ﾘﾔ,TYoE E |
2 | ||
| 90389-16027 |
XKC605,XKU605..T4..20T..DCRWD ﾘﾔ,TYPE F:ｲﾗｽﾄ参照 |
4 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16026 |
XKC605,XKU605..20T..DCRWD..IV3 ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ,右側車高ｱｯﾌﾟ,ｺﾝﾌﾟﾚｯｼｮﾝ,左側 ﾘﾔ,TYoE E |
2 | ||
| 90389-16024 |
XKC605,XKU605..T4..DCRWD ﾌﾛﾝﾄ,TYPE E:ｲﾗｽﾄ参照 |
4 | ||
| 90389-16027 |
XKC605,XKU605..20T..DCRWD..IV3 ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ,右側車高ｱｯﾌﾟ,ｺﾝﾌﾟﾚｯｼｮﾝ,右側 ﾘﾔ,TYoE E |
2 | ||
| 90389-16027 |
XKC605,XKU605..T4..20T..DCRWD ﾘﾔ,TYPE F:ｲﾗｽﾄ参照 |
4 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16026 |
XKC605,XKU605..20T..DCRWD..IV3 ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ,右側車高ｱｯﾌﾟ,ｺﾝﾌﾟﾚｯｼｮﾝ,左側 ﾘﾔ,TYoE E |
2 | ||
| 90389-16024 |
XKC605,XKU605..T4..DCRWD ﾌﾛﾝﾄ,TYPE E:ｲﾗｽﾄ参照 |
4 | ||
| 90389-16027 |
XKC605,XKU605..20T..DCRWD..IV3 ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ,右側車高ｱｯﾌﾟ,ｺﾝﾌﾟﾚｯｼｮﾝ,右側 ﾘﾔ,TYoE E |
2 | ||
| 90389-16027 |
XKC605,XKU605..T4..20T..DCRWD ﾘﾔ,TYPE F:ｲﾗｽﾄ参照 |
4 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16026 |
XKC605,XKU605..20T..DCRWD..IV3 ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ,右側車高ｱｯﾌﾟ,ｺﾝﾌﾟﾚｯｼｮﾝ,左側 ﾘﾔ,TYoE E |
2 | ||
| 90389-16024 |
XKC605,XKU605..T4..DCRWD ﾌﾛﾝﾄ,TYPE E:ｲﾗｽﾄ参照 |
4 | ||
| 90389-16027 |
XKC605,XKU605..20T..DCRWD..IV3 ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ,右側車高ｱｯﾌﾟ,ｺﾝﾌﾟﾚｯｼｮﾝ,右側 ﾘﾔ,TYoE E |
2 | ||
| 90389-16027 |
XKC605,XKU605..T4..20T..DCRWD ﾘﾔ,TYPE F:ｲﾗｽﾄ参照 |
4 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-37S70 |
XKC605,XKU605..20T..DCRWD..IV3 ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ,右側車高ｱｯﾌﾟ,ｺﾝﾌﾟﾚｯｼｮﾝ,右側,TYPEd:ｲﾗｽﾄ参照 |
1 | ||
| 48201-37X80 |
XKC605,XKU605..20T..DCRWD..IV3 ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ,右側車高ｱｯﾌﾟ,ｺﾝﾌﾟﾚｯｼｮﾝ,左側,TYPEd:ｲﾗｽﾄ参照 |
1 | ||
| 48201-37S70 |
XKC605,XKU605..T4..20T..DCRWD TYPE E:ｲﾗｽﾄ参照 |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48202-37S70 |
XKC605,XKU605..T4..20T..DCRWD TYPE E:ｲﾗｽﾄ参照 |
2 | ||
| 48202-37X80 |
XKC605,XKU605..20T..DCRWD..IV3 ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ,右側車高ｱｯﾌﾟ,ｺﾝﾌﾟﾚｯｼｮﾝ,左側,TYPEd:ｲﾗｽﾄ参照 |
1 | ||
| 48202-37S70 |
XKC605,XKU605..20T..DCRWD..IV3 ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ,右側車高ｱｯﾌﾟ,ｺﾝﾌﾟﾚｯｼｮﾝ,右側,TYPEd:ｲﾗｽﾄ参照 |
1 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-37S70 |
XKC605,XKU605..T4..20T..DCRWD ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ1枚ﾘｰﾌ,TYPE E:ｲﾗｽﾄ参照 |
1 | ||
| 48210-37X80 |
XKC605,XKU605..20T..DCRWD..IV3 ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ1枚ﾘｰﾌ,ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ,右側車高ｱｯﾌﾟ,Rﾝﾌﾟﾚｯｼｮﾝ,TYPE E:ｲﾗｽﾄ参照 |
1 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-37631 |
XKC605,XKU605..T4..20T..DCRWD TYPE E:ｲﾗｽﾄ参照 |
2 | ||
| 48247-37631 |
XKC605,XKU605..20T..DCRWD..IV3 ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ,右側車高ｱｯﾌﾟ,ｺﾝﾌﾟﾚｯｼｮﾝ,右側,TYPEd:ｲﾗｽﾄ参照 |
1 | ||
| 48247-37S70 |
XKC605,XKU605..20T..DCRWD..IV3 ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ,右側車高ｱｯﾌﾟ,ｺﾝﾌﾟﾚｯｼｮﾝ,左側,TYPEd:ｲﾗｽﾄ参照 |
1 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48282-37Q60 |
XKC605,XKU605..T4..DCRWD TYPE E:ｲﾗｽﾄ参照 |
4 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48282-37Q60 |
XKC605,XKU605..T4..DCRWD TYPE E:ｲﾗｽﾄ参照 |
4 | ||
| 48252B - SILENCER, REAR SPRING, NO.1 | ||||
| 48252-37521 |
XKC605,XKU605..T4..DCRWD TYPE E:ｲﾗｽﾄ参照 |
4 | ||
| 48252B - SILENCER, REAR SPRING, NO.1 | ||||
| 48252-37521 |
XKC605,XKU605..T4..DCRWD TYPE E:ｲﾗｽﾄ参照 |
4 | ||
| 48252C - SILENCER, REAR SPRING, NO.2 | ||||
| 48252-37890 |
XKC605,XKU605..T4..DCRWD TYPE E:ｲﾗｽﾄ参照 |
4 | ||
| 48252C - SILENCER, REAR SPRING, NO.2 | ||||
| 48252-37890 |
XKC605,XKU605..T4..DCRWD TYPE E:ｲﾗｽﾄ参照 |
4 | ||
| 48256 - BOLT, HEXAGON(FOR REAR SPRING CLIP SET) | ||||
| 48256-37S50 |
XKC605,XKU605..T4..DCRWD TYPE E:ｲﾗｽﾄ参照 |
2 | ||
| 48263 - LEAF, REAR HELPER SPRING, NO.3 | ||||
| 48207-37S70 |
XKC605,XKU605..20T..DCRWD..IV3 ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ,右側車高ｱｯﾌﾟ,ｺﾝﾌﾟﾚｯｼｮﾝ,右側,TYPEd:ｲﾗｽﾄ参照 |
1 | ||
| 48207-37X80 |
XKC605,XKU605..20T..DCRWD..IV3 ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ,右側車高ｱｯﾌﾟ,ｺﾝﾌﾟﾚｯｼｮﾝ,左側,TYPEd:ｲﾗｽﾄ参照 |
1 | ||
| 48207-37S70 |
XKC605,XKU605..T4..20T..DCRWD TYPE E:ｲﾗｽﾄ参照 |
2 | ||
| 48284 - NUT, REAR SPRING CENTER BOLT | ||||
| 48284-0W060 |
XKC605,XKU605..20T..DCRWD..IV3 ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ,右側車高ｱｯﾌﾟ,ｺﾝﾌﾟﾚｯｼｮﾝ,TYPE E:ｲ宴Xﾄ参照 |
4 | ||
| 48284-0W060 |
XKC605,XKU605..T4..20T..DCRWD TYPE E:ｲﾗｽﾄ参照 |
6 | ||
| 48284 - NUT, REAR SPRING CENTER BOLT | ||||
| 48284-0W060 |
XKC605,XKU605..20T..DCRWD..IV3 ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ,右側車高ｱｯﾌﾟ,ｺﾝﾌﾟﾚｯｼｮﾝ,TYPE E:ｲ宴Xﾄ参照 |
4 | ||
| 48284-0W060 |
XKC605,XKU605..T4..20T..DCRWD TYPE E:ｲﾗｽﾄ参照 |
6 | ||
| 48284 - NUT, REAR SPRING CENTER BOLT | ||||
| 48284-0W060 |
XKC605,XKU605..20T..DCRWD..IV3 ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ,右側車高ｱｯﾌﾟ,ｺﾝﾌﾟﾚｯｼｮﾝ,TYPE E:ｲ宴Xﾄ参照 |
4 | ||
| 48284-0W060 |
XKC605,XKU605..T4..20T..DCRWD TYPE E:ｲﾗｽﾄ参照 |
6 | ||

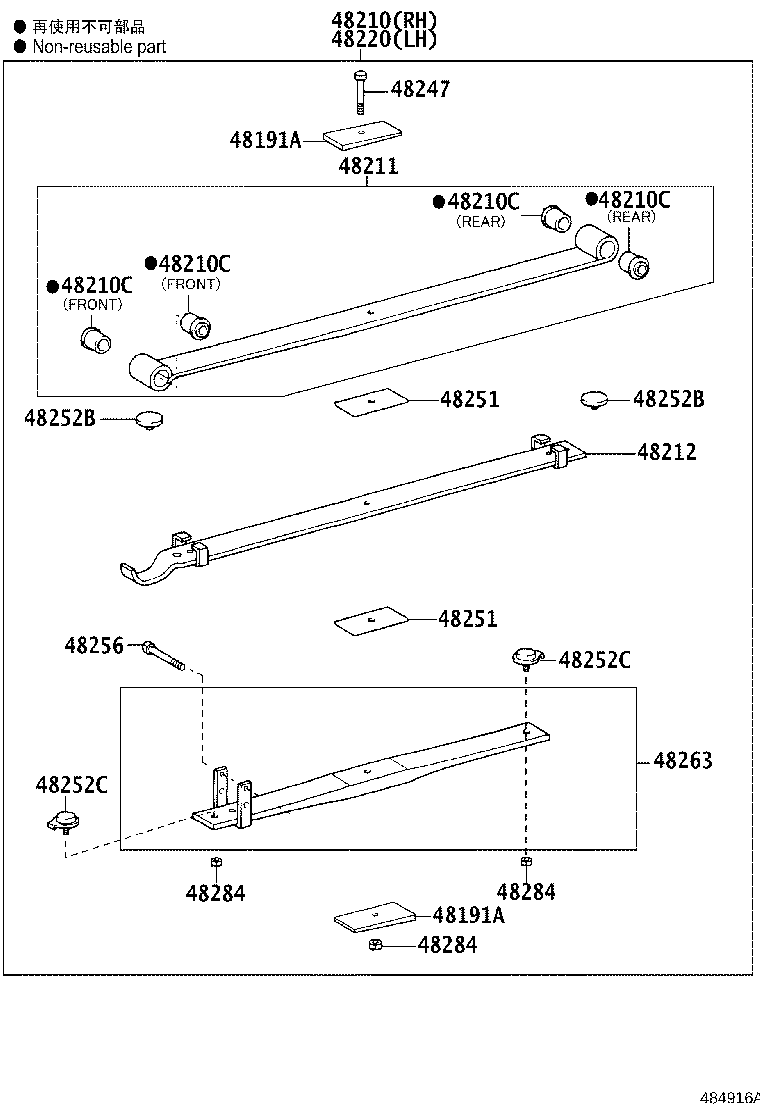

ILLUST NO. 2 OF 2(1905- )DCRWD
MAIN 2+HELPER 2-LEAF,TYPE B
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48191A - WEDGE, CASTER(FOR REAR LEAF SPRING) | ||||
| 48192-37040 |
XKC605,XKU605..T4..DCRWD TYPE E:ｲﾗｽﾄ参照 |
4 | ||
| 48191A - WEDGE, CASTER(FOR REAR LEAF SPRING) | ||||
| 48192-37040 |
XKC605,XKU605..T4..DCRWD TYPE E:ｲﾗｽﾄ参照 |
4 | ||
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-37S70 |
XKC605,XKU605..T4..20T..DCRWD ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ1枚ﾘｰﾌ,TYPE E:ｲﾗｽﾄ参照 |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16026 |
XKC605,XKU605..20T..DCRWD..IV3 ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ,右側車高ｱｯﾌﾟ,ｺﾝﾌﾟﾚｯｼｮﾝ,左側 ﾘﾔ,TYoE E |
2 | ||
| 90389-16024 |
XKC605,XKU605..T4..DCRWD ﾌﾛﾝﾄ,TYPE E:ｲﾗｽﾄ参照 |
4 | ||
| 90389-16027 |
XKC605,XKU605..20T..DCRWD..IV3 ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ,右側車高ｱｯﾌﾟ,ｺﾝﾌﾟﾚｯｼｮﾝ,右側 ﾘﾔ,TYoE E |
2 | ||
| 90389-16027 |
XKC605,XKU605..T4..20T..DCRWD ﾘﾔ,TYPE F:ｲﾗｽﾄ参照 |
4 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16026 |
XKC605,XKU605..20T..DCRWD..IV3 ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ,右側車高ｱｯﾌﾟ,ｺﾝﾌﾟﾚｯｼｮﾝ,左側 ﾘﾔ,TYoE E |
2 | ||
| 90389-16024 |
XKC605,XKU605..T4..DCRWD ﾌﾛﾝﾄ,TYPE E:ｲﾗｽﾄ参照 |
4 | ||
| 90389-16027 |
XKC605,XKU605..20T..DCRWD..IV3 ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ,右側車高ｱｯﾌﾟ,ｺﾝﾌﾟﾚｯｼｮﾝ,右側 ﾘﾔ,TYoE E |
2 | ||
| 90389-16027 |
XKC605,XKU605..T4..20T..DCRWD ﾘﾔ,TYPE F:ｲﾗｽﾄ参照 |
4 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16026 |
XKC605,XKU605..20T..DCRWD..IV3 ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ,右側車高ｱｯﾌﾟ,ｺﾝﾌﾟﾚｯｼｮﾝ,左側 ﾘﾔ,TYoE E |
2 | ||
| 90389-16024 |
XKC605,XKU605..T4..DCRWD ﾌﾛﾝﾄ,TYPE E:ｲﾗｽﾄ参照 |
4 | ||
| 90389-16027 |
XKC605,XKU605..20T..DCRWD..IV3 ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ,右側車高ｱｯﾌﾟ,ｺﾝﾌﾟﾚｯｼｮﾝ,右側 ﾘﾔ,TYoE E |
2 | ||
| 90389-16027 |
XKC605,XKU605..T4..20T..DCRWD ﾘﾔ,TYPE F:ｲﾗｽﾄ参照 |
4 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16026 |
XKC605,XKU605..20T..DCRWD..IV3 ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ,右側車高ｱｯﾌﾟ,ｺﾝﾌﾟﾚｯｼｮﾝ,左側 ﾘﾔ,TYoE E |
2 | ||
| 90389-16024 |
XKC605,XKU605..T4..DCRWD ﾌﾛﾝﾄ,TYPE E:ｲﾗｽﾄ参照 |
4 | ||
| 90389-16027 |
XKC605,XKU605..20T..DCRWD..IV3 ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ,右側車高ｱｯﾌﾟ,ｺﾝﾌﾟﾚｯｼｮﾝ,右側 ﾘﾔ,TYoE E |
2 | ||
| 90389-16027 |
XKC605,XKU605..T4..20T..DCRWD ﾘﾔ,TYPE F:ｲﾗｽﾄ参照 |
4 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-37S70 |
XKC605,XKU605..20T..DCRWD..IV3 ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ,右側車高ｱｯﾌﾟ,ｺﾝﾌﾟﾚｯｼｮﾝ,右側,TYPEd:ｲﾗｽﾄ参照 |
1 | ||
| 48201-37X80 |
XKC605,XKU605..20T..DCRWD..IV3 ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ,右側車高ｱｯﾌﾟ,ｺﾝﾌﾟﾚｯｼｮﾝ,左側,TYPEd:ｲﾗｽﾄ参照 |
1 | ||
| 48201-37S70 |
XKC605,XKU605..T4..20T..DCRWD TYPE E:ｲﾗｽﾄ参照 |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48202-37S70 |
XKC605,XKU605..T4..20T..DCRWD TYPE E:ｲﾗｽﾄ参照 |
2 | ||
| 48202-37X80 |
XKC605,XKU605..20T..DCRWD..IV3 ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ,右側車高ｱｯﾌﾟ,ｺﾝﾌﾟﾚｯｼｮﾝ,左側,TYPEd:ｲﾗｽﾄ参照 |
1 | ||
| 48202-37S70 |
XKC605,XKU605..20T..DCRWD..IV3 ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ,右側車高ｱｯﾌﾟ,ｺﾝﾌﾟﾚｯｼｮﾝ,右側,TYPEd:ｲﾗｽﾄ参照 |
1 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-37S70 |
XKC605,XKU605..T4..20T..DCRWD ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ1枚ﾘｰﾌ,TYPE E:ｲﾗｽﾄ参照 |
1 | ||
| 48210-37X80 |
XKC605,XKU605..20T..DCRWD..IV3 ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ1枚ﾘｰﾌ,ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ,右側車高ｱｯﾌﾟ,Rﾝﾌﾟﾚｯｼｮﾝ,TYPE E:ｲﾗｽﾄ参照 |
1 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-37631 |
XKC605,XKU605..T4..20T..DCRWD TYPE E:ｲﾗｽﾄ参照 |
2 | ||
| 48247-37631 |
XKC605,XKU605..20T..DCRWD..IV3 ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ,右側車高ｱｯﾌﾟ,ｺﾝﾌﾟﾚｯｼｮﾝ,右側,TYPEd:ｲﾗｽﾄ参照 |
1 | ||
| 48247-37S70 |
XKC605,XKU605..20T..DCRWD..IV3 ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ,右側車高ｱｯﾌﾟ,ｺﾝﾌﾟﾚｯｼｮﾝ,左側,TYPEd:ｲﾗｽﾄ参照 |
1 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48282-37Q60 |
XKC605,XKU605..T4..DCRWD TYPE E:ｲﾗｽﾄ参照 |
4 | ||
| 48252B - SILENCER, REAR SPRING, NO.1 | ||||
| 48252-37521 |
XKC605,XKU605..T4..DCRWD TYPE E:ｲﾗｽﾄ参照 |
4 | ||
| 48252B - SILENCER, REAR SPRING, NO.1 | ||||
| 48252-37521 |
XKC605,XKU605..T4..DCRWD TYPE E:ｲﾗｽﾄ参照 |
4 | ||
| 48284 - NUT, REAR SPRING CENTER BOLT | ||||
| 48284-0W060 |
XKC605,XKU605..20T..DCRWD..IV3 ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ,右側車高ｱｯﾌﾟ,ｺﾝﾌﾟﾚｯｼｮﾝ,TYPE E:ｲ宴Xﾄ参照 |
4 | ||
| 48284-0W060 |
XKC605,XKU605..T4..20T..DCRWD TYPE E:ｲﾗｽﾄ参照 |
6 | ||

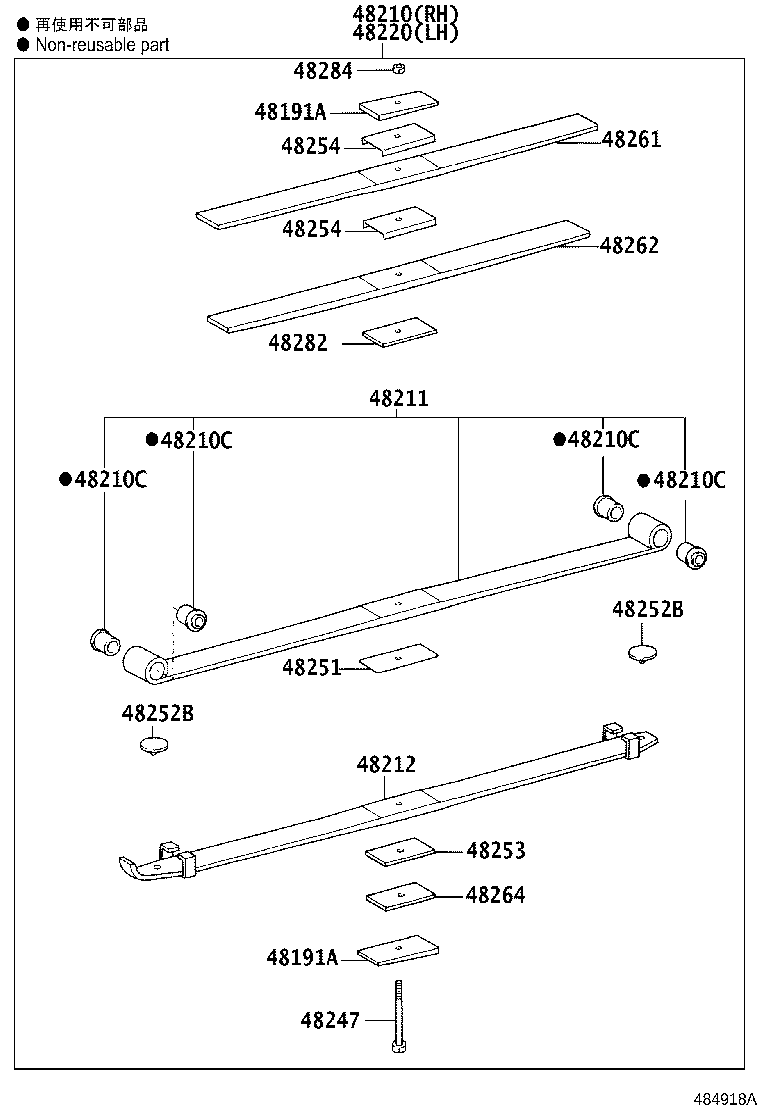

ILLUST NO. 2 OF 2(1905- )DCRWD
3-LEAF,TYPE A
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-37S70 |
XKC605,XKU605..T4..20T..DCRWD ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ1枚ﾘｰﾌ,TYPE E:ｲﾗｽﾄ参照 |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16026 |
XKC605,XKU605..20T..DCRWD..IV3 ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ,右側車高ｱｯﾌﾟ,ｺﾝﾌﾟﾚｯｼｮﾝ,左側 ﾘﾔ,TYoE E |
2 | ||
| 90389-16024 |
XKC605,XKU605..T4..DCRWD ﾌﾛﾝﾄ,TYPE E:ｲﾗｽﾄ参照 |
4 | ||
| 90389-16027 |
XKC605,XKU605..20T..DCRWD..IV3 ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ,右側車高ｱｯﾌﾟ,ｺﾝﾌﾟﾚｯｼｮﾝ,右側 ﾘﾔ,TYoE E |
2 | ||
| 90389-16027 |
XKC605,XKU605..T4..20T..DCRWD ﾘﾔ,TYPE F:ｲﾗｽﾄ参照 |
4 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16026 |
XKC605,XKU605..20T..DCRWD..IV3 ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ,右側車高ｱｯﾌﾟ,ｺﾝﾌﾟﾚｯｼｮﾝ,左側 ﾘﾔ,TYoE E |
2 | ||
| 90389-16024 |
XKC605,XKU605..T4..DCRWD ﾌﾛﾝﾄ,TYPE E:ｲﾗｽﾄ参照 |
4 | ||
| 90389-16027 |
XKC605,XKU605..20T..DCRWD..IV3 ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ,右側車高ｱｯﾌﾟ,ｺﾝﾌﾟﾚｯｼｮﾝ,右側 ﾘﾔ,TYoE E |
2 | ||
| 90389-16027 |
XKC605,XKU605..T4..20T..DCRWD ﾘﾔ,TYPE F:ｲﾗｽﾄ参照 |
4 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16026 |
XKC605,XKU605..20T..DCRWD..IV3 ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ,右側車高ｱｯﾌﾟ,ｺﾝﾌﾟﾚｯｼｮﾝ,左側 ﾘﾔ,TYoE E |
2 | ||
| 90389-16024 |
XKC605,XKU605..T4..DCRWD ﾌﾛﾝﾄ,TYPE E:ｲﾗｽﾄ参照 |
4 | ||
| 90389-16027 |
XKC605,XKU605..20T..DCRWD..IV3 ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ,右側車高ｱｯﾌﾟ,ｺﾝﾌﾟﾚｯｼｮﾝ,右側 ﾘﾔ,TYoE E |
2 | ||
| 90389-16027 |
XKC605,XKU605..T4..20T..DCRWD ﾘﾔ,TYPE F:ｲﾗｽﾄ参照 |
4 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16026 |
XKC605,XKU605..20T..DCRWD..IV3 ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ,右側車高ｱｯﾌﾟ,ｺﾝﾌﾟﾚｯｼｮﾝ,左側 ﾘﾔ,TYoE E |
2 | ||
| 90389-16024 |
XKC605,XKU605..T4..DCRWD ﾌﾛﾝﾄ,TYPE E:ｲﾗｽﾄ参照 |
4 | ||
| 90389-16027 |
XKC605,XKU605..20T..DCRWD..IV3 ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ,右側車高ｱｯﾌﾟ,ｺﾝﾌﾟﾚｯｼｮﾝ,右側 ﾘﾔ,TYoE E |
2 | ||
| 90389-16027 |
XKC605,XKU605..T4..20T..DCRWD ﾘﾔ,TYPE F:ｲﾗｽﾄ参照 |
4 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-37S70 |
XKC605,XKU605..20T..DCRWD..IV3 ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ,右側車高ｱｯﾌﾟ,ｺﾝﾌﾟﾚｯｼｮﾝ,右側,TYPEd:ｲﾗｽﾄ参照 |
1 | ||
| 48201-37X80 |
XKC605,XKU605..20T..DCRWD..IV3 ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ,右側車高ｱｯﾌﾟ,ｺﾝﾌﾟﾚｯｼｮﾝ,左側,TYPEd:ｲﾗｽﾄ参照 |
1 | ||
| 48201-37S70 |
XKC605,XKU605..T4..20T..DCRWD TYPE E:ｲﾗｽﾄ参照 |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48202-37S70 |
XKC605,XKU605..T4..20T..DCRWD TYPE E:ｲﾗｽﾄ参照 |
2 | ||
| 48202-37X80 |
XKC605,XKU605..20T..DCRWD..IV3 ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ,右側車高ｱｯﾌﾟ,ｺﾝﾌﾟﾚｯｼｮﾝ,左側,TYPEd:ｲﾗｽﾄ参照 |
1 | ||
| 48202-37S70 |
XKC605,XKU605..20T..DCRWD..IV3 ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ,右側車高ｱｯﾌﾟ,ｺﾝﾌﾟﾚｯｼｮﾝ,右側,TYPEd:ｲﾗｽﾄ参照 |
1 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-37S70 |
XKC605,XKU605..T4..20T..DCRWD ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ1枚ﾘｰﾌ,TYPE E:ｲﾗｽﾄ参照 |
1 | ||
| 48210-37X80 |
XKC605,XKU605..20T..DCRWD..IV3 ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ1枚ﾘｰﾌ,ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ,右側車高ｱｯﾌﾟ,Rﾝﾌﾟﾚｯｼｮﾝ,TYPE E:ｲﾗｽﾄ参照 |
1 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-37631 |
XKC605,XKU605..T4..20T..DCRWD TYPE E:ｲﾗｽﾄ参照 |
2 | ||
| 48247-37631 |
XKC605,XKU605..20T..DCRWD..IV3 ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ,右側車高ｱｯﾌﾟ,ｺﾝﾌﾟﾚｯｼｮﾝ,右側,TYPEd:ｲﾗｽﾄ参照 |
1 | ||
| 48247-37S70 |
XKC605,XKU605..20T..DCRWD..IV3 ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ,右側車高ｱｯﾌﾟ,ｺﾝﾌﾟﾚｯｼｮﾝ,左側,TYPEd:ｲﾗｽﾄ参照 |
1 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48282-37Q60 |
XKC605,XKU605..T4..DCRWD TYPE E:ｲﾗｽﾄ参照 |
4 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48282-37Q60 |
XKC605,XKU605..T4..DCRWD TYPE E:ｲﾗｽﾄ参照 |
4 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48282-37Q60 |
XKC605,XKU605..T4..DCRWD TYPE E:ｲﾗｽﾄ参照 |
4 | ||
| 48252B - SILENCER, REAR SPRING, NO.1 | ||||
| 48252-37521 |
XKC605,XKU605..T4..DCRWD TYPE E:ｲﾗｽﾄ参照 |
4 | ||
| 48252B - SILENCER, REAR SPRING, NO.1 | ||||
| 48252-37521 |
XKC605,XKU605..T4..DCRWD TYPE E:ｲﾗｽﾄ参照 |
4 | ||
| 48252C - SILENCER, REAR SPRING, NO.2 | ||||
| 48252-37890 |
XKC605,XKU605..T4..DCRWD TYPE E:ｲﾗｽﾄ参照 |
4 | ||
| 48252C - SILENCER, REAR SPRING, NO.2 | ||||
| 48252-37890 |
XKC605,XKU605..T4..DCRWD TYPE E:ｲﾗｽﾄ参照 |
4 | ||
| 48256 - BOLT, HEXAGON(FOR REAR SPRING CLIP SET) | ||||
| 48256-37S50 |
XKC605,XKU605..T4..DCRWD TYPE E:ｲﾗｽﾄ参照 |
2 | ||
| 48284 - NUT, REAR SPRING CENTER BOLT | ||||
| 48284-0W060 |
XKC605,XKU605..20T..DCRWD..IV3 ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ,右側車高ｱｯﾌﾟ,ｺﾝﾌﾟﾚｯｼｮﾝ,TYPE E:ｲ宴Xﾄ参照 |
4 | ||
| 48284-0W060 |
XKC605,XKU605..T4..20T..DCRWD TYPE E:ｲﾗｽﾄ参照 |
6 | ||
ILLUST NO. 2 OF 2(1905- )DCRWD
3-LEAF,TYPE B
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-37S70 |
XKC605,XKU605..T4..20T..DCRWD ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ1枚ﾘｰﾌ,TYPE E:ｲﾗｽﾄ参照 |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16026 |
XKC605,XKU605..20T..DCRWD..IV3 ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ,右側車高ｱｯﾌﾟ,ｺﾝﾌﾟﾚｯｼｮﾝ,左側 ﾘﾔ,TYoE E |
2 | ||
| 90389-16024 |
XKC605,XKU605..T4..DCRWD ﾌﾛﾝﾄ,TYPE E:ｲﾗｽﾄ参照 |
4 | ||
| 90389-16027 |
XKC605,XKU605..20T..DCRWD..IV3 ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ,右側車高ｱｯﾌﾟ,ｺﾝﾌﾟﾚｯｼｮﾝ,右側 ﾘﾔ,TYoE E |
2 | ||
| 90389-16027 |
XKC605,XKU605..T4..20T..DCRWD ﾘﾔ,TYPE F:ｲﾗｽﾄ参照 |
4 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16026 |
XKC605,XKU605..20T..DCRWD..IV3 ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ,右側車高ｱｯﾌﾟ,ｺﾝﾌﾟﾚｯｼｮﾝ,左側 ﾘﾔ,TYoE E |
2 | ||
| 90389-16024 |
XKC605,XKU605..T4..DCRWD ﾌﾛﾝﾄ,TYPE E:ｲﾗｽﾄ参照 |
4 | ||
| 90389-16027 |
XKC605,XKU605..20T..DCRWD..IV3 ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ,右側車高ｱｯﾌﾟ,ｺﾝﾌﾟﾚｯｼｮﾝ,右側 ﾘﾔ,TYoE E |
2 | ||
| 90389-16027 |
XKC605,XKU605..T4..20T..DCRWD ﾘﾔ,TYPE F:ｲﾗｽﾄ参照 |
4 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16026 |
XKC605,XKU605..20T..DCRWD..IV3 ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ,右側車高ｱｯﾌﾟ,ｺﾝﾌﾟﾚｯｼｮﾝ,左側 ﾘﾔ,TYoE E |
2 | ||
| 90389-16024 |
XKC605,XKU605..T4..DCRWD ﾌﾛﾝﾄ,TYPE E:ｲﾗｽﾄ参照 |
4 | ||
| 90389-16027 |
XKC605,XKU605..20T..DCRWD..IV3 ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ,右側車高ｱｯﾌﾟ,ｺﾝﾌﾟﾚｯｼｮﾝ,右側 ﾘﾔ,TYoE E |
2 | ||
| 90389-16027 |
XKC605,XKU605..T4..20T..DCRWD ﾘﾔ,TYPE F:ｲﾗｽﾄ参照 |
4 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16026 |
XKC605,XKU605..20T..DCRWD..IV3 ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ,右側車高ｱｯﾌﾟ,ｺﾝﾌﾟﾚｯｼｮﾝ,左側 ﾘﾔ,TYoE E |
2 | ||
| 90389-16024 |
XKC605,XKU605..T4..DCRWD ﾌﾛﾝﾄ,TYPE E:ｲﾗｽﾄ参照 |
4 | ||
| 90389-16027 |
XKC605,XKU605..20T..DCRWD..IV3 ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ,右側車高ｱｯﾌﾟ,ｺﾝﾌﾟﾚｯｼｮﾝ,右側 ﾘﾔ,TYoE E |
2 | ||
| 90389-16027 |
XKC605,XKU605..T4..20T..DCRWD ﾘﾔ,TYPE F:ｲﾗｽﾄ参照 |
4 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-37S70 |
XKC605,XKU605..20T..DCRWD..IV3 ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ,右側車高ｱｯﾌﾟ,ｺﾝﾌﾟﾚｯｼｮﾝ,右側,TYPEd:ｲﾗｽﾄ参照 |
1 | ||
| 48201-37X80 |
XKC605,XKU605..20T..DCRWD..IV3 ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ,右側車高ｱｯﾌﾟ,ｺﾝﾌﾟﾚｯｼｮﾝ,左側,TYPEd:ｲﾗｽﾄ参照 |
1 | ||
| 48201-37S70 |
XKC605,XKU605..T4..20T..DCRWD TYPE E:ｲﾗｽﾄ参照 |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48202-37S70 |
XKC605,XKU605..T4..20T..DCRWD TYPE E:ｲﾗｽﾄ参照 |
2 | ||
| 48202-37X80 |
XKC605,XKU605..20T..DCRWD..IV3 ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ,右側車高ｱｯﾌﾟ,ｺﾝﾌﾟﾚｯｼｮﾝ,左側,TYPEd:ｲﾗｽﾄ参照 |
1 | ||
| 48202-37S70 |
XKC605,XKU605..20T..DCRWD..IV3 ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ,右側車高ｱｯﾌﾟ,ｺﾝﾌﾟﾚｯｼｮﾝ,右側,TYPEd:ｲﾗｽﾄ参照 |
1 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-37S70 |
XKC605,XKU605..T4..20T..DCRWD ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ1枚ﾘｰﾌ,TYPE E:ｲﾗｽﾄ参照 |
1 | ||
| 48210-37X80 |
XKC605,XKU605..20T..DCRWD..IV3 ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ1枚ﾘｰﾌ,ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ,右側車高ｱｯﾌﾟ,Rﾝﾌﾟﾚｯｼｮﾝ,TYPE E:ｲﾗｽﾄ参照 |
1 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-37631 |
XKC605,XKU605..T4..20T..DCRWD TYPE E:ｲﾗｽﾄ参照 |
2 | ||
| 48247-37631 |
XKC605,XKU605..20T..DCRWD..IV3 ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ,右側車高ｱｯﾌﾟ,ｺﾝﾌﾟﾚｯｼｮﾝ,右側,TYPEd:ｲﾗｽﾄ参照 |
1 | ||
| 48247-37S70 |
XKC605,XKU605..20T..DCRWD..IV3 ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ,右側車高ｱｯﾌﾟ,ｺﾝﾌﾟﾚｯｼｮﾝ,左側,TYPEd:ｲﾗｽﾄ参照 |
1 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48282-37Q60 |
XKC605,XKU605..T4..DCRWD TYPE E:ｲﾗｽﾄ参照 |
4 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48282-37Q60 |
XKC605,XKU605..T4..DCRWD TYPE E:ｲﾗｽﾄ参照 |
4 | ||
| 48252B - SILENCER, REAR SPRING, NO.1 | ||||
| 48252-37521 |
XKC605,XKU605..T4..DCRWD TYPE E:ｲﾗｽﾄ参照 |
4 | ||
| 48252B - SILENCER, REAR SPRING, NO.1 | ||||
| 48252-37521 |
XKC605,XKU605..T4..DCRWD TYPE E:ｲﾗｽﾄ参照 |
4 | ||
| 48252B - SILENCER, REAR SPRING, NO.1 | ||||
| 48252-37521 |
XKC605,XKU605..T4..DCRWD TYPE E:ｲﾗｽﾄ参照 |
4 | ||
| 48252B - SILENCER, REAR SPRING, NO.1 | ||||
| 48252-37521 |
XKC605,XKU605..T4..DCRWD TYPE E:ｲﾗｽﾄ参照 |
4 | ||
| 48284 - NUT, REAR SPRING CENTER BOLT | ||||
| 48284-0W060 |
XKC605,XKU605..20T..DCRWD..IV3 ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ,右側車高ｱｯﾌﾟ,ｺﾝﾌﾟﾚｯｼｮﾝ,TYPE E:ｲ宴Xﾄ参照 |
4 | ||
| 48284-0W060 |
XKC605,XKU605..T4..20T..DCRWD TYPE E:ｲﾗｽﾄ参照 |
6 | ||
Part Price Details
Loading price information...
Part Number:
Price:
