XKC605-TQVMX3 (2019)
Toyota Dyna/Toyoace Hv

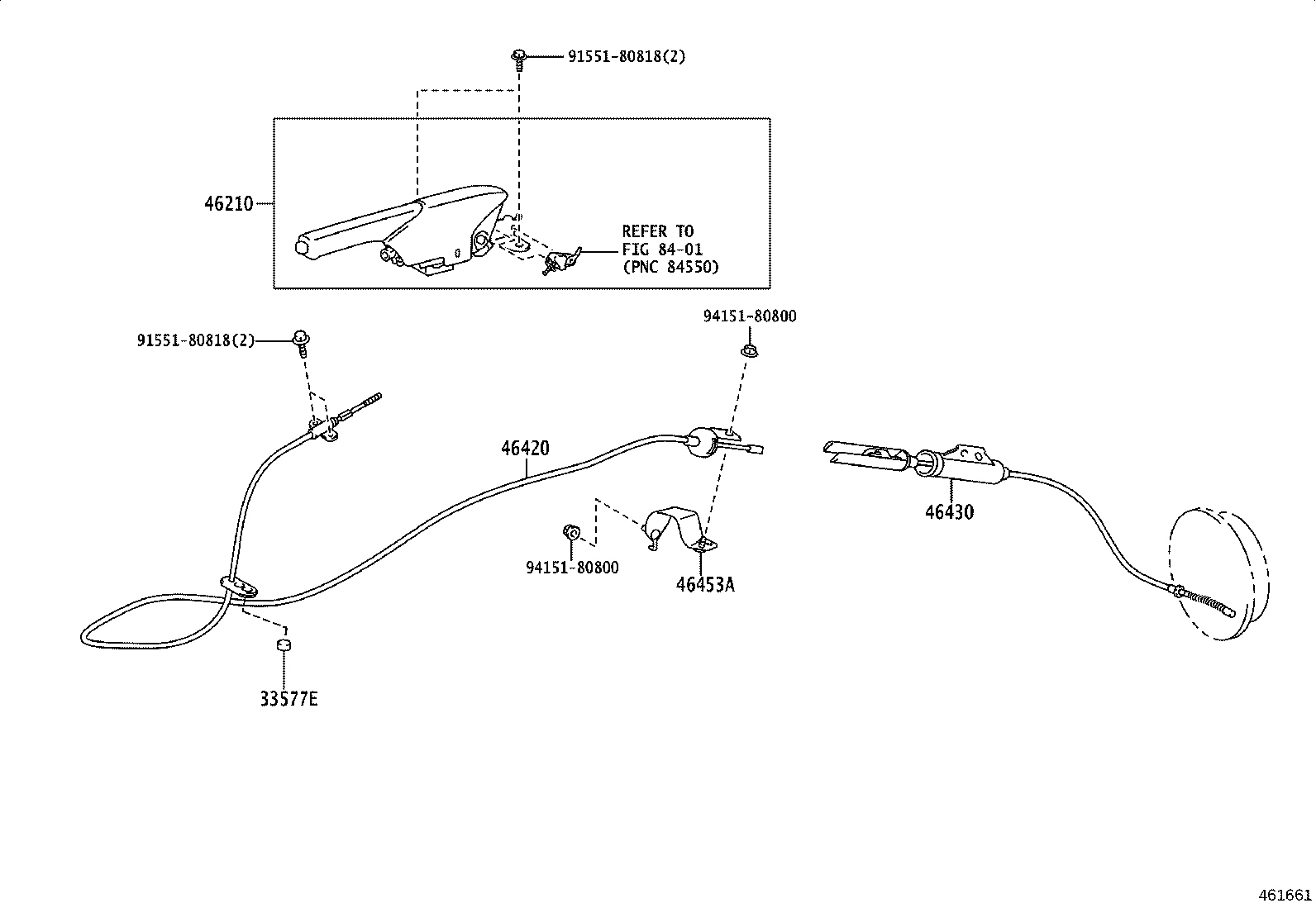

ILLUST NO. 1 OF 2(1905- )DCRWD
ﾅｼ(ﾃﾞﾝﾄﾞｳﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33577E - GROMMET, SHIFT CABLE | ||||
| 33577-37050 |
XKC605,XKU605,645,655..DCRWD |
1 | ||
| 46210 - LEVER ASSY, PARKING BRAKE | ||||
| 46210-37130C0 |
XKC605,XKU605,645,655..DCRWD..(CBU,IV3) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径200ﾐﾘ),BLACK,TRIM1# |
1 | ||
| 46420 - CABLE ASSY, PARKING BRAKE, NO.2 | ||||
| 46420-37D60 |
XKC605,XKU605,645,655..DCRWD |
1 | ||
| 46420-37D21 |
XKC605,XKU605,645,655..DCRWD..(CBU,IV3) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径200ﾐﾘ) |
1 | ||
| 46430 - CABLE ASSY, PARKING BRAKE, NO.3 | ||||
| 46430-37J10 |
XKC605,XKU605,645,655..DCRWD..(CBU,IV3) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径200ﾐﾘ) |
1 | ||
| 46430-37K00 |
XKC605,XKU605,645,655..DCRWD |
1 | ||
| 46453A - BRACKET, CABLE SUPPORT, NO.3 | ||||
| 46453-37441 |
XKC605,XKU605,645,655..DCRWD |
1 | ||
| Common parts | ||||
| 91551-80818 | ||||
| 94151-80800 | ||||
| Linked diagrams | ||||
| 8401 | ||||

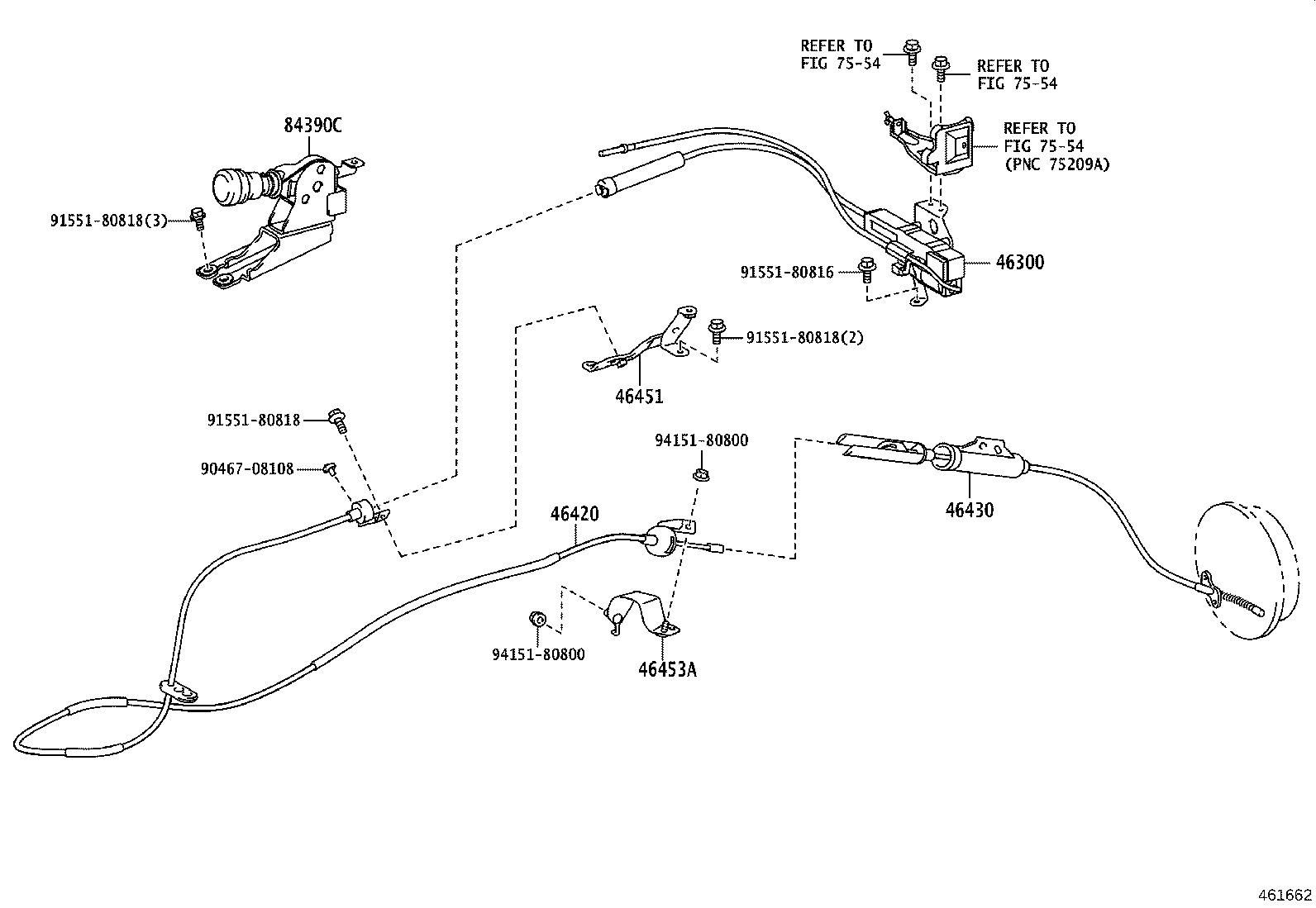

ILLUST NO. 1 OF 2(1905- )DCRWD
ｱﾘ(ﾃﾞﾝﾄﾞｳﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46300 - ACTUATOR ASSY, PARKING BRAKE W/BRACKET | ||||
| 46300-37054 |
XKC605,XKU605,645,655..DCRWD..(CBU,IV3) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径200ﾐﾘ) |
1 | ||
| 46300-37053 |
XKC605,XKU605,645,655..DCRWD..(CBU,IV3) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径200ﾐﾘ) |
1 | ||
| 46300-37053 |
XKC605,XKU605,645,655..DCRWD |
1 | ||
| 46300-37054 |
XKC605,XKU605,645,655..DCRWD |
1 | ||
| 46420 - CABLE ASSY, PARKING BRAKE, NO.2 | ||||
| 46420-37D60 |
XKC605,XKU605,645,655..DCRWD |
1 | ||
| 46420-37D21 |
XKC605,XKU605,645,655..DCRWD..(CBU,IV3) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径200ﾐﾘ) |
1 | ||
| 46430 - CABLE ASSY, PARKING BRAKE, NO.3 | ||||
| 46430-37J10 |
XKC605,XKU605,645,655..DCRWD..(CBU,IV3) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径200ﾐﾘ) |
1 | ||
| 46430-37K00 |
XKC605,XKU605,645,655..DCRWD |
1 | ||
| 46451 - BRACKET, CABLE SUPPORT | ||||
| 46451-37080 |
XKC605,XKU605,645,655..DCRWD..(CBU,IV3) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径200ﾐﾘ) |
1 | ||
| 46451-37080 |
XKC605,XKU605,645,655..DCRWD |
1 | ||
| 46453A - BRACKET, CABLE SUPPORT, NO.3 | ||||
| 46453-37441 |
XKC605,XKU605,645,655..DCRWD |
1 | ||
| 84390C - SWITCH ASSY, ELECTRIC PARKING BRAKE | ||||
| 84390-37040C0 |
XKC605,XKU605,645,655..DCRWD BLACK,TRIM1# |
1 | ||
| 84390-37040C0 |
XKC605,XKU605,645,655..DCRWD..(CBU,IV3) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径200ﾐﾘ),BLACK,TRIM1# |
1 | ||
| Common parts | ||||
| 90467-08108 | ||||
| 91551-80816 | ||||
| 91551-80818 | ||||
| 94151-80800 | ||||
| Linked diagrams | ||||
| 7554 | ||||

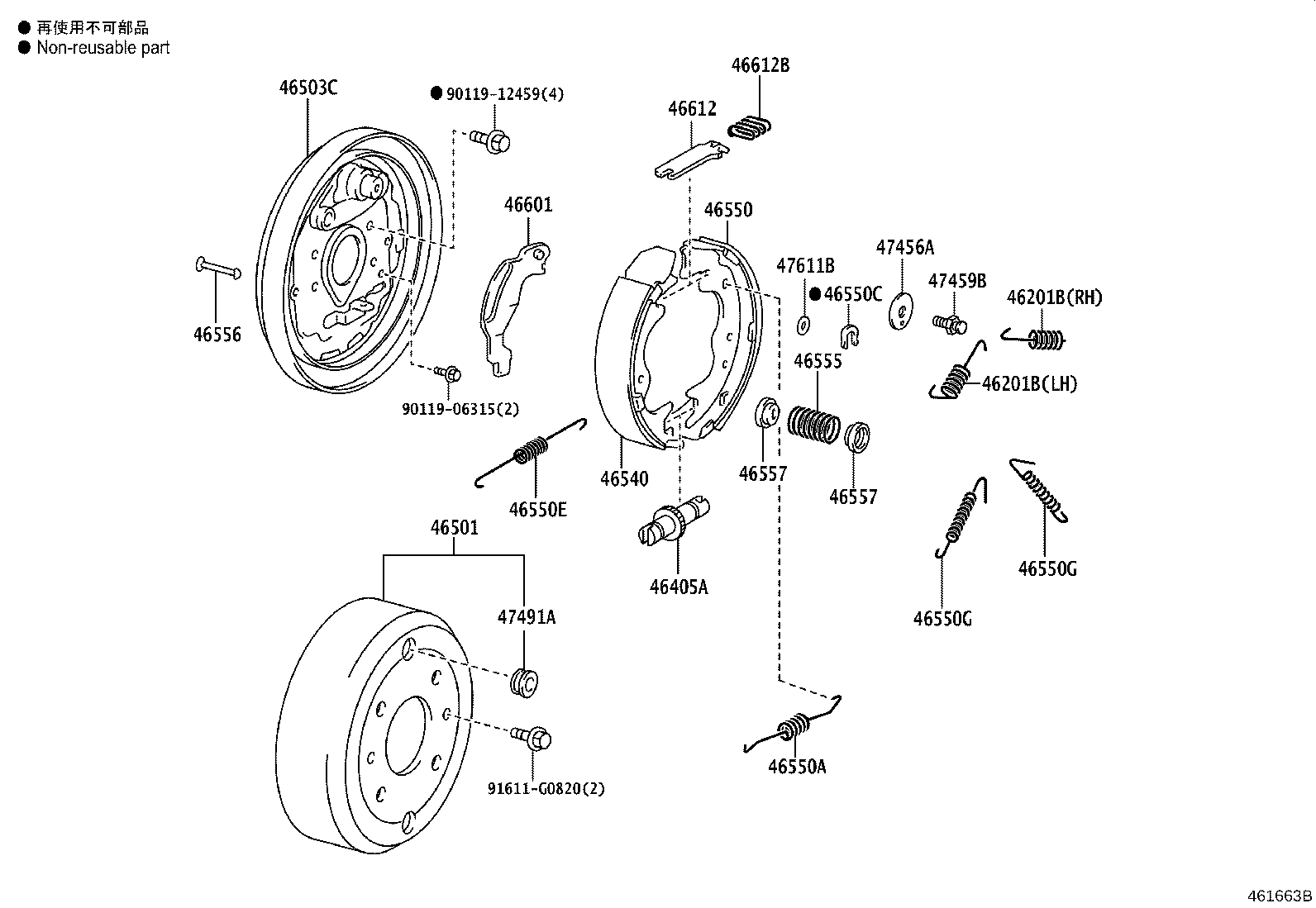

ILLUST NO. 2 OF 2(1905- )DCRWD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46201B - SPRING, TENSION | ||||
| 90507-20020 |
XKC605,XKU605,645,655..DCRWD 右側 |
1 | ||
| 90507-20021 |
XKC605,XKU605,645,655..DCRWD 左側 |
1 | ||
| 46201B - SPRING, TENSION | ||||
| 90507-20020 |
XKC605,XKU605,645,655..DCRWD 右側 |
1 | ||
| 90507-20021 |
XKC605,XKU605,645,655..DCRWD 左側 |
1 | ||
| 46405A - SCREW SET, SHOE ADJUSTING, RH | ||||
| 47405-36010 |
XKC605,XKU605,645,655..DCRWD |
1 | ||
| 46501 - DRUM SUB-ASSY, PARKING BRAKE | ||||
| 46501-37090 |
XKC605,XKU605,645,655..DCRWD |
1 | ||
| 46503C - PLATE SUB-ASSY, PARKING BRAKE | ||||
| 46503-37E90 |
XKC605,XKU605,645,655..DCRWD |
1 | ||
| 46540 - SHOE ASSY, PARKING BRAKE, RH OR CENTER NO.1 | ||||
| 46540-37060 |
XKC605,XKU605,645,655..DCRWD |
1 | ||
| 46550 - SHOE ASSY, PARKING BRAKE, RH OR CENTER NO.2 | ||||
| 46550-37050 |
XKC605,XKU605,645,655..DCRWD |
1 | ||
| 46550A - SPRING, TENSION, NO.1(FOR PARKING BRAKE SHOE RETURN) | ||||
| 90506-23055 |
XKC605,XKU605,645,655..DCRWD |
1 | ||
| 46550C - WASHER, TYPE C(FOR PARKING BRAKE SHOE) | ||||
| 90213-07002 |
XKC605,XKU605,645,655..DCRWD |
1 | ||
| 46550E - SPRING, TENSION, NO.2(FOR PARKING BRAKE SHOE RETURN) | ||||
| 90506-14054 |
XKC605,XKU605,645,655..DCRWD |
1 | ||
| 46550G - SPRING, TENSION, NO.3(FOR PARKING BRAKE SHOE RETURN) | ||||
| 90905-06020 |
XKC605,XKU605,645,655..DCRWD |
2 | ||
| 46550G - SPRING, TENSION, NO.3(FOR PARKING BRAKE SHOE RETURN) | ||||
| 90905-06020 |
XKC605,XKU605,645,655..DCRWD |
2 | ||
| 46555 - SPRING, BRAKE SHOE HOLD DOWN | ||||
| 90501-16108 |
XKC605,XKU605,645,655..DCRWD |
2 | ||
| 46556 - PIN, SHOE HOLD DOWN SPRING | ||||
| 47447-20030 |
XKC605,XKU605,645,655..DCRWD |
2 | ||
| 46557 - CUP, BRAKE SHOE HOLD DOWN | ||||
| 47449-20011 |
XKC605,XKU605,645,655..DCRWD |
4 | ||
| 46557 - CUP, BRAKE SHOE HOLD DOWN | ||||
| 47449-20011 |
XKC605,XKU605,645,655..DCRWD |
4 | ||
| 46601 - LEVER SUB-ASSY, PARKING BRAKE SHOE | ||||
| 46601-37E80 |
XKC605,XKU605,645,655..DCRWD |
1 | ||
| 46612 - STRUT, PARKING BRAKE SHOE LEVER | ||||
| 46612-36050 |
XKC605,XKU605,645,655..DCRWD |
1 | ||
| 46612B - SPRING, COMPRESSION(FOR PARKING BRAKE SHOE STRUT) | ||||
| 90504-10010 |
XKC605,XKU605,645,655..DCRWD |
1 | ||
| 47456A - PLATE, SHOE GUIDE(FOR PARKING BRAKE) | ||||
| 47456-35010 |
XKC605,XKU605,645,655..DCRWD |
1 | ||
| 47459B - BOLT, SHOE GUIDE PLATE SET(FOR PARKING BRAKE) | ||||
| 47459-30010 |
XKC605,XKU605,645,655..DCRWD |
1 | ||
| 47491A - PLUG, SHOE ADJUSTING HOLE(FOR PARKING BRAKE SHOE) | ||||
| 46515-37040 |
XKC605,XKU605,645,655..DCRWD |
2 | ||
| 47611B - SHIM(FOR PARKING BRAKE SHOE LEVER) | ||||
| 90564-09185 |
XKC605,XKU605,645,655..DCRWD 厚さ=0.6 |
1 | ||
| 90564-09002 |
XKC605,XKU605,645,655..DCRWD 厚さ=0.4 |
1 | ||
| 90564-09184 |
XKC605,XKU605,645,655..DCRWD 厚さ=0.3 |
1 | ||
| 90564-09186 |
XKC605,XKU605,645,655..DCRWD 厚さ=0.9 |
1 | ||
| Common parts | ||||
| 90119-06315 | ||||
| 90119-12459 | ||||
| 91611-G0820 | ||||
