XKC605-TQVMX3 (2019)
Toyota Dyna/Toyoace Hv

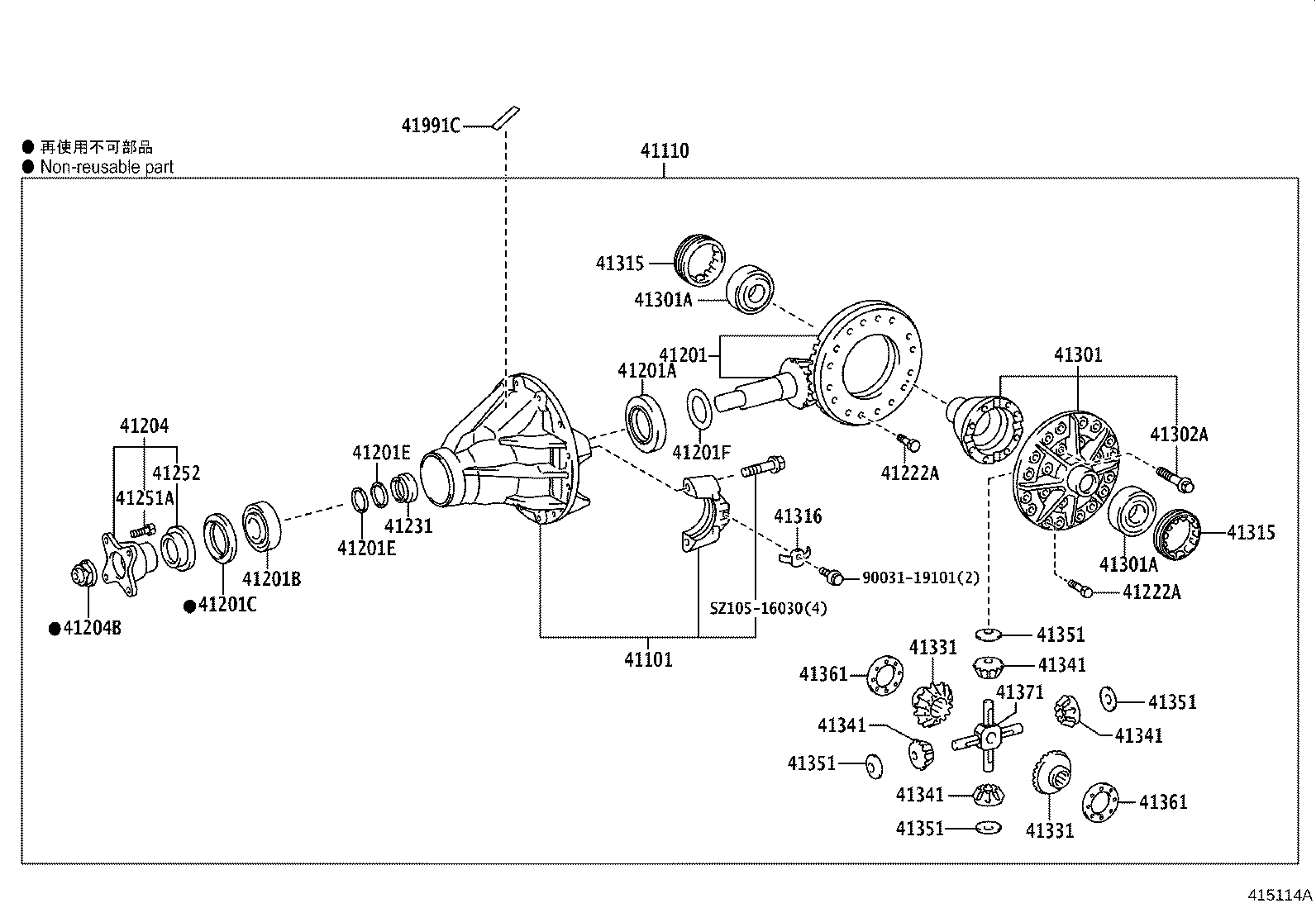

ILLUST NO. 1 OF 2(1905- )20T..DCRWD..CBU,IV3
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 41101 - CARRIER SUB-ASSY, DIFFERENTIAL, REAR | ||||
| 41101-37080 |
XKC605,XKU605,655..20T..DCRWD..(CBU,IV3) |
1 | ||
| 41110 - CARRIER ASSY, DIFFERENTIAL, REAR | ||||
| 41110-37800 |
XKC605,XKU605,655..20T..DCRWD..(CBU,IV3) *FGR=39:10=3.900 |
1 | ||
| 41110-37840 |
XKC605,XKU605,655..T4..20T..DCRWD *FGR=41:10=4.100,ﾘﾔ ﾃﾞｨﾌｧﾚﾝｼｬﾙ−12ｲﾝﾁ,最終減速比≠S.100 |
1 | ||
| 41201 - FINAL GEAR KIT, DIFFERENTIAL, REAR | ||||
| 41201-37470 |
XKC605,XKU605,655..20T..DCRWD..(CBU,IV3) *FGR=39:10=3.900 |
1 | ||
| 41201-37480 |
XKC605,XKU605,655..T4..20T..DCRWD *FGR=41:10=4.100,ﾘﾔ ﾃﾞｨﾌｧﾚﾝｼｬﾙ−12ｲﾝﾁ,最終減速比≠S.100 |
1 | ||
| 41201A - BEARING (FOR REAR DRIVE PINION REAR) | ||||
| 90366-55088 |
XKC605,XKU605,655..20T..DCRWD..(CBU,IV3) |
1 | ||
| 41201B - BEARING (FOR REAR DRIVE PINION FRONT) | ||||
| 90366-45065 |
XKC605,XKU605,655..20T..DCRWD..(CBU,IV3) |
1 | ||
| 41201C - SEAL, OIL (FOR REAR DIFFERENTIAL CARRIER) | ||||
| 90311-65005 |
XKC605,XKU605,655..20T..DCRWD..(CBU,IV3) |
1 | ||
| 41201E - SHIM (FOR REAR DIFF DRIVE PINION SPACER FRONT ADJUST) | ||||
| 90564-45236 |
XKC605,XKU605,655..20T..DCRWD..(CBU,IV3) 厚さ=1.86 |
1 | ||
| 90564-45234 |
XKC605,XKU605,655..20T..DCRWD..(CBU,IV3) 厚さ=1.84 |
1 | ||
| 90564-45218 |
XKC605,XKU605,655..20T..DCRWD..(CBU,IV3) 厚さ=1.90 |
1 | ||
| 90564-45221 |
XKC605,XKU605,655..20T..DCRWD..(CBU,IV3) 厚さ=2.20 |
1 | ||
| 90564-45224 |
XKC605,XKU605,655..20T..DCRWD..(CBU,IV3) 厚さ=2.50 |
1 | ||
| 90564-45225 |
XKC605,XKU605,655..20T..DCRWD..(CBU,IV3) 厚さ=2.60 |
1 | ||
| 90564-45220 |
XKC605,XKU605,655..20T..DCRWD..(CBU,IV3) 厚さ=2.10 |
1 | ||
| 90564-45223 |
XKC605,XKU605,655..20T..DCRWD..(CBU,IV3) 厚さ=2.40 |
1 | ||
| 90564-45228 |
XKC605,XKU605,655..20T..DCRWD..(CBU,IV3) 厚さ=2.90 |
1 | ||
| 90564-45226 |
XKC605,XKU605,655..20T..DCRWD..(CBU,IV3) 厚さ=2.70 |
1 | ||
| 90564-45230 |
XKC605,XKU605,655..20T..DCRWD..(CBU,IV3) 厚さ=1.80 |
1 | ||
| 90564-45237 |
XKC605,XKU605,655..20T..DCRWD..(CBU,IV3) 厚さ=1.87 |
1 | ||
| 90564-45231 |
XKC605,XKU605,655..20T..DCRWD..(CBU,IV3) 厚さ=1.81 |
1 | ||
| 90564-45219 |
XKC605,XKU605,655..20T..DCRWD..(CBU,IV3) 厚さ=2.00 |
1 | ||
| 90564-45233 |
XKC605,XKU605,655..20T..DCRWD..(CBU,IV3) 厚さ=1.83 |
1 | ||
| 90564-45222 |
XKC605,XKU605,655..20T..DCRWD..(CBU,IV3) 厚さ=2.30 |
1 | ||
| 90564-45229 |
XKC605,XKU605,655..20T..DCRWD..(CBU,IV3) 厚さ=3.00 |
1 | ||
| 90564-45227 |
XKC605,XKU605,655..20T..DCRWD..(CBU,IV3) 厚さ=2.80 |
1 | ||
| 90564-45238 |
XKC605,XKU605,655..20T..DCRWD..(CBU,IV3) 厚さ=1.88 |
1 | ||
| 90564-45232 |
XKC605,XKU605,655..20T..DCRWD..(CBU,IV3) 厚さ=1.82 |
1 | ||
| 90564-45239 |
XKC605,XKU605,655..20T..DCRWD..(CBU,IV3) 厚さ=1.89 |
1 | ||
| 90564-45235 |
XKC605,XKU605,655..20T..DCRWD..(CBU,IV3) 厚さ=1.85 |
1 | ||
| 41201E - SHIM (FOR REAR DIFF DRIVE PINION SPACER FRONT ADJUST) | ||||
| 90564-45236 |
XKC605,XKU605,655..20T..DCRWD..(CBU,IV3) 厚さ=1.86 |
1 | ||
| 90564-45218 |
XKC605,XKU605,655..20T..DCRWD..(CBU,IV3) 厚さ=1.90 |
1 | ||
| 90564-45221 |
XKC605,XKU605,655..20T..DCRWD..(CBU,IV3) 厚さ=2.20 |
1 | ||
| 90564-45224 |
XKC605,XKU605,655..20T..DCRWD..(CBU,IV3) 厚さ=2.50 |
1 | ||
| 90564-45225 |
XKC605,XKU605,655..20T..DCRWD..(CBU,IV3) 厚さ=2.60 |
1 | ||
| 90564-45220 |
XKC605,XKU605,655..20T..DCRWD..(CBU,IV3) 厚さ=2.10 |
1 | ||
| 90564-45223 |
XKC605,XKU605,655..20T..DCRWD..(CBU,IV3) 厚さ=2.40 |
1 | ||
| 90564-45228 |
XKC605,XKU605,655..20T..DCRWD..(CBU,IV3) 厚さ=2.90 |
1 | ||
| 90564-45226 |
XKC605,XKU605,655..20T..DCRWD..(CBU,IV3) 厚さ=2.70 |
1 | ||
| 90564-45234 |
XKC605,XKU605,655..20T..DCRWD..(CBU,IV3) 厚さ=1.84 |
1 | ||
| 90564-45230 |
XKC605,XKU605,655..20T..DCRWD..(CBU,IV3) 厚さ=1.80 |
1 | ||
| 90564-45237 |
XKC605,XKU605,655..20T..DCRWD..(CBU,IV3) 厚さ=1.87 |
1 | ||
| 90564-45231 |
XKC605,XKU605,655..20T..DCRWD..(CBU,IV3) 厚さ=1.81 |
1 | ||
| 90564-45219 |
XKC605,XKU605,655..20T..DCRWD..(CBU,IV3) 厚さ=2.00 |
1 | ||
| 90564-45233 |
XKC605,XKU605,655..20T..DCRWD..(CBU,IV3) 厚さ=1.83 |
1 | ||
| 90564-45222 |
XKC605,XKU605,655..20T..DCRWD..(CBU,IV3) 厚さ=2.30 |
1 | ||
| 90564-45229 |
XKC605,XKU605,655..20T..DCRWD..(CBU,IV3) 厚さ=3.00 |
1 | ||
| 90564-45227 |
XKC605,XKU605,655..20T..DCRWD..(CBU,IV3) 厚さ=2.80 |
1 | ||
| 90564-45238 |
XKC605,XKU605,655..20T..DCRWD..(CBU,IV3) 厚さ=1.88 |
1 | ||
| 90564-45232 |
XKC605,XKU605,655..20T..DCRWD..(CBU,IV3) 厚さ=1.82 |
1 | ||
| 90564-45239 |
XKC605,XKU605,655..20T..DCRWD..(CBU,IV3) 厚さ=1.89 |
1 | ||
| 90564-45235 |
XKC605,XKU605,655..20T..DCRWD..(CBU,IV3) 厚さ=1.85 |
1 | ||
| 41201F - SHIM (FOR REAR DIFF DRIVE PINION SPACER REAR ADJUST) | ||||
| 90564-55115 |
XKC605,XKU605,655..20T..DCRWD..(CBU,IV3) 厚さ=1.28 |
1 | ||
| 90564-55117 |
XKC605,XKU605,655..20T..DCRWD..(CBU,IV3) 厚さ=1.33 |
1 | ||
| 90564-55119 |
XKC605,XKU605,655..20T..DCRWD..(CBU,IV3) 厚さ=1.38 |
1 | ||
| 90564-55122 |
XKC605,XKU605,655..20T..DCRWD..(CBU,IV3) 厚さ=1.45 |
1 | ||
| 90564-55123 |
XKC605,XKU605,655..20T..DCRWD..(CBU,IV3) 厚さ=1.48 |
1 | ||
| 90564-55124 |
XKC605,XKU605,655..20T..DCRWD..(CBU,IV3) 厚さ=1.50 |
1 | ||
| 90564-55125 |
XKC605,XKU605,655..20T..DCRWD..(CBU,IV3) 厚さ=1.53 |
1 | ||
| 90564-55121 |
XKC605,XKU605,655..20T..DCRWD..(CBU,IV3) 厚さ=1.43 |
1 | ||
| 90564-55118 |
XKC605,XKU605,655..20T..DCRWD..(CBU,IV3) 厚さ=1.35 |
1 | ||
| 90564-55128 |
XKC605,XKU605,655..20T..DCRWD..(CBU,IV3) 厚さ=1.60 |
1 | ||
| 90564-55116 |
XKC605,XKU605,655..20T..DCRWD..(CBU,IV3) 厚さ=1.30 |
1 | ||
| 90564-55126 |
XKC605,XKU605,655..20T..DCRWD..(CBU,IV3) 厚さ=1.55 |
1 | ||
| 90564-55120 |
XKC605,XKU605,655..20T..DCRWD..(CBU,IV3) 厚さ=1.40 |
1 | ||
| 90564-55133 |
XKC605,XKU605,655..20T..DCRWD..(CBU,IV3) 厚さ=1.73 |
1 | ||
| 90564-55130 |
XKC605,XKU605,655..20T..DCRWD..(CBU,IV3) 厚さ=1.65 |
1 | ||
| 90564-55129 |
XKC605,XKU605,655..20T..DCRWD..(CBU,IV3) 厚さ=1.63 |
1 | ||
| 90564-55127 |
XKC605,XKU605,655..20T..DCRWD..(CBU,IV3) 厚さ=1.58 |
1 | ||
| 90564-55131 |
XKC605,XKU605,655..20T..DCRWD..(CBU,IV3) 厚さ=1.68 |
1 | ||
| 90564-55134 |
XKC605,XKU605,655..20T..DCRWD..(CBU,IV3) 厚さ=1.75 |
1 | ||
| 90564-55114 |
XKC605,XKU605,655..20T..DCRWD..(CBU,IV3) 厚さ=1.25 |
1 | ||
| 90564-55132 |
XKC605,XKU605,655..20T..DCRWD..(CBU,IV3) 厚さ=1.70 |
1 | ||
| 41204 - FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR | ||||
| 41204-37130 |
XKC605,XKU605,655..20T..DCRWD..(CBU,IV3) |
1 | ||
| 41204B - NUT (FOR REAR DRIVE PINION) | ||||
| 90179-30003 |
XKC605,XKU605,655..20T..DCRWD..(CBU,IV3) |
1 | ||
| 41222A - BOLT (FOR REAR DIFFERENTIAL RING GEAR SET) | ||||
| 90031-01203 |
XKC605,XKU605,655..20T..DCRWD..(CBU,IV3) |
16 | ||
| 41222A - BOLT (FOR REAR DIFFERENTIAL RING GEAR SET) | ||||
| 90031-01203 |
XKC605,XKU605,655..20T..DCRWD..(CBU,IV3) |
16 | ||
| 41231 - SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING | ||||
| 41231-37640 |
XKC605,XKU605,655..20T..DCRWD..(CBU,IV3) |
1 | ||
| 41251A - BOLT(FOR DRIVE PINION COMPANION FLANGE) | ||||
| 90031-01165 |
XKC605,XKU605,655..20T..DCRWD..(CBU,IV3) |
4 | ||
| 41252 - DEFLECTOR, DUST (FOR REAR DIFFERENTIAL) | ||||
| 41252-37060 |
XKC605,XKU605,655..20T..DCRWD..(CBU,IV3) |
1 | ||
| 41301 - CASE SUB-ASSY, REAR DIFFERENTIAL | ||||
| 41301-37080 |
XKC605,XKU605,655..20T..DCRWD..(CBU,IV3) |
1 | ||
| 41301-37090 |
XKC605,XKU605,655..T4..20T..DCRWD ﾘﾔ ﾃﾞｨﾌｧﾚﾝｼｬﾙ−12ｲﾝﾁ,最終減速比=4.100 |
1 | ||
| 41301A - BEARING(FOR REAR DIFFERENTIAL CASE) | ||||
| 90366-55089 |
XKC605,XKU605,655..20T..DCRWD..(CBU,IV3) |
2 | ||
| 41301A - BEARING(FOR REAR DIFFERENTIAL CASE) | ||||
| 90366-55089 |
XKC605,XKU605,655..20T..DCRWD..(CBU,IV3) |
2 | ||
| 41302A - BOLT(FOR REAR DIFFERENTIAL CASE) | ||||
| 90031-05098 |
XKC605,XKU605,655..20T..DCRWD..(CBU,IV3) |
8 | ||
| 41315 - NUT, REAR DIFFERENTIAL BEARING ADJUSTING | ||||
| 41315-37020 |
XKC605,XKU605,645,655..DCRWD |
2 | ||
| 41315 - NUT, REAR DIFFERENTIAL BEARING ADJUSTING | ||||
| 41315-37020 |
XKC605,XKU605,645,655..DCRWD |
2 | ||
| 41316 - LOCK, REAR DIFFERENTIAL BEARING ADJUSTING NUT | ||||
| 41316-37010 |
XKC605,XKU605,645,655..DCRWD |
2 | ||
| 41331 - GEAR, REAR DIFFERENTIAL SIDE | ||||
| 41331-37040 |
XKC605,XKU605,645,655..DCRWD |
2 | ||
| 41331 - GEAR, REAR DIFFERENTIAL SIDE | ||||
| 41331-37040 |
XKC605,XKU605,645,655..DCRWD |
2 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-37030 |
XKC605,XKU605,645,655..DCRWD |
4 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-37030 |
XKC605,XKU605,645,655..DCRWD |
4 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-37030 |
XKC605,XKU605,645,655..DCRWD |
4 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-37030 |
XKC605,XKU605,645,655..DCRWD |
4 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-37020 |
XKC605,XKU605,645,655..DCRWD |
4 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-37020 |
XKC605,XKU605,645,655..DCRWD |
4 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-37020 |
XKC605,XKU605,645,655..DCRWD |
4 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-37020 |
XKC605,XKU605,645,655..DCRWD |
4 | ||
| 41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-37030 |
XKC605,XKU605,645,655..DCRWD 厚さ=2.0 |
2 | ||
| 41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-37030 |
XKC605,XKU605,645,655..DCRWD 厚さ=2.0 |
2 | ||
| 41371 - SPIDER, REAR DIFFERENTIAL | ||||
| 41371-37030 |
XKC605,XKU605,645,655..DCRWD |
1 | ||
| 41991C - CAUTION PLATE, REAR DIFFERENTIAL | ||||
| S7655-33370 |
XKC605,XKU605,655..20T..DCRWD..(CBU,IV3) |
1 | ||
| S7655-34410 |
XKC605,XKU605,655..T4..20T..DCRWD ﾘﾔ ﾃﾞｨﾌｧﾚﾝｼｬﾙ−12ｲﾝﾁ,最終減速比=4.100 |
1 | ||
| Common parts | ||||
| 90031-19101 | ||||
| SZ105-16030 | ||||
