XKC605-TQVMX3 (2019)

Toyota Dyna/Toyoace Hv

Production May 2019 - Sep 9999
Engine N04C
Transmission 6F AMT
Displacement 2500cc
Power 168 HP (125 kW)

(1905- )DCRWD

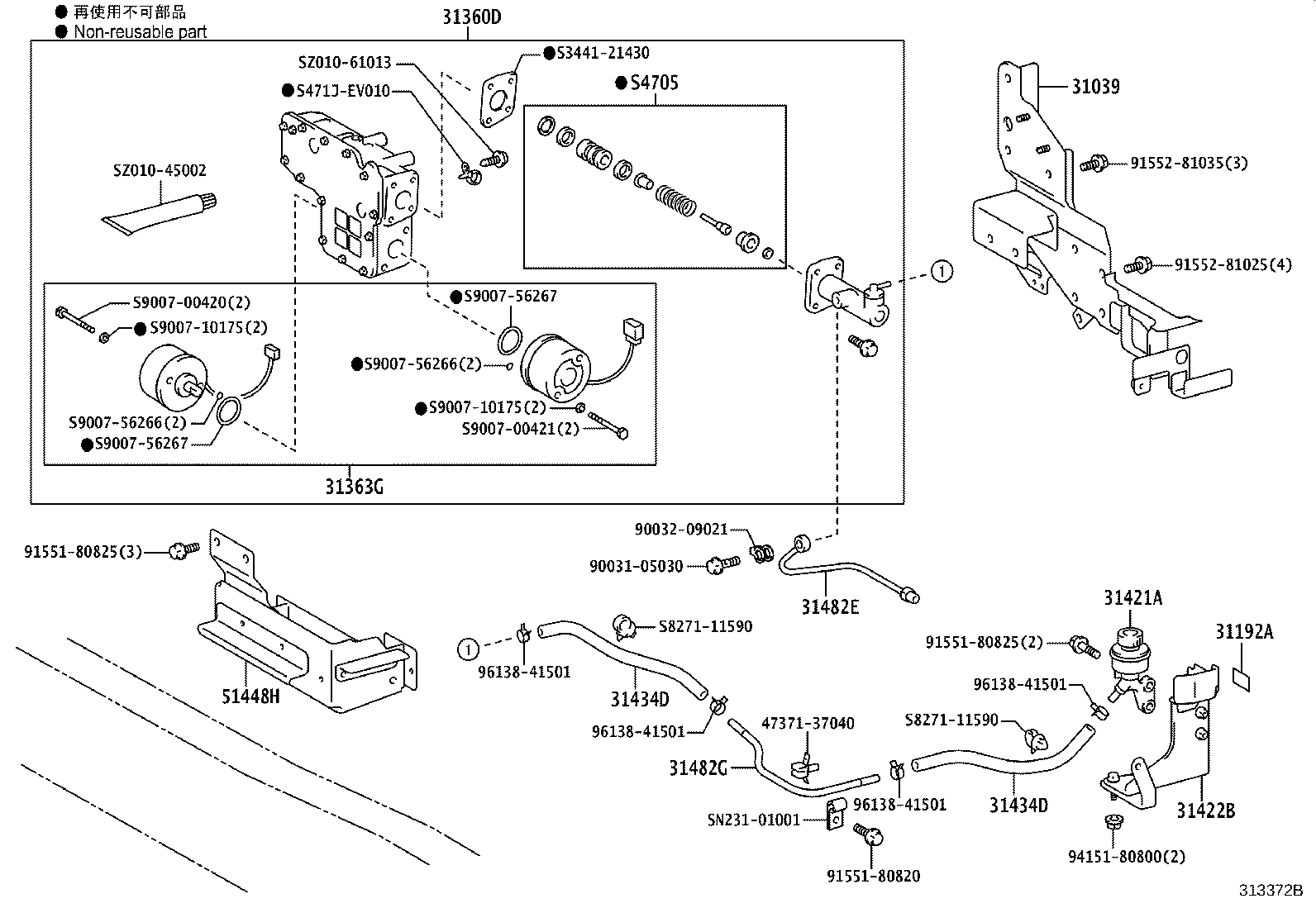

Click highlighted areas on diagram

diagram 31039 31192A 31360D 31363G 31421A 31422B 31434D 31434D 31482E 31482G 4737137040 51448H 9003105030 9003209021 9155180820 9155180825 9155180825 9155281025 9155281035 9415180800 9613841501 9613841501 9613841501 9613841501 S344121430 S4705 S471JEV010 S827111590 S827111590 S900700420 S900700421 S900710175 S900710175 S900756266 S900756266 S900756267 S900756267 SN23101001 SZ01045002 SZ01061013
Part # Description Qty Price
31039 - SUPPORT SUB-ASSY, CLUTCH RELEASE SECTOR
31039-37021

XKC605,XKU605,645,655..DCRWD

 1
31192A - LABEL, CLUTCH NOTICE
31192-37020

XKC605,XKU605,645,655..DCRWD

 1
31360D - ACTUATOR ASSY, CLUTCH
31360-37020

XKC605,XKU605,645,655..DCRWD

 1
31363G - MOTOR, CLUTCH ACTUATOR
31363-37010

XKC605,XKU605,645,655..DCRWD

 1
31421A - RESERVOIR, CLUTCH ACTUATOR
31421-37010

XKC605,XKU605,645,655..DCRWD

 1
31422B - BRACKET, CLUTCH RESERVOIR
31422-37020

XKC605,XKU605,645,655..DCRWD

 1
31434D - TUBE, CLUTCH RESERVOIR
31434-37310

XKC605,XKU605,645,655..DCRWD

 2
31434D - TUBE, CLUTCH RESERVOIR
31434-37310

XKC605,XKU605,645,655..DCRWD

 2
31482E - TUBE, CLUTCH RELEASE, NO.1
31482-37431

XKC605,XKU605,645,655..DCRWD

 1
31482G - TUBE, CLUTCH RELEASE, NO.2
31482-37450

XKC605,XKU605,645,655..DCRWD

 1
51448H - PROTECTOR, MOTOR UNDER SIDE
51448-37300

XKC605,XKU605,645,655..DCRWD

 1
S4705 - REPAIR KIT, CUP
S4705-91370

XKC605,XKU605,645,655..DCRWD

 1
Common parts
47371-37040
90031-05030
90032-09021
91551-80820
91551-80825
91552-81025
91552-81035
94151-80800
96138-41501
S3441-21430
S471J-EV010
S8271-11590
S9007-00420
S9007-00421
S9007-10175
S9007-56266
S9007-56267
SN231-01001
SZ010-45002
SZ010-61013
