XKC605-TQVMX3 (2019)
Toyota Dyna/Toyoace Hv
Production
May 2019
-
Sep 9999
Engine
N04C
Transmission
6F AMT
Displacement
2500cc
Power
168 HP (125 kW)
(1905- )DCRWD

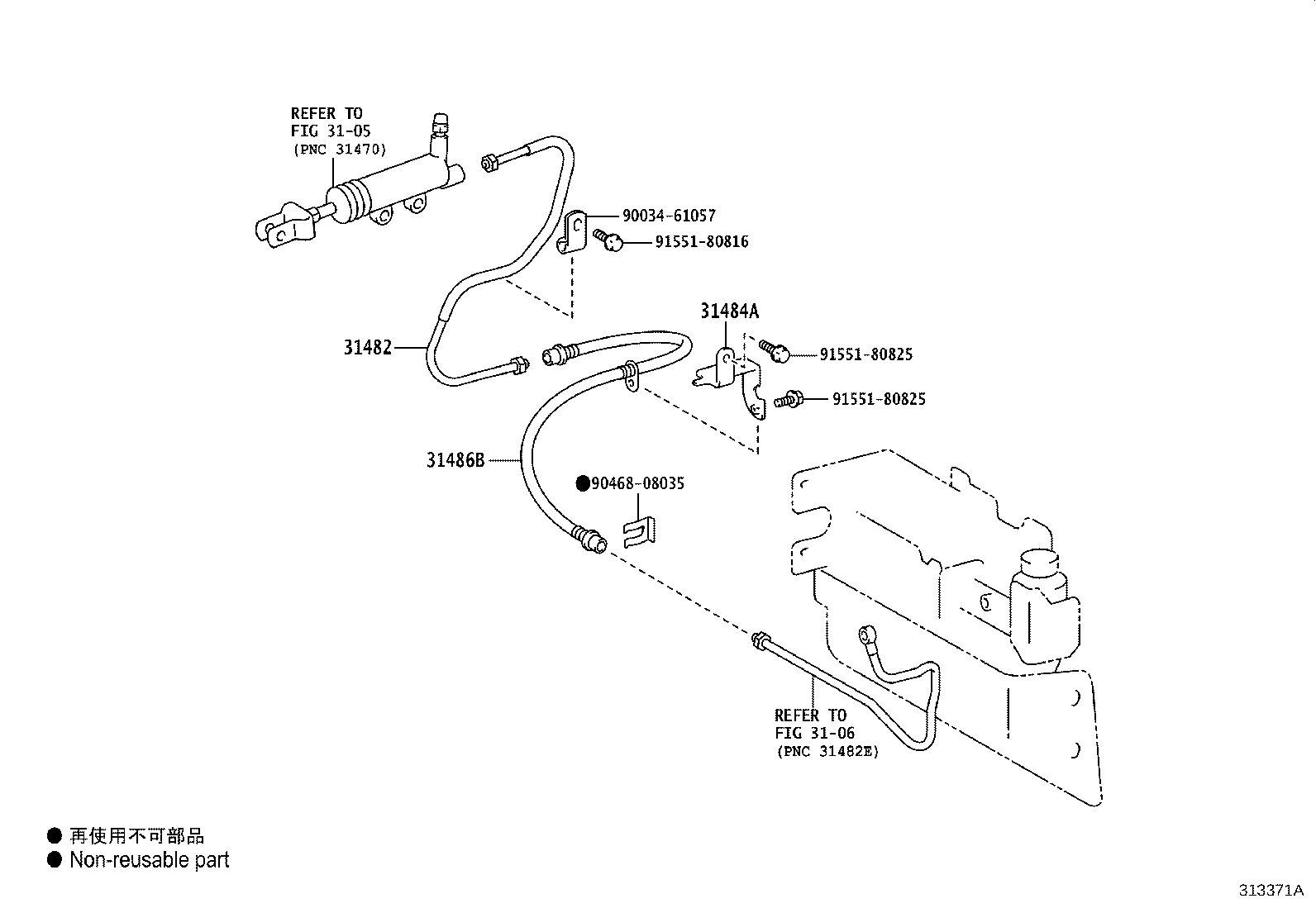

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31482 - TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE | ||||
| 31482-37461 |
XKC605,XKU605,645,655..DCRWD |
1 | ||
| 31484A - BRACKET, FLEXIBLE HOSE, NO.1(FOR CLUTCH) | ||||
| 31484-37480 |
XKC605,XKU605,645,655..DCRWD |
1 | ||
| 31484-37481 |
XKC605,XKU605,645,655..DCRWD |
1 | ||
| 31486B - HOSE, MASTER CYLINDER TO RELEASE CYLINDER | ||||
| 31486-37211 |
XKC605,XKU605,645,655..DCRWD |
1 | ||
| 31486-37212 |
XKC605,XKU605,645,655..DCRWD |
1 | ||
| Common parts | ||||
| 90034-61057 | ||||
| 90468-08035 | ||||
| 91551-80816 | ||||
| 91551-80825 | ||||
| Linked diagrams | ||||
| 3105 | ||||
| 3106 | ||||
