Toyota Dyna/toyoace hv XKC605 FUEL FILTER

Part #	Description	Period	Qty
23264D - BRACKET, FUEL FILTER
23264-78090	N04C..XKC605,XKU605,645,655..DCRWD	05/2019 - 12/2999	1
23300D - FILTER ASSY, FUEL(FOR DIESEL)
23300-78500	N04C..XKC605,XKU605,645,655..DCRWD	05/2019 - 09/2020	1
23300-78501	N04C..XKC605,XKU605,645,655..DCRWD	10/2020 - 12/2999	1
23301 - BODY SUB-ASSY, FUEL FILTER
23301-78500	N04C..XKC605,XKU605,645,655..DCRWD	05/2019 - 01/2021	1
23301-78501	N04C..XKC605,XKU605,645,655..DCRWD	01/2021 - 12/2999	1
23304A - ELEMENT SET, FUEL FILTER
23304-78500	N04C..XKC605,XKU605,645,655..DCRWD	05/2019 - 10/2020	1
23304-EV570	N04C..XKC605,XKU605,645,655..DCRWD	10/2020 - 12/2999	1
23328 - GASKET(FOR FUEL FILTER)
23385-78150	N04C..XKC605,XKU605,645,655..DCRWD	05/2020 - 12/2999	1
23385-78150	N04C..XKC605,XKU605,645,655..DCRWD	05/2019 - 05/2020	1
23330 - PREFILTER ASSY, FUEL
23330-78191	N04C..XKC605,XKU605,645,655..DCRWD	05/2019 - 11/2019	1
23330-78201	N04C..XKC605,XKU605,645,655..DCRWD ﾌｭｰｴﾙﾋｰﾀ−有り	05/2019 - 11/2019	1
23330-78490	N04C..XKC605,XKU605,645,655..DCRWD	05/2020 - 12/2999	1
23330-78192	N04C..XKC605,XKU605,645,655..DCRWD	12/2019 - 05/2020	1
23330-78500	N04C..XKC605,XKU605,645,655..DCRWD ﾌｭｰｴﾙﾋｰﾀ−有り	05/2020 - 12/2999	1
23330-78202	N04C..XKC605,XKU605,645,655..DCRWD ﾌｭｰｴﾙﾋｰﾀ−有り	12/2019 - 05/2020	1
23330A - GASKET
SZ010-46251	N04C..XKC605,XKU605,645,655..DCRWD	05/2019 - 10/2020	1
23386-78500	N04C..XKC605,XKU605,645,655..DCRWD	10/2020 - 12/2999	1
23352 - PLUG, BLEEDER
23388-EV020	N04C..XKC605,XKU605,645,655..DCRWD	05/2019 - 12/2999	1
23355 - ELEMENT, PREFILTER
23355-78191	N04C..XKC605,XKU605,645,655..DCRWD	12/2019 - 05/2020	1
23355-78500	N04C..XKC605,XKU605,645,655..DCRWD ﾌｭｰｴﾙﾋｰﾀ−有り	05/2020 - 12/2999	1
23355-78200	N04C..XKC605,XKU605,645,655..DCRWD ﾌｭｰｴﾙﾋｰﾀ−有り	05/2019 - 12/2019	1
23355-78190	N04C..XKC605,XKU605,645,655..DCRWD	05/2019 - 12/2019	1
23355-78292	N04C..XKC605,XKU605,645,655..DCRWD	05/2020 - 12/2999	1
23355-78201	N04C..XKC605,XKU605,645,655..DCRWD ﾌｭｰｴﾙﾋｰﾀ−有り	12/2019 - 05/2020	1
23380 - CAP ASSY, FUEL FILTER
23380-78501	N04C..XKC605,XKU605,645,655..DCRWD	10/2020 - 12/2999	1
23380-78500	N04C..XKC605,XKU605,645,655..DCRWD	05/2019 - 10/2020	1
23382 - CASE, FUEL FILTER
23382-78151	N04C..XKC605,XKU605,645,655..DCRWD	05/2019 - 12/2019	1
23382-78152	N04C..XKC605,XKU605,645,655..DCRWD	12/2019 - 12/2999	1
23383 - UNION, FUEL FILTER
23383-78150	N04C..XKC605,XKU605,645,655..DCRWD	05/2019 - 12/2999	1
23388 - PLUG, FUEL FILTER DRAIN
23388-EV020	N04C..XKC605,XKU605,645,655..DCRWD	05/2019 - 12/2999	1
23388A - PLUG, FUEL FILTER DRAIN
23388-EV060	N04C..XKC605,XKU605,645,655..DCRWD	05/2019 - 12/2999	1
23390 - ELEMENT ASSY, FUEL FILTER
23304-78150	N04C..XKC605,XKU605,645,655..DCRWD	05/2019 - 12/2999	1
23921B - BRACKET(FOR FUEL FILTER)
23921-78541	N04C..XKC605,XKU605,645,655..DCRWD	05/2020 - 12/2999	1
23921-78540	N04C..XKC605,XKU605,645,655..DCRWD	05/2019 - 05/2020	1
Common parts
91551-80830
SH552-11000
SH552-11028
SH552-11050
SZ010-46107
SZ010-46167

XKC605-TQVMX3 (2019)

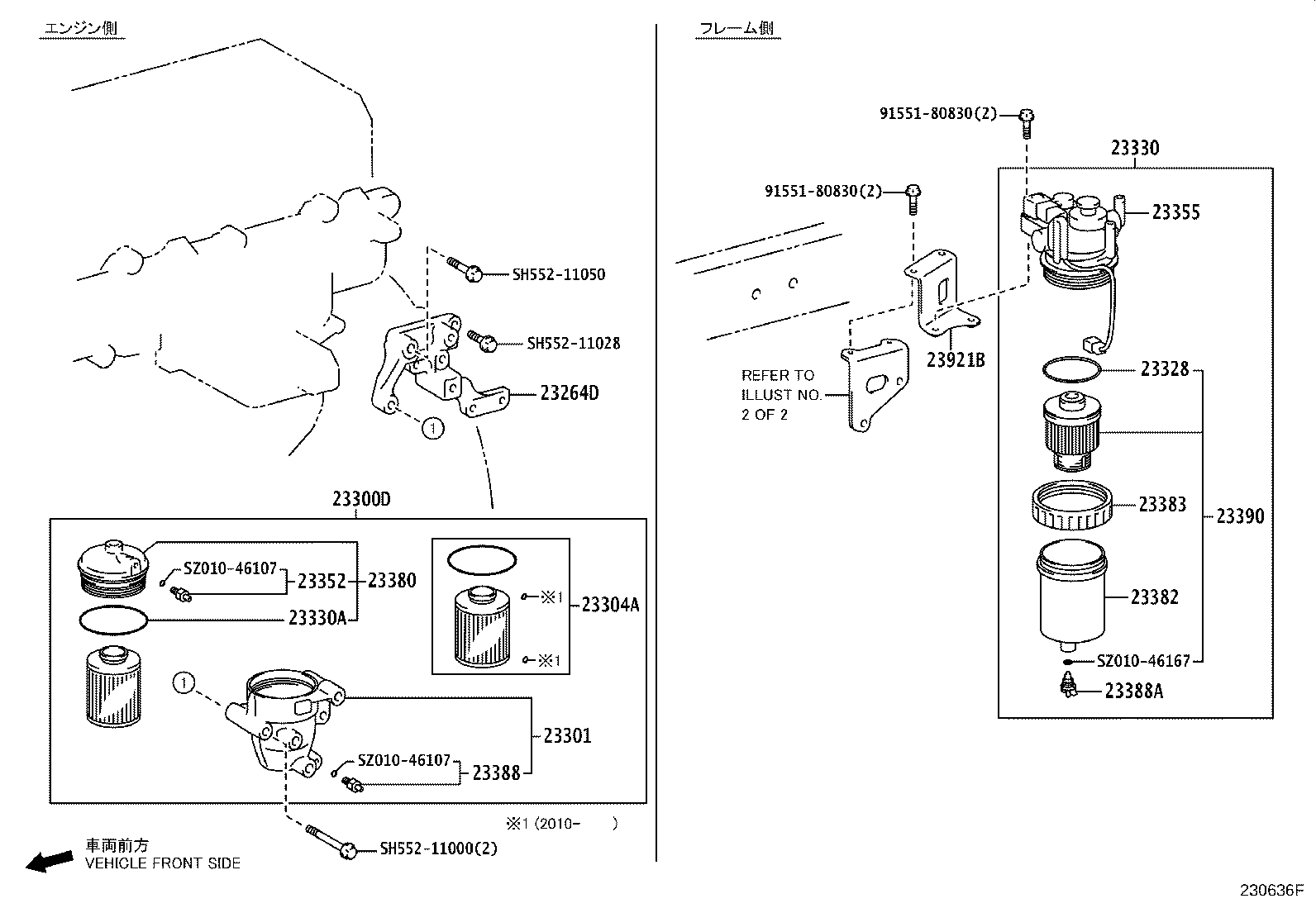

ILLUST NO. 1 OF 2(1905- )N04C..XKC605,XKU605,645,655..DCRWD

ILLUST NO. 2 OF 2(1905- )N04C..XKC605,XKU605,645,655..DCRWD

Part Price Details

Part #	Description	Period	Qty

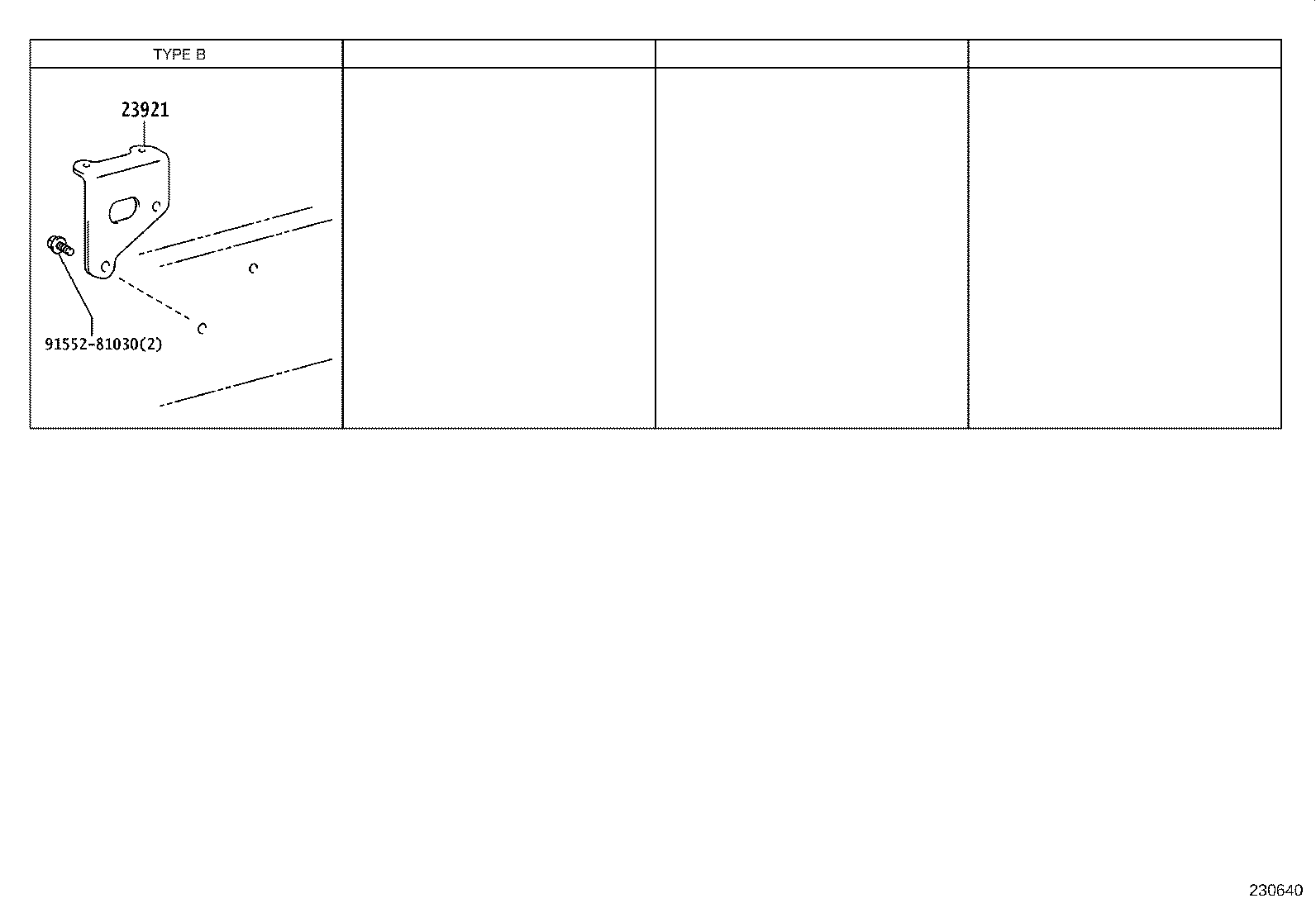

23921 - SUPPORT, FUEL FILTER
23921-78560	N04C..XKC605,XKU605,645,655..DCRWD TYPE B:ｲﾗｽﾄ参照	05/2019 - 04/2020	1
23921-78561	N04C..XKC605,XKU605,645,655..DCRWD TYPE B:ｲﾗｽﾄ参照	05/2020 - 12/2999	1
Common parts
91552-81030
