YU70V-MD (1987)

Toyota Dyna/Toyoace

Production Aug 1987 - Aug 1988
Engine 3Y
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(8708- )BU60,70..HRF,SRF,TW1,TW2,TW4 ; (8708-)BU60,62..T3,TW1..WT..IV3,IV4

Click highlighted areas on diagram

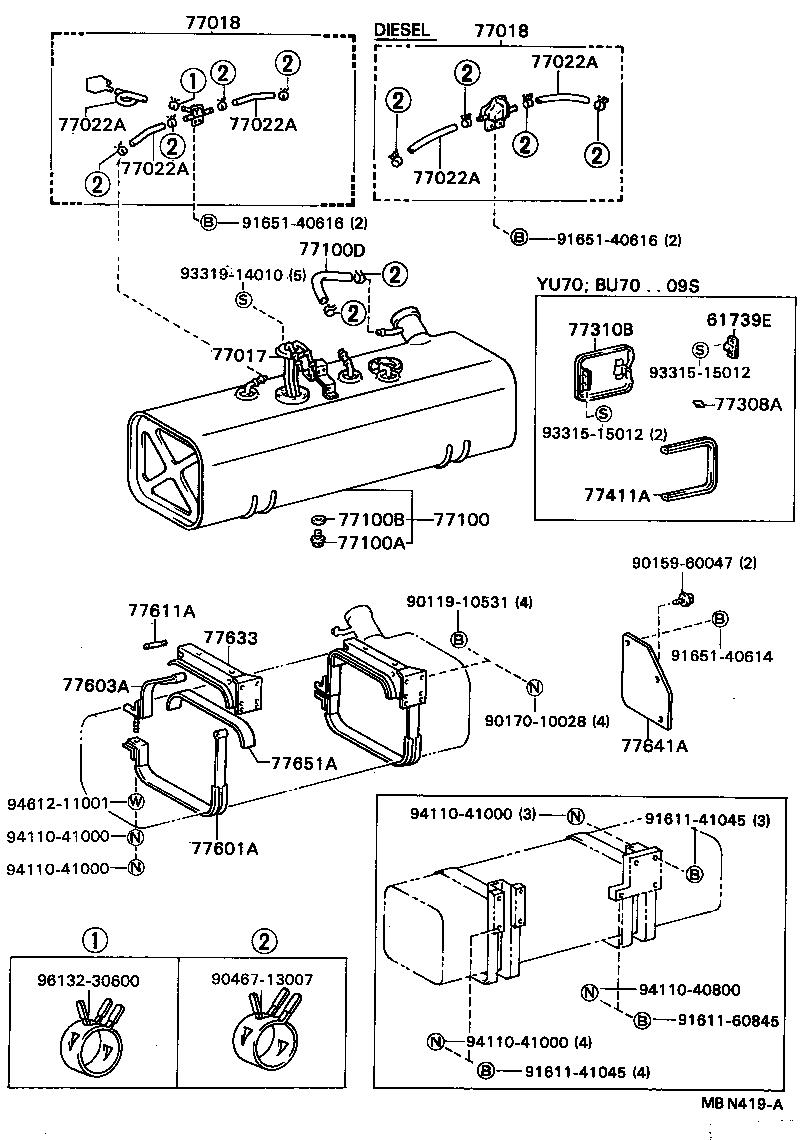

diagram 61739E 77017 77018 77018 77022A 77022A 77022A 77022A 77022A 77100 77100A 77100B 77100D 77308A 77310B 77411A 77601A 77603A 77611A 77633 77641A 77651A 9011910531 9015960047 9017010028 9046713007 9161141045 9161141045 9161160845 9165140614 9165140616 9165140616 9331515012 9331515012 9331914010 9411040800 9411041000 9411041000 9411041000 9411041000 9461211001 9613230600
Part # Description Qty Price
61739E - STOPPER, FUEL INLET COVER
61739-92605

YU70

 1
77017 - TUBE SUB-ASSY, FUEL AND EVAPORATION VENT
77017-36130

YU60,70..SRF,TW1,TW2

 1
77018 - VALVE SUB-ASSY, FUEL VAPOUR SEPARATE
77018-36051

YU60,70..SRF,TW1,TW2

 1
77018 - VALVE SUB-ASSY, FUEL VAPOUR SEPARATE
77018-36051

YU60,70..SRF,TW1,TW2

 1
77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)
95333-06040

YU60,70..SRF,TW1,TW2

*H,L=400

 1
95333-08020

YU60,70..SRF,TW1,TW2

長さ=200,内径=8

 2
77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)
95333-06040

YU60,70..SRF,TW1,TW2

*H,L=400

 1
95333-08020

YU60,70..SRF,TW1,TW2

長さ=200,内径=8

 2
77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)
95333-06040

YU60,70..SRF,TW1,TW2

*H,L=400

 1
95333-08020

YU60,70..SRF,TW1,TW2

長さ=200,内径=8

 2
77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)
95333-06040

YU60,70..SRF,TW1,TW2

*H,L=400

 1
95333-08020

YU60,70..SRF,TW1,TW2

長さ=200,内径=8

 2
77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)
95333-06040

YU60,70..SRF,TW1,TW2

*H,L=400

 1
95333-08020

YU60,70..SRF,TW1,TW2

長さ=200,内径=8

 2
77100 - TANK ASSY, FUEL
77001-3B030

YU70

 1
77100A - PLUG(FOR FUEL TANK)
90105-12116

WU75,9#,YU6#,70

 1
77100B - GASKET(FOR FUEL TANK)
90430-12245

WU75,9#,YU6#,70

 1
77100D - HOSE, FUEL, NO.1(FOR FUEL TANK)
95333-08040

YU70

長さ=400

 1
77308A - CUSHION(FOR FUEL INLET BOX COVER)
90541-05080

YU70

 2
77310B - DOOR ASSY, FUEL INLET, RH
77310-92605

YU70

 1
77411A - PROTECTOR, FUEL INLET BOX
77411-92605

YU70

 1
77601A - BAND SUB-ASSY, FUEL TANK, NO.1
77601-25090

YU60,70..SRF,TW1,TW2

 2
77603A - BAND SUB-ASSY, FUEL TANK, NO.2
77603-25010

YU60,70..SRF,TW1,TW2

 2
77611A - PIN (FOR FUEL TANK BAND)
77653-25010

YU60,70..SRF,TW1,TW2

 4
77633 - STAY, FUEL TANK
77501-25090

YU60,70..SRF,TW1,TW2

 2
77641A - PROTECTOR, FUEL TANK, NO.1
77641-92600

YU70

 1
77651A - CUSHION, FUEL TANK, NO.1
77651-26040

YU60,70..SRF,TW1,TW2

 2
Common parts
90119-10531
90159-60047
90170-10028
90467-13007
91611-41045
91611-60845
91651-40614
91651-40616
93315-15012
93319-14010
94110-40800
94110-41000
94612-11001
96132-30600

ILLUST NO. 2 OF 2(8708- )BU60,61,62,70,80,81,82

Click highlighted areas on diagram

diagram 58266A 58266A 58266A 58266A 58266A 58266A 77251B 77251B 77251B 77251C 77251C 77251C 77252A 77252A 77252A 77252B 77252B 77252B 77252B 77252B 77252B 77252C 77252C 77256D 77256D 77256D 77256E 77256E 77256E 77277A 77277A 77277A 9017908001 9017908001 9017908146 9017908146 9017908146 9046108614 9046713007 9161140820 9161140820 9161140820 9161140820 9161140820 9161140820 9161160820 9161160820 9161160820 9411040800 9411040800 9411040800 9411040800
Part # Description Qty Price
Common parts
90179-08001
90179-08146
90461-08614
90467-13007
91611-40820
91611-60820
94110-40800

ILLUST NO. 1 OF 2(8708- )SRF,TW1,TW2 ; (8708- )YU60..T3..WT..IV3

Click highlighted areas on diagram

diagram 61739E 77017 77018 77018 77022A 77022A 77022A 77022A 77022A 77100 77100A 77100B 77100D 77308A 77310B 77411A 77601A 77603A 77611A 77633 77641A 77651A 9011910531 9015960047 9017010028 9046713007 9161141045 9161141045 9161160845 9165140614 9165140616 9165140616 9331515012 9331515012 9331914010 9411040800 9411041000 9411041000 9411041000 9411041000 9461211001 9613230600
Part # Description Qty Price
61739E - STOPPER, FUEL INLET COVER
61739-92605

YU70

 1
77017 - TUBE SUB-ASSY, FUEL AND EVAPORATION VENT
77017-36130

YU60,70..SRF,TW1,TW2

 1
77018 - VALVE SUB-ASSY, FUEL VAPOUR SEPARATE
77018-36051

YU60,70..SRF,TW1,TW2

 1
77018 - VALVE SUB-ASSY, FUEL VAPOUR SEPARATE
77018-36051

YU60,70..SRF,TW1,TW2

 1
77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)
95333-06040

YU60,70..SRF,TW1,TW2

*H,L=400

 1
95333-08020

YU60,70..SRF,TW1,TW2

長さ=200,内径=8

 2
77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)
95333-06040

YU60,70..SRF,TW1,TW2

*H,L=400

 1
95333-08020

YU60,70..SRF,TW1,TW2

長さ=200,内径=8

 2
77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)
95333-06040

YU60,70..SRF,TW1,TW2

*H,L=400

 1
95333-08020

YU60,70..SRF,TW1,TW2

長さ=200,内径=8

 2
77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)
95333-06040

YU60,70..SRF,TW1,TW2

*H,L=400

 1
95333-08020

YU60,70..SRF,TW1,TW2

長さ=200,内径=8

 2
77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)
95333-06040

YU60,70..SRF,TW1,TW2

*H,L=400

 1
95333-08020

YU60,70..SRF,TW1,TW2

長さ=200,内径=8

 2
77100 - TANK ASSY, FUEL
77001-3B030

YU70

 1
77100A - PLUG(FOR FUEL TANK)
90105-12116

WU75,9#,YU6#,70

 1
77100B - GASKET(FOR FUEL TANK)
90430-12245

WU75,9#,YU6#,70

 1
77100D - HOSE, FUEL, NO.1(FOR FUEL TANK)
95333-08040

YU70

長さ=400

 1
77308A - CUSHION(FOR FUEL INLET BOX COVER)
90541-05080

YU70

 2
77310B - DOOR ASSY, FUEL INLET, RH
77310-92605

YU70

 1
77411A - PROTECTOR, FUEL INLET BOX
77411-92605

YU70

 1
77601A - BAND SUB-ASSY, FUEL TANK, NO.1
77601-25090

YU60,70..SRF,TW1,TW2

 2
77603A - BAND SUB-ASSY, FUEL TANK, NO.2
77603-25010

YU60,70..SRF,TW1,TW2

 2
77611A - PIN (FOR FUEL TANK BAND)
77653-25010

YU60,70..SRF,TW1,TW2

 4
77633 - STAY, FUEL TANK
77501-25090

YU60,70..SRF,TW1,TW2

 2
77641A - PROTECTOR, FUEL TANK, NO.1
77641-92600

YU70

 1
77651A - CUSHION, FUEL TANK, NO.1
77651-26040

YU60,70..SRF,TW1,TW2

 2
Common parts
90119-10531
90159-60047
90170-10028
90467-13007
91611-41045
91611-60845
91651-40614
91651-40616
93315-15012
93319-14010
94110-40800
94110-41000
94612-11001
96132-30600

ILLUST NO. 2 OF 2(8708- )YU6#,70

Click highlighted areas on diagram

diagram 58266A 77251B 77251B 77251C 77251C 77251D 77251D 77255F 77255F 77261D 77261E 77262 77262A 77276 77277A 77277A 77740 77740A 8271112200 9017008204 9017908001 9046712058 9046713007 9094901154 9094901160 9094901160 9161140820 9161140820 9161140820 9161140820 9161140820 9161140820 9161140820 9161140820 9165140835 9165160835 9411040800 9411040800 9411040800 9411040800 9613230600
Part # Description Qty Price
58266A - BRACKET, FUEL TUBE CLAMP
58266-36210

YU60,70

 1
77251B - TUBE, FUEL MAIN
77205-36250

YU60,70

 1
77251B - TUBE, FUEL MAIN
77205-36250

YU60,70

 1
77251C - HOSE, FUEL, NO.1(FOR FUEL MAIN TUBE)
95333-06030

YU60,70

*H,L=280

 1
77251C - HOSE, FUEL, NO.1(FOR FUEL MAIN TUBE)
95333-06030

YU60,70

*H,L=280

 1
77251D - HOSE, FUEL, NO.2(FOR FUEL MAIN TUBE)
95333-08020

YU60,70..SRF,TW1,TW2

長さ=200,内径=8

 1
77251D - HOSE, FUEL, NO.2(FOR FUEL MAIN TUBE)
95333-08020

YU60,70..SRF,TW1,TW2

長さ=200,内径=8

 1
77255F - HOSE, FUEL, NO.2 (FOR FUEL RETURN TUBE)
95333-08020

YU60,70..SRF,TW1,TW2

長さ=200,内径=8

 1
77255F - HOSE, FUEL, NO.2 (FOR FUEL RETURN TUBE)
95333-08020

YU60,70..SRF,TW1,TW2

長さ=200,内径=8

 1
77261D - TUBE, FUEL TANK TO CANISTER
77028-36010

YU60,70

 1
77261E - HOSE, FUEL, NO.1 (FOR FUEL TANK TO CANISTER TUBE)
95333-06030

YU6#,70

*H,L=300

 1
77262 - TUBE, FUEL EMISSION, NO.2
77027-36010

YU60,70

 1
77262A - HOSE, FUEL, NO.1(FOR FUEL TANK TO CANISTER CENTER TUBE)
95333-06020

YU60,70

 1
77276 - PROTECTOR, FUEL HOSE
77276-36030

YU6#,70

 1
77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1)
90447-12048

YU60,70

 1
77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1)
90447-12048

YU60,70

 1
77740 - CANISTER ASSY, CHARCOAL
77740-36090

YU6#,70

 1
77740A - HOSE, FUEL, NO.1(FOR CHARCOAL CANISTER)
90999-92004

YU60,70

長さ=950

 1
Common parts
82711-12200
90170-08204
90179-08001
90467-12058
90467-13007
90949-01154
90949-01160
91611-40820
91651-40835
91651-60835
94110-40800
96132-30600
