YU61D-MDKTJ3 (1987)

Toyota Dyna/Toyoace

Production Aug 1987 - Aug 1988
Engine 3Y
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(8708- )YU61

Click highlighted areas on diagram

diagram 33740A 33740A 38904C 38904P 38920A 38920B 38920B 38923A 38930A 38962 38963 38964 38964 38966 38982 38982 9046108047 9046108047 9046108047 9046108047 9046108047 9046108050 9046108058 9161140610 9161140614 9161160616 9161160812 9161160812 9161160812 9161160816 9161160816 9161160820 9161160820 9161160820 9161160820 9161541030 9165161030 9411040600 9411040600 9411040800 9411040800 9412040800 9418040800 9418040800 9451100800 9451200600 9451200600 9461110800 9461210800
Part # Description Qty Price
33740A - END ASSY, PUSH-PULL CONTROL CABLE
33740-96301

YU61;WU75..CBU

 2
33740A - END ASSY, PUSH-PULL CONTROL CABLE
33740-96301

YU61;WU75..CBU

 2
38904C - GROMMET, PUSH PULL CABLE
90480-22013

YU61;WU75..CBU

 1
38904P - INSULATOR SUB-ASSY, CONTROL CABLE
38904-96312

YU61

 1
38920A - LEVER ASSY, POWER TAKE-OFF CONTROL, NO.1
38920-96302

YU61;WU75..CBU

 1
38920B - BUSH (FOR POWER TAKE-OFF CONTROL LEVER)
90386-13007

YU61;WU75..CBU

 2
38920B - BUSH (FOR POWER TAKE-OFF CONTROL LEVER)
90386-13007

YU61;WU75..CBU

 2
38923A - PROTECTOR, POWER TAKE-OFF CONTROL
38923-96305

YU61;WU75..CBU

 1
38930A - CABLE ASSY, PUSH PULL
38930-96316

YU61

 1
38962 - BRACKET, CABLE CLAMP, NO.2
38962-96304

YU61;WU75..CBU

 1
38963 - BRACKET, CABLE CLAMP, NO.3
38963-96304

YU61

 1
38964 - COLLAR, CONTROL LEVER
90560-08045

YU61;WU75..CBU

 2
38964 - COLLAR, CONTROL LEVER
90560-08045

YU61;WU75..CBU

 2
38966 - BRACKET, CABLE CLAMP, NO.6
38966-96301

YU61;WU75..CBU

 1
38982 - CLAMP, PUSH PULL CABLE, NO.1
38982-96302

YU61;WU75..CBU

 2
38982 - CLAMP, PUSH PULL CABLE, NO.1
38982-96302

YU61;WU75..CBU

 2
Common parts
90461-08047
90461-08050
90461-08058
91611-40610
91611-40614
91611-60616
91611-60812
91611-60816
91611-60820
91615-41030
91651-61030
94110-40600
94110-40800
94120-40800
94180-40800
94511-00800
94512-00600
94611-10800
94612-10800

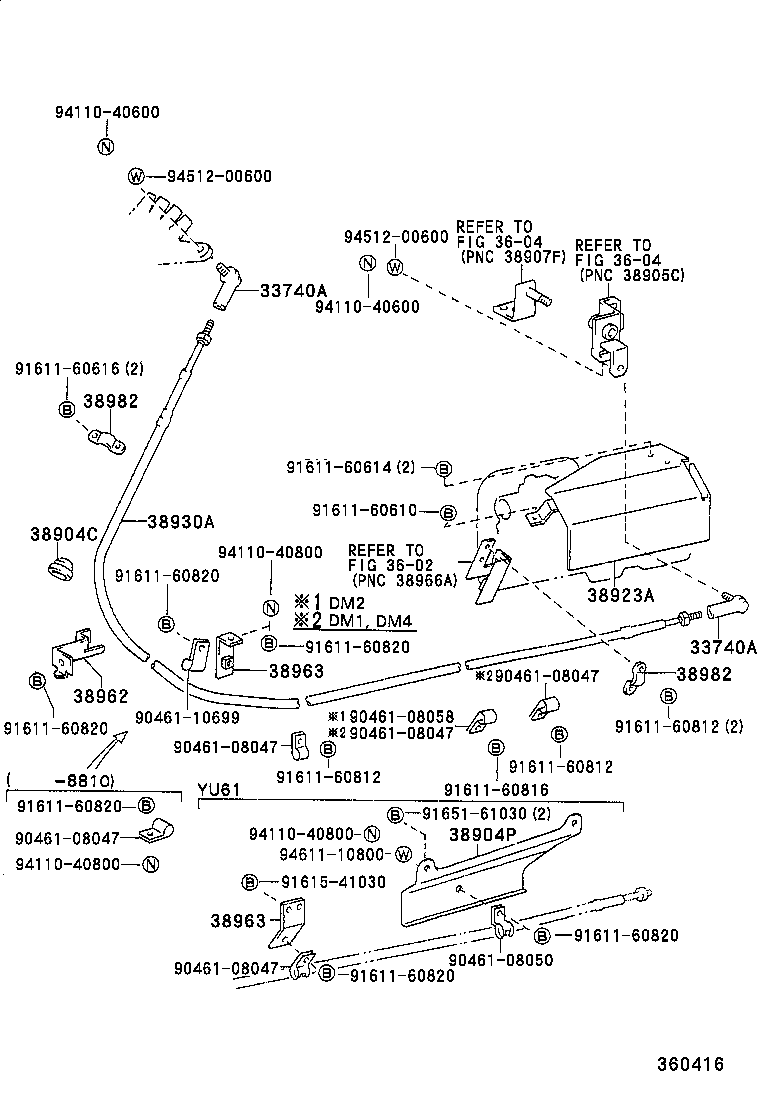

ILLUST NO. 2 OF 2(8808-9109)YU61

Click highlighted areas on diagram

diagram 33740A 33740A 3602 3604 3604 38904C 38904P 38923A 38930A 38962 38963 38963 38982 38982 9046108047 9046108047 9046108047 9046108047 9046108047 9046108050 9046108058 9046110699 9161160610 9161160614 9161160616 9161160812 9161160812 9161160812 9161160816 9161160820 9161160820 9161160820 9161160820 9161160820 9161160820 9161541030 9165161030 9411040600 9411040600 9411040800 9411040800 9411040800 9451200600 9451200600 9461110800
Part # Description Qty Price
Common parts
90461-08047
90461-08050
90461-08058
90461-10699
91611-60610
91611-60614
91611-60616
91611-60812
91611-60816
91611-60820
91615-41030
91651-61030
94110-40600
94110-40800
94512-00600
94611-10800
Linked diagrams
3602
3604
