YU61D-MDKTJ (1988)

Toyota Dyna/Toyoace

Production Aug 1988 - Sep 1993
Engine 3Y
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )WU75,85,9#,YU6#..CBR,DSL

Click highlighted areas on diagram

diagram 77017B 77018 77018 77022A 77022A 77022A 77022A 77022A 77100 77100A 77100B 77275B 77601A 77611A 77633 77651A 9011910533 9015940155 9017010028 9046713007 9161240616 9165140616 9165140616 9411040800 9411040800 9613230600
Part # Description Qty Price
77017B - TUBE SUB-ASSY, FUEL TANK VENT
77017-36181

WU75,85,9#,YU6#..(DM1,T3)..(CBR,DSL)

 1
77018 - VALVE SUB-ASSY, FUEL VAPOUR SEPARATE
77018-36100

YU6#..20T..CBR

 1
77018 - VALVE SUB-ASSY, FUEL VAPOUR SEPARATE
77018-36100

YU6#..20T..CBR

 1
77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)
95333-06040

YU6#..20T..CBR

*H,L=400

 1
95333-08030

WU75,85,9#,YU6#..03S..(CBR,DSL)

*H,L=300

 2
77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)
95333-06040

YU6#..20T..CBR

*H,L=400

 1
95333-08030

WU75,85,9#,YU6#..03S..(CBR,DSL)

*H,L=300

 2
77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)
95333-06040

YU6#..20T..CBR

*H,L=400

 1
95333-08030

WU75,85,9#,YU6#..03S..(CBR,DSL)

*H,L=300

 2
77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)
95333-06040

YU6#..20T..CBR

*H,L=400

 1
95333-08030

WU75,85,9#,YU6#..03S..(CBR,DSL)

*H,L=300

 2
77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)
95333-06040

YU6#..20T..CBR

*H,L=400

 1
95333-08030

WU75,85,9#,YU6#..03S..(CBR,DSL)

*H,L=300

 2
77100 - TANK ASSY, FUEL
77001-3B090

YU6#..(DM1,T3)..CBR

 1
77100A - PLUG(FOR FUEL TANK)
90105-12116

WU75,85,9#,YU6#,70..CBR,DSL

 1
77100B - GASKET(FOR FUEL TANK)
90430-12245

WU75,85,9#,YU6#,70..CBR,DSL

 1
77275B - PROTECTOR, FUEL LIQUID VAPOR SEPARATOR VALVE
77275-36020

WU75,YU61

 1
77601A - BAND SUB-ASSY, FUEL TANK, NO.1
77601-36150

YU6#..(DM1,T3)..WT..CBR

 2
77611A - PIN (FOR FUEL TANK BAND)
77629-36010

WU75,85,9#,YU6#..03S..(CBR,DSL)

 2
77633 - STAY, FUEL TANK
77501-36080

YU61

 2
77651A - CUSHION, FUEL TANK, NO.1
77651-36110

WU85,90,93,YU6#..(DM1,T1,T2,T4)..(CBR,DSL)

 2
Common parts
90119-10533
90159-40155
90170-10028
90467-13007
91612-40616
91651-40616
94110-40800
96132-30600

(8808- )CBR

Click highlighted areas on diagram

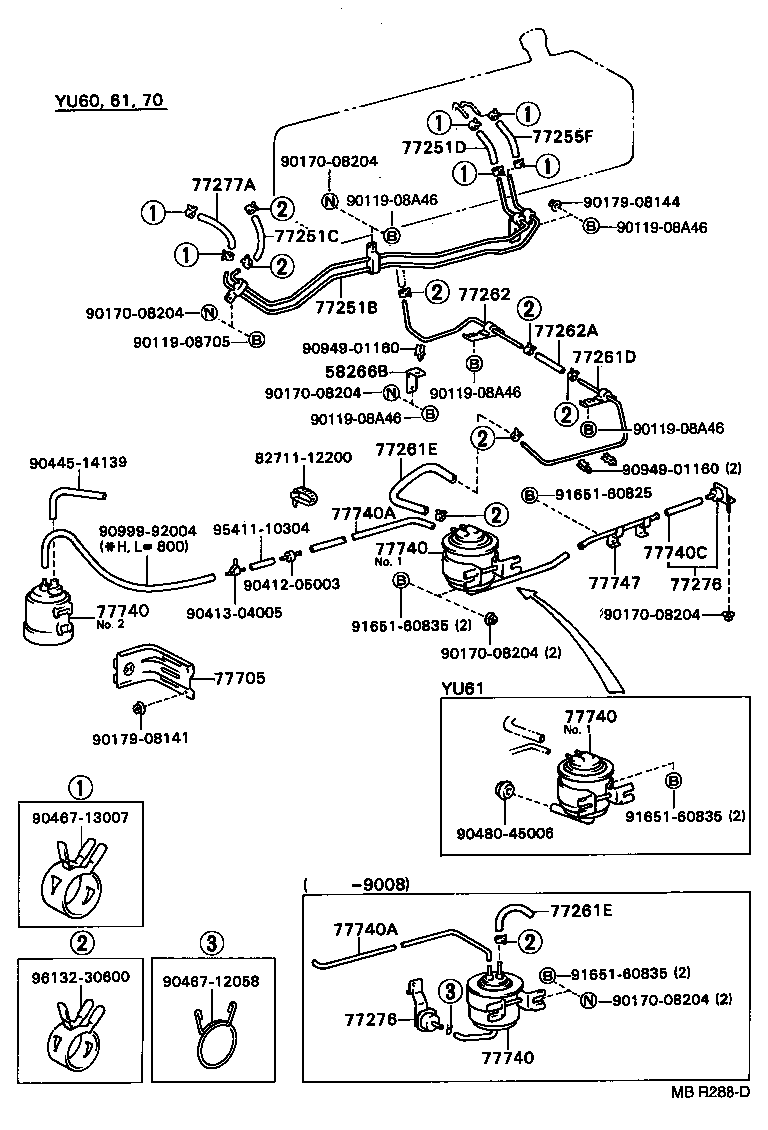

diagram 58266B 77251B 77251C 77251D 77255F 77261D 77261E 77261E 77262 77262A 77276 77276 77277A 77705 77740 77740 77740 77740 77740A 77740A 77740C 77747 8271112200 9011908705 9011908A46 9011908A46 9011908A46 9011908A46 9011908A46 9017008204 9017008204 9017008204 9017008204 9017008204 9017008204 9017908141 9017908144 9041205003 9041304005 9044514139 9046712058 9046713007 9048045006 9094901160 9094901160 9099992004 9165160825 9165160835 9165160835 9165160835 9541110304 9613230600
Part # Description Qty Price
77251B - TUBE, FUEL MAIN
77205-36290

YU61

 1
77251C - HOSE, FUEL, NO.1(FOR FUEL MAIN TUBE)
95333-06020

YU61

*H,L=200

 1
77251D - HOSE, FUEL, NO.2(FOR FUEL MAIN TUBE)
95334-08060

YU61

長さ=600

 1
95333-08060

YU61

長さ=600

 1
77255F - HOSE, FUEL, NO.2 (FOR FUEL RETURN TUBE)
95333-08060

YU61

長さ=600

 1
95334-08060

YU61

長さ=600

 1
77261D - TUBE, FUEL TANK TO CANISTER
77027-36020

YU61

 1
77261E - HOSE, FUEL, NO.1 (FOR FUEL TANK TO CANISTER TUBE)
95333-06030

YU6#,70..CBR

*H,L=300

 1
77261E - HOSE, FUEL, NO.1 (FOR FUEL TANK TO CANISTER TUBE)
95333-06030

YU6#,70..CBR

*H,L=300

 1
77276 - PROTECTOR, FUEL HOSE
77276-36030

YU6#,70..CBR

 1
77276 - PROTECTOR, FUEL HOSE
77276-36030

YU6#,70..CBR

 1
77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1)
90447-12049

YU61

 1
77740 - CANISTER ASSY, CHARCOAL
77740-36090

YU6#,70..CBR

 1
77740-36110

YU61

NO.1

 1
77740 - CANISTER ASSY, CHARCOAL
77740-36090

YU6#,70..CBR

 1
77740-36110

YU61

NO.1

 1
77740 - CANISTER ASSY, CHARCOAL
77740-36090

YU6#,70..CBR

 1
77740-36110

YU61

NO.1

 1
77740 - CANISTER ASSY, CHARCOAL
77740-36090

YU6#,70..CBR

 1
77740-36110

YU61

NO.1

 1
77740A - HOSE, FUEL, NO.1(FOR CHARCOAL CANISTER)
90445-08252

YU61

長さ=1000

 1
77740A - HOSE, FUEL, NO.1(FOR CHARCOAL CANISTER)
90445-08252

YU61

長さ=1000

 1
Common parts
82711-12200
90119-08705
90119-08A46
90170-08204
90179-08141
90179-08144
90412-05003
90413-04005
90445-14139
90467-12058
90467-13007
90480-45006
90949-01160
90999-92004
91651-60825
91651-60835
95411-10304
96132-30600
