YU61D-MDKT3 (1987)
Toyota Dyna/Toyoace
Production
Aug 1987
-
Aug 1988
Engine
3Y
Transmission
Displacement
2500cc
Power
168 HP (125 kW)

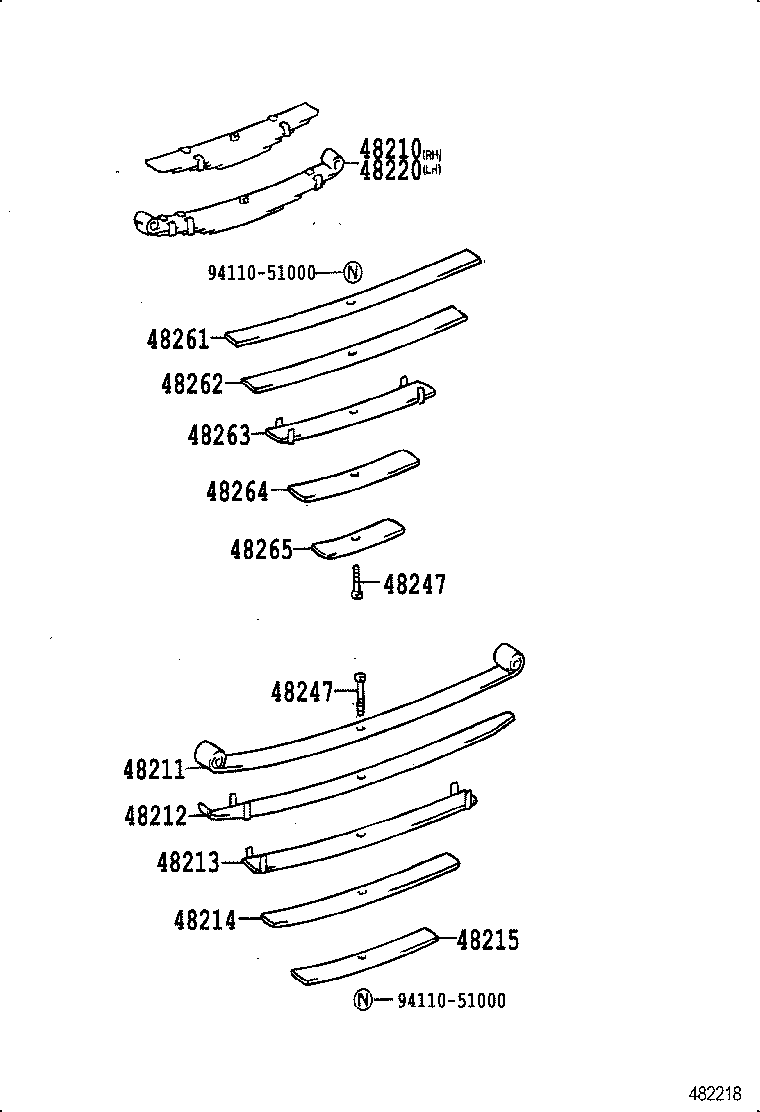

ILLUST NO. 2 OF 2(8708- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-3B270 |
YU61 ﾒｲﾝ4枚ﾘｰﾌ+ｻﾌﾞ5枚ﾘｰﾌ |
1 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-3B270 |
YU61 |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48212-3B270 |
YU61 |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48202-3B270 |
YU61 |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-3B270 |
YU61 |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-3B270 |
YU61 ﾒｲﾝ4枚ﾘｰﾌ+ｻﾌﾞ5枚ﾘｰﾌ |
1 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-36670 |
YU61 |
2 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-36670 |
YU61 |
2 | ||
| 48261 - LEAF, REAR HELPER SPRING, NO.1 | ||||
| 48215-3B270 |
YU61 |
2 | ||
| 48262 - LEAF, REAR HELPER SPRING, NO.2 | ||||
| 48216-3B270 |
YU61 |
2 | ||
| 48263 - LEAF, REAR HELPER SPRING, NO.3 | ||||
| 48203-3B270 |
YU61 |
2 | ||
| 48264 - LEAF, REAR HELPER SPRING, NO.4 | ||||
| 48218-3B270 |
YU61 |
2 | ||
| 48265 - LEAF, REAR HELPER SPRING, NO.5 | ||||
| 48214-3B070 |
YU61 |
2 | ||
| Common parts | ||||
| 94110-51000 | ||||
ILLUST NO. 1 OF 2(8708- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04483 - SHACKLE KIT, REAR SPRING | ||||
| 04483-36060 |
YU6#,70 |
2 | ||
| 04484 - PIN KIT, REAR SPRING | ||||
| 04484-36040 |
YU6#,70 |
2 | ||
| 48046 - SEAT SUB-ASSY, SPRING U BOLT, RH | ||||
| 48046-36120 |
YU61 |
1 | ||
| 48046A - BOLT, U(FOR REAR SPRING) | ||||
| 90117-16184 |
YU61 長さ=240,L=240 |
6 | ||
| 90117-16012 |
YU61 長さ=245,L=255 |
2 | ||
| 48047 - SEAT SUB-ASSY, SPRING U BOLT, LH | ||||
| 48047-36120 |
YU61 |
1 | ||
| 48210A - BUSH(FOR REAR SPRING SHACKLE UPPER) | ||||
| 90385-23002 |
YU6#,70 |
4 | ||
| 48210A - BUSH(FOR REAR SPRING SHACKLE UPPER) | ||||
| 90385-23002 |
YU6#,70 |
4 | ||
| 48343 - BRACKET, REAR AXLE CUSHION | ||||
| 48343-36060 |
YU61 |
2 | ||
| 48344 - STOPPER, BUMPER, REAR | ||||
| 48344-36270 |
YU61 |
2 | ||
| 48414B - BRACKET, SPRING, NO.3 RH | ||||
| 48414-36270 |
YU61 |
1 | ||
| 48415B - BRACKET, SPRING, NO.3 LH | ||||
| 48414-36270 |
YU61 |
1 | ||
| 48416 - BRACKET, SPRING, NO.4 | ||||
| 48416-36260 |
YU61 右側 |
1 | ||
| 48417-36140 |
YU61 左側 |
1 | ||
| 48422A - SUPPORT, REAR SPRING PIN | ||||
| 48422-36090 |
YU6#,70 |
2 | ||
| 48475R - PLATE, DISTANCE(FOR REAR) | ||||
| 48475-36051 |
YU61 |
1 | ||
| 48530 - ABSORBER ASSY, SHOCK, REAR RH | ||||
| 48531-39725 |
WU75,9#,YU61 |
1 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90385-16009 |
WU75,9#,YU6#,70 |
4 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90385-16009 |
WU75,9#,YU6#,70 |
4 | ||
| 48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1 | ||||
| 90948-03007 |
YU61 |
2 | ||
| 48530C - WASHER, REAR SHOCK ABSORBER CUSHION, NO.2 | ||||
| 90948-03004 |
WU75,9#,YU6#..WT |
2 | ||
| 48530D - WASHER, REAR SHOCK ABSORBER CUSHION, NO.3 | ||||
| 90948-03003 |
YU6#,70 |
2 | ||
| 48530E - WASHER, REAR SHOCK ABSORBER CUSHION, NO.4 | ||||
| 90948-03004 |
WU75,9#,YU6#,70 |
2 | ||
| 48540 - ABSORBER ASSY, SHOCK, REAR LH | ||||
| 48531-39725 |
WU75,9#,YU61 |
1 | ||
| Common parts | ||||
| 61611-61020 | ||||
| 90101-16025 | ||||
| 90101-16026 | ||||
| 90170-16139 | ||||
| 91611-60825 | ||||
| 94115-71600 | ||||
| 94180-40800 | ||||
| 94184-61200 | ||||
| 94184-61600 | ||||
| 94621-11600 | ||||

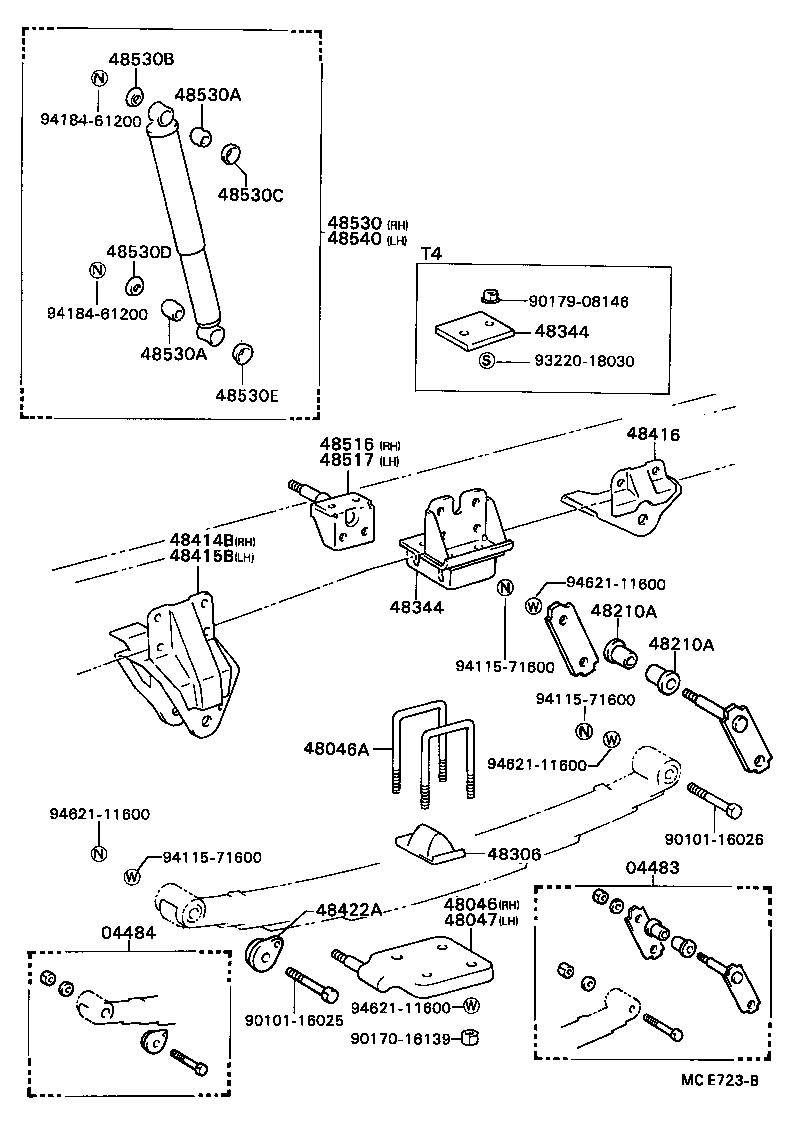

ILLUST NO. 1 OF 2(8708- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04483 - SHACKLE KIT, REAR SPRING | ||||
| 04483-36060 |
YU6#,70 |
2 | ||
| 04484 - PIN KIT, REAR SPRING | ||||
| 04484-36040 |
YU6#,70 |
2 | ||
| 48046 - SEAT SUB-ASSY, SPRING U BOLT, RH | ||||
| 48046-36120 |
YU61 |
1 | ||
| 48046A - BOLT, U(FOR REAR SPRING) | ||||
| 90117-16184 |
YU61 長さ=240,L=240 |
6 | ||
| 90117-16012 |
YU61 長さ=245,L=255 |
2 | ||
| 48047 - SEAT SUB-ASSY, SPRING U BOLT, LH | ||||
| 48047-36120 |
YU61 |
1 | ||
| 48210A - BUSH(FOR REAR SPRING SHACKLE UPPER) | ||||
| 90385-23002 |
YU6#,70 |
4 | ||
| 48210A - BUSH(FOR REAR SPRING SHACKLE UPPER) | ||||
| 90385-23002 |
YU6#,70 |
4 | ||
| 48344 - STOPPER, BUMPER, REAR | ||||
| 48344-36270 |
YU61 |
2 | ||
| 48344 - STOPPER, BUMPER, REAR | ||||
| 48344-36270 |
YU61 |
2 | ||
| 48414B - BRACKET, SPRING, NO.3 RH | ||||
| 48414-36270 |
YU61 |
1 | ||
| 48415B - BRACKET, SPRING, NO.3 LH | ||||
| 48414-36270 |
YU61 |
1 | ||
| 48416 - BRACKET, SPRING, NO.4 | ||||
| 48416-36260 |
YU61 右側 |
1 | ||
| 48417-36140 |
YU61 左側 |
1 | ||
| 48422A - SUPPORT, REAR SPRING PIN | ||||
| 48422-36090 |
YU6#,70 |
2 | ||
| 48530 - ABSORBER ASSY, SHOCK, REAR RH | ||||
| 48531-39725 |
WU75,9#,YU61 |
1 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90385-16009 |
WU75,9#,YU6#,70 |
4 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90385-16009 |
WU75,9#,YU6#,70 |
4 | ||
| 48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1 | ||||
| 90948-03007 |
YU61 |
2 | ||
| 48530C - WASHER, REAR SHOCK ABSORBER CUSHION, NO.2 | ||||
| 90948-03004 |
WU75,9#,YU6#..WT |
2 | ||
| 48530D - WASHER, REAR SHOCK ABSORBER CUSHION, NO.3 | ||||
| 90948-03003 |
YU6#,70 |
2 | ||
| 48530E - WASHER, REAR SHOCK ABSORBER CUSHION, NO.4 | ||||
| 90948-03004 |
WU75,9#,YU6#,70 |
2 | ||
| 48540 - ABSORBER ASSY, SHOCK, REAR LH | ||||
| 48531-39725 |
WU75,9#,YU61 |
1 | ||
| Common parts | ||||
| 90101-16025 | ||||
| 90101-16026 | ||||
| 90170-16139 | ||||
| 90179-08146 | ||||
| 93220-18030 | ||||
| 94115-71600 | ||||
| 94184-61200 | ||||
| 94621-11600 | ||||

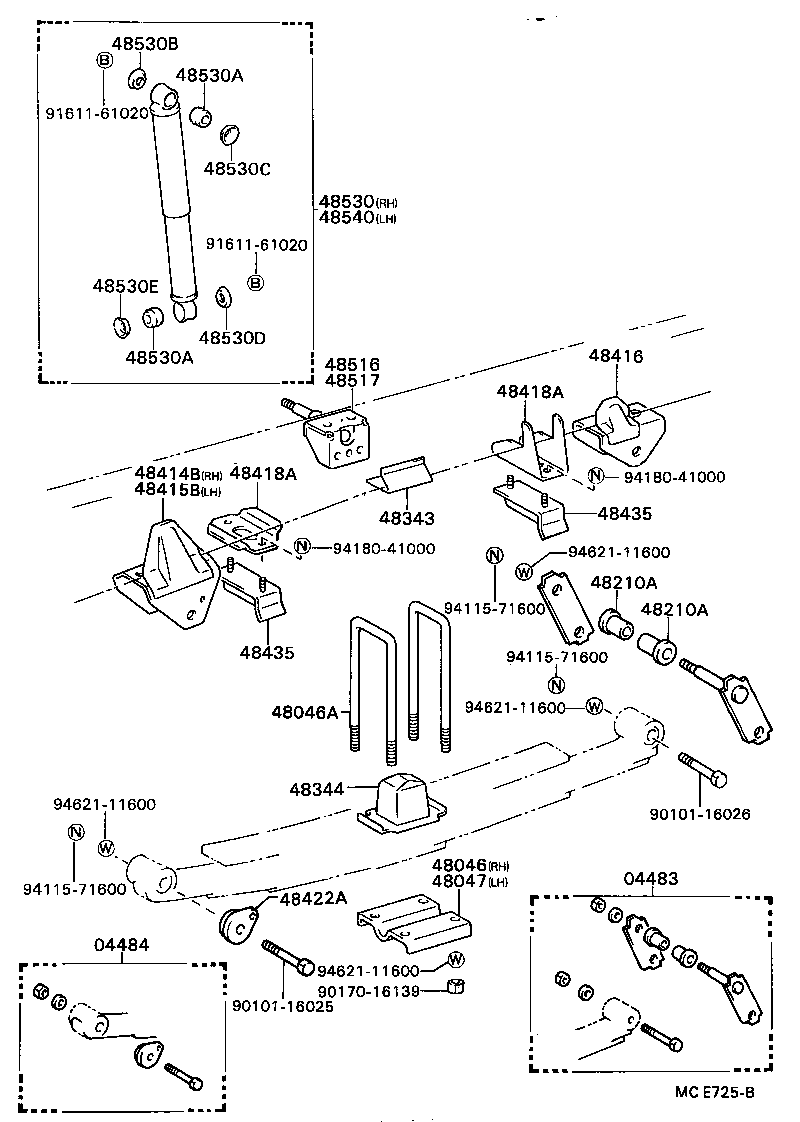

ILLUST NO. 1 OF 2(8708- )YU61
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04483 - SHACKLE KIT, REAR SPRING | ||||
| 04483-36060 |
YU6#,70 |
2 | ||
| 04484 - PIN KIT, REAR SPRING | ||||
| 04484-36040 |
YU6#,70 |
2 | ||
| 48046 - SEAT SUB-ASSY, SPRING U BOLT, RH | ||||
| 48046-36120 |
YU61 |
1 | ||
| 48046A - BOLT, U(FOR REAR SPRING) | ||||
| 90117-16184 |
YU61 長さ=240,L=240 |
6 | ||
| 90117-16012 |
YU61 長さ=245,L=255 |
2 | ||
| 48047 - SEAT SUB-ASSY, SPRING U BOLT, LH | ||||
| 48047-36120 |
YU61 |
1 | ||
| 48210A - BUSH(FOR REAR SPRING SHACKLE UPPER) | ||||
| 90385-23002 |
YU6#,70 |
4 | ||
| 48210A - BUSH(FOR REAR SPRING SHACKLE UPPER) | ||||
| 90385-23002 |
YU6#,70 |
4 | ||
| 48343 - BRACKET, REAR AXLE CUSHION | ||||
| 48343-36060 |
YU61 |
2 | ||
| 48344 - STOPPER, BUMPER, REAR | ||||
| 48344-36270 |
YU61 |
2 | ||
| 48414B - BRACKET, SPRING, NO.3 RH | ||||
| 48414-36270 |
YU61 |
1 | ||
| 48415B - BRACKET, SPRING, NO.3 LH | ||||
| 48414-36270 |
YU61 |
1 | ||
| 48416 - BRACKET, SPRING, NO.4 | ||||
| 48416-36260 |
YU61 右側 |
1 | ||
| 48417-36140 |
YU61 左側 |
1 | ||
| 48418A - BRACKET, HELPER SPRING, FRONT | ||||
| 48419-36060 |
YU61 ﾘﾔ |
2 | ||
| 48418-36070 |
YU61 ﾌﾛﾝﾄ |
2 | ||
| 48418A - BRACKET, HELPER SPRING, FRONT | ||||
| 48419-36060 |
YU61 ﾘﾔ |
2 | ||
| 48418-36070 |
YU61 ﾌﾛﾝﾄ |
2 | ||
| 48422A - SUPPORT, REAR SPRING PIN | ||||
| 48422-36090 |
YU6#,70 |
2 | ||
| 48435 - ATTACHMENT, HELPER SPRING BRACKET, NO.1 | ||||
| 48435-36060 |
YU61 |
4 | ||
| 48435 - ATTACHMENT, HELPER SPRING BRACKET, NO.1 | ||||
| 48435-36060 |
YU61 |
4 | ||
| 48530 - ABSORBER ASSY, SHOCK, REAR RH | ||||
| 48531-39725 |
WU75,9#,YU61 |
1 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90385-16009 |
WU75,9#,YU6#,70 |
4 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90385-16009 |
WU75,9#,YU6#,70 |
4 | ||
| 48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1 | ||||
| 90948-03007 |
YU61 |
2 | ||
| 48530C - WASHER, REAR SHOCK ABSORBER CUSHION, NO.2 | ||||
| 90948-03004 |
WU75,9#,YU6#..WT |
2 | ||
| 48530D - WASHER, REAR SHOCK ABSORBER CUSHION, NO.3 | ||||
| 90948-03003 |
YU6#,70 |
2 | ||
| 48530E - WASHER, REAR SHOCK ABSORBER CUSHION, NO.4 | ||||
| 90948-03004 |
WU75,9#,YU6#,70 |
2 | ||
| 48540 - ABSORBER ASSY, SHOCK, REAR LH | ||||
| 48531-39725 |
WU75,9#,YU61 |
1 | ||
| Common parts | ||||
| 90101-16025 | ||||
| 90101-16026 | ||||
| 90170-16139 | ||||
| 91611-61020 | ||||
| 94115-71600 | ||||
| 94180-41000 | ||||
| 94621-11600 | ||||
ILLUST NO. 2 OF 2(8708- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-3B270 |
YU61 ﾒｲﾝ4枚ﾘｰﾌ+ｻﾌﾞ5枚ﾘｰﾌ |
1 | ||
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-3B270 |
YU61 ﾒｲﾝ4枚ﾘｰﾌ+ｻﾌﾞ5枚ﾘｰﾌ |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16013 |
YU6# |
8 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16013 |
YU6# |
8 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-3B270 |
YU61 |
2 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-3B270 |
YU61 |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48212-3B270 |
YU61 |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48212-3B270 |
YU61 |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48202-3B270 |
YU61 |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48202-3B270 |
YU61 |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-3B270 |
YU61 |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-3B270 |
YU61 |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-3B270 |
YU61 ﾒｲﾝ4枚ﾘｰﾌ+ｻﾌﾞ5枚ﾘｰﾌ |
1 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-3B270 |
YU61 ﾒｲﾝ4枚ﾘｰﾌ+ｻﾌﾞ5枚ﾘｰﾌ |
1 | ||
| 48246 - CASE, REAR SPRING CLIP BOLT | ||||
| 48246-36052 |
YU61 |
8 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-36670 |
YU61 |
2 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-36670 |
YU61 |
2 | ||
| 48256 - BOLT, HEXAGON(FOR REAR SPRING CLIP SET) | ||||
| 48256-25050 |
YU61 |
8 | ||
| Common parts | ||||
| 94110-40800 | ||||
| 94110-51000 | ||||
ILLUST NO. 2 OF 2(8708- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-3B270 |
YU61 ﾒｲﾝ4枚ﾘｰﾌ+ｻﾌﾞ5枚ﾘｰﾌ |
1 | ||
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-3B270 |
YU61 ﾒｲﾝ4枚ﾘｰﾌ+ｻﾌﾞ5枚ﾘｰﾌ |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16013 |
YU6# |
8 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16013 |
YU6# |
8 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-3B270 |
YU61 |
2 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-3B270 |
YU61 |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48212-3B270 |
YU61 |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48212-3B270 |
YU61 |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48202-3B270 |
YU61 |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48202-3B270 |
YU61 |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-3B270 |
YU61 |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-3B270 |
YU61 |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-3B270 |
YU61 ﾒｲﾝ4枚ﾘｰﾌ+ｻﾌﾞ5枚ﾘｰﾌ |
1 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-3B270 |
YU61 ﾒｲﾝ4枚ﾘｰﾌ+ｻﾌﾞ5枚ﾘｰﾌ |
1 | ||
| 48246 - CASE, REAR SPRING CLIP BOLT | ||||
| 48246-36052 |
YU61 |
8 | ||
| 48246 - CASE, REAR SPRING CLIP BOLT | ||||
| 48246-36052 |
YU61 |
8 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-36670 |
YU61 |
2 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-36670 |
YU61 |
2 | ||
| 48256 - BOLT, HEXAGON(FOR REAR SPRING CLIP SET) | ||||
| 48256-25050 |
YU61 |
8 | ||
| 48256 - BOLT, HEXAGON(FOR REAR SPRING CLIP SET) | ||||
| 48256-25050 |
YU61 |
8 | ||
| Common parts | ||||
| 94110-40800 | ||||
| 94110-51000 | ||||
ILLUST NO. 2 OF 2(8708- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-3B270 |
YU61 ﾒｲﾝ4枚ﾘｰﾌ+ｻﾌﾞ5枚ﾘｰﾌ |
1 | ||
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-3B270 |
YU61 ﾒｲﾝ4枚ﾘｰﾌ+ｻﾌﾞ5枚ﾘｰﾌ |
1 | ||
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-3B270 |
YU61 ﾒｲﾝ4枚ﾘｰﾌ+ｻﾌﾞ5枚ﾘｰﾌ |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16013 |
YU6# |
8 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16013 |
YU6# |
8 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16013 |
YU6# |
8 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-3B270 |
YU61 |
2 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-3B270 |
YU61 |
2 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-3B270 |
YU61 |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48212-3B270 |
YU61 |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48212-3B270 |
YU61 |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48212-3B270 |
YU61 |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48202-3B270 |
YU61 |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48202-3B270 |
YU61 |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48202-3B270 |
YU61 |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-3B270 |
YU61 |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-3B270 |
YU61 |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-3B270 |
YU61 |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-3B270 |
YU61 ﾒｲﾝ4枚ﾘｰﾌ+ｻﾌﾞ5枚ﾘｰﾌ |
1 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-3B270 |
YU61 ﾒｲﾝ4枚ﾘｰﾌ+ｻﾌﾞ5枚ﾘｰﾌ |
1 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-3B270 |
YU61 ﾒｲﾝ4枚ﾘｰﾌ+ｻﾌﾞ5枚ﾘｰﾌ |
1 | ||
| 48246 - CASE, REAR SPRING CLIP BOLT | ||||
| 48246-36052 |
YU61 |
8 | ||
| 48246 - CASE, REAR SPRING CLIP BOLT | ||||
| 48246-36052 |
YU61 |
8 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-36670 |
YU61 |
2 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-36670 |
YU61 |
2 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-36670 |
YU61 |
2 | ||
| 48256 - BOLT, HEXAGON(FOR REAR SPRING CLIP SET) | ||||
| 48256-25050 |
YU61 |
8 | ||
| 48256 - BOLT, HEXAGON(FOR REAR SPRING CLIP SET) | ||||
| 48256-25050 |
YU61 |
8 | ||
| 48261 - LEAF, REAR HELPER SPRING, NO.1 | ||||
| 48215-3B270 |
YU61 |
2 | ||
| 48261 - LEAF, REAR HELPER SPRING, NO.1 | ||||
| 48215-3B270 |
YU61 |
2 | ||
| 48261 - LEAF, REAR HELPER SPRING, NO.1 | ||||
| 48215-3B270 |
YU61 |
2 | ||
| 48262 - LEAF, REAR HELPER SPRING, NO.2 | ||||
| 48216-3B270 |
YU61 |
2 | ||
| 48262 - LEAF, REAR HELPER SPRING, NO.2 | ||||
| 48216-3B270 |
YU61 |
2 | ||
| 48262 - LEAF, REAR HELPER SPRING, NO.2 | ||||
| 48216-3B270 |
YU61 |
2 | ||
| 48263 - LEAF, REAR HELPER SPRING, NO.3 | ||||
| 48203-3B270 |
YU61 |
2 | ||
| 48263 - LEAF, REAR HELPER SPRING, NO.3 | ||||
| 48203-3B270 |
YU61 |
2 | ||
| 48263 - LEAF, REAR HELPER SPRING, NO.3 | ||||
| 48203-3B270 |
YU61 |
2 | ||
| 48264 - LEAF, REAR HELPER SPRING, NO.4 | ||||
| 48218-3B270 |
YU61 |
2 | ||
| 48264 - LEAF, REAR HELPER SPRING, NO.4 | ||||
| 48218-3B270 |
YU61 |
2 | ||
| 48264 - LEAF, REAR HELPER SPRING, NO.4 | ||||
| 48218-3B270 |
YU61 |
2 | ||
| 48265 - LEAF, REAR HELPER SPRING, NO.5 | ||||
| 48214-3B070 |
YU61 |
2 | ||
| 48265 - LEAF, REAR HELPER SPRING, NO.5 | ||||
| 48214-3B070 |
YU61 |
2 | ||
| 48265 - LEAF, REAR HELPER SPRING, NO.5 | ||||
| 48214-3B070 |
YU61 |
2 | ||
| Common parts | ||||
| 94110-40800 | ||||
| 94110-51000 | ||||
ILLUST NO. 2 OF 2(8708- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-3B270 |
YU61 ﾒｲﾝ4枚ﾘｰﾌ+ｻﾌﾞ5枚ﾘｰﾌ |
1 | ||
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-3B270 |
YU61 ﾒｲﾝ4枚ﾘｰﾌ+ｻﾌﾞ5枚ﾘｰﾌ |
1 | ||
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-3B270 |
YU61 ﾒｲﾝ4枚ﾘｰﾌ+ｻﾌﾞ5枚ﾘｰﾌ |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16013 |
YU6# |
8 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16013 |
YU6# |
8 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16013 |
YU6# |
8 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-3B270 |
YU61 |
2 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-3B270 |
YU61 |
2 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-3B270 |
YU61 |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48212-3B270 |
YU61 |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48212-3B270 |
YU61 |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48212-3B270 |
YU61 |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48202-3B270 |
YU61 |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48202-3B270 |
YU61 |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48202-3B270 |
YU61 |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-3B270 |
YU61 |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-3B270 |
YU61 |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-3B270 |
YU61 |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-3B270 |
YU61 ﾒｲﾝ4枚ﾘｰﾌ+ｻﾌﾞ5枚ﾘｰﾌ |
1 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-3B270 |
YU61 ﾒｲﾝ4枚ﾘｰﾌ+ｻﾌﾞ5枚ﾘｰﾌ |
1 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-3B270 |
YU61 ﾒｲﾝ4枚ﾘｰﾌ+ｻﾌﾞ5枚ﾘｰﾌ |
1 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-36670 |
YU61 |
2 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-36670 |
YU61 |
2 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-36670 |
YU61 |
2 | ||
| 48261 - LEAF, REAR HELPER SPRING, NO.1 | ||||
| 48215-3B270 |
YU61 |
2 | ||
| 48261 - LEAF, REAR HELPER SPRING, NO.1 | ||||
| 48215-3B270 |
YU61 |
2 | ||
| 48261 - LEAF, REAR HELPER SPRING, NO.1 | ||||
| 48215-3B270 |
YU61 |
2 | ||
| 48262 - LEAF, REAR HELPER SPRING, NO.2 | ||||
| 48216-3B270 |
YU61 |
2 | ||
| 48262 - LEAF, REAR HELPER SPRING, NO.2 | ||||
| 48216-3B270 |
YU61 |
2 | ||
| 48262 - LEAF, REAR HELPER SPRING, NO.2 | ||||
| 48216-3B270 |
YU61 |
2 | ||
| 48263 - LEAF, REAR HELPER SPRING, NO.3 | ||||
| 48203-3B270 |
YU61 |
2 | ||
| 48263 - LEAF, REAR HELPER SPRING, NO.3 | ||||
| 48203-3B270 |
YU61 |
2 | ||
| 48263 - LEAF, REAR HELPER SPRING, NO.3 | ||||
| 48203-3B270 |
YU61 |
2 | ||
| 48264 - LEAF, REAR HELPER SPRING, NO.4 | ||||
| 48218-3B270 |
YU61 |
2 | ||
| 48264 - LEAF, REAR HELPER SPRING, NO.4 | ||||
| 48218-3B270 |
YU61 |
2 | ||
| 48264 - LEAF, REAR HELPER SPRING, NO.4 | ||||
| 48218-3B270 |
YU61 |
2 | ||
| 48265 - LEAF, REAR HELPER SPRING, NO.5 | ||||
| 48214-3B070 |
YU61 |
2 | ||
| 48265 - LEAF, REAR HELPER SPRING, NO.5 | ||||
| 48214-3B070 |
YU61 |
2 | ||
| 48265 - LEAF, REAR HELPER SPRING, NO.5 | ||||
| 48214-3B070 |
YU61 |
2 | ||
| Common parts | ||||
| 94110-51000 | ||||
ILLUST NO. 2 OF 2(8708- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-3B270 |
YU61 ﾒｲﾝ4枚ﾘｰﾌ+ｻﾌﾞ5枚ﾘｰﾌ |
1 | ||
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-3B270 |
YU61 ﾒｲﾝ4枚ﾘｰﾌ+ｻﾌﾞ5枚ﾘｰﾌ |
1 | ||
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-3B270 |
YU61 ﾒｲﾝ4枚ﾘｰﾌ+ｻﾌﾞ5枚ﾘｰﾌ |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16013 |
YU6# |
8 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16013 |
YU6# |
8 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16013 |
YU6# |
8 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-3B270 |
YU61 |
2 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-3B270 |
YU61 |
2 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-3B270 |
YU61 |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48212-3B270 |
YU61 |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48212-3B270 |
YU61 |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48212-3B270 |
YU61 |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48202-3B270 |
YU61 |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48202-3B270 |
YU61 |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48202-3B270 |
YU61 |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-3B270 |
YU61 |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-3B270 |
YU61 |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-3B270 |
YU61 |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-3B270 |
YU61 ﾒｲﾝ4枚ﾘｰﾌ+ｻﾌﾞ5枚ﾘｰﾌ |
1 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-3B270 |
YU61 ﾒｲﾝ4枚ﾘｰﾌ+ｻﾌﾞ5枚ﾘｰﾌ |
1 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-3B270 |
YU61 ﾒｲﾝ4枚ﾘｰﾌ+ｻﾌﾞ5枚ﾘｰﾌ |
1 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-36670 |
YU61 |
2 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-36670 |
YU61 |
2 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-36670 |
YU61 |
2 | ||
| 48261 - LEAF, REAR HELPER SPRING, NO.1 | ||||
| 48215-3B270 |
YU61 |
2 | ||
| 48261 - LEAF, REAR HELPER SPRING, NO.1 | ||||
| 48215-3B270 |
YU61 |
2 | ||
| 48261 - LEAF, REAR HELPER SPRING, NO.1 | ||||
| 48215-3B270 |
YU61 |
2 | ||
| 48262 - LEAF, REAR HELPER SPRING, NO.2 | ||||
| 48216-3B270 |
YU61 |
2 | ||
| 48262 - LEAF, REAR HELPER SPRING, NO.2 | ||||
| 48216-3B270 |
YU61 |
2 | ||
| 48262 - LEAF, REAR HELPER SPRING, NO.2 | ||||
| 48216-3B270 |
YU61 |
2 | ||
| 48263 - LEAF, REAR HELPER SPRING, NO.3 | ||||
| 48203-3B270 |
YU61 |
2 | ||
| 48263 - LEAF, REAR HELPER SPRING, NO.3 | ||||
| 48203-3B270 |
YU61 |
2 | ||
| 48263 - LEAF, REAR HELPER SPRING, NO.3 | ||||
| 48203-3B270 |
YU61 |
2 | ||
| 48264 - LEAF, REAR HELPER SPRING, NO.4 | ||||
| 48218-3B270 |
YU61 |
2 | ||
| 48264 - LEAF, REAR HELPER SPRING, NO.4 | ||||
| 48218-3B270 |
YU61 |
2 | ||
| 48264 - LEAF, REAR HELPER SPRING, NO.4 | ||||
| 48218-3B270 |
YU61 |
2 | ||
| 48265 - LEAF, REAR HELPER SPRING, NO.5 | ||||
| 48214-3B070 |
YU61 |
2 | ||
| 48265 - LEAF, REAR HELPER SPRING, NO.5 | ||||
| 48214-3B070 |
YU61 |
2 | ||
| 48265 - LEAF, REAR HELPER SPRING, NO.5 | ||||
| 48214-3B070 |
YU61 |
2 | ||
| Common parts | ||||
| 94110-51000 | ||||
ILLUST NO. 2 OF 2(8708- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-3B270 |
YU61 ﾒｲﾝ4枚ﾘｰﾌ+ｻﾌﾞ5枚ﾘｰﾌ |
1 | ||
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-3B270 |
YU61 ﾒｲﾝ4枚ﾘｰﾌ+ｻﾌﾞ5枚ﾘｰﾌ |
1 | ||
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-3B270 |
YU61 ﾒｲﾝ4枚ﾘｰﾌ+ｻﾌﾞ5枚ﾘｰﾌ |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16013 |
YU6# |
8 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16013 |
YU6# |
8 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16013 |
YU6# |
8 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-3B270 |
YU61 |
2 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-3B270 |
YU61 |
2 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-3B270 |
YU61 |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48212-3B270 |
YU61 |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48212-3B270 |
YU61 |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48212-3B270 |
YU61 |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48202-3B270 |
YU61 |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48202-3B270 |
YU61 |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48202-3B270 |
YU61 |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-3B270 |
YU61 |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-3B270 |
YU61 |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-3B270 |
YU61 |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-3B270 |
YU61 ﾒｲﾝ4枚ﾘｰﾌ+ｻﾌﾞ5枚ﾘｰﾌ |
1 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-3B270 |
YU61 ﾒｲﾝ4枚ﾘｰﾌ+ｻﾌﾞ5枚ﾘｰﾌ |
1 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-3B270 |
YU61 ﾒｲﾝ4枚ﾘｰﾌ+ｻﾌﾞ5枚ﾘｰﾌ |
1 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-36670 |
YU61 |
2 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-36670 |
YU61 |
2 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-36670 |
YU61 |
2 | ||
| 48261 - LEAF, REAR HELPER SPRING, NO.1 | ||||
| 48215-3B270 |
YU61 |
2 | ||
| 48261 - LEAF, REAR HELPER SPRING, NO.1 | ||||
| 48215-3B270 |
YU61 |
2 | ||
| 48261 - LEAF, REAR HELPER SPRING, NO.1 | ||||
| 48215-3B270 |
YU61 |
2 | ||
| 48262 - LEAF, REAR HELPER SPRING, NO.2 | ||||
| 48216-3B270 |
YU61 |
2 | ||
| 48262 - LEAF, REAR HELPER SPRING, NO.2 | ||||
| 48216-3B270 |
YU61 |
2 | ||
| 48262 - LEAF, REAR HELPER SPRING, NO.2 | ||||
| 48216-3B270 |
YU61 |
2 | ||
| 48263 - LEAF, REAR HELPER SPRING, NO.3 | ||||
| 48203-3B270 |
YU61 |
2 | ||
| 48263 - LEAF, REAR HELPER SPRING, NO.3 | ||||
| 48203-3B270 |
YU61 |
2 | ||
| 48263 - LEAF, REAR HELPER SPRING, NO.3 | ||||
| 48203-3B270 |
YU61 |
2 | ||
| 48264 - LEAF, REAR HELPER SPRING, NO.4 | ||||
| 48218-3B270 |
YU61 |
2 | ||
| 48264 - LEAF, REAR HELPER SPRING, NO.4 | ||||
| 48218-3B270 |
YU61 |
2 | ||
| 48264 - LEAF, REAR HELPER SPRING, NO.4 | ||||
| 48218-3B270 |
YU61 |
2 | ||
| 48265 - LEAF, REAR HELPER SPRING, NO.5 | ||||
| 48214-3B070 |
YU61 |
2 | ||
| 48265 - LEAF, REAR HELPER SPRING, NO.5 | ||||
| 48214-3B070 |
YU61 |
2 | ||
| 48265 - LEAF, REAR HELPER SPRING, NO.5 | ||||
| 48214-3B070 |
YU61 |
2 | ||
| Common parts | ||||
| 94110-51000 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
Unable to retrieve price information.
