YU60-MDPGTJ3 (1988)
Toyota Dyna/Toyoace
Production
Aug 1988
-
May 1995
Engine
3Y
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(8808- )175

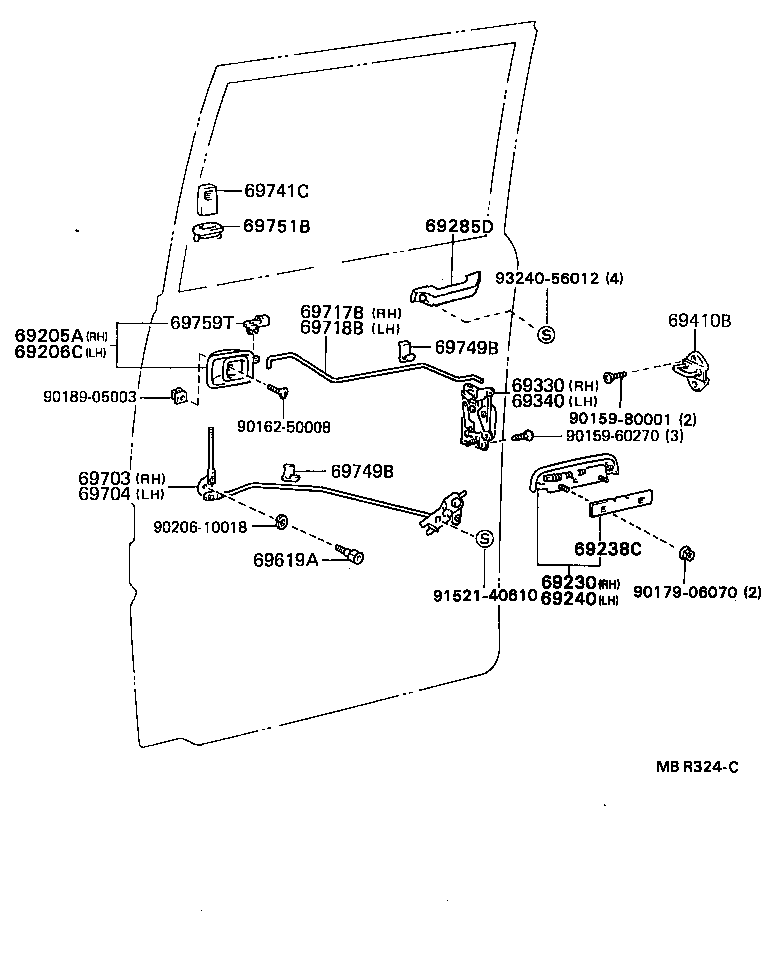

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69205A - HANDLE SUB-ASSY, REAR DOOR INSIDE, RH | ||||
| 69205-9570304 |
YU60..TOY..175 BLUE,TRIM8# |
1 | ||
| 69205-9570323 |
YU60..175 GRAY,TRIM1# |
1 | ||
| 69205-95703B0 |
YU60..175 BLUISH GRAY,TRIM1# |
1 | ||
| 69206C - HANDLE SUB-ASSY, REAR DOOR INSIDE, LH | ||||
| 69206-9570304 |
YU60..TOY..175 BLUE,TRIM8# |
1 | ||
| 69206-95703B0 |
YU60..175 GRAY,TRIM1# |
1 | ||
| 69230 - HANDLE ASSY, REAR DOOR OUTSIDE, RH | ||||
| 69230-95400 |
YU60..175 |
1 | ||
| 69238C - PAD, DOOR OUTSIDE HANDLE | ||||
| 69238-95J00 |
YU60..175 |
2 | ||
| 69240 - HANDLE ASSY, REAR DOOR OUTSIDE, LH | ||||
| 69240-95400 |
YU60..175 |
1 | ||
| 69285D - HANDLE, PULL | ||||
| 69285-9540404 |
YU60..TOY..175 BLUE,TRIM8# |
2 | ||
| 69330 - LOCK ASSY, REAR DOOR, RH | ||||
| 69330-95401 |
YU60..175 |
1 | ||
| 69340 - LOCK ASSY, REAR DOOR, LH | ||||
| 69340-95402 |
YU60..175 |
1 | ||
| 69410B - PLATE ASSY, REAR DOOR LOCK STRIKER | ||||
| 69410-95010 |
YU60..175 |
2 | ||
| 69410-37010 |
YU60..175 |
2 | ||
| 69619A - BOLT | ||||
| 69619-95010 |
YU60..175 |
2 | ||
| 69703 - LINK SUB-ASSY, REAR DOOR LOCKING CONTROL, RH | ||||
| 69701-95401 |
YU60..175 |
1 | ||
| 69704 - LINK SUB-ASSY, REAR DOOR LOCKING CONTROL, LH | ||||
| 69702-95401 |
YU60..175 |
1 | ||
| 69717B - LINK, REAR DOOR LOCK REMOTE CONTROL, RH | ||||
| 69713-95400 |
YU60..175 |
1 | ||
| 69718B - LINK, REAR DOOR LOCK REMOTE CONTROL, LH | ||||
| 69714-95401 |
YU60..175 |
1 | ||
| 69741C - KNOB, REAR DOOR LOCK CONTROL | ||||
| 69741-2002001 |
YU60..TOY..175 BLACK,TRIM8# |
2 | ||
| 69741-3201001 |
YU60..175 BLACK,TRIM1# |
2 | ||
| 69741-2002001 |
YU60..175 BLACK,TRIM1# |
2 | ||
| 69749B - CLAMP, REAR DOOR LOCK LINK | ||||
| 69749-12010 |
YU60..175 |
2 | ||
| 69749B - CLAMP, REAR DOOR LOCK LINK | ||||
| 69749-12010 |
YU60..175 |
2 | ||
| 69751B - HOLDER, DOOR LOCKING(FOR REAR DOOR) | ||||
| 69751-2003101 |
YU60..175 BLACK,TRIM1# |
2 | ||
| 69751-2003101 |
YU60..TOY..175 BLACK,TRIM8# |
2 | ||
| 69759T - SNAP, REAR DOOR INSIDE HANDLE | ||||
| 69759-14050 |
YU60..175 右側 |
1 | ||
| 69759-24070 |
YU60..175 左側 |
1 | ||
| Common parts | ||||
| 90159-60270 | ||||
| 90159-80001 | ||||
| 90162-50008 | ||||
| 90179-06070 | ||||
| 90189-05003 | ||||
| 90206-10018 | ||||
| 91521-40610 | ||||
| 93240-56012 | ||||
